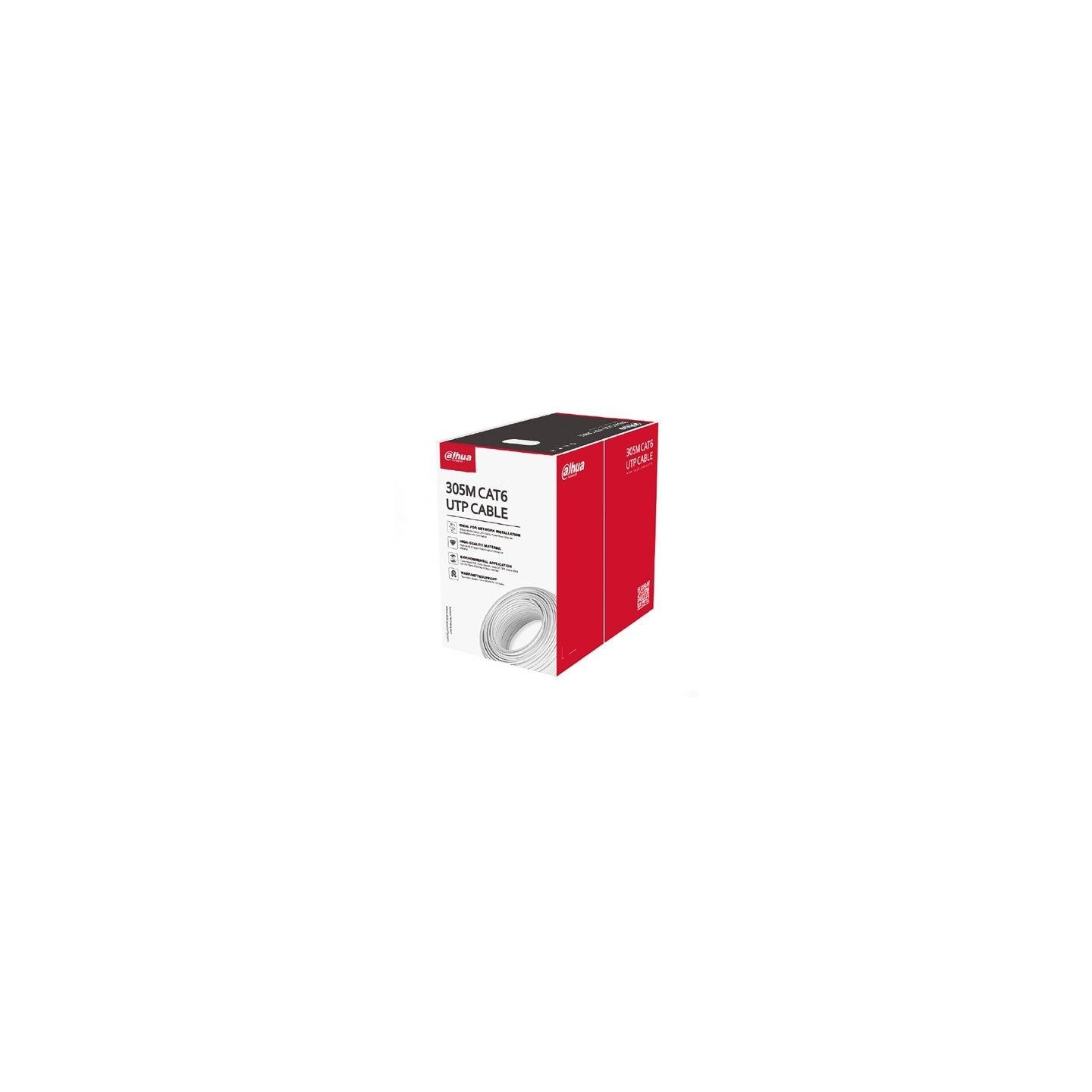

Dahua CAT6 Cable - PFM922I-6UN-C - CAT6 Cable CCA 305m Gray

• 305m/carton UTP CAT6, power over Ethernet, compatible with one cable
• Manufacturing excellence
• Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified

Conductor

• Material : CCA (copper content 22%–31%)
• Diameter : 0.57 mm ± 0.01 mm (0.0224" ± 0.0004")

Insulation

• Material : HDPE
• Min. Average Thickness : ≥ 0.21 mm (0.0083")
• Diameter : 1.02 mm ± 0.06 mm (0.04" ± 0.0024")
• Color : 8 cores (blue, white/blue; orange, white/orange; green, white/green; brown, white/brown)

Rip Cord

• Material : Polyester
• Specification : 500D

Separator

• Material : PE
• Specification : Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157")

Sheath

• Material : PVC
• Min. Average Thickness : ≥ 0.5 mm (0.0197")
• Diameter : 6.5 mm ± 0.30 mm (0.26" ± 0.0118")
• Color : Gray

Electrical

• Max. DC Resistance of a Single Conductor : ≤ 11.5 Ω@100 m (328.08 ft)

Environmental

• Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Installation Temperature : 0 °C to +50 °C (+32 °F to +122 °F)
• Storage Temperature & Humidity : –10 °C to +40 °C (+14 °F to +104 °F), < 60% (RH)

Packaging

• Cable Length : 305.0 m (1,000.66 ft) ± 1.5 m (4.92 ft)
• Packaging Dimensions : 394 mm × 394 mm × 253 mm (15.51" × 15.51" × 9.96") (L × W × H)
• Net Weight : 9.5 kg ± 0.5 kg (20.94 lb ± 1.10 lb)
• Gross Weight : 10.5 kg ± 0.5 kg (23.15 lb ± 1.10 lb)
• Packaging Method : 305.0 m (1,000.66 ft) a carton, one carton with 2 inner cartons
• Transport Package Dimensions : 527 mm × 415 mm × 424 mm (20.75" × 16.34" × 16.69") (L × W × H)

Compliance Standard

• Compliance Standard : Q/DXJ 067-2019
• Certification : CPR Eca
• Flame-retardant Standard : EN 50575 Eca
