Brateck IFP Wall Mount Manual - HAW400E-65 - Vertical Motion 60x60 65kg
Brateck IFP Wall Mount with manual vertical motion and weight-balanced design; supports VESA 60x60 displays up to 65 kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

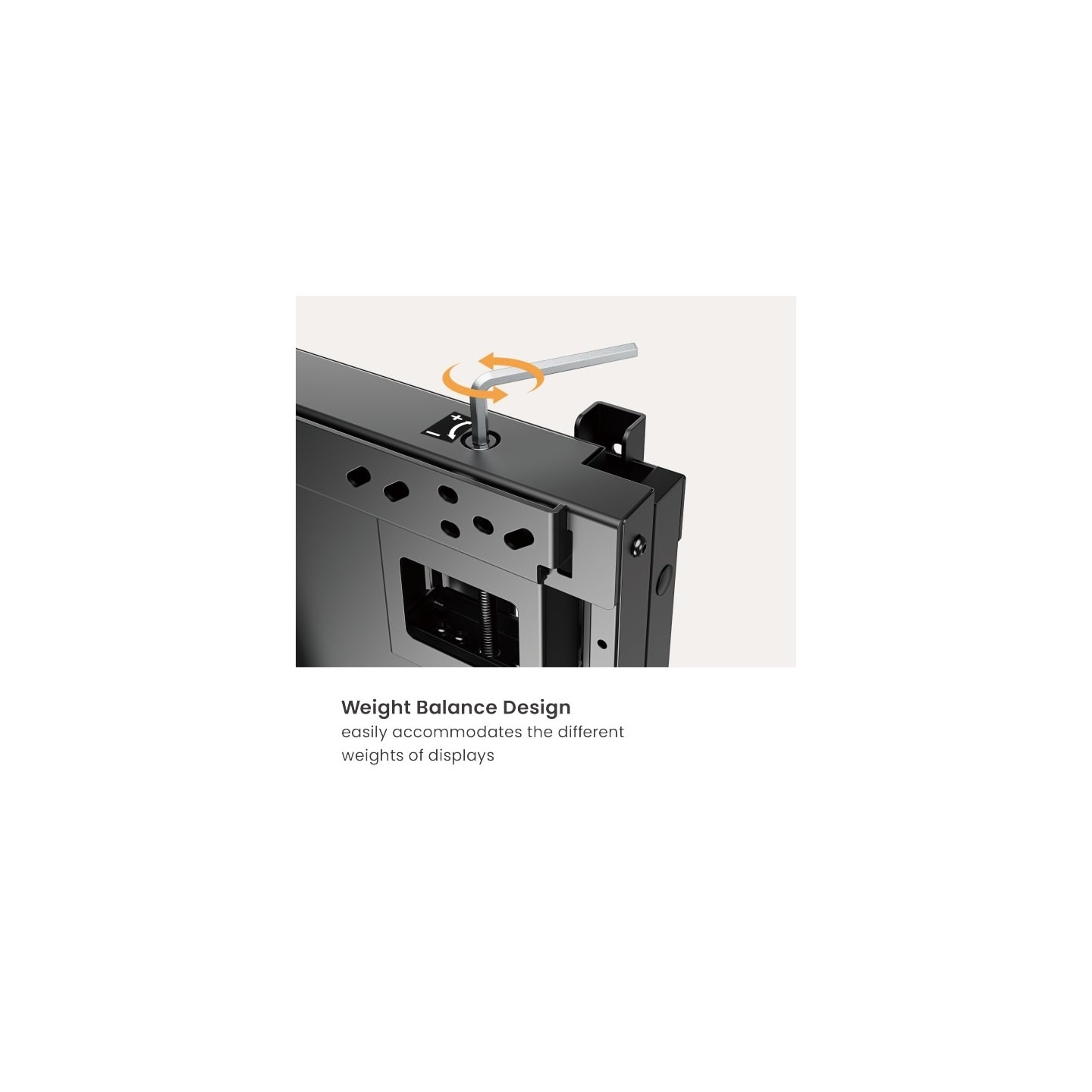

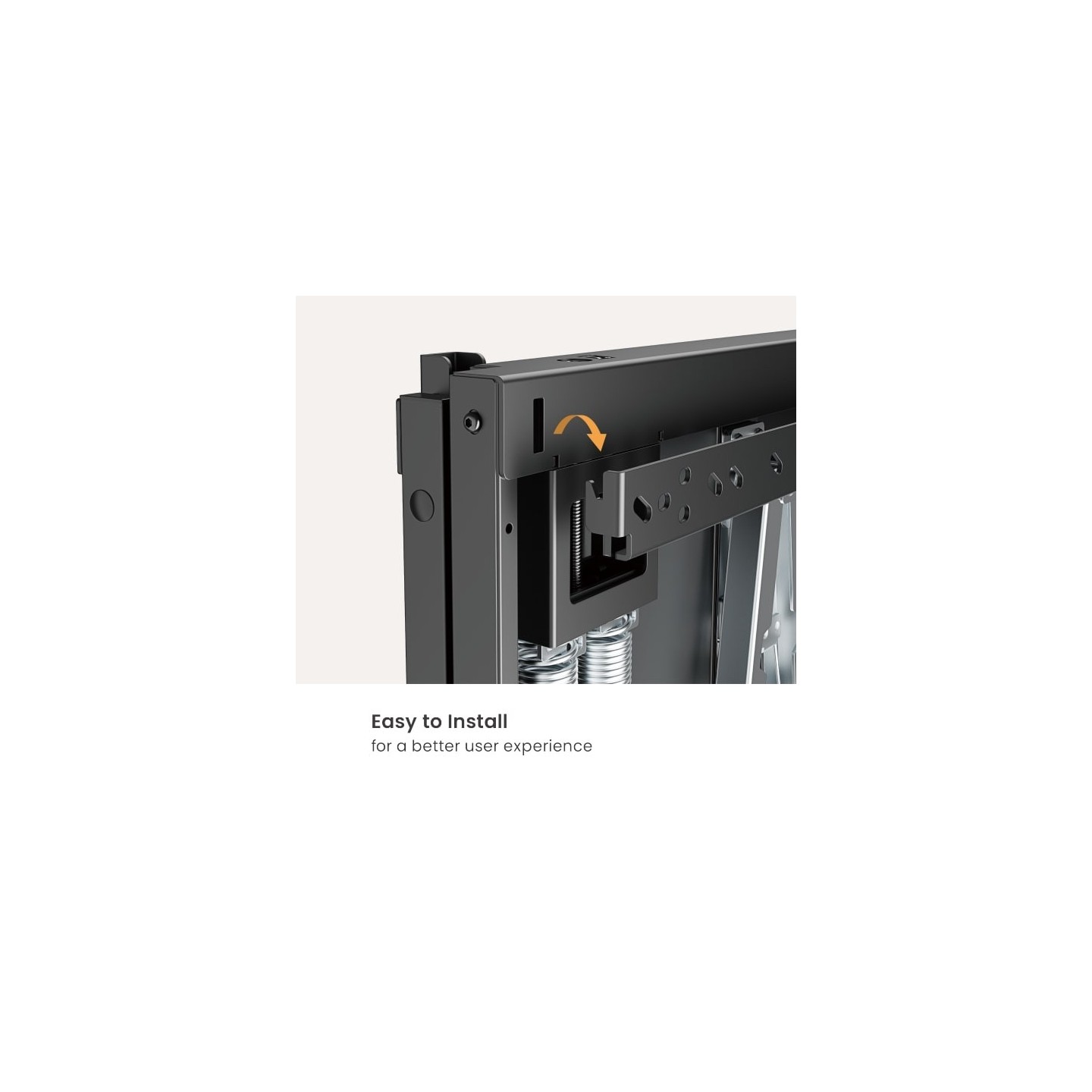

Incorporating an innovative weight balance design and heavy-duty construction, the HAW400E-65 allows users to up and down the displays with only a touch, supporting the displays with a weight of 35~65kg (77lbs~143lbs). It is easy to install for a better user experience. Perfect for schools, conference rooms, healthcare facilities, trade shows, and more.
- Product Category: Interactive Whiteboard Wall Mount
- Rank: Premium
- Material: Aluminum,Steel,Plastic
- Metal Sheet Thickness: Bracket Arm THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.098" pickling sheet,Wall Plate THK=0.12" pickling sheet)
- Pipe Size: 30x20x1.2mm Square Steel Tube (1.2"x0.79"x0.047" Square Steel Tube)
- Surface Finish: Powder Coating
- Color: Matte Black

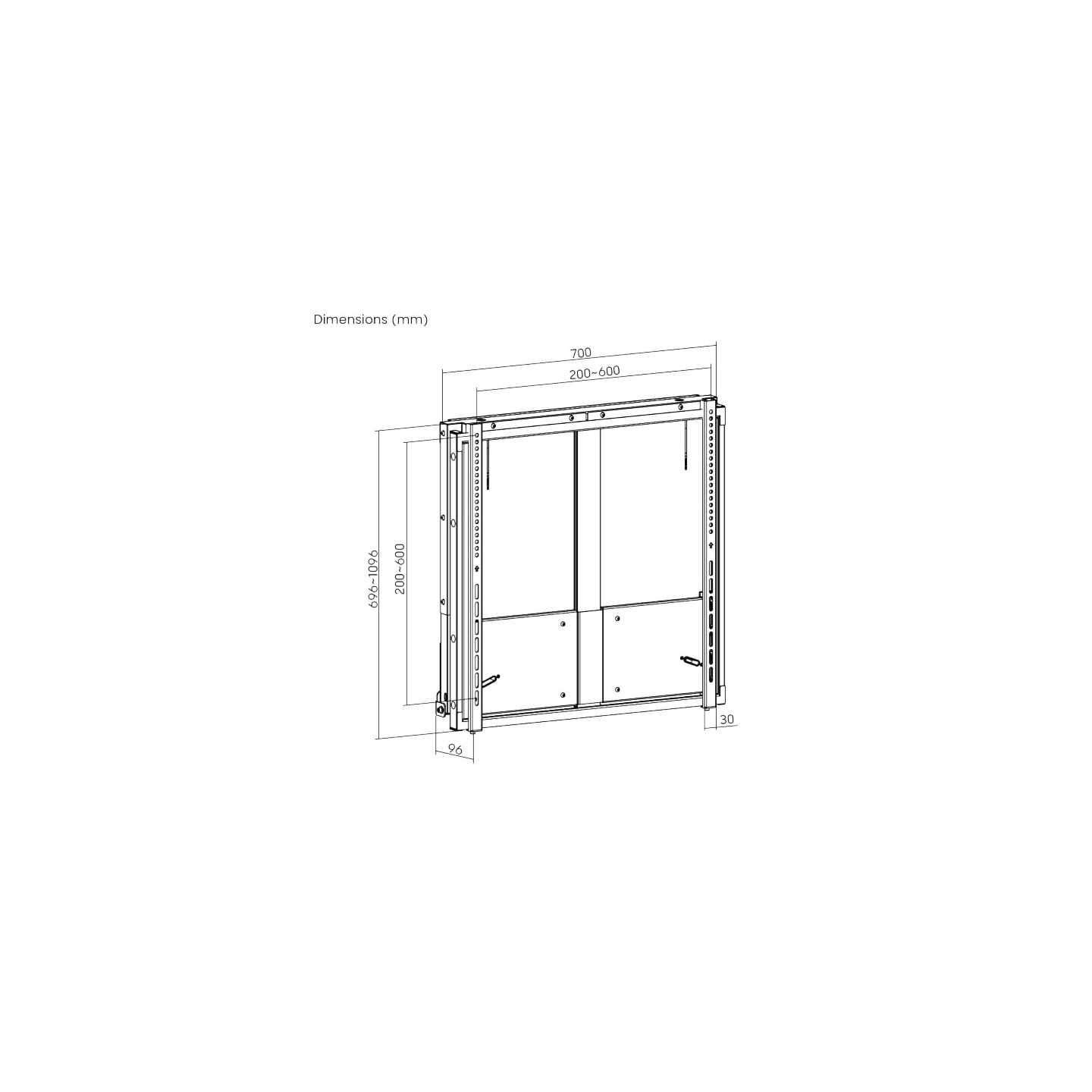

- Dimensions: 96x700x696mm (3.8"x27.6"x27.4")
- Fit Screen Size: 55"-75"
- Fit Curved TV: No
- Mounting Hole Pattern: VESA & Universal
- VESA Compatible: 200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,350x350,400x400,600x300,400x600,600x400,600x600
- Max. Mounting Hole: 600x600
- Weight Capacity: 35~65kg (77~143lbs)
- Strength Tested: 4 Times Approved
- Profile: 96mm (3.8")
- Screen Freely Tilting: No

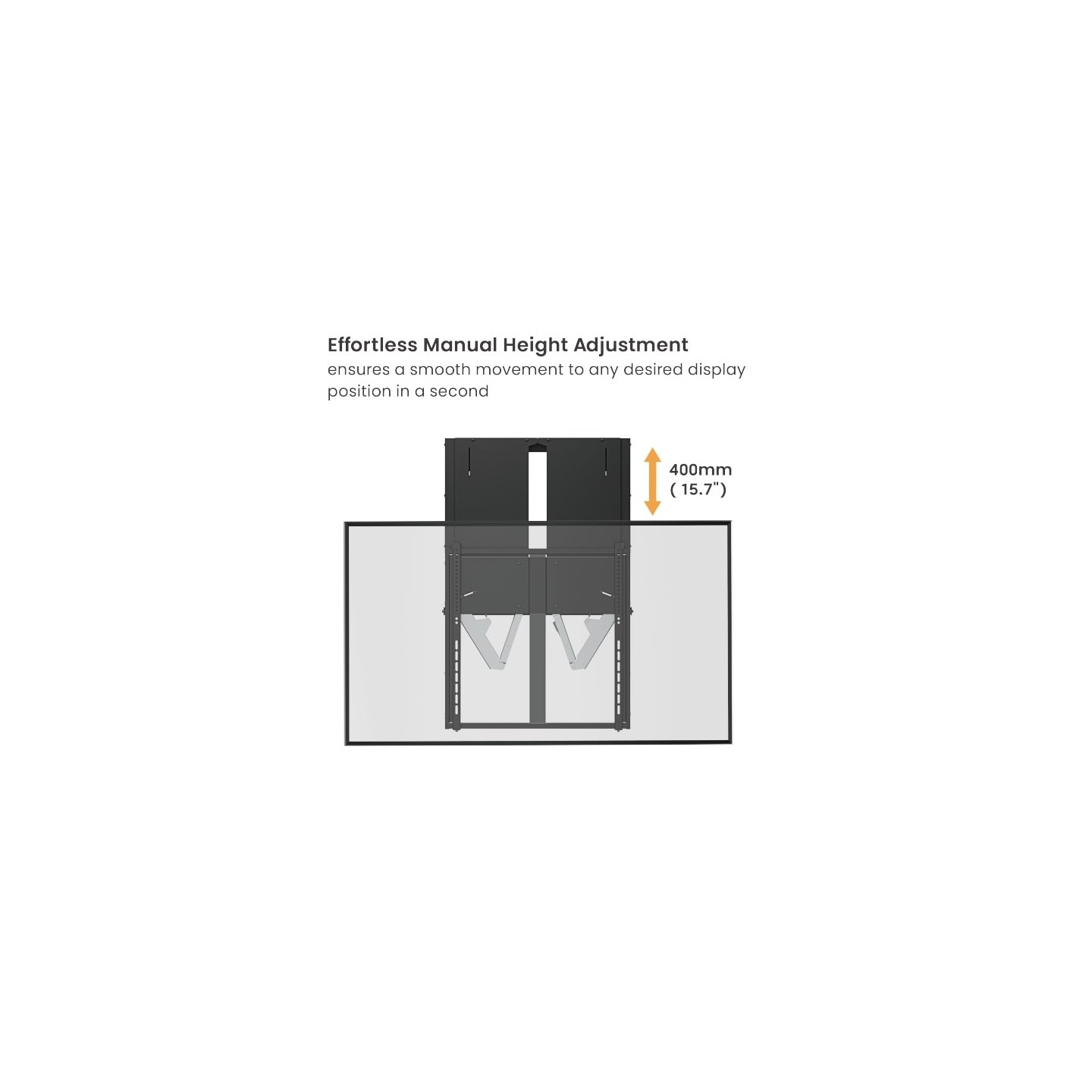

- TV Height Range: 400mm (15.7")
- Installation: Solid Wall,Double Stud(406mm/450mm)
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- AV Component Shelf: No
- Direction Indicator: Yes
- Cable Management: No
- Anti-theft: No
- Bubble Level: Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
| Function | Vertical |
| Max. Weight | 65kg |
