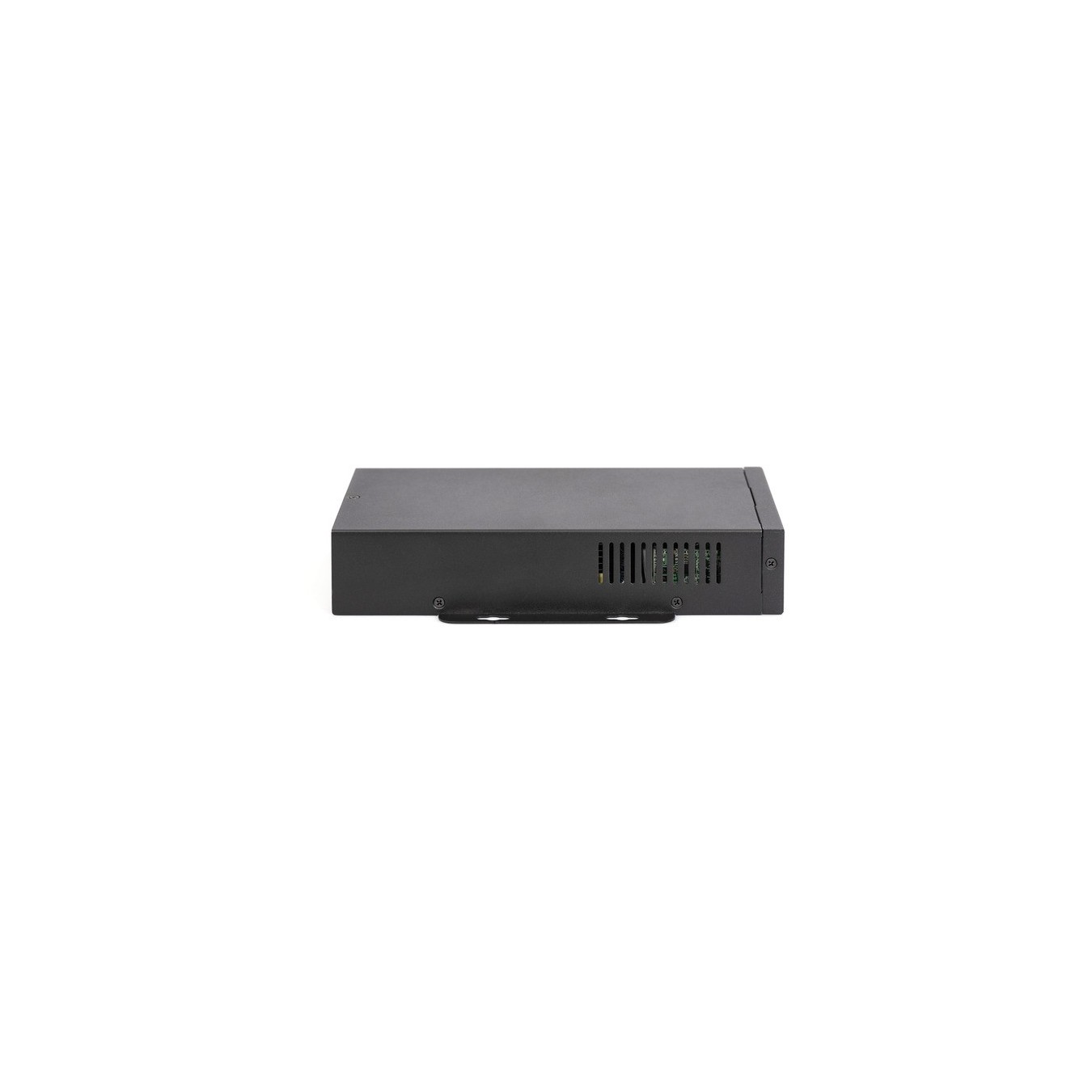

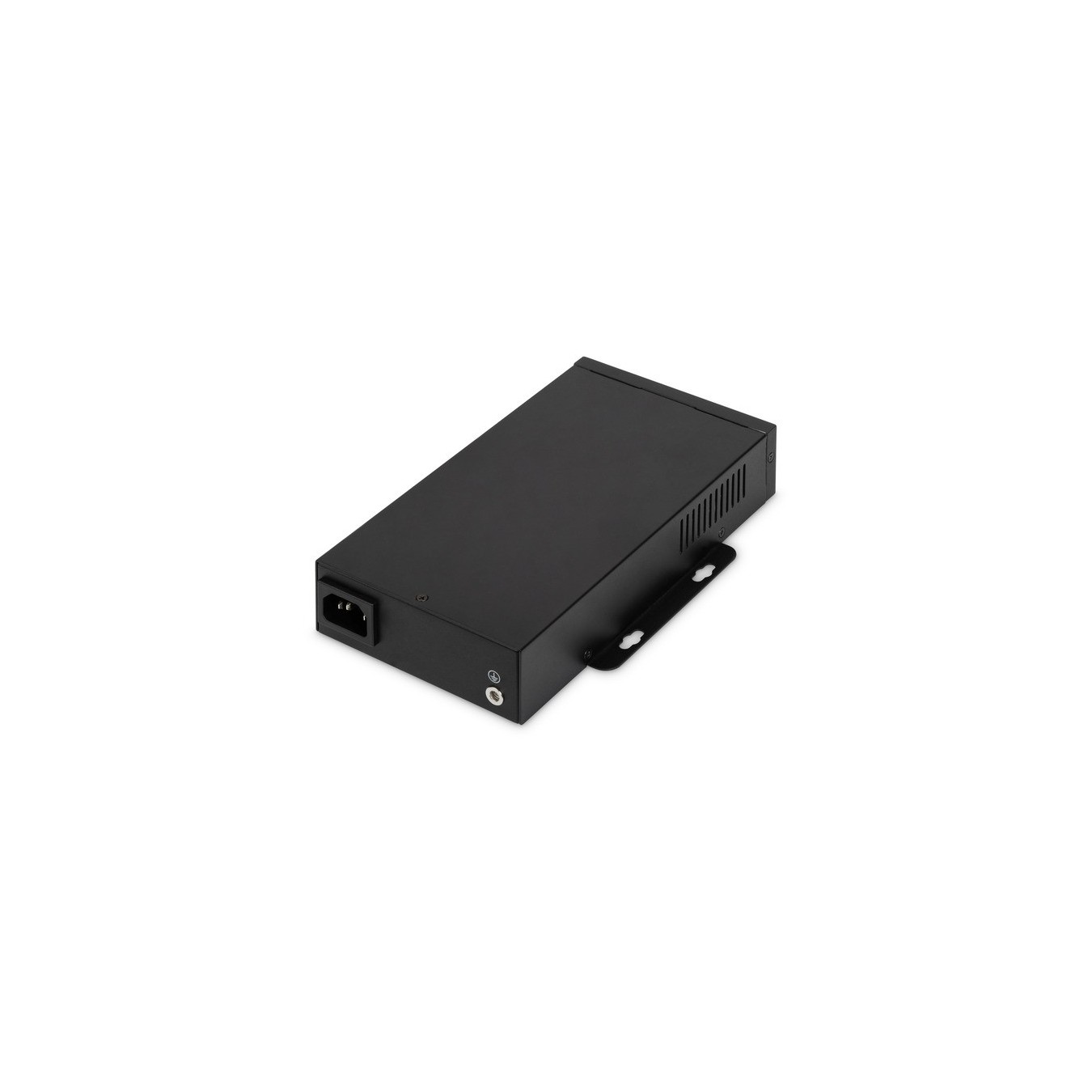

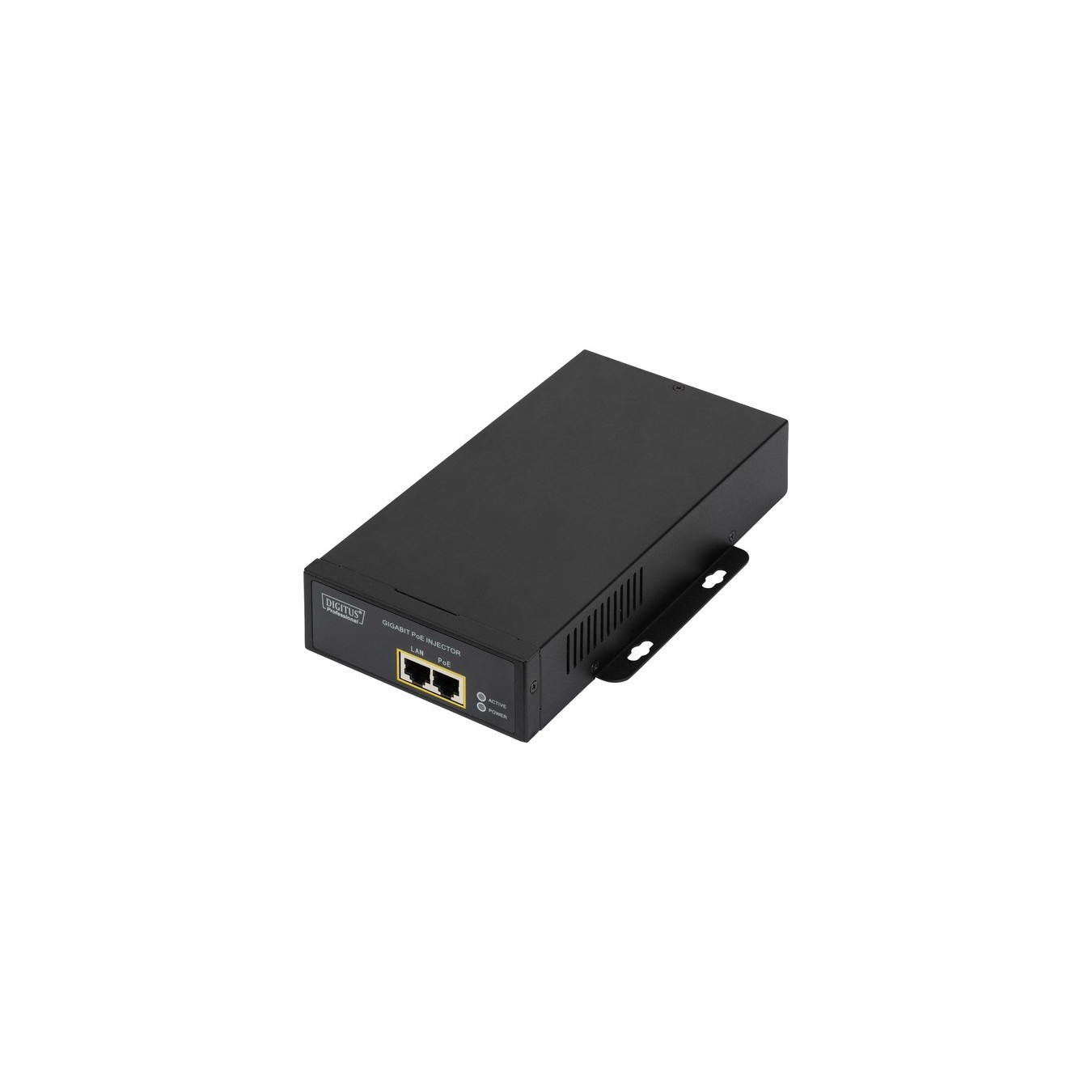

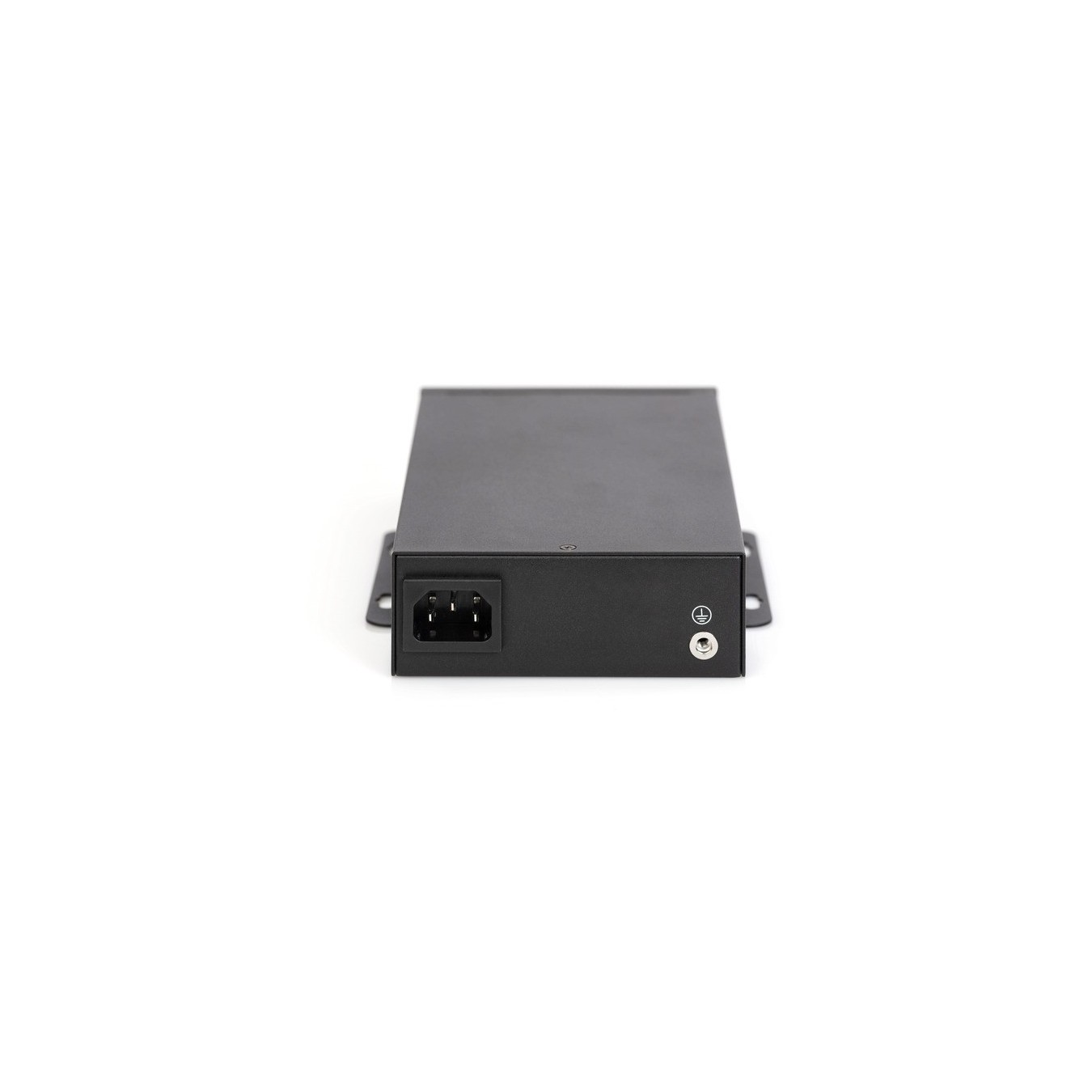

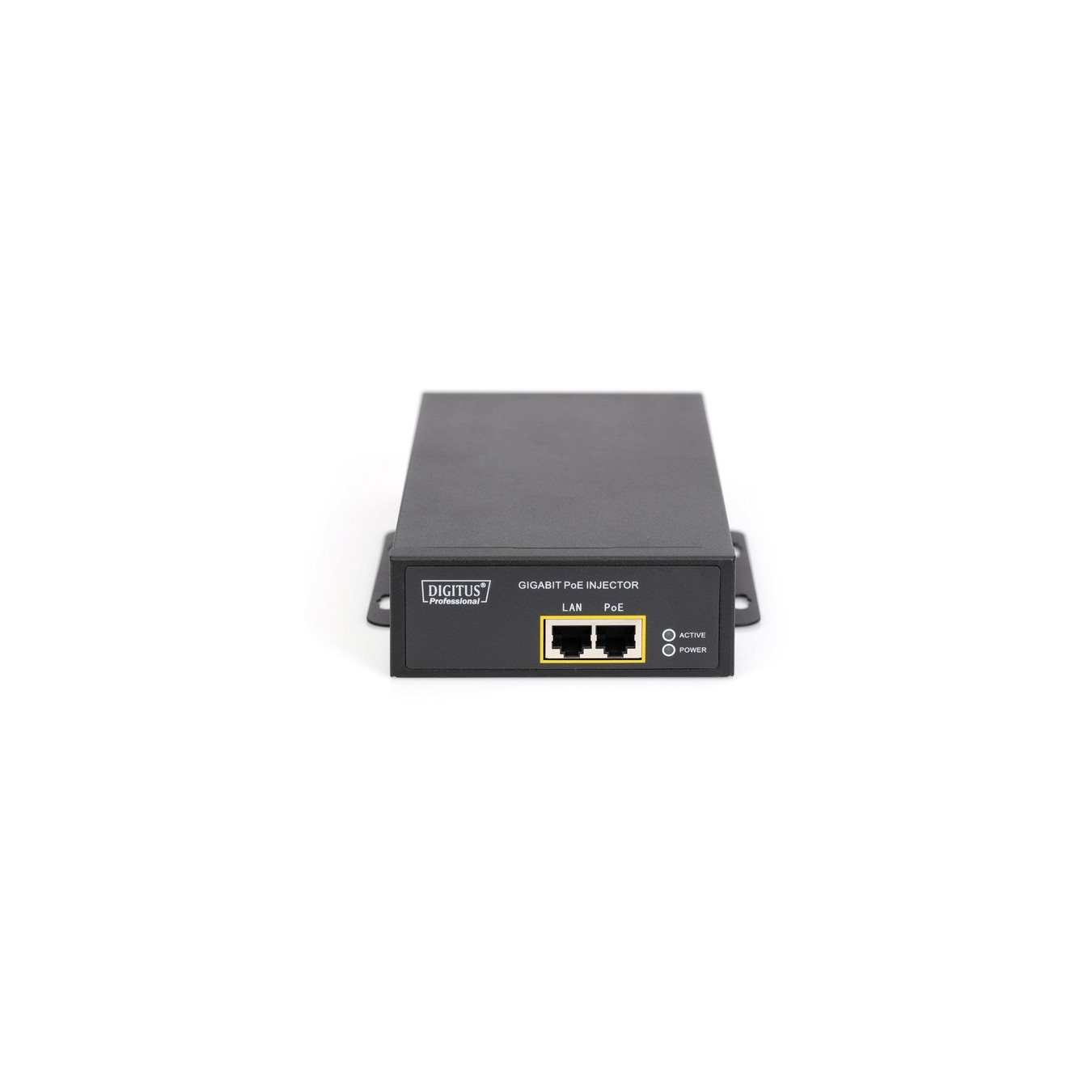

Gigabit Ethernet PoE++ Injector - 802.3at, 95 W
PoE injector enables data and power over Ethernet for PoE devices (e.g., cameras) with up to 95W budget and IEEE 802.3at support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Length | 180+ mm |
|---|
With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices are only fed in via an Ethernet cable. This eliminates the need to lay a separate power line and allows you to expand your network even where there are no sockets or power lines. The injector is fully compatible with the IEEE 802.3af/at PoE standard and delivers an output power of 95 watts.
| Typ | PoE-Injector |
| Color | schwarz |
| EAN | 4016032441137 |
| Manufacturer no. | DN-95107 |
| Connections | 2x RJ-45 |
| Power supply - input voltage | 100-240 V |
| power source | Power outlet |
| Feature | 55 volt output voltage, 95 watts | LAN(RJ45) output, power supply via pin: 4/5(+),7/8(-) and 3/6(+),1/2(-) | Cable connection: 10/100/1000 Mbit/s | The output has a current limit, a short-circuit protection and automatic device detection and classification Own consumption: 3W max |
| More information | PoE power budget: 95W | PoE standard: IEEE802.3at (PoE+) |
| Accessories - available | Quick start guide, power cable |
| Dimensions | Width: 134mm x Height: 41mm x Depth/Length: 214mm |
