4-Port SATA and 1-Slot M.2 Key B PCIe x4 Card - Low Profile Form Factor Adapter
Delock PCIe x4 card with 4 internal SATA ports and 1x M.2 Key B slot in a low-profile form factor.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

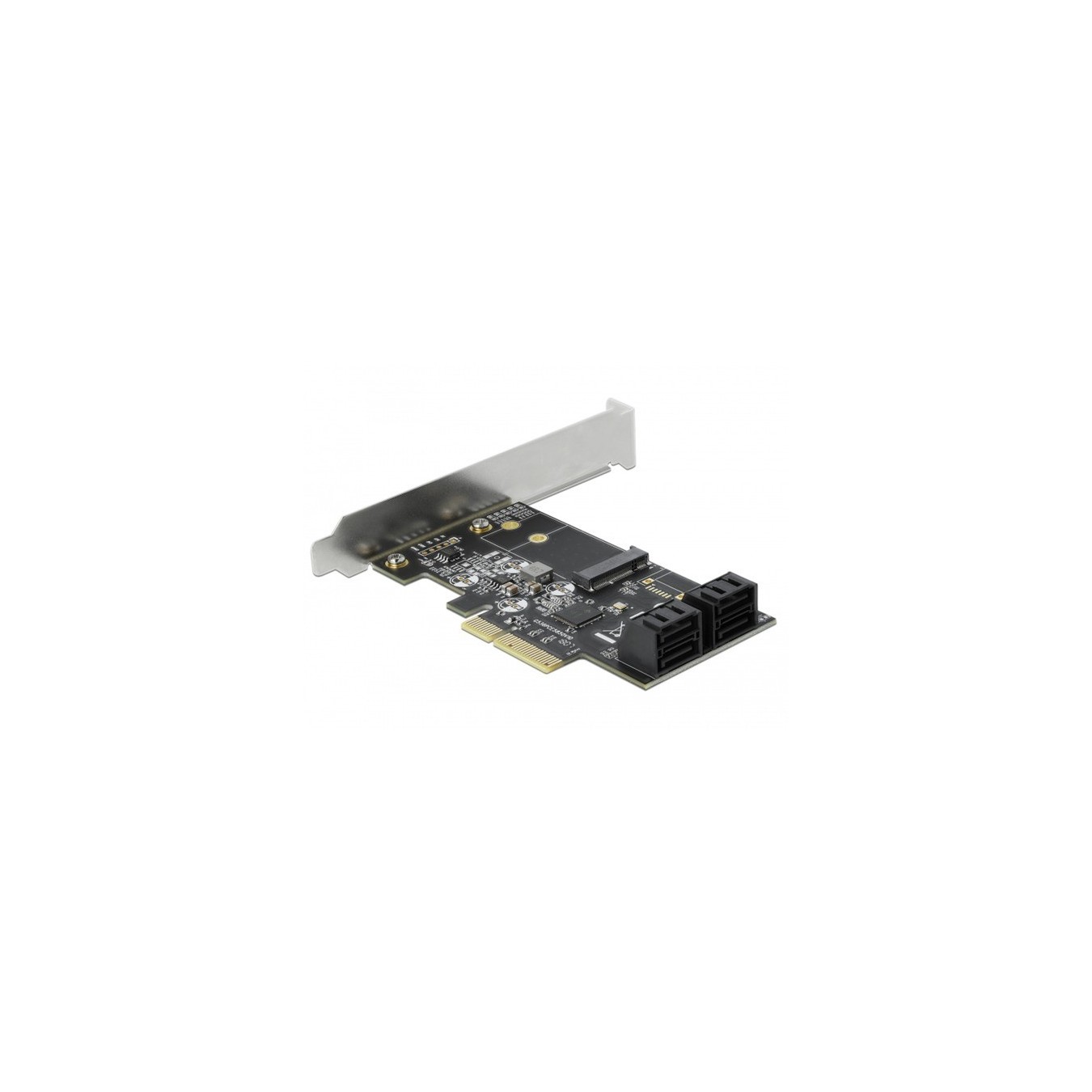

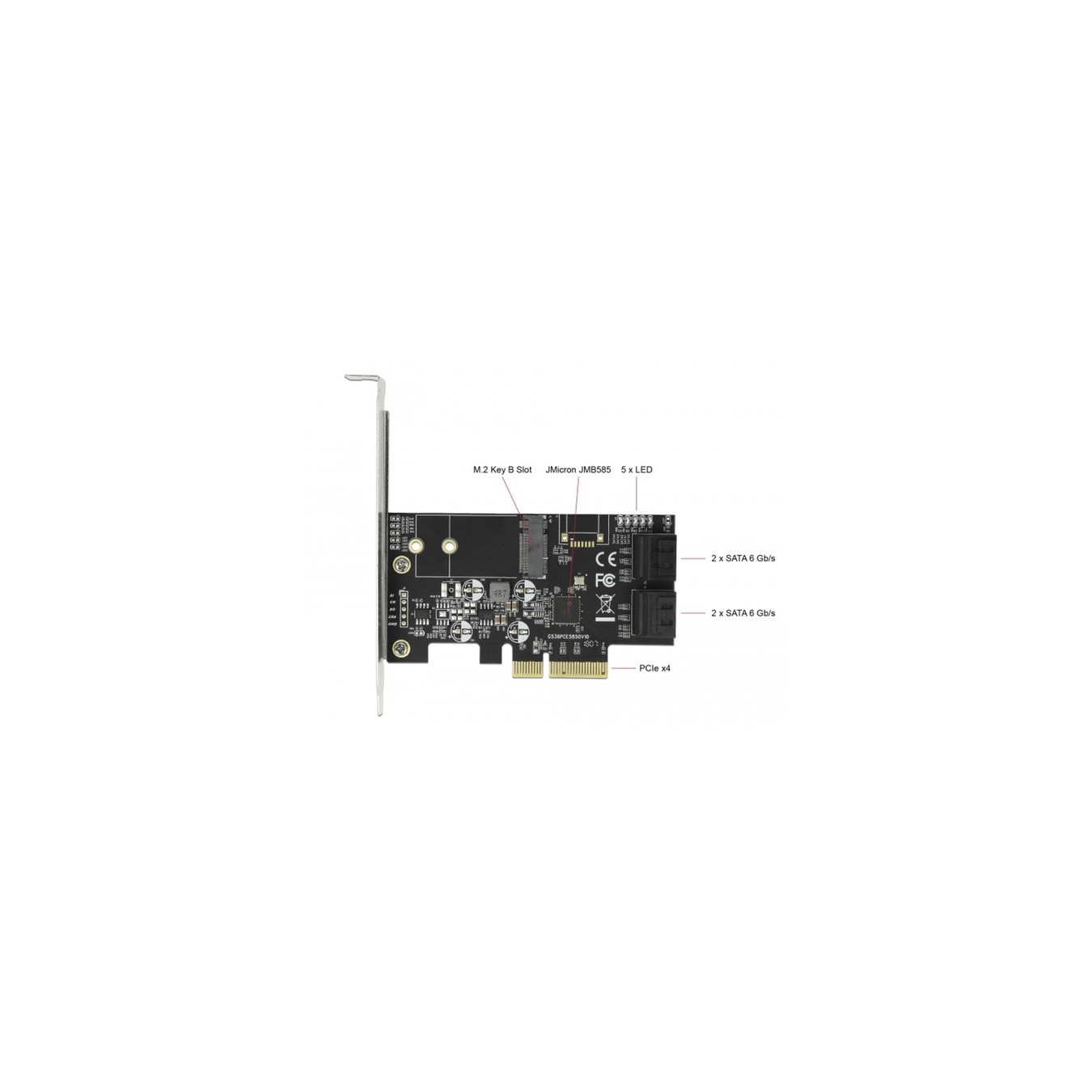

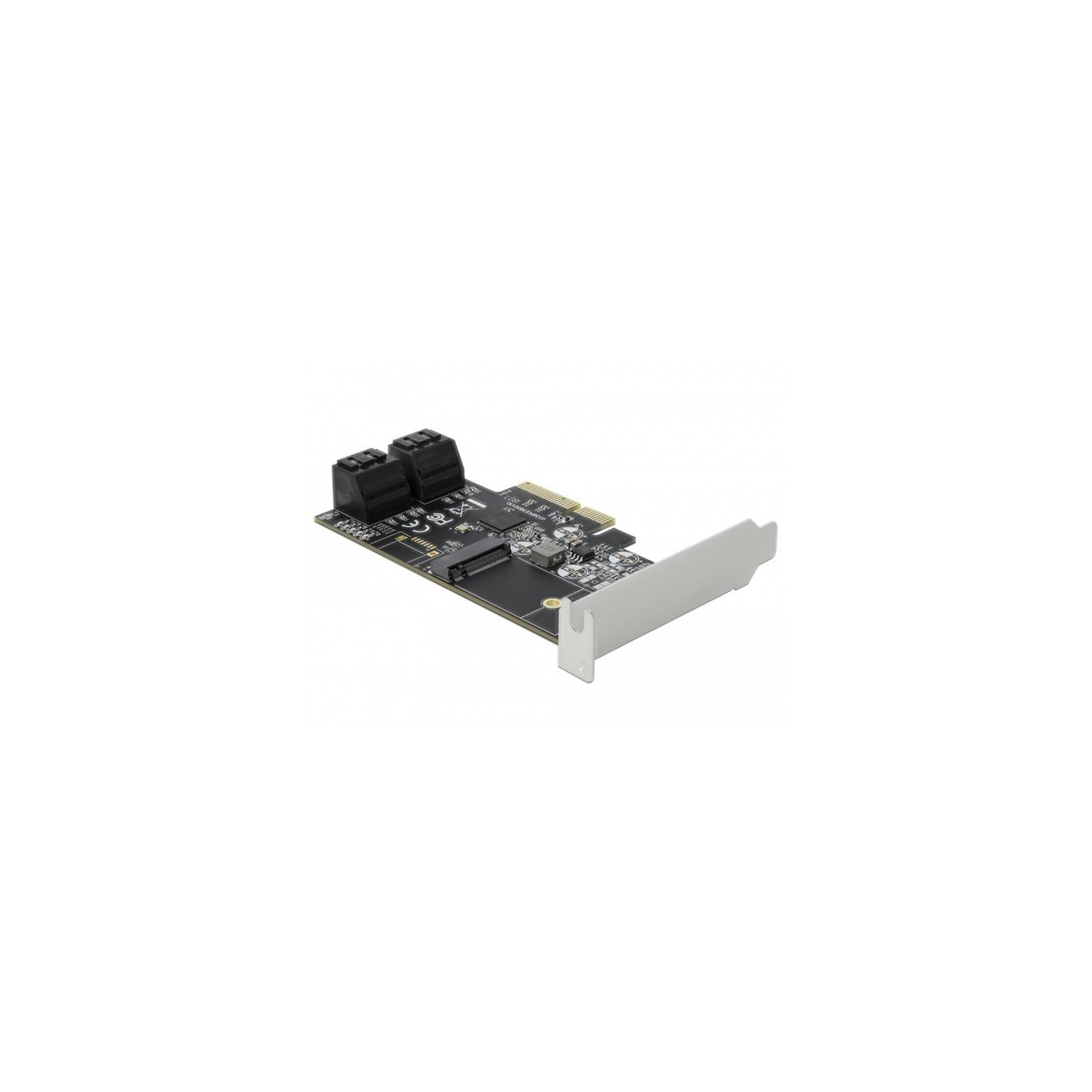

The 4 port SATA and 1 slot M.2 Key B PCI Express x4 card - low profile form factor from Delock expands the PC with four internal SATA ports and an M.2 slot. Various devices such as: B. SSDs, hard drives, DVD drives etc. and an M.2 module in 2242 or 2230 format can be connected.
| Typ | Adapter |
| EAN | 4043619903962 |
| Manufacturer no. | 90396 |
| slot | PCIe x4 |
| Chip | JMicron JMB585 |
| Protocol | Serial-ATA/600, Serial-ATA/150, Serial-ATA/300 |
| Connections - internal | 1x M.2, 4x 7-pin SATA |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | Interface: SATA, Supports M.2 modules in format 2242 and 2230 with Key B or Key B+M on SATA basis, Maximum height of the components on the module: 1.5 mm, Use of double-sided modules possible | Supports Native Command Queuing (NCQ), Supports S.M.A.R.T., Supports TRIM, Supports DevSleep, Hot Swap, Bootable |

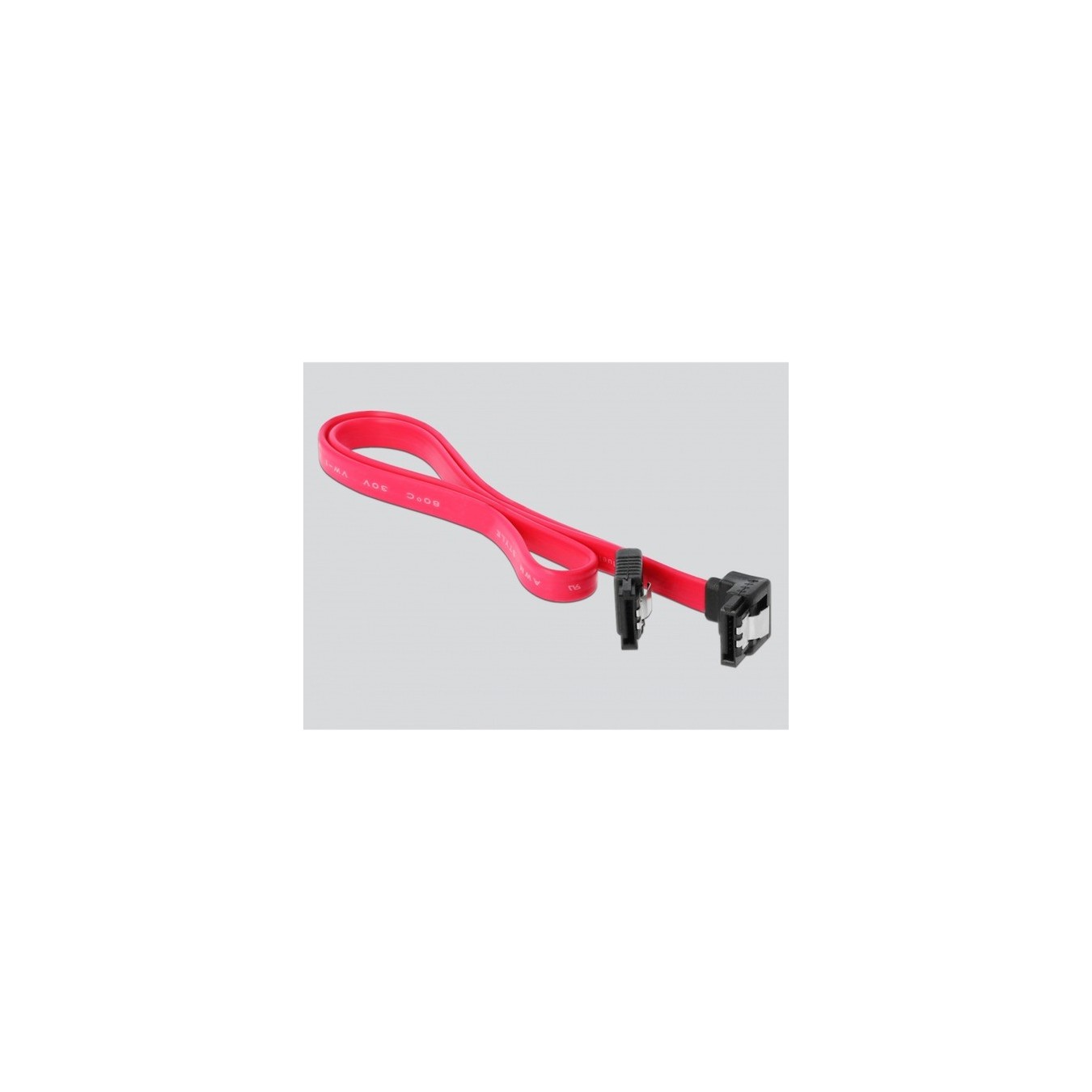

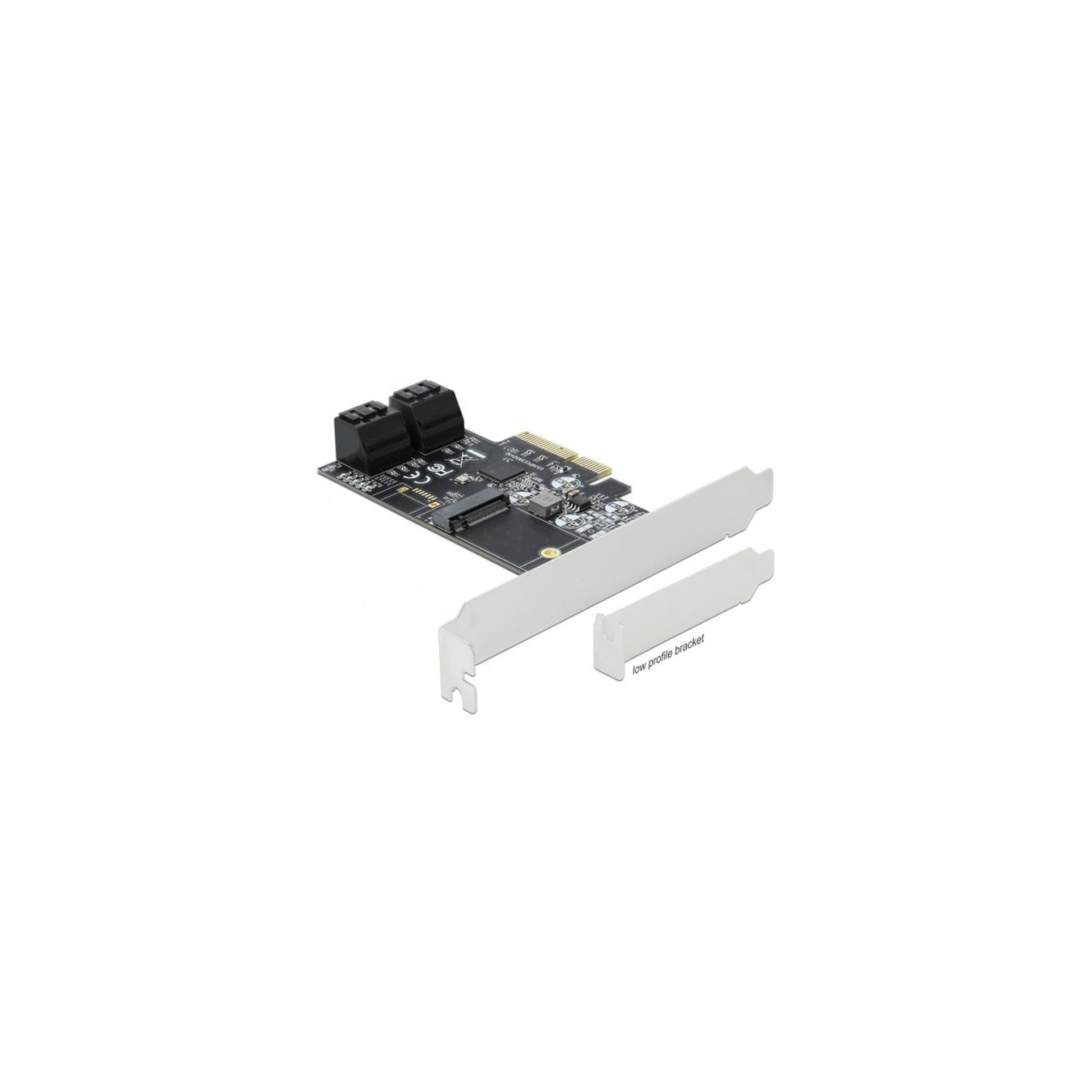

| Accessories - available | Low profile cover, 4 x SATA cables, length approx. 50 cm, M.2 mounting material, operating instructions |
