USB-C to 3x HDMI Splitter MST 4K 60Hz - Characteristics
Delock 88040 USB-C to 3x HDMI MST splitter enabling three HDMI displays from a USB-C host with DisplayPort Alt Mode, supporting up to 4K at 60 Hz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

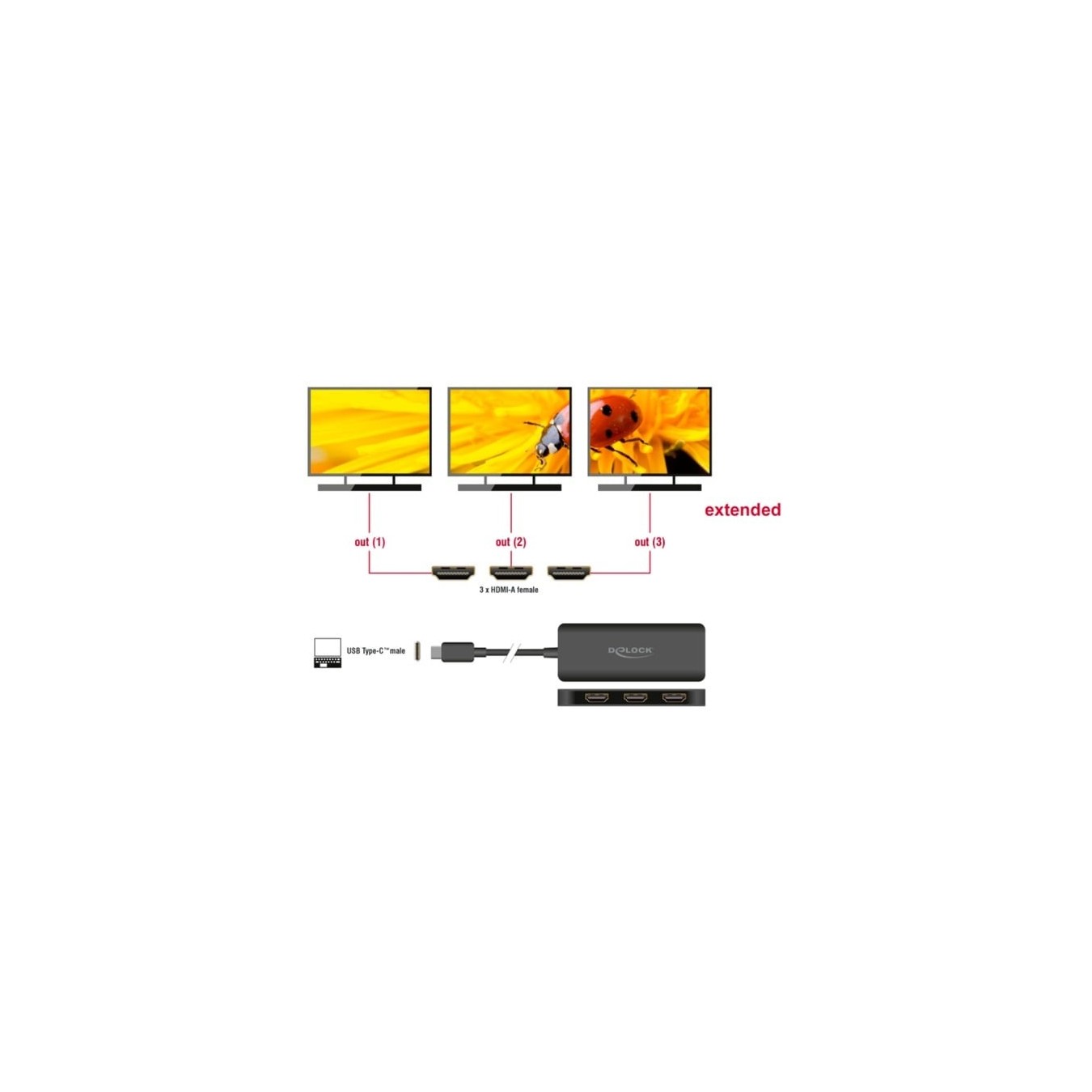

The splitter 88040 from Delock is suitable for connecting three HDMI monitors to a computer with a USB-C interface and DisplayPort alternate mode support. Three monitors can be operated at the outputs at the same time. The HDMI splitter is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. Under Windows, the connected monitors are controlled individually and can be combined into one large display. Thanks to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3,840 x 2,160) are supported.
| Typ | HDMI Splitter |
| Color | schwarz |
| EAN | 4043619880409 |
| Manufacturer no. | 88040 |
| Manufactured in | China |
| Area | Audio / Video |
| Connection - from | 1x USB-C (Stecker) |
| Video classification | DisplayPort 1.4 |
| taps | 4 |
| Characteristics | Adapter, external, USB C connector can be used on both sides |
| Feature | Functions: Mirror or extend (Windows only), transfer audio and video signals, USB bus power |
| More information | Chipset VMM5310, active converter, single / multi-stream transport hub (SST / MST), supports HDR, HDCP 1.4 and 2.2, Display Stream Compression 1.2 (DSC), max. resolution (depending on the system and the connected hardware): DisplayPort 1.4 Multi-Stream Transport (MST): 2 displays up to 3,840 x 2,160 @ 60Hz, 3 displays 2x up to 3,840 x 2,160 @ 30Hz + 1x up to 3,840 x 2,160 @ 60Hz, DisplayPort 1.4 Multi-Stream Transport (MST) + DSC: 3 displays up to 3,840 x 2,160 @ 60Hz |
| Notice | System requirements: Windows 10 / 10-64 / 11, free Thunderbolt 3 port or USB-C port with DisplayPort Alternate Mode |
| Accessories - available | Instruction manual |
| Dimensions | Width: 36mm x Height: 12mm x Depth/Length: 98mm |
| Cable length | 15 cm |
