Network tester and communication cable tester - Cable tester
DIGITUS network and communication cable tester for quick testing of network cables with loop, remote, and PoE tests; battery operation with LED indicators; includes adapters, manual, and hard case.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

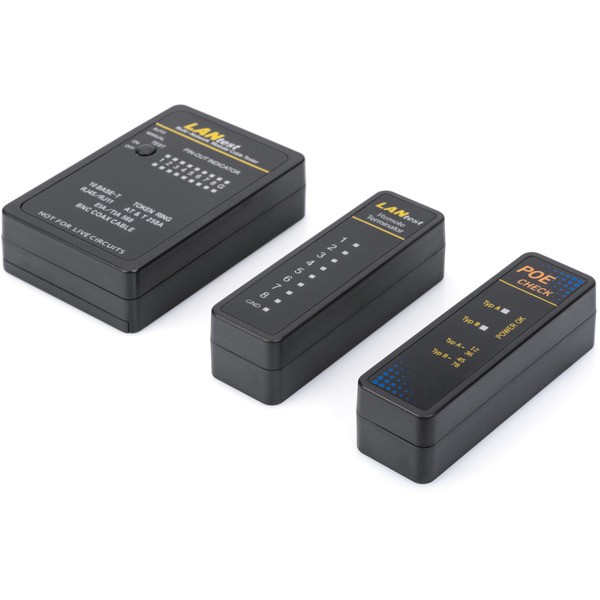

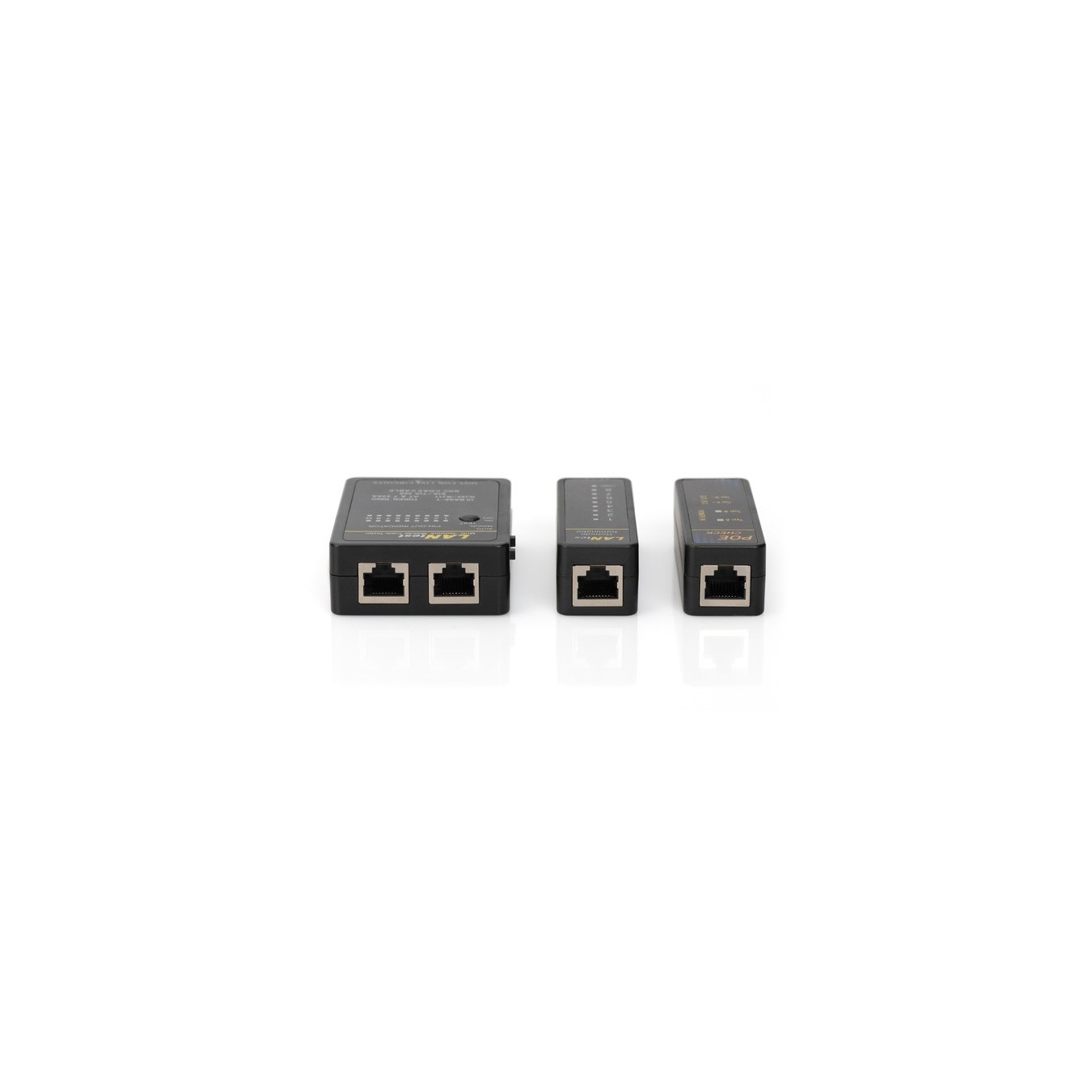

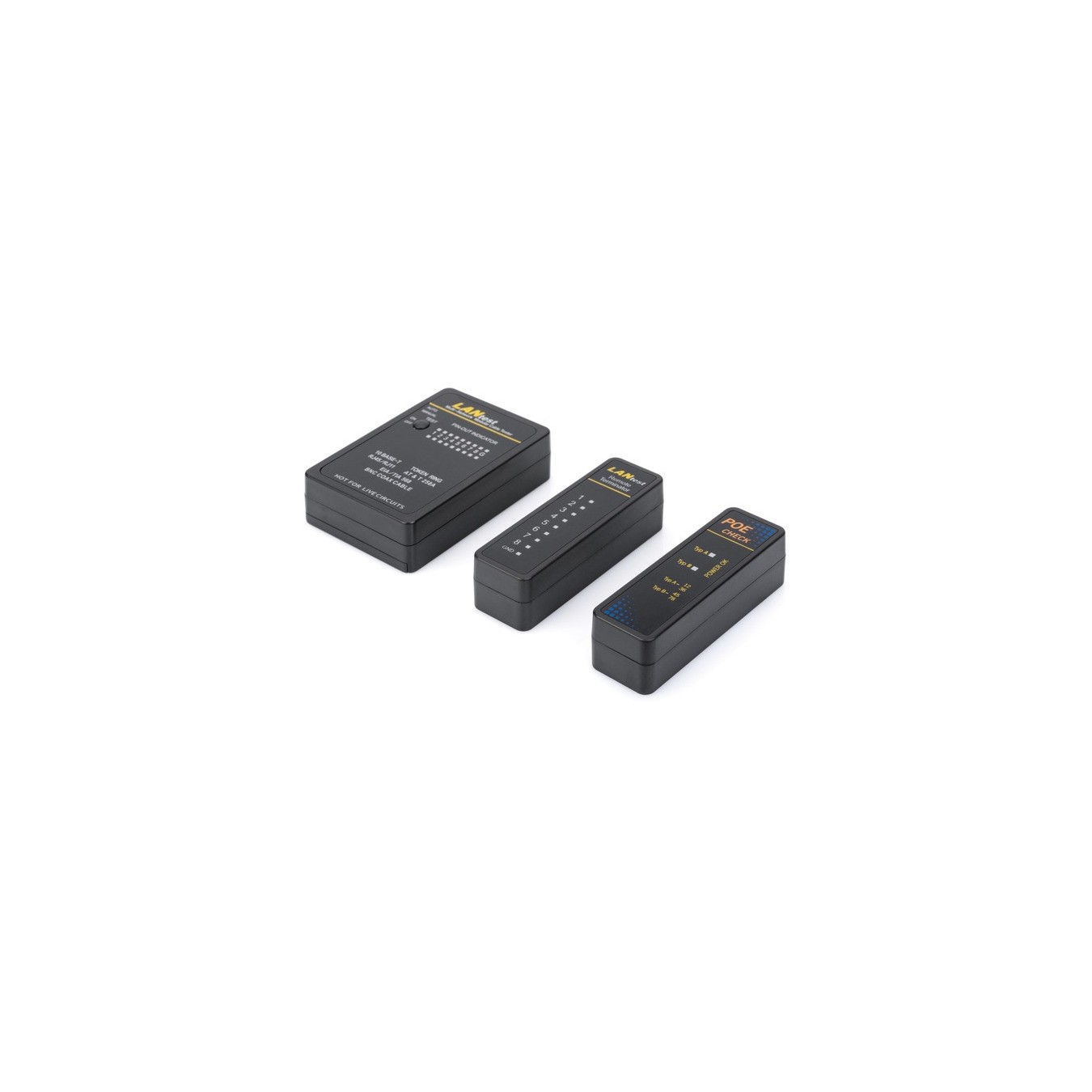

The DIGITUS network and communication cable tester ensures quick and easy testing of network cables using loop, remote and PoE tests. The LAN tester allows you to easily identify the correct pin assignment of 10Base-T, 10Base-2, RJ45/TM11 modular cables as well as 258A, TIA-568A/568B and Token Ring cables etc. by comparing the outgoing cable end with the corresponding receiving cable end. The remote tester can be used to test cables that are installed in another location, for example in wall distributors or patch panels. This ensures easy identification of the cabling. In addition to a practical storage case, the set also includes adapters for BNC cable tests.
| Typ | Cable tester |
| Color | schwarz |
| EAN | 4016032458692 |
| Manufacturer no. | DN-14001-1 |
| Manufactured in | China |
| Purpose of use | Quick and easy network cable checking |
| Suitable for | network |
| Operating mode | Battery operation |
| Display/display | Easy reading of results via LED indicators |
| Feature | Quick and easy network cable testing, loop, remote, PoE test, automatic or manual test |
| More information | Product dimensions (main unit): 80 x 55 x 25 mm, product dimensions (remote): 80 x 25 x 25 mm (H x W x D) |

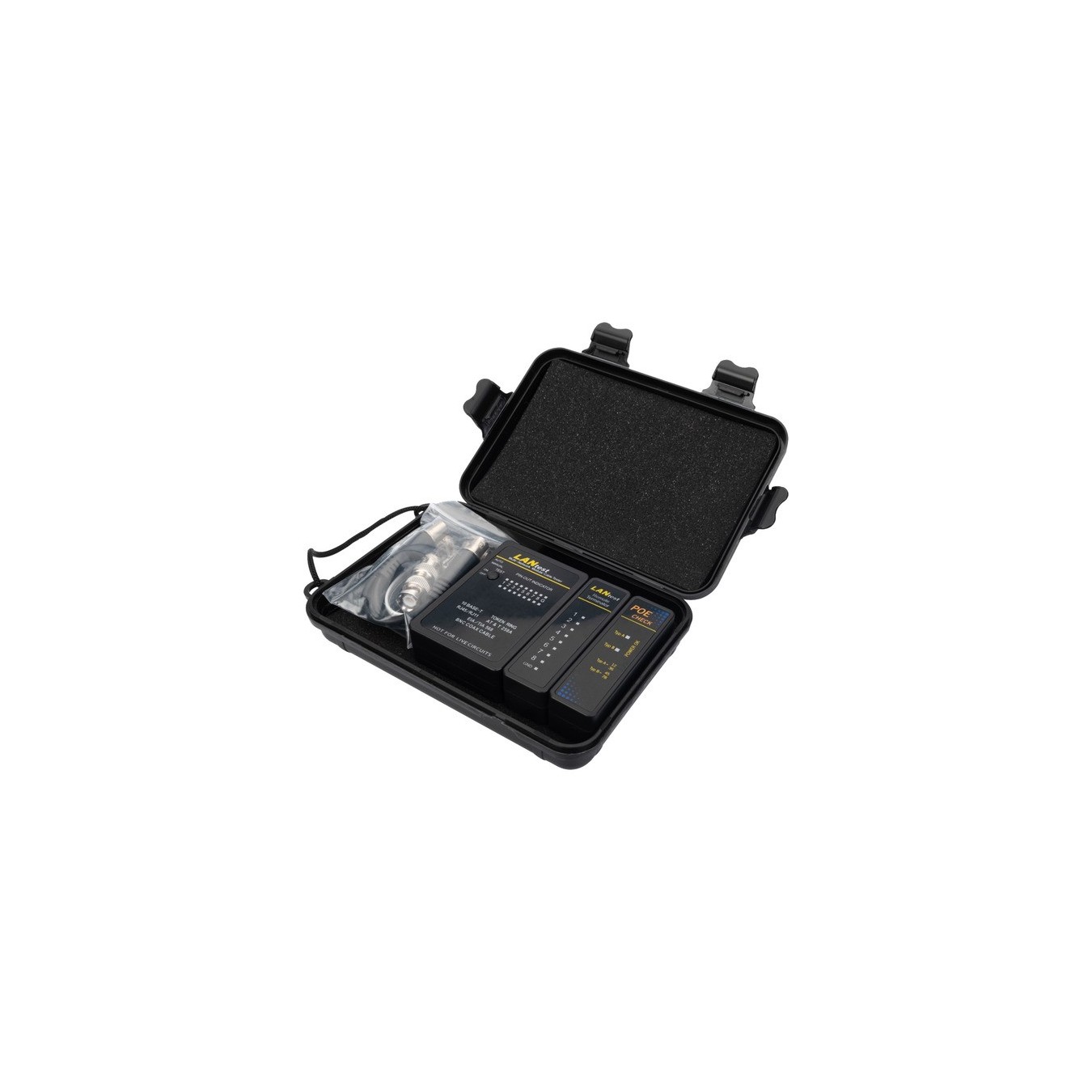

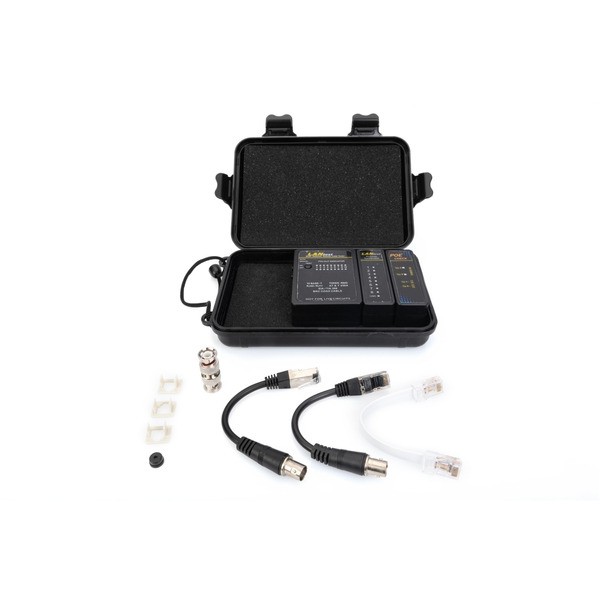

| Accessories - available | 2x BNC adapter cable, 1x BNC male/male adapter, 3x RJ45 to RJ11 adapter, 1x user manual, 1x hard case |
| Dimensions - General | Width: 180mm x Height: 46mm x Depth/Length: 120mm |
