Delock 62495 Converter IDE 44-pin to mSATA with 2.5in Frame (Boxed)
Delock 62495 IDE 44-pin to mSATA converter with 2.5-inch 7mm frame allows installing half or full-size 3.3V mSATA SSD as 2.5in HDD replacement via internal IDE interface. Bootable, OS independent, includes screws and manual.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

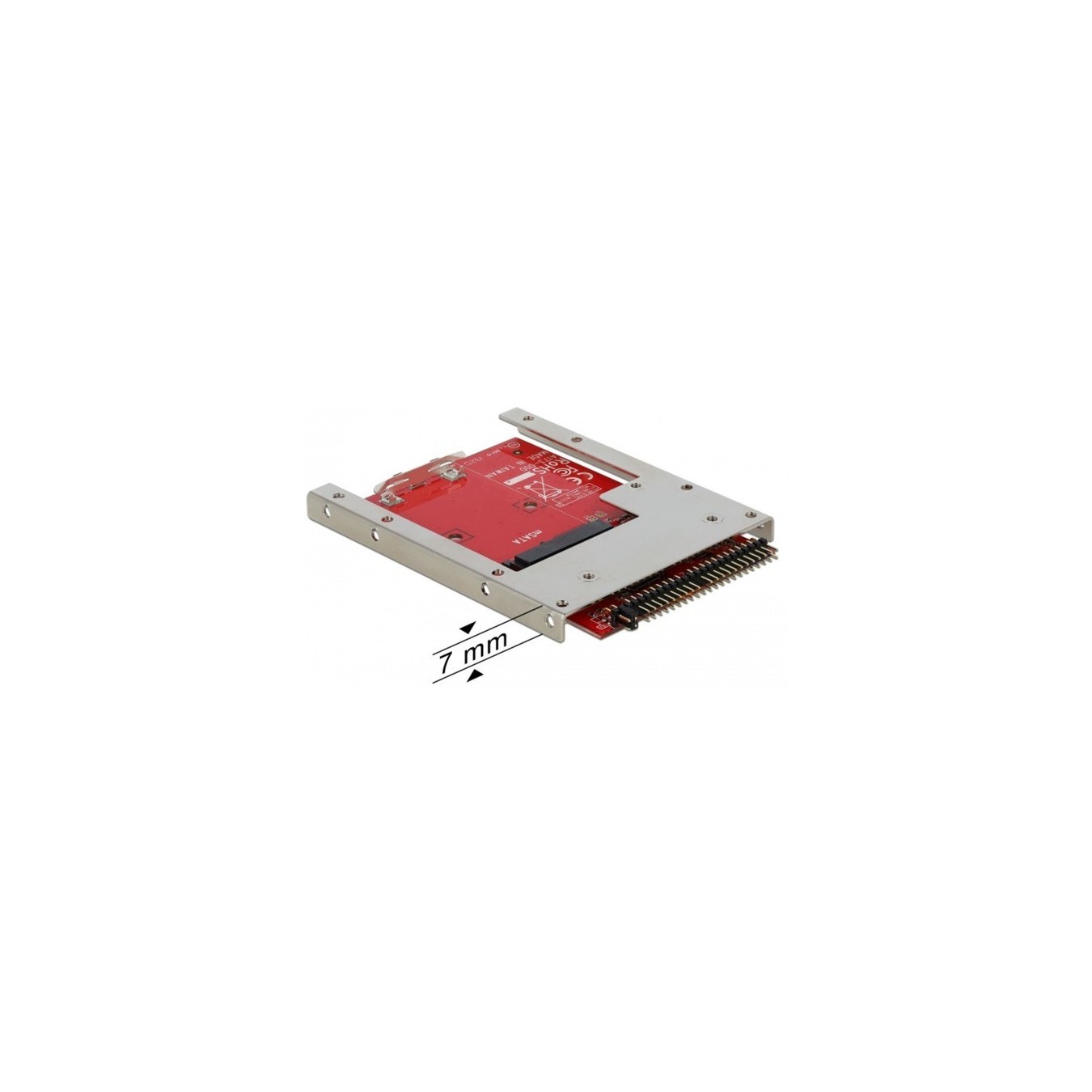

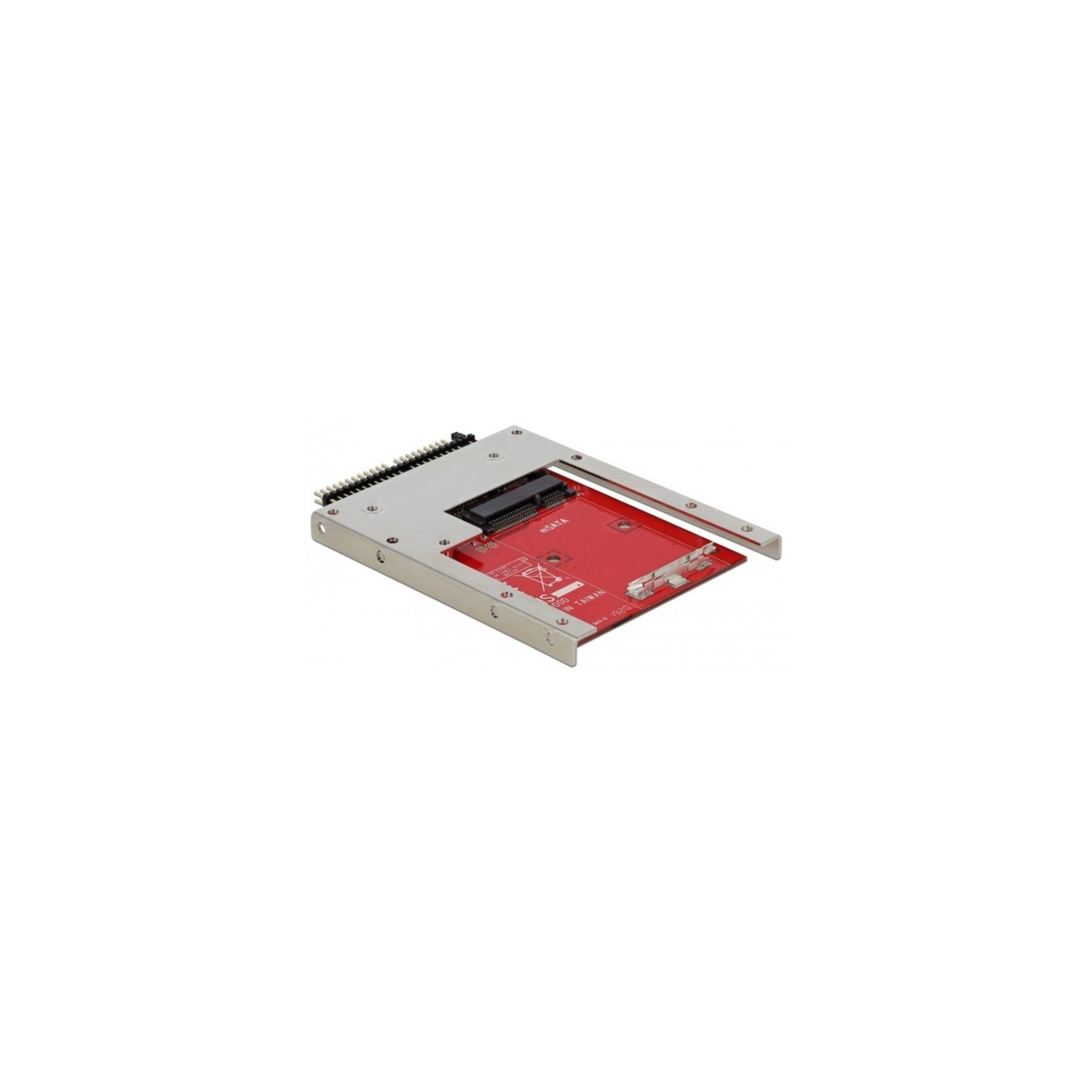

This Delock converter (item 62495) enables connection of a half-size or full-size mSATA SSD to a 44-pin IDE interface, using it as a 2.5-inch HDD replacement. The included 7mm installation frame fits standard 2.5in drive bays for internal system integration.
Supports ATA/ATAPI-7, Ultra DMA, PIO modes, and jumper settings for Master/Slave/Cable Select. Latch secures mSATA module; no drivers needed, bootable operation. Made in Taiwan.

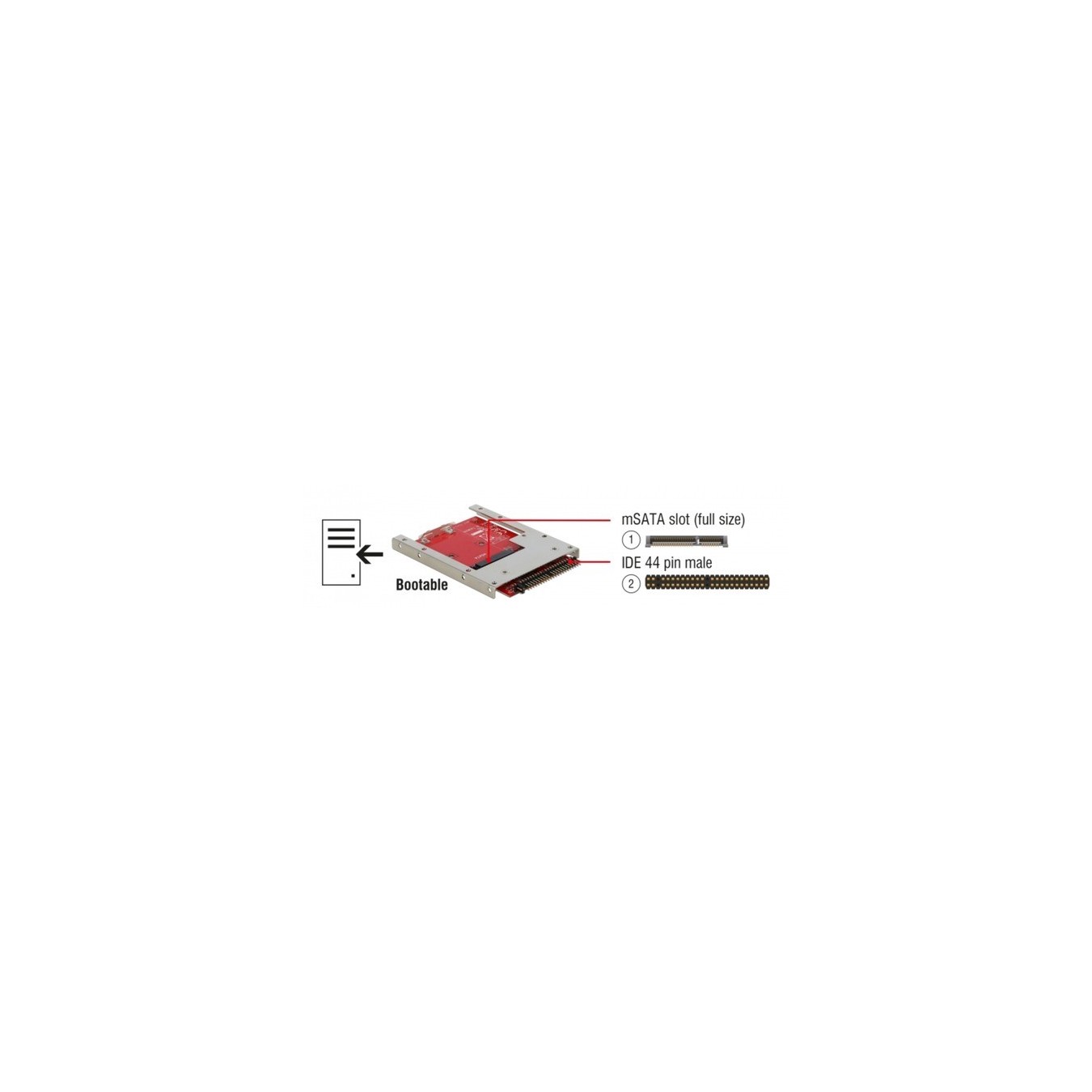

- Connector: 1x IDE 44-pin male, 1x mSATA slot (half/full size)
- Form factor: 2.5in, 7mm height
- Dimensions: 98 x 70 x 7 mm

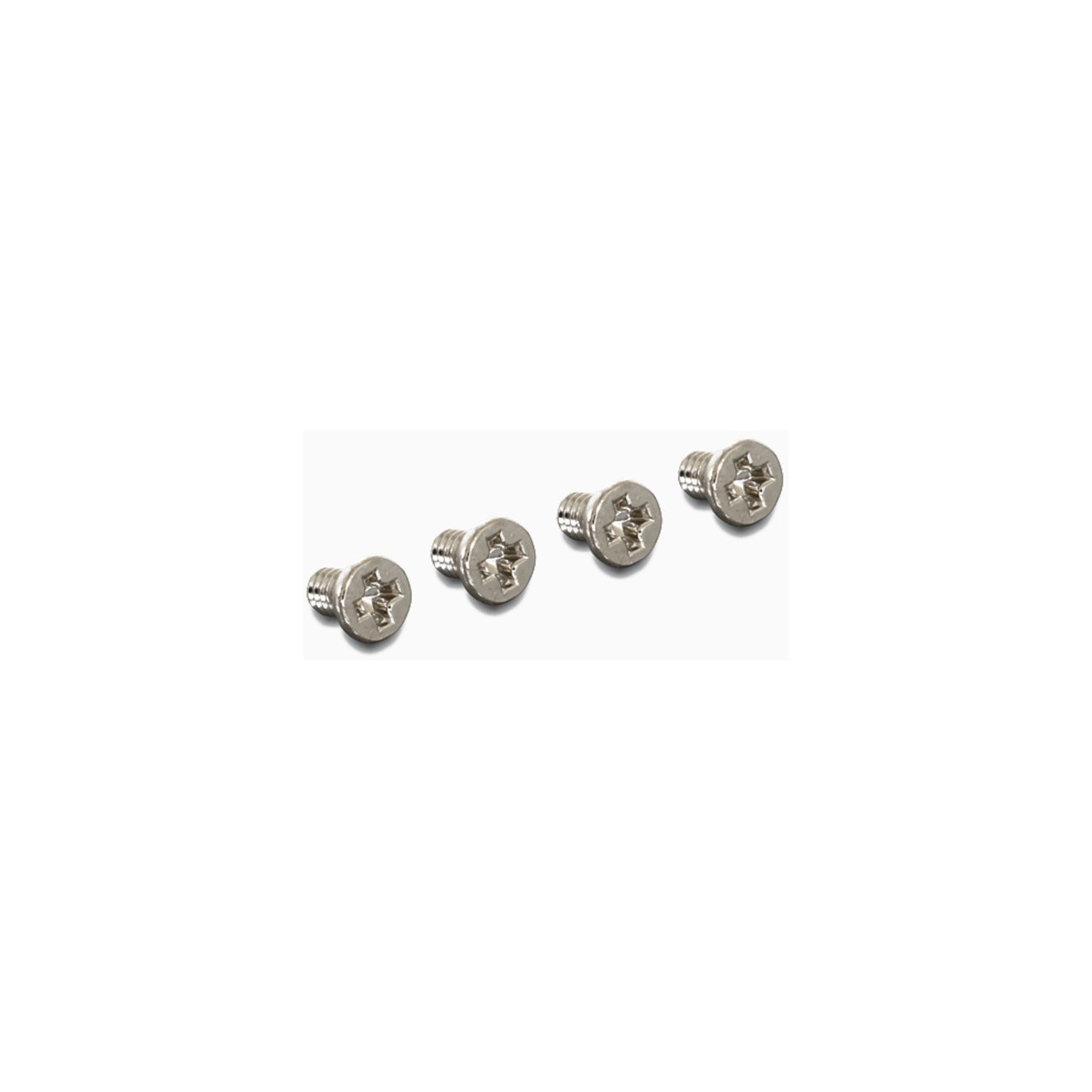

- Package: Converter, frame, 4x screws, manual
| Type | Installation frame |
| EAN | 4043619624959 |
| Manufacturer no. | 62495 |
| Purpose | Installation in 2.5in bay |
| Suitable for | 3.3V mSATA module (half/full size) |
| Required installation shafts | 1x 2.5 inch internal |
| Connections - internal | 1x IDE 44-pin male, 1x mSATA slot |
| More information | Supports ATA/ATAPI-7, Ultra DMA/PIO, Master/Slave/CS jumpers, bootable, OS independent |
| Accessories - included | 2.5in frame, 4x screws, user manual |
| Dimensions | 98 x 70 x 7 mm (LxWxH) |
| Weight | 95 g |
| Country of origin | Taiwan |
| Form factor | 2.5in, 7mm height |
