PCIe x4 to 4x external USB 3.2 Gen 1 Quad Channel - USB Controller
Delock PCIe x4 expansion card adds four external USB 3.2 Gen 1 ports for peripherals.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

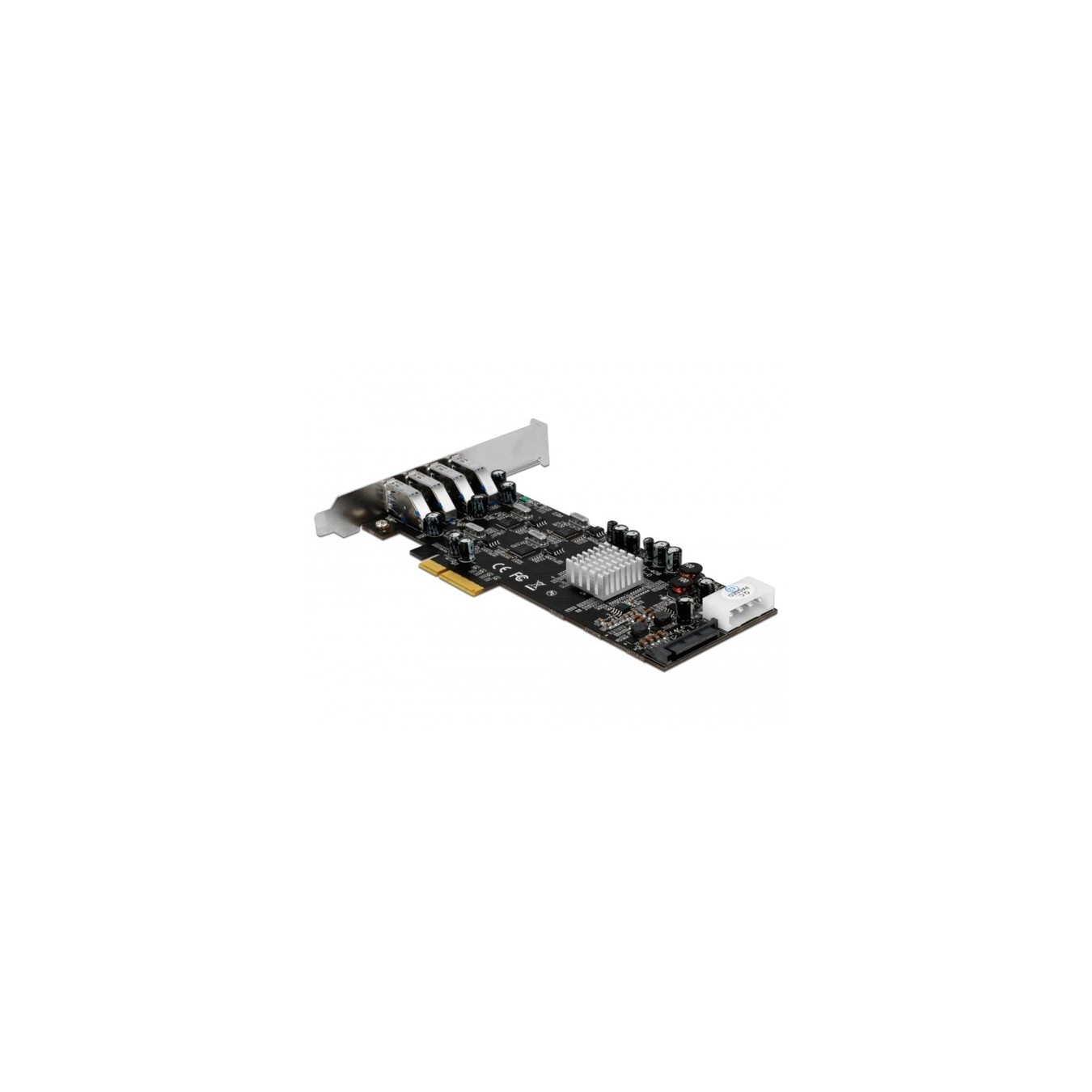

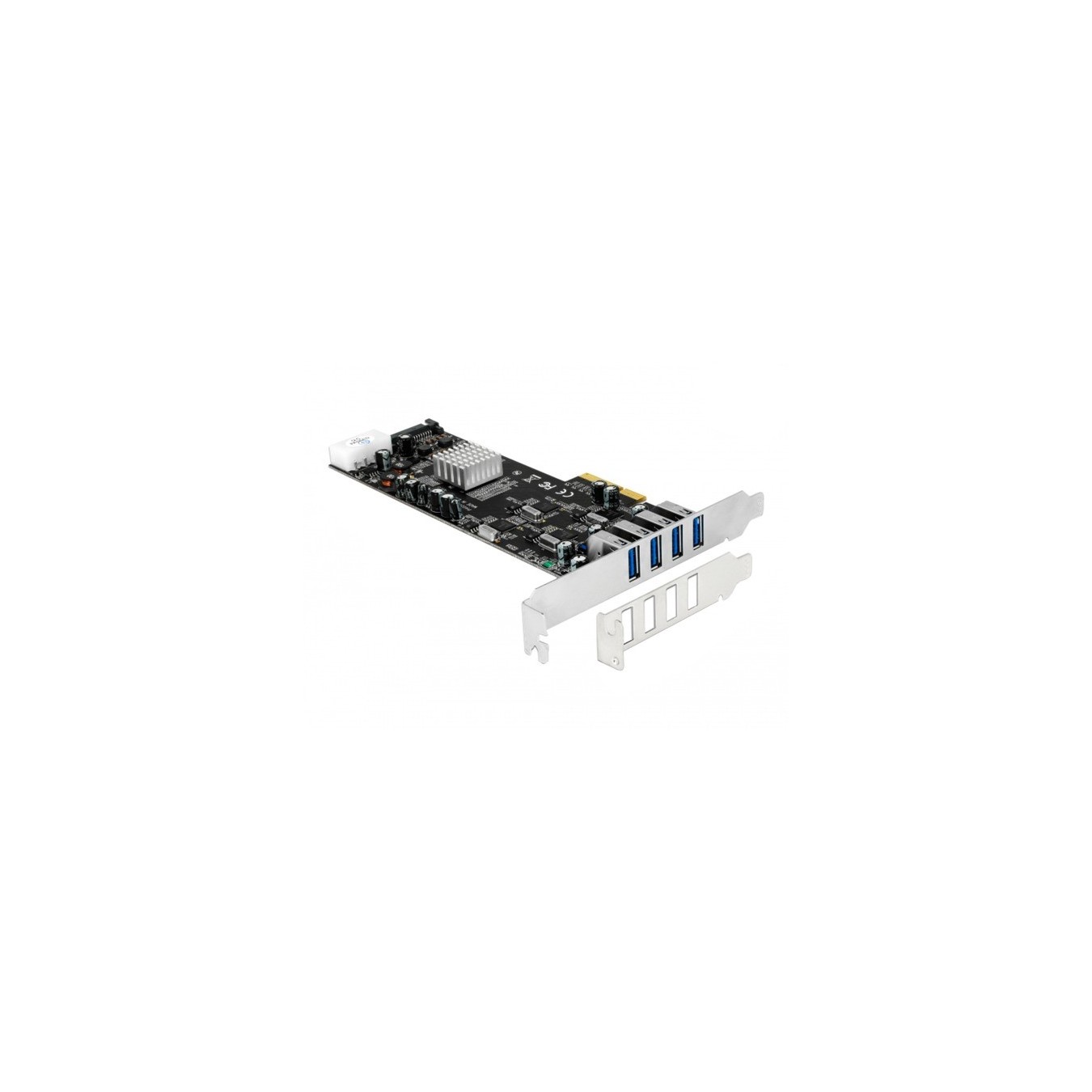

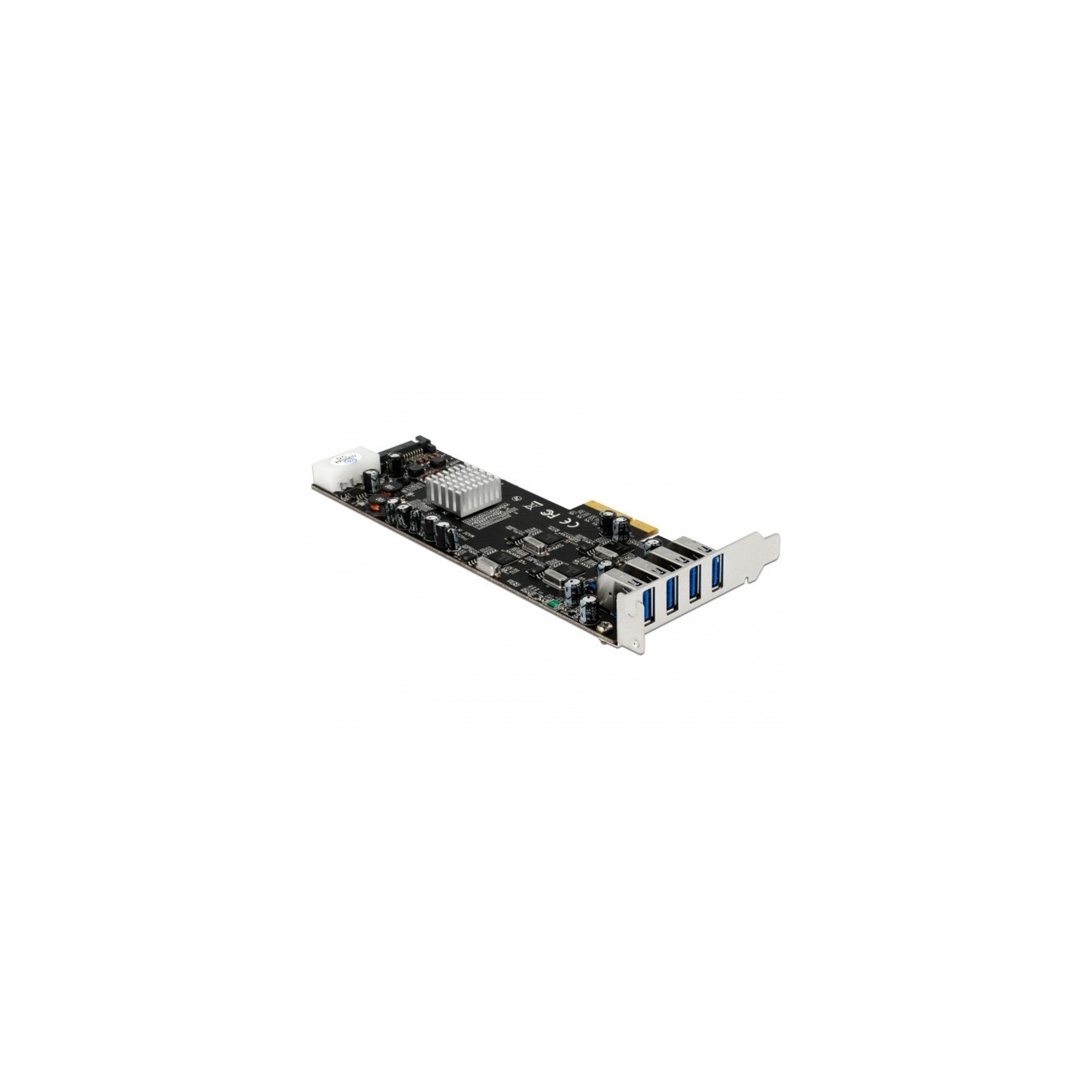

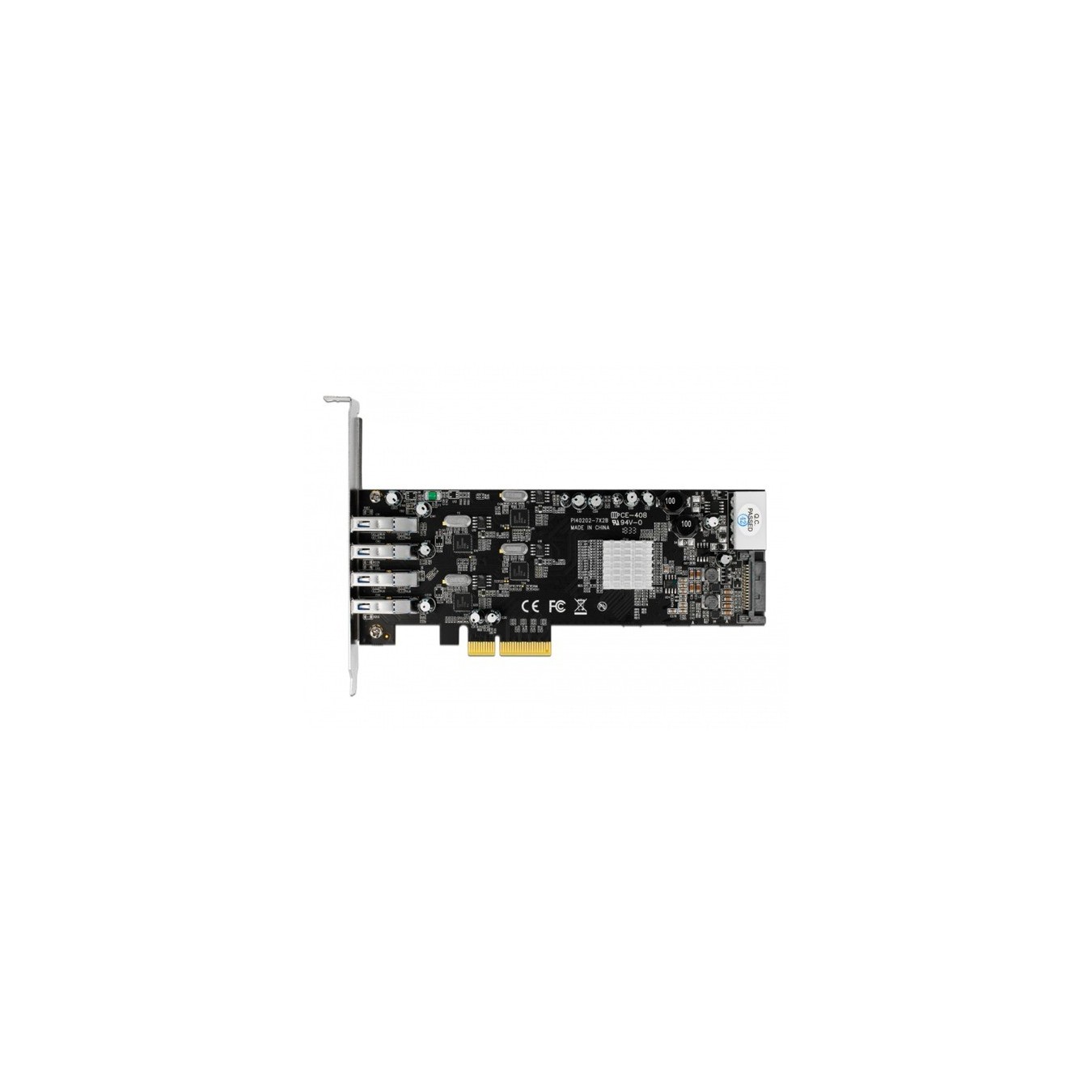

This PCI Express x4 card from Delock expands the PC with four external USB 3.2 Gen 1 ports. Various USB devices, such as docking stations, card readers and external housings, can be connected to the card. All you need is a free PCIe x4 slot and a 4-pin power connector. Thanks to the included low profile bezel, the card can also be used in PC systems with a small form factor. Each port is powered by a single Renesas chipset, enabling high data transfer rates.
| Typ | USB-Controller |
| EAN | 4043619893652 |
| Manufacturer no. | 89365 |
| Controller Art | USB 3.2 (5 Gbit/s) |
| slot | PCIe x4 Version 2.0 |
| Chip | Renesas D720202 |
| Protocol | USB 3.2 Gen 1 (5 Gbit/s) |
| Connections - external | 4x USB A |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| More information | Internal connections: 1x PCIe x4, 1x 4-pin power connector |
| Accessories - available | Low profile bezel, driver CD, instructions |
