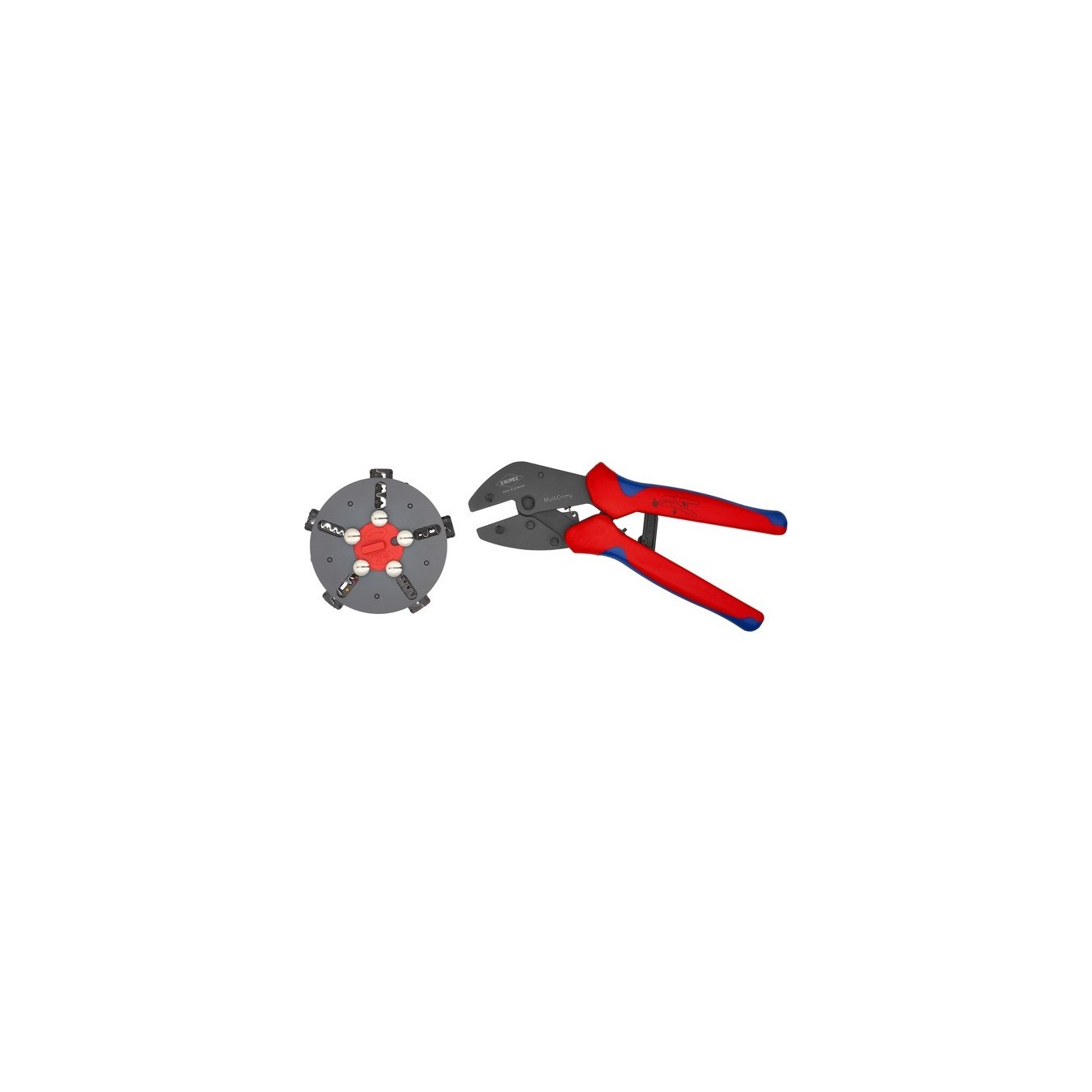

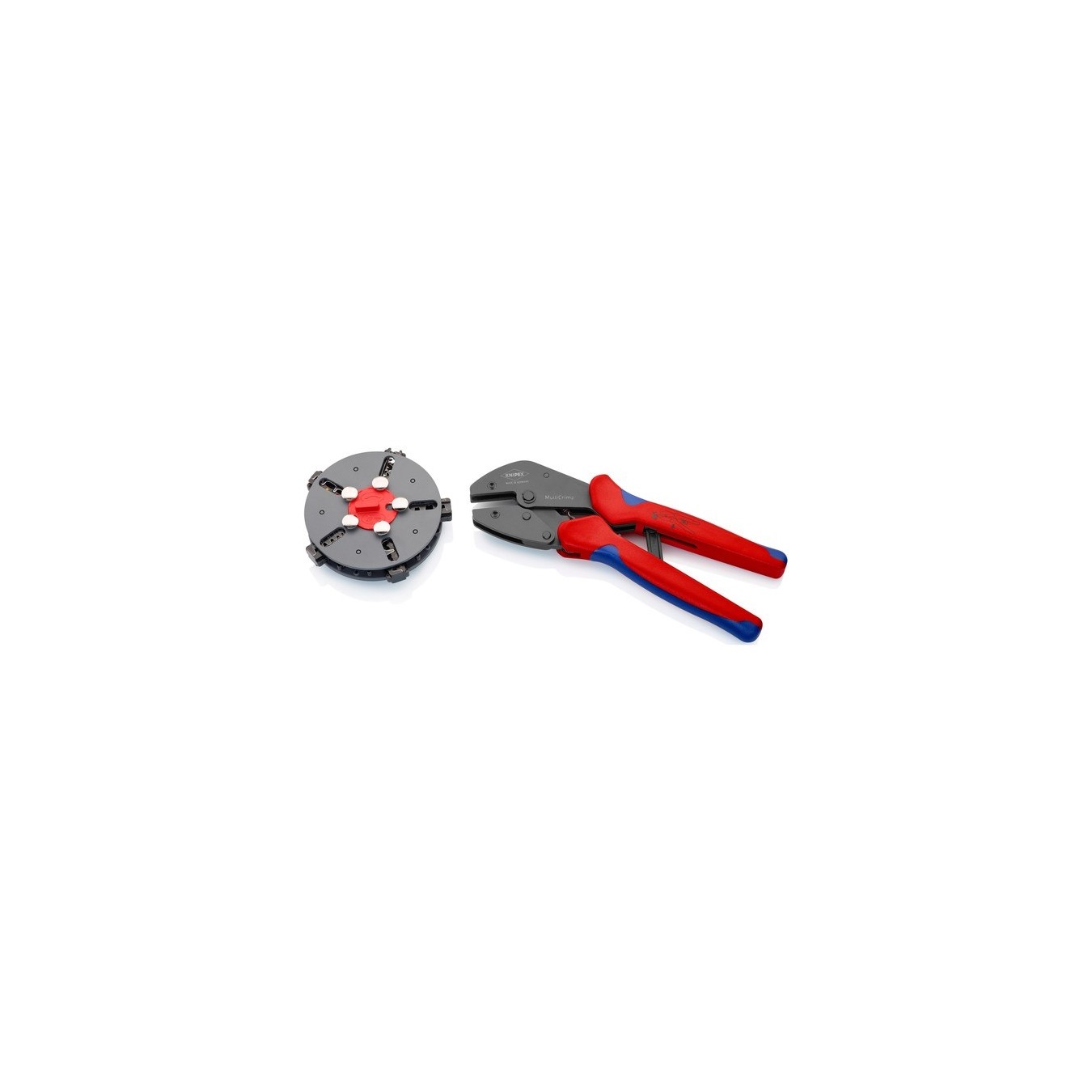

KNIPEX MultiCrimp - 97 33 02 - with change magazine, crimping pliers

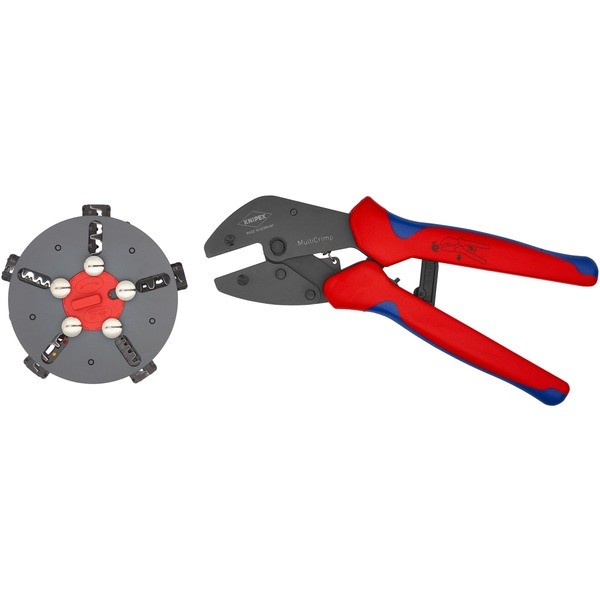

KNIPEX MultiCrimp 97 33 02 crimping pliers with interchangeable magazine and 5 inserts.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

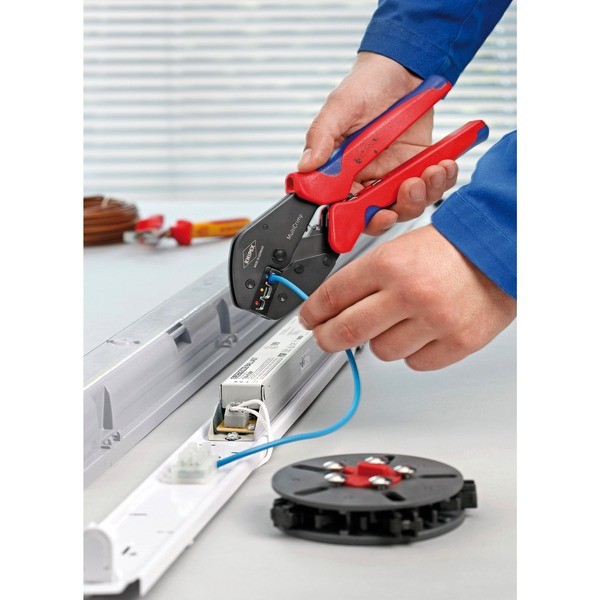

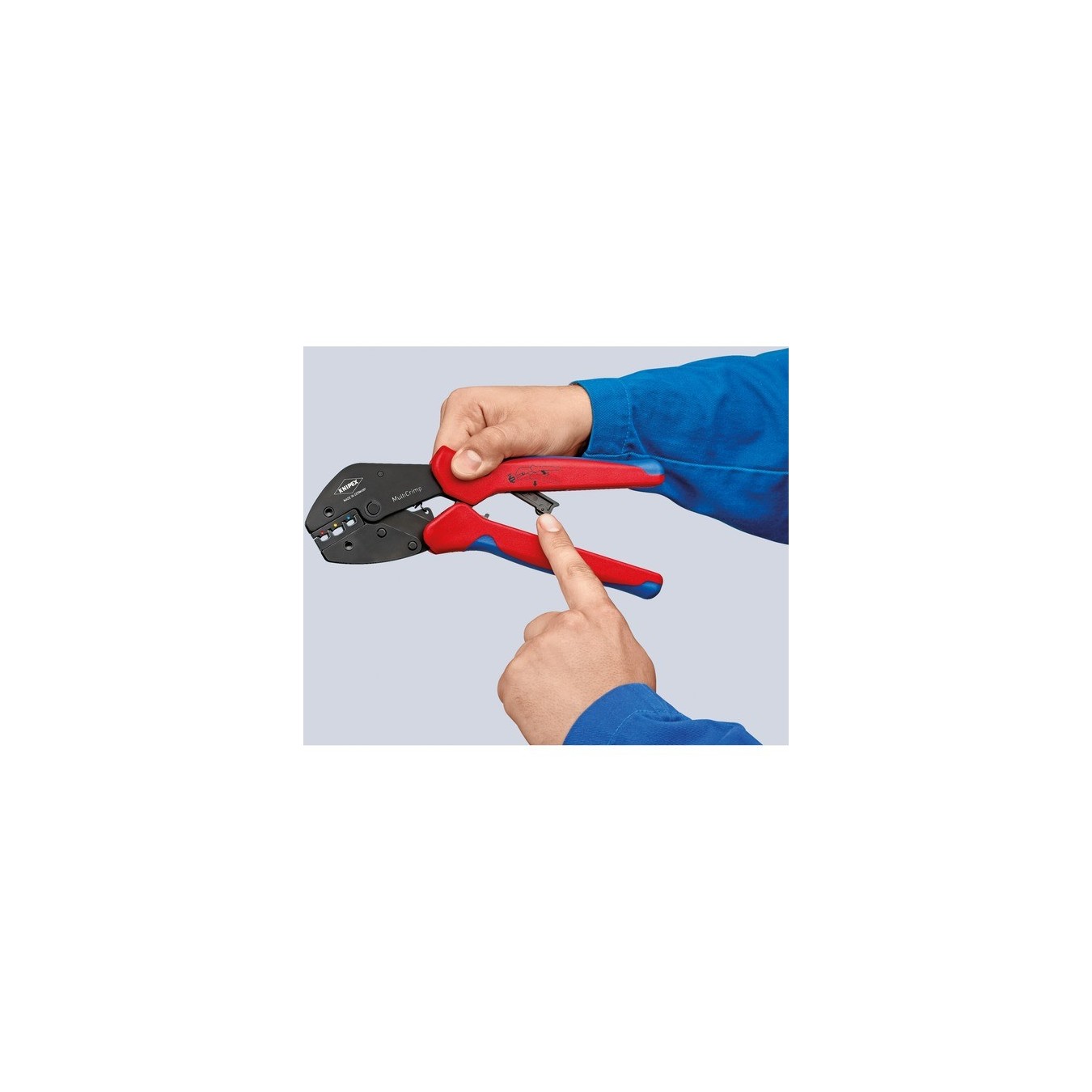

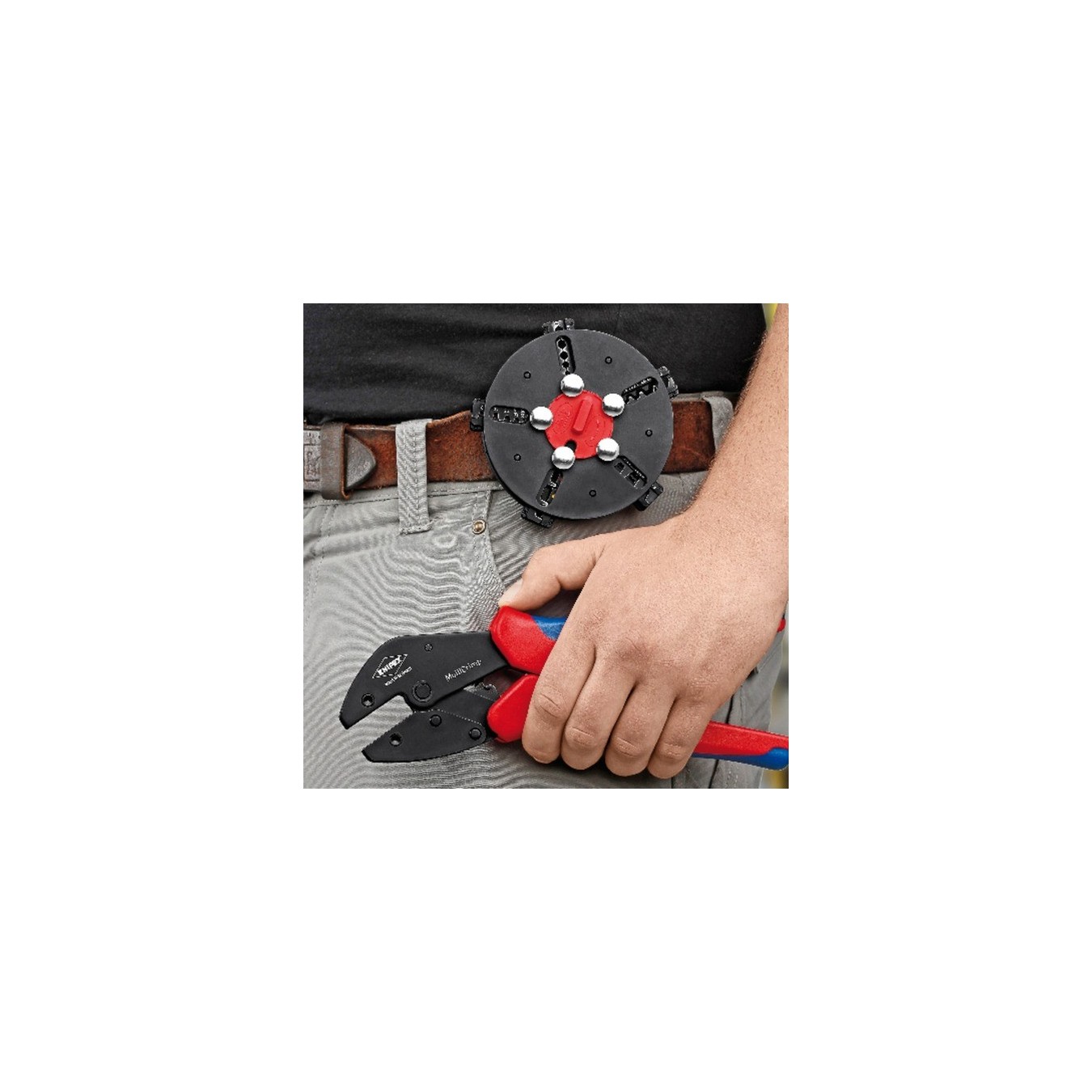

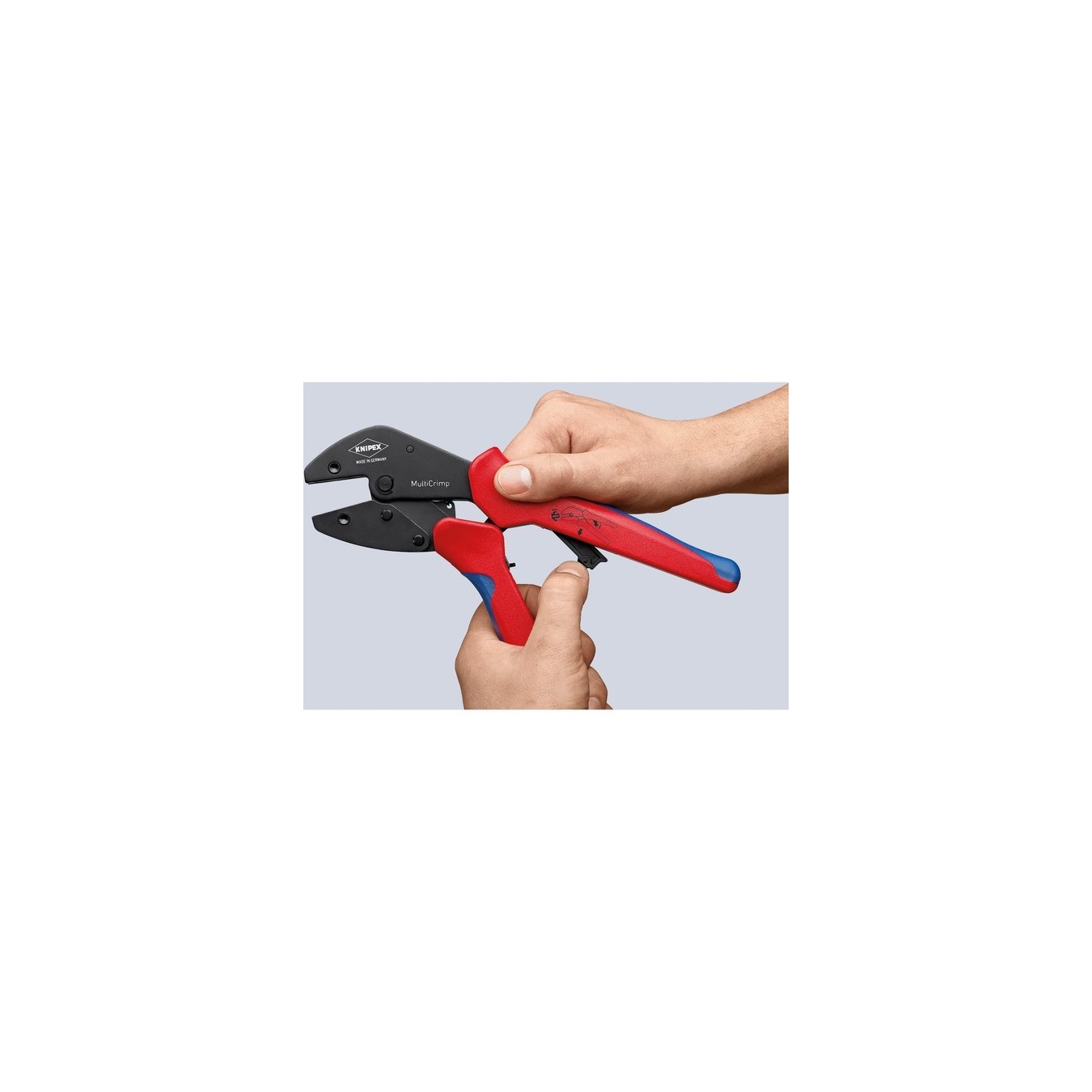

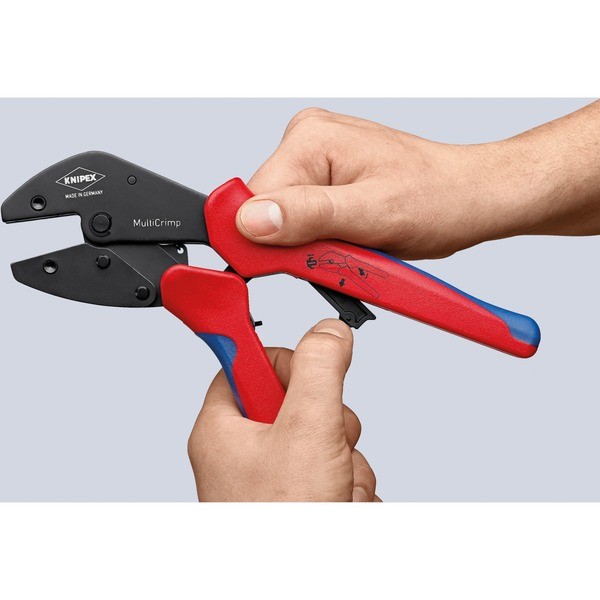

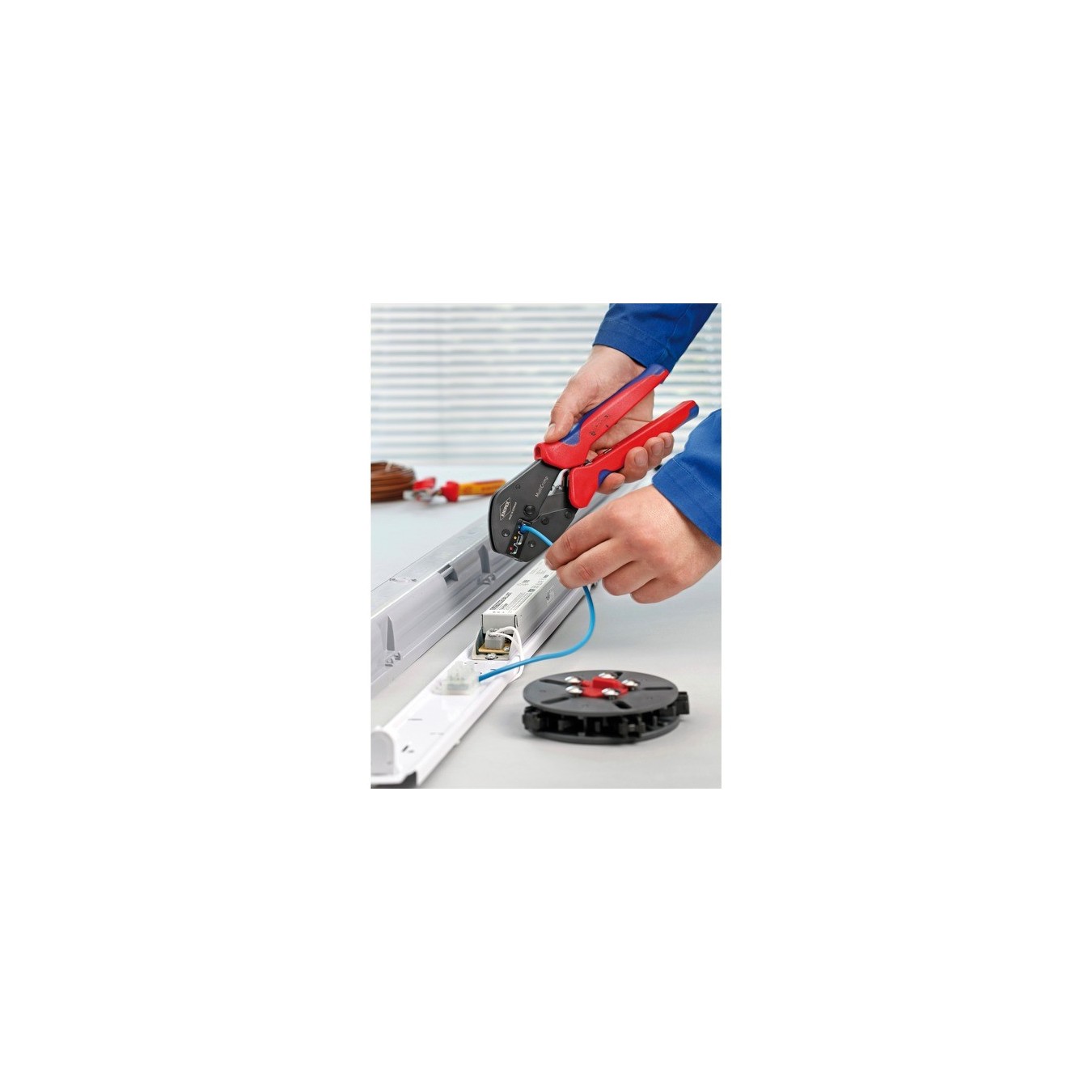

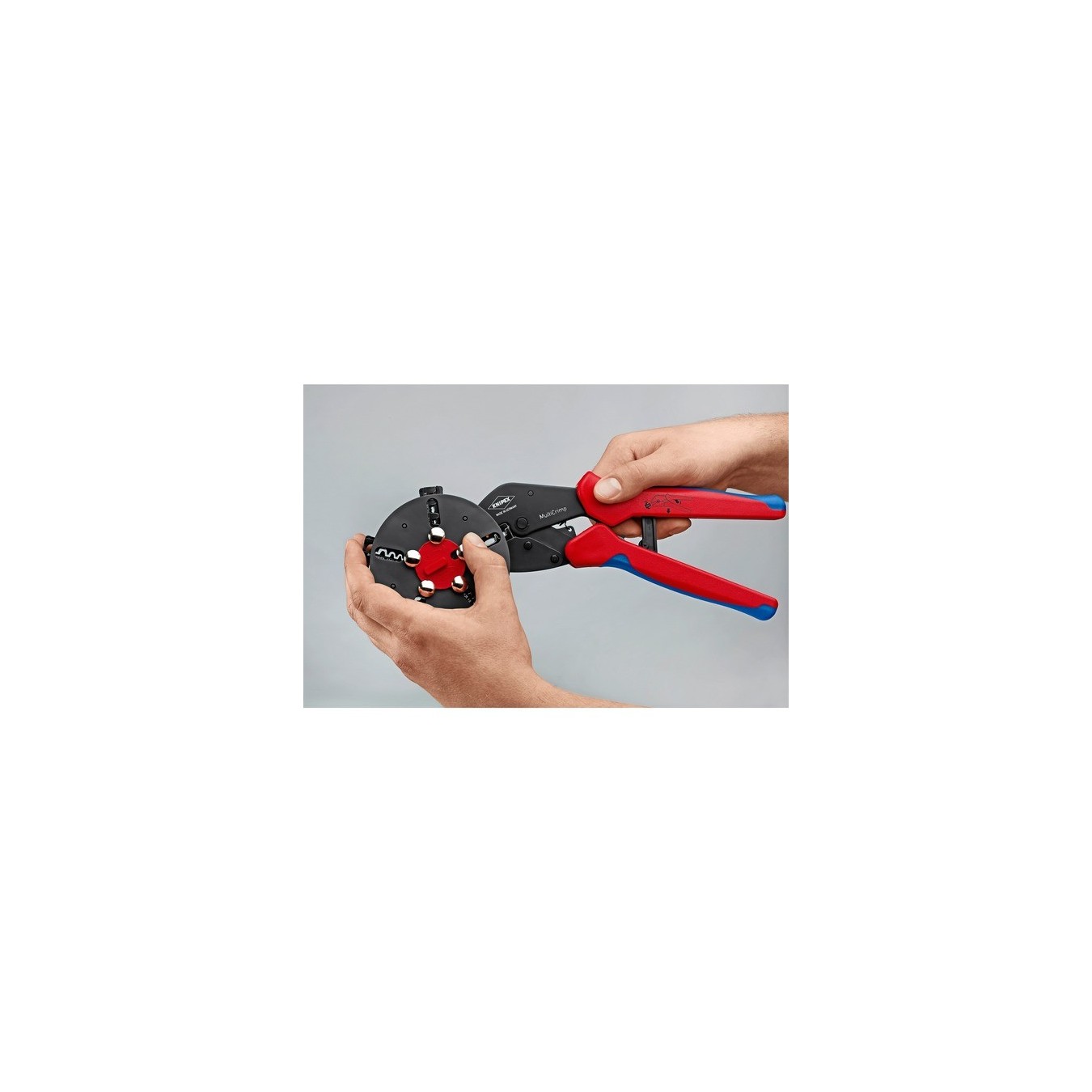

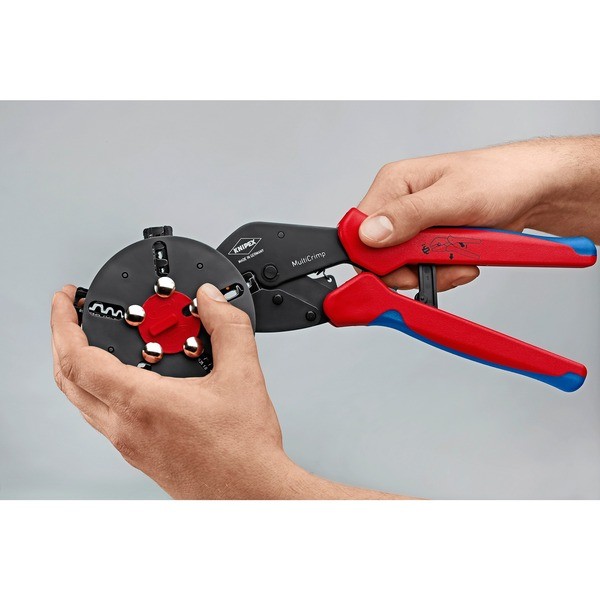

The Knipex MultiCrimp 97 33 02 is a crimping pliers with an interchangeable magazine and 5 different crimping inserts. This makes the MultiCrimp 97 33 02 suitable for uninsulated, open connectors from 0.5 to 6.0mm², insulated cable lugs, plug connectors and butt connectors from 0.5 to 6.0mm², insulated and uninsulated wire end sleeves from 0.25 to 6.0mm², for insulated and uninsulated wire end sleeves with 10 / 16 and 25mm² and for uninsulated crimp, tubular and press cable lugs according to DIN 46234 and DIN 46235 as well as uninsulated crimp, butt and press connectors according to DIN 46341 and DIN 46267. The inserts can be replaced quickly and easily without tools. The crimp pressure is factory calibrated. The very finely leveled, unlockable positive lock triggers automatically at the optimal crimping pressure. The quick-change magazine can be easily carried with you using the belt clip.
| Typ | Crimp-Zange |
| Color | red/blue |
| EAN | 4003773066934 |
| Manufacturer no. | 97 33 02 |
| Manufactured in | Deutschland |
| Serie | KNIPEX MultiCrimp |
| Material | Vanadium electrical steel |
| surface | burnished |
| Griff | Multi-component handle |
| Service | return spring |
| Blade/tip coating | Oil hardened |
| Crimp nests for wire end sleeves - number | 3 pieces |
| Nests for cable lugs/connectors - sizes | from 0.5 mm² to 6 mm² |
| Total length | 250 mm |
| Area of application | House, workshop |
| Feature | Only one tool for the most common crimping applications, crimp pressure factory calibrated |
| More information | Round magazine made of plastic, glass fiber reinforced |
| Weight | 870 Gramm |
