Mainboard - H610M-H2 - M.2
ASRock H610M-H2/M.2 motherboard based on Intel H610; supports Intel Socket 1700 CPUs; 2x DDR4 DIMM slots in dual-channel; micro-ATX form factor.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 2 |
|---|---|
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |

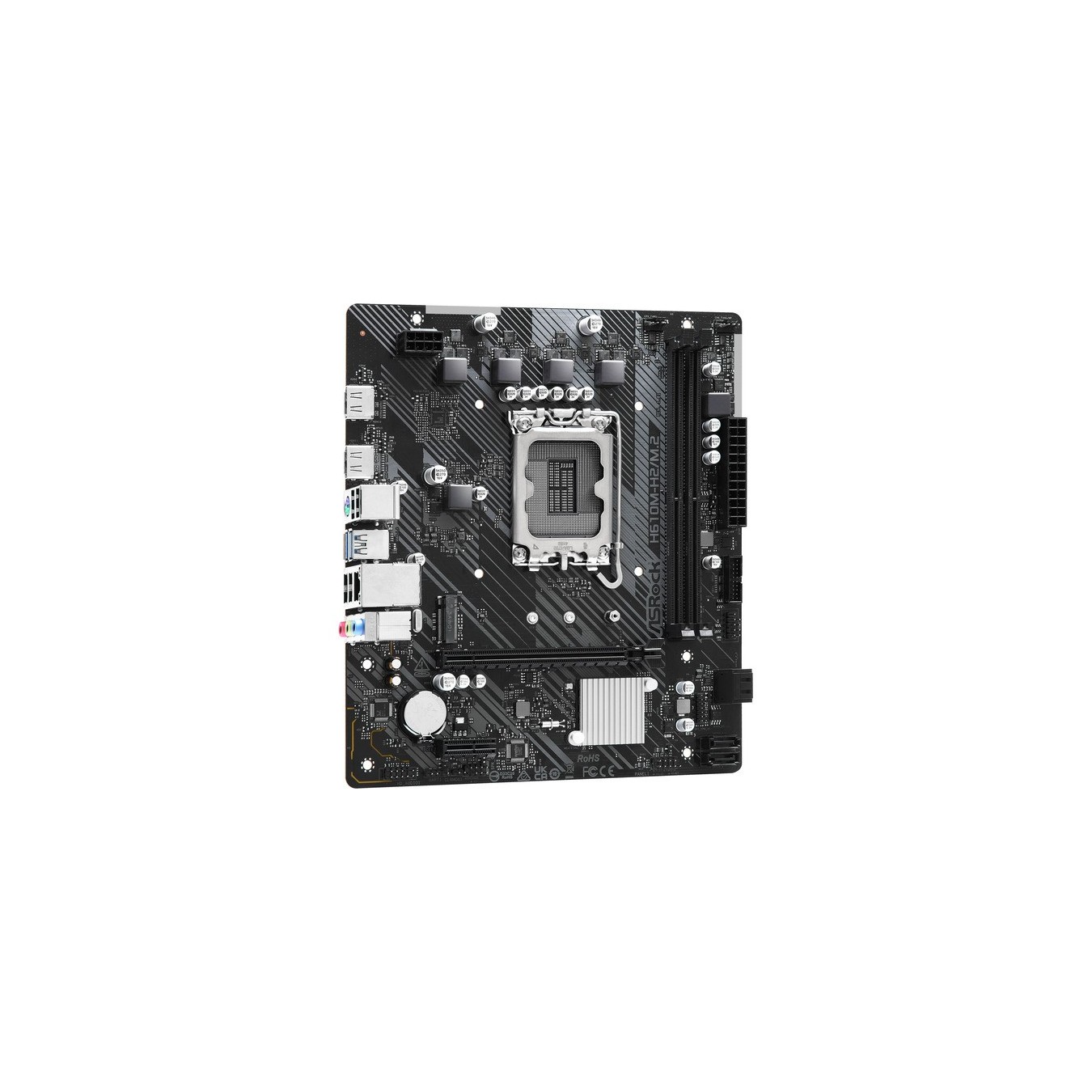

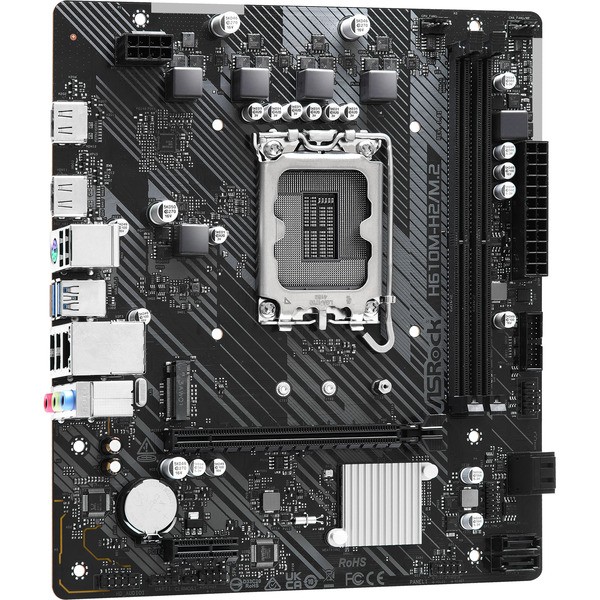

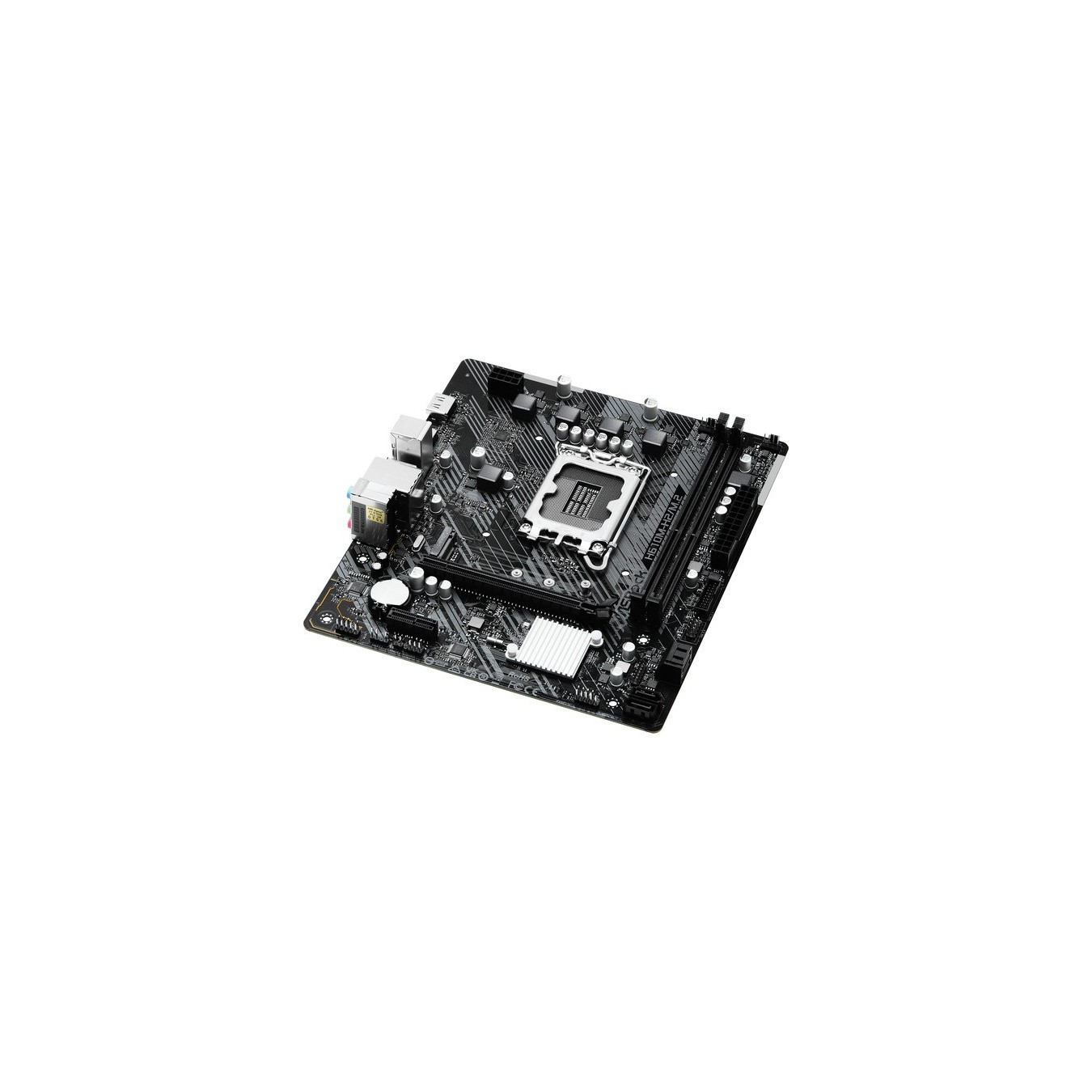

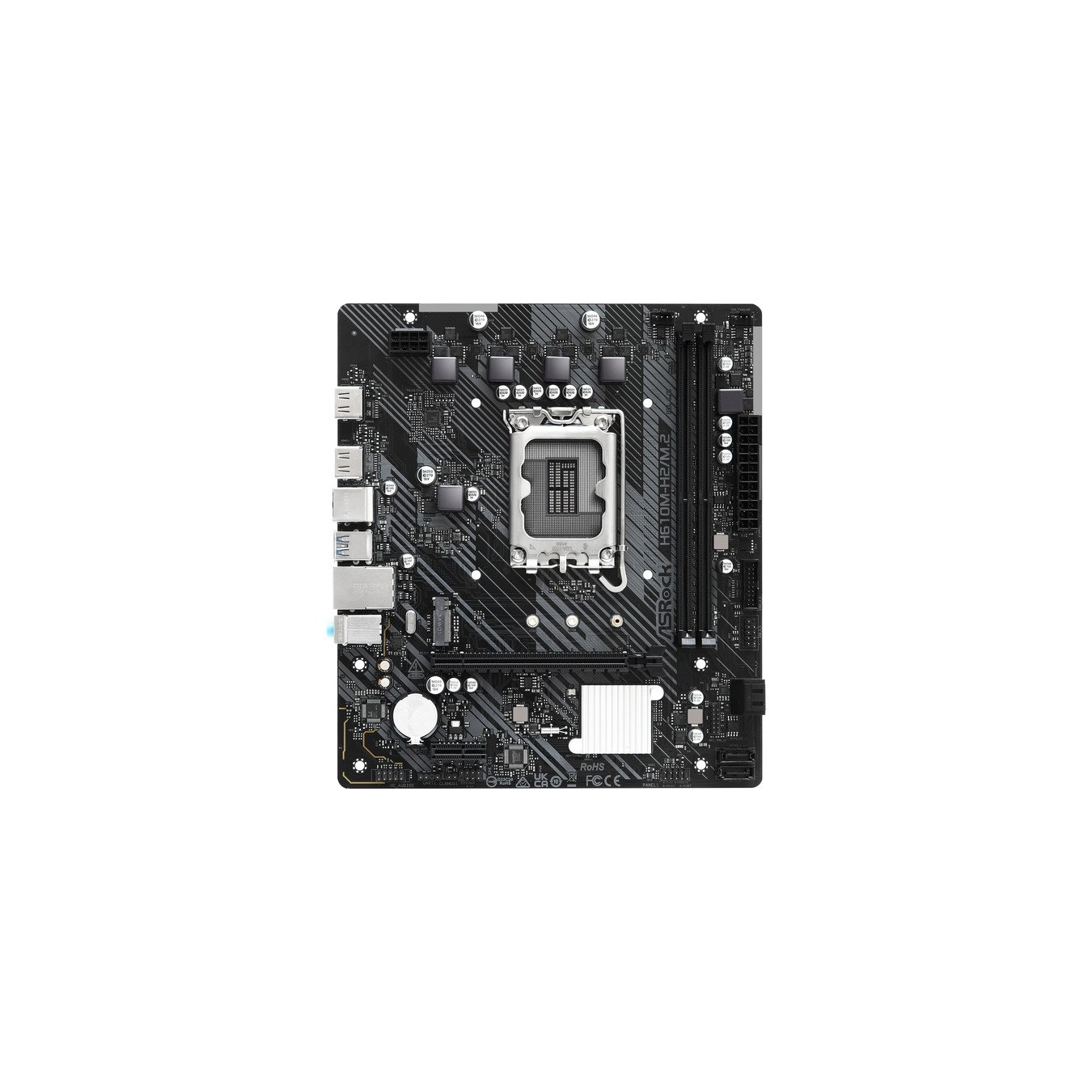

The ASRock H610M-H2/M.2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR4 DIMM slots in dual-channel operation for up to 128 GB of RAM. The ASRock H610M-H2/M.2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The ASRock H610M-H2/M.2 also has 8-channel sound, a Gigabit LAN interface, an M.2 interface, four SATA3 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4710483946929 |
| Manufacturer no. | 90-MXBP70-A0UAYZ |
| base | 1700 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) |
| Chipset | Intel® H610 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| BIOS | 128 Mbit UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 128 GB |

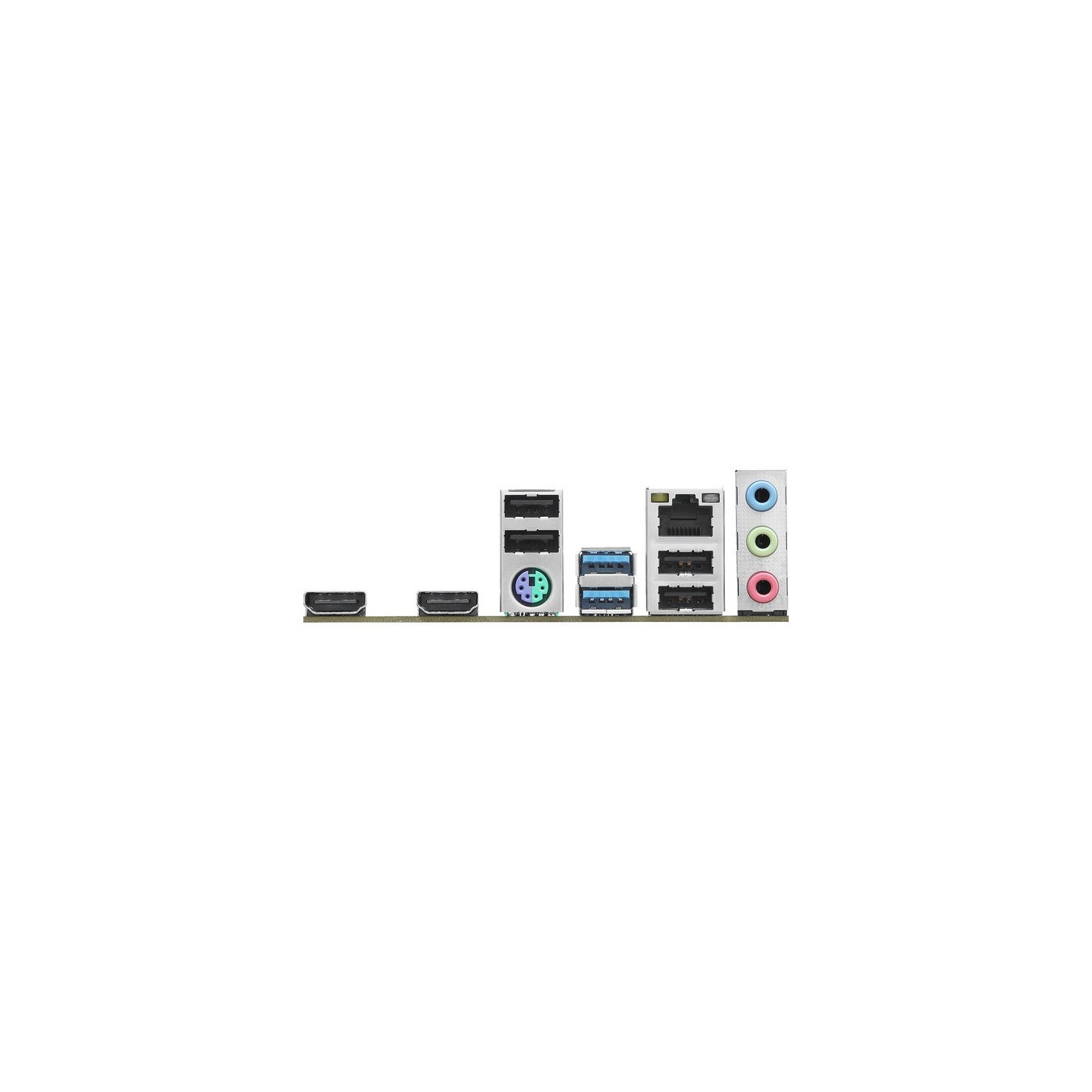

| Connections (external) - Mouse/Keyboard Combo (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| RGB Standard | AURA Sync |
| SATA Controller | Intel® H610 |
| USB-Controller | Intel® H610 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Realtek RTL8111H |
| More information | In order to support the latest processor cores, a BIOS update may be required. |

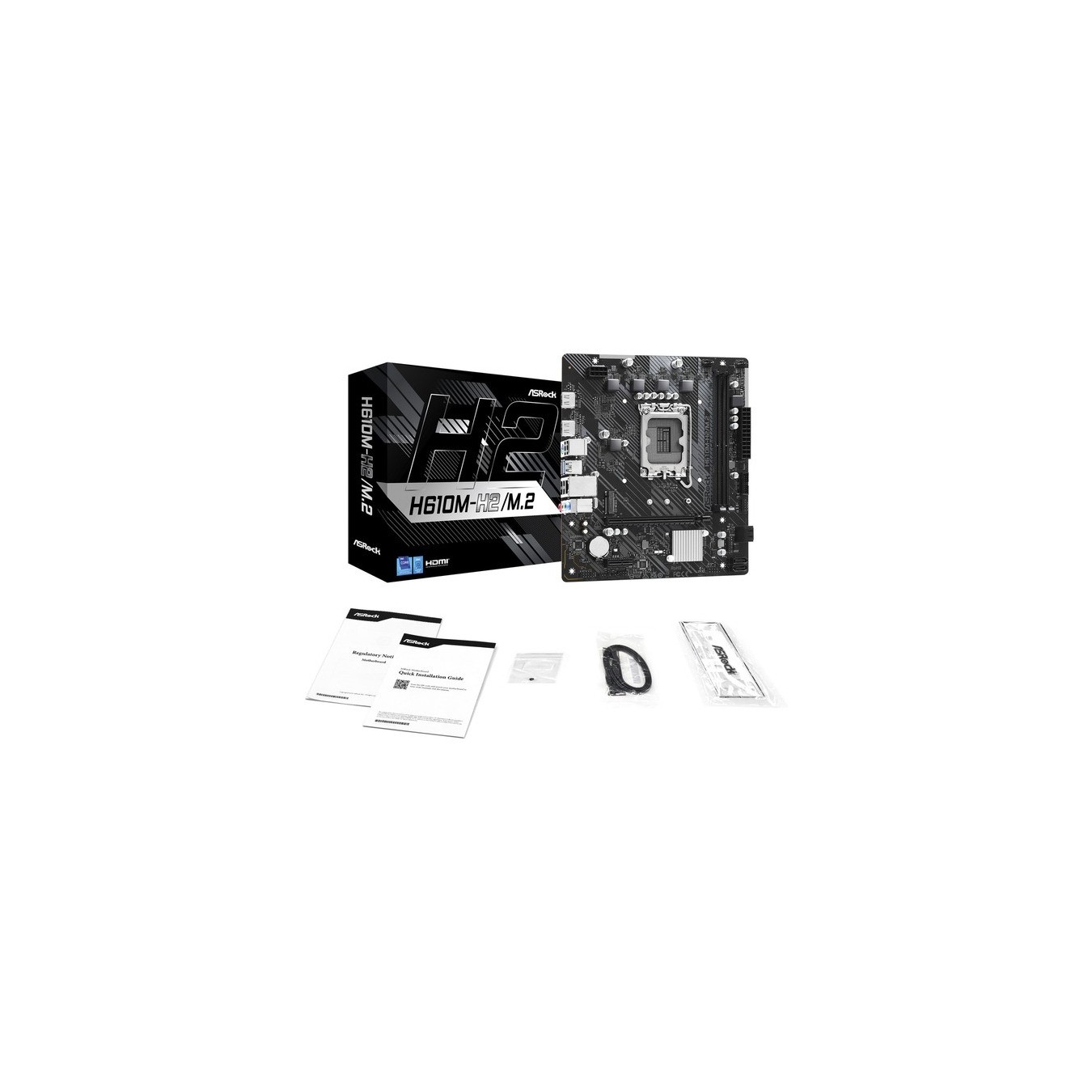

| Accessories - available | Quick installation guide, support CD, I/O cover, 2x SATA cables, M.2 screws |
| Dimensions | Width: 244mm x Height: 201mm |
