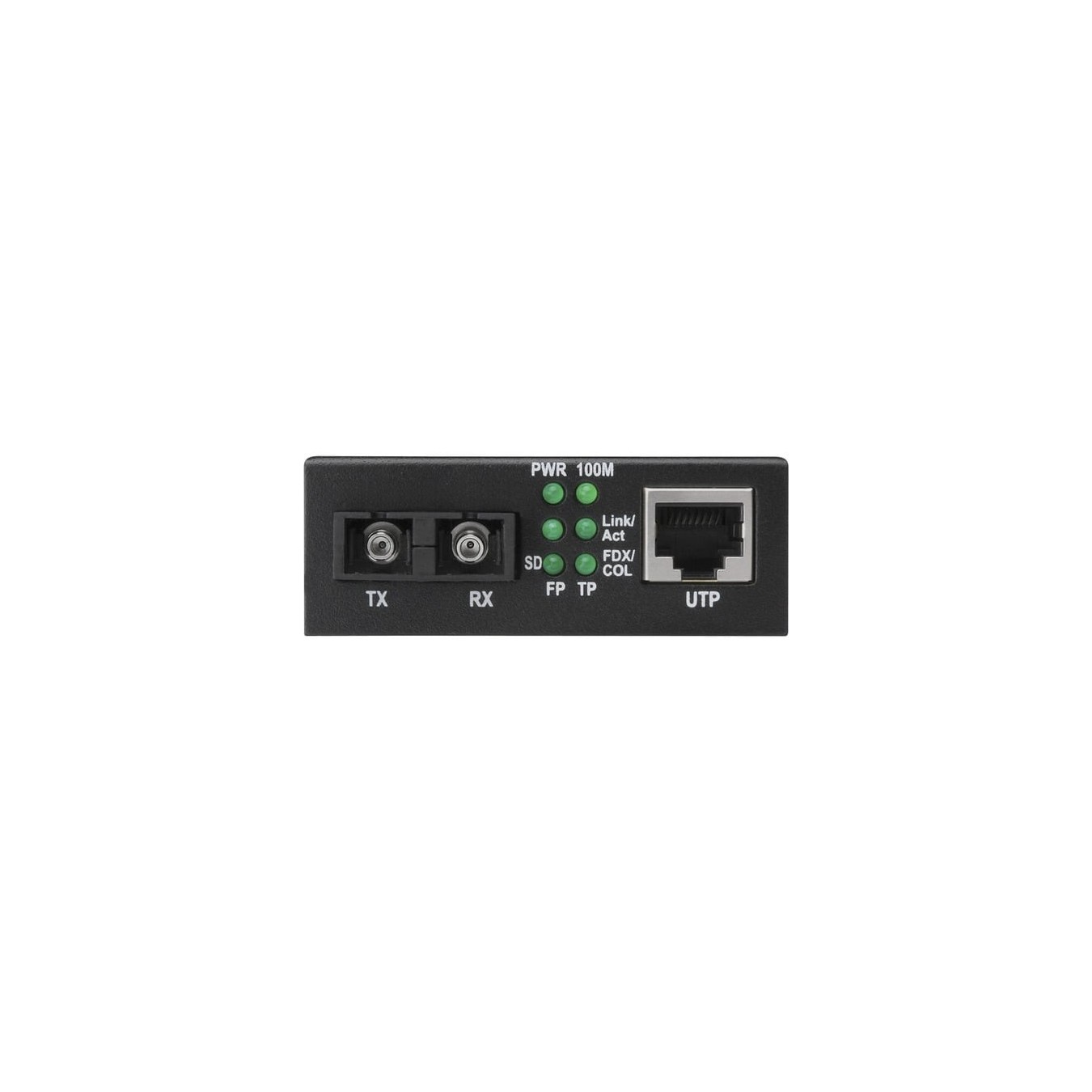

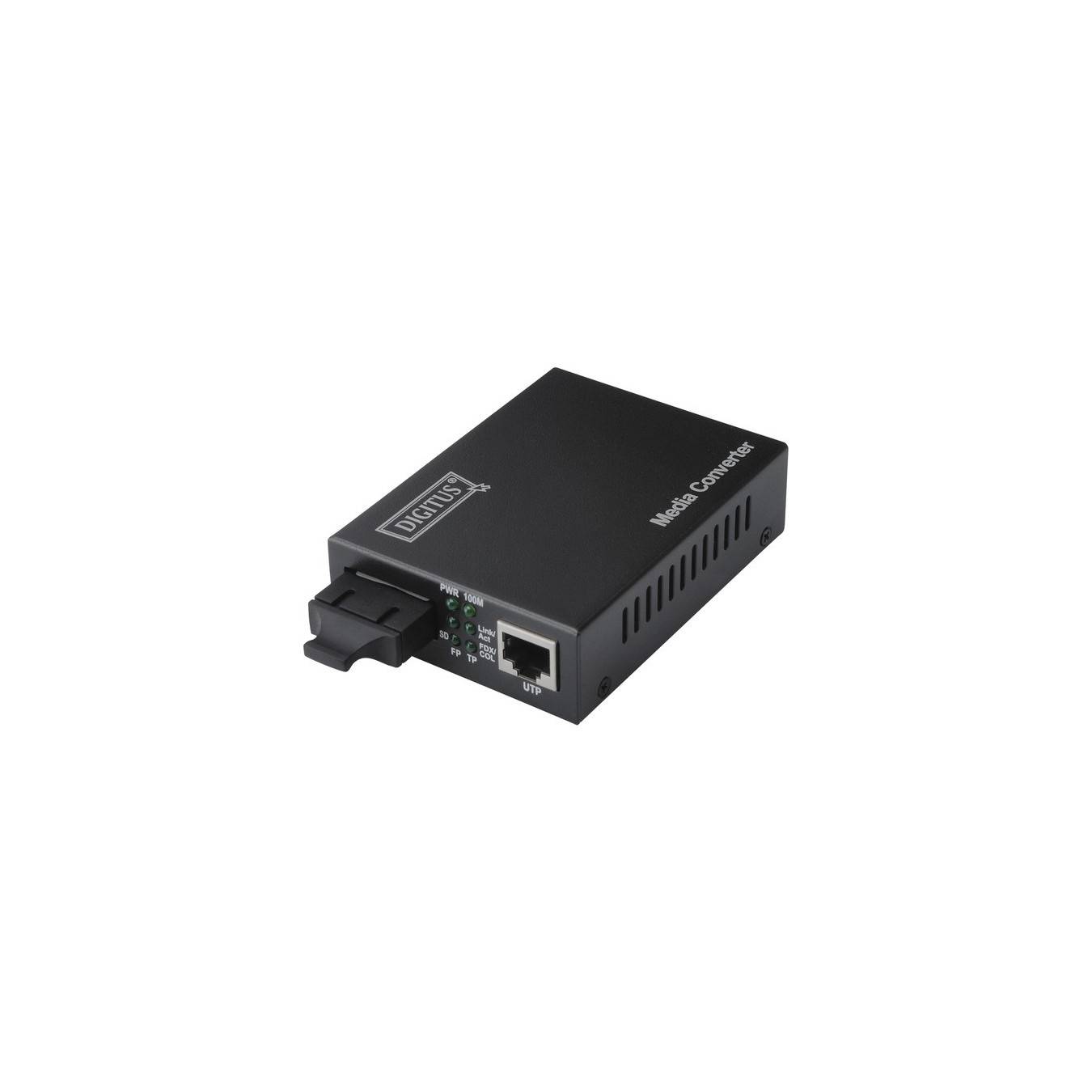

Fast Ethernet media converter - RJ-45 to SC duplex
Digitus Fast Ethernet media converter RJ-45 to SC duplex converts 100Base-TX to 100Base-FX; standalone unit with external power; range up to 20 km; 1310 nm; Auto-MDI/MDI-X; auto duplex; diagnostic LEDs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The Digitus Fast Ethernet media converter RJ-45 to SC duplex converts wire-based 100Base-TX network signals into 100Base-FX fiber optic signals. It offers a maximum range of up to 20 km. The wavelength for both sending and receiving is 1310 nm. As a standalone device with an external power supply, the Fast Ethernet media converter RJ-45 to SC duplex does not need to be installed in a rack. Automatic cable detection, auto-detection of full and half duplex as well as diagnostic LEDs for status and activity monitoring are also available. The Fast Ethernet media converter RJ-45 to SC duplex is suitable for 9/125 µm single-mode fiber optic cables.
| Typ | Converter |
| Color | schwarz |
| EAN | 4016032293101 |
| Manufacturer no. | DN-82021-1 |
| Application example | Media converter |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| More information | Standalone converter with external power supply, high quality and maximum reliability, 10/100Base-TX to 100Base-FX, connections: 1x RJ45, 1x SC-Duplex, range up to 20 km, wavelength: 1310 nm, automatic cable detection (Auto-MDI/MDI-X function), auto-detection of full and half duplex, diagnostic LEDs for status and Activity monitoring, Link Fault Pass Through (LFP) function for easy fault detection, suitable for 9/125 µm single-mode fiber optic cable, transmission power: minimum -15 dBm, maximum -8 dBm, reception sensitivity: minimum -38 dBm, 2 MB data buffer, input voltage: 5 volts DC, maximum current consumption: 800 mA, power consumption: 2.5 watts, supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet |
| Accessories - available | Instructions, power supply |
| Dimensions | Width: 70mm x Height: 26mm x Depth/Length: 95mm |
