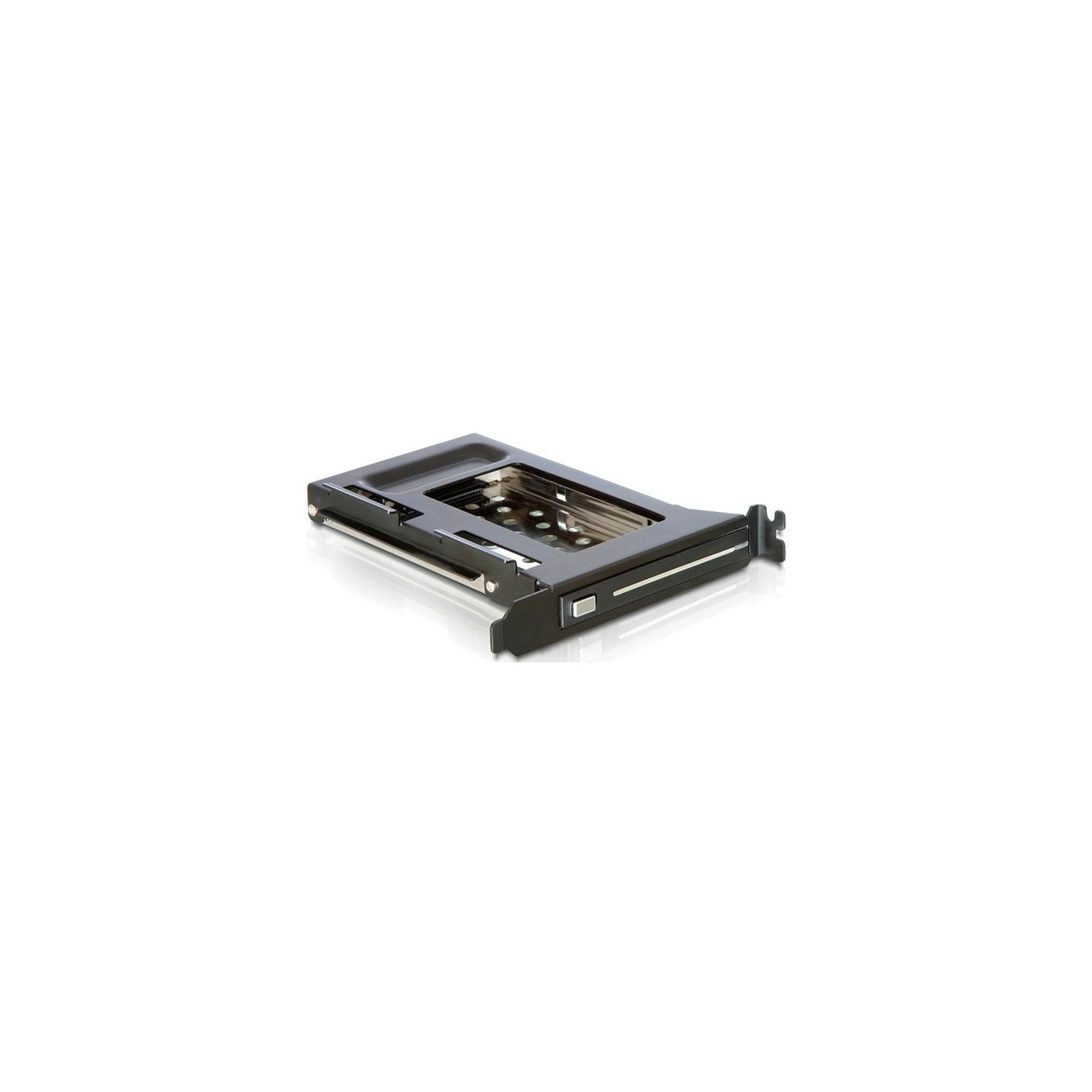

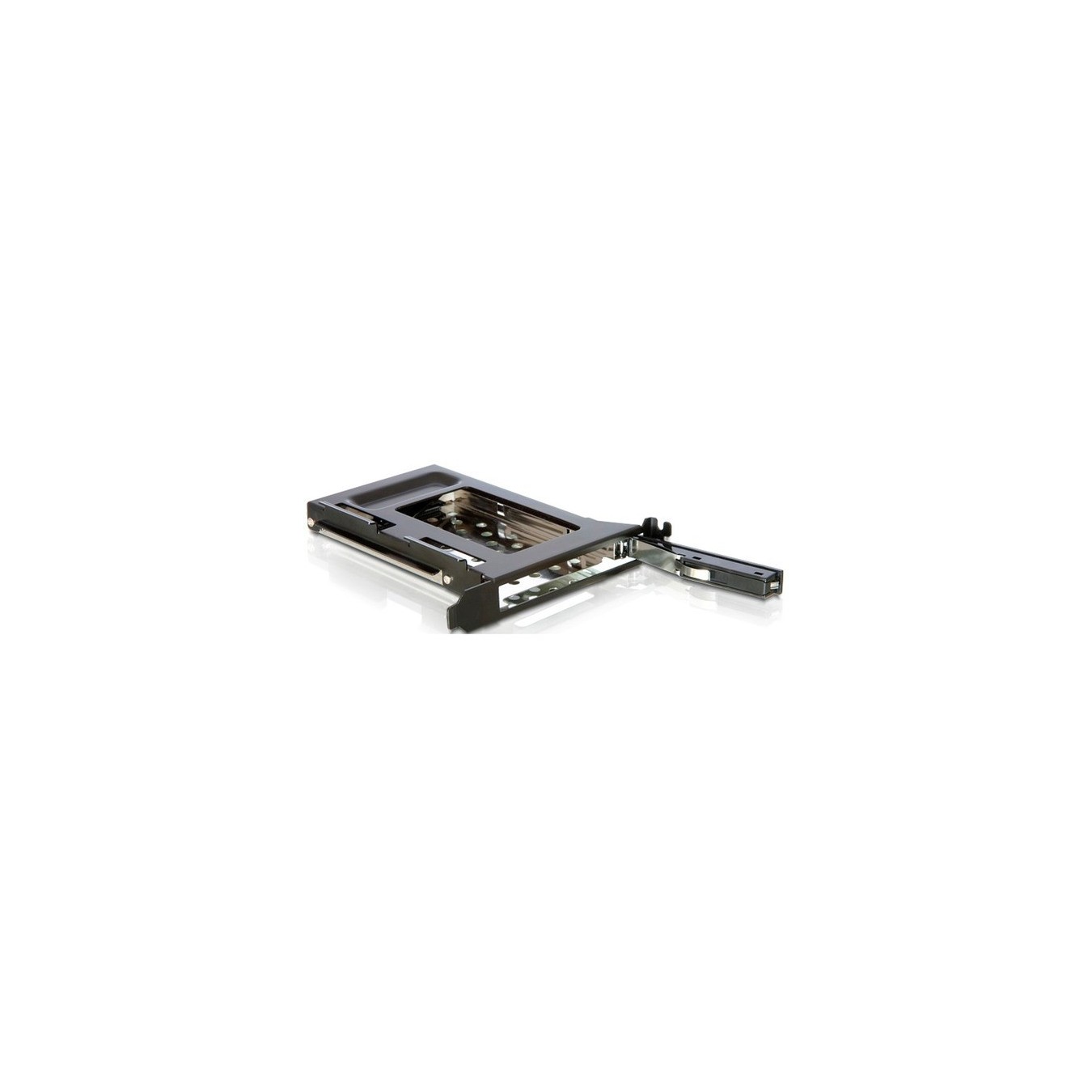

Delock Removable Frame Slot Bracket – 1x 2.5in SATA HDD (Boxed)
Delock removable frame bracket for PCI/PCIe slot installation. Supports 1x 2.5-inch SATA HDD/SSD with hot-swap capability. Includes SATA cables and protective film.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

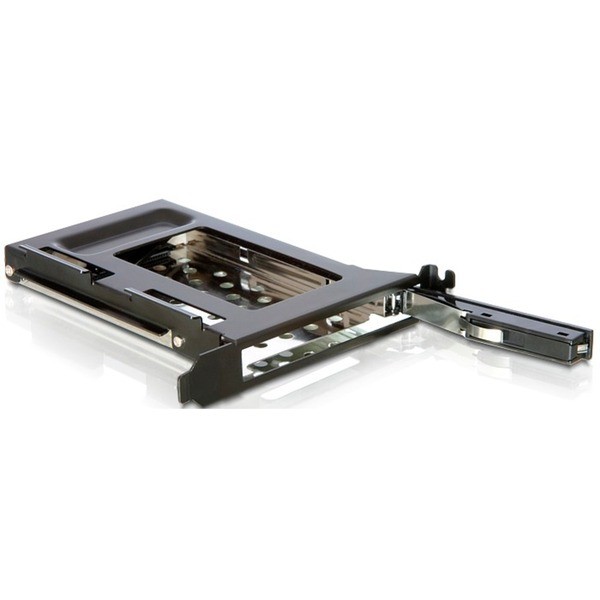

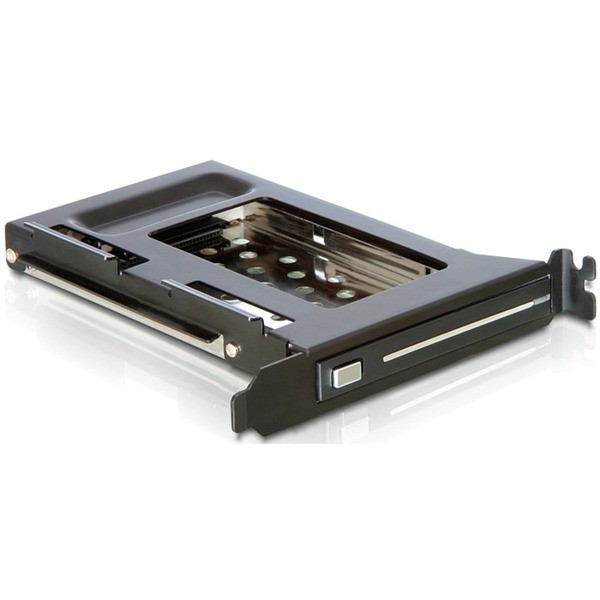

The Delock removable frame slot bracket is a compact drive expansion solution designed for desktop PCs and 19-inch server systems with limited internal storage space. This bracket mounts into any available PCI or PCI Express slot, allowing you to add a 2.5-inch SATA hard drive or SSD without occupying a traditional 3.5-inch bay. The tool-less design and hot-swap functionality enable quick drive installation, removal, and replacement even while the system is running (subject to controller support).
Featuring robust construction with internal SATA 22-pin socket connections and external SATA 22-pin plug with 4-pin LED connector, this bracket supports drives up to 9.5mm in height. The package includes all necessary accessories: SATA data cable, SATA power cable, 2.5-inch hard drive protective film, mounting screws, and detailed operating instructions. Ideal for compact builds, mini-ITX systems, and server environments where storage density optimization is critical.
Technical highlights include full SATA III compatibility (up to 6 Gbps transfer speeds), passive cooling design, and compliance with CE, RoHS, and REACH standards. The bracket's open-frame construction ensures maximum airflow around the installed drive, maintaining optimal operating temperatures.
- Mounts in free PCI/PCIe expansion slot (full height)
- Supports 1x 2.5-inch SATA HDD or SSD (7–9.5mm height)
- Hot-swap capable for live drive replacement
- Includes SATA data and power cables plus protective film
- SATA III compatible (up to 6 Gbps)
- CE, RoHS, REACH certified
| Type | Removable frame bracket |
| Manufacturer | Delock |
| Model Number | 47192 |
| EAN | 4043619471928 |
| Installation | PCI or PCI Express slot (full height) |
| Drive Capacity | 1x 2.5-inch internal |
| Drive Compatibility | 2.5-inch SATA HDD/SSD (7–9.5mm height) |
| External Connections | 1x SATA 22-pin plug, 1x 4-pin LED connector |
| Internal Connections | 1x SATA 22-pin socket (NSS connection) |
| Data Transfer Speed | SATA III up to 6 Gbps |
| Hot-Swap Support | Yes (controller dependent) |
| Included Accessories | SATA data cable, SATA power cable, 2.5-inch protective film, mounting screws, operating instructions |
| Product Weight | 250 g |
| Dimensions (Product) | Compact form factor for PCI/PCIe slot mounting |
| Material | Aluminum and steel construction |
| Compliance | CE, RoHS, REACH |
| Warranty | Manufacturer warranty (verify with retailer) |
