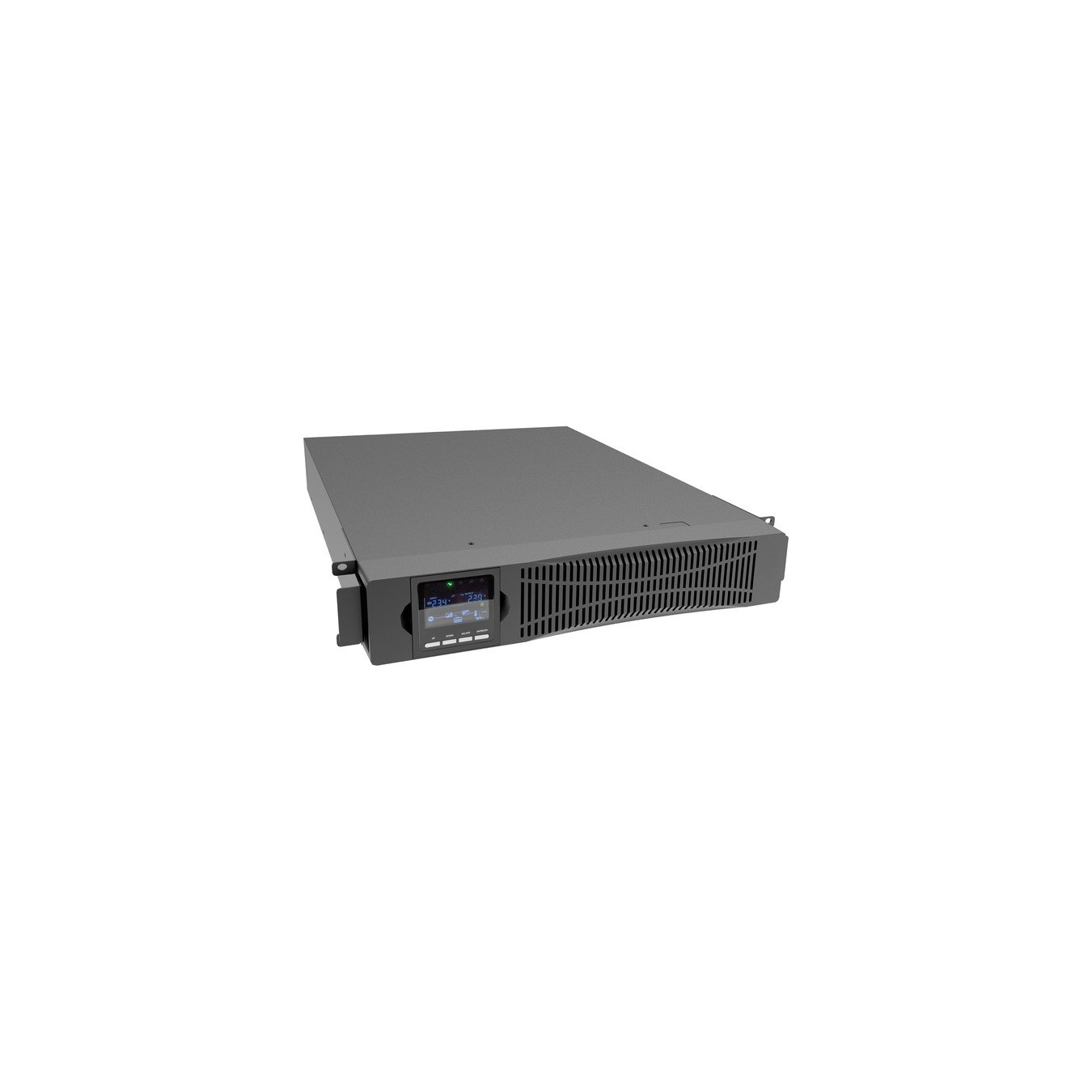

OnLine UPS - DN-170096 - OnLine, UPS
The DIGITUS Online UPS provides double-conversion protection and continuous power in a compact, flexible system.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Input Plug | Schuko (Type F) |
|---|---|
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 8 |
The DIGITUS Online UPS is a double conversion UPS solution that offers premium power outage protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterrupted power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
| Typ | UPS |
| Color | schwarz |
| EAN | 4016032474678 |
| Manufacturer no. | DN-170096 |
| Manufactured in | China |
| UPS type | Online-Einphasig |
| Height units | 2 HE |
| Bridging time - full load | 3 min |
| Rated power | 3,000 Watts (3,000 VA) |
| Input voltage | from 110V to 300V |
| Output voltage - mains operation | 230 V |
| Connections | 1x RS232, 1x USB |
| Display | LCD |
| Output sockets | 8 pieces, connected to battery |
| Output sockets 2 | 1 piece |
| Warning message - visual | LCD screen UPS status for easy installation, configuration and operation |
| Communication | SNMP-Slot |
| Environment - operating temperature | from 0°C to 40°C |
| note | Emergency Power-off (EPO) contact for switching off the UPS in an emergency, charging: 4 hours to 90% capacity after complete discharge, battery quantity: 6 x 12V x 9.0 Ah |
| Feature | Minimal device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation. |
| More information | Network Connection: Optional SNMP/Webcard (part number DN-170100) allows the UPS to be monitored remotely. |
| Notice | Safety standards: IEC/EN62040-1,IEC/EN60950-1, EMV standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Accessories - available | 1 x UPS user manual, 1 x UPS quick start guide, 1 x USB cable, 1 x input power cable 1.80 m (earthed plug CEE 7/7 - IEC 60320 C19), 1 x output power cable 1.50 m (IEC60320 C13 - Sheet E), 1 x IEC 60320 Sheet I (16A) plug |
| Dimensions | Width: 440mm x Height: 86.5mm x Depth/Length: 600mm |
| Weight | 26 kg |
