Professional Cat.7a S/FTP Vergy Dyplex - Cca
Digitus professional Cat.7a S/FTP installation cable DK-1744-A-VH-D-5, 4x2 AWG 22/1, up to 1,500 MHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - AWG | 22 AWG |
|---|---|
| Ethernet Cables - Length Range | Other |
| Ethernet Cables - PoE Compatible | Yes |

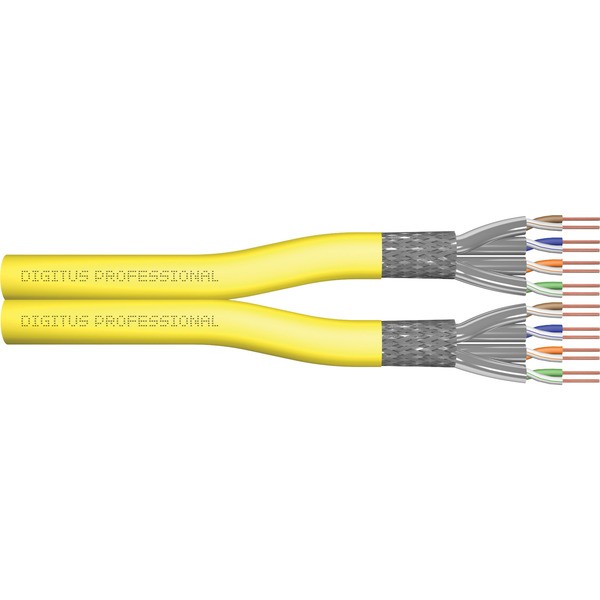

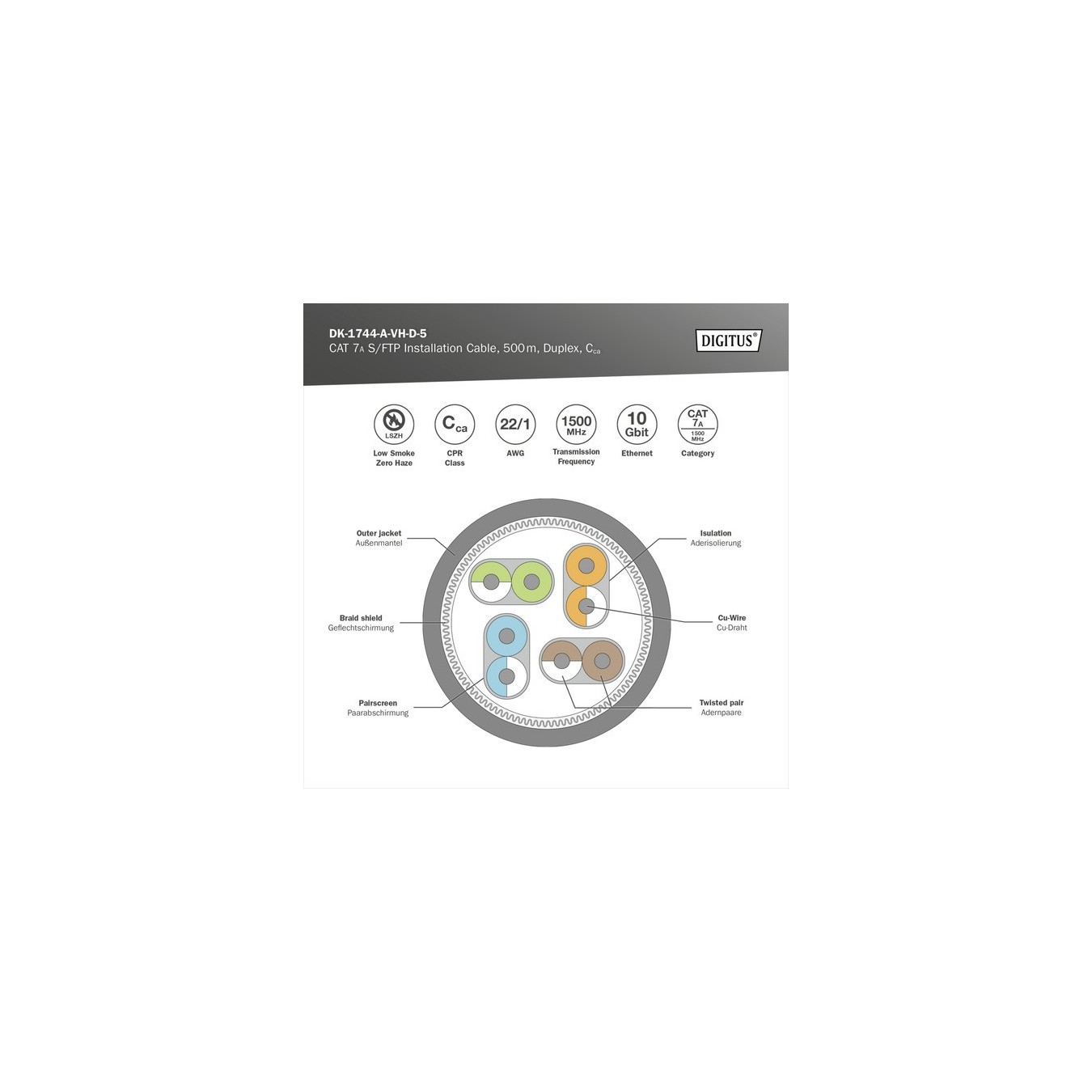

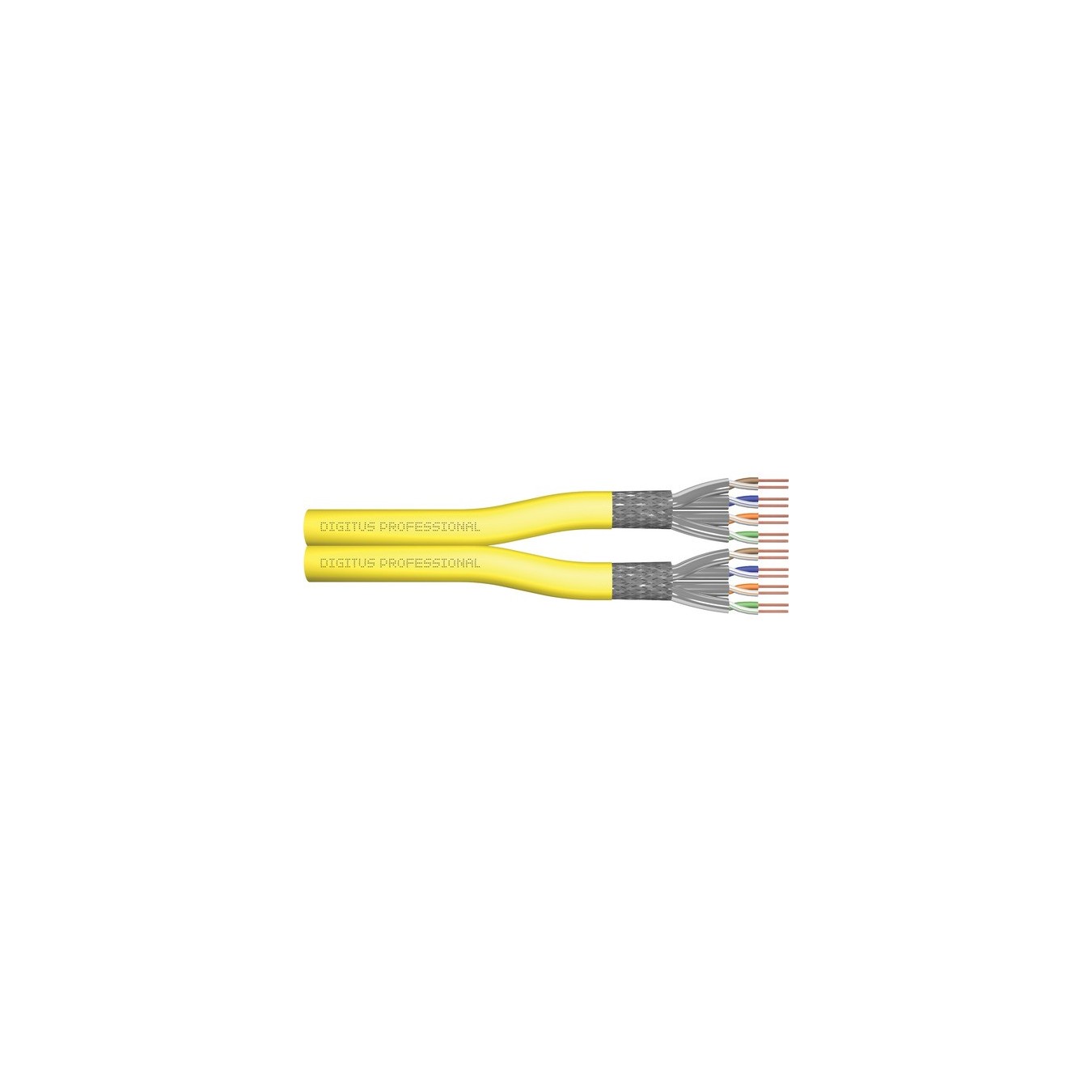

The Digitus Professional Cat.7a S/FTP installation cable DK-1744-A-VH-D-5 is characterized by a 4x2 AWG 22/1 cable structure and achieves a transmission frequency of up to 1,500 MHz. The cable jacket is halogen-free and conforms to the BauPVO Euroclass Cca. The installation cable is designed for use in structured data centers and building cabling. It is ideal for transmitting analog and digital data, it supports POE and POE+. The shielding structure consists of individually shielded pairs with a tinned copper braid, which ensure excellent shielding and electrical values. It also has excellent mechanical properties, it offers a tensile load of max. 150N, the dynamic bending radius is at least 8x OD mm, the static bending radius is at least 4x OD mm.
| Typ | Cable |
| Color | gelb |
| EAN | 4016032441700 |
| Manufacturer no. | DK-1744-A-VH-D-5 |
| Manufactured in | China |
| Application example | Data center and building cabling |
| Area | network |
| Connection - from | 2x cable end without plug |
| Cable cross section | 22 AWG |
| Category - Cable | Cat.7a |
| shielding | S/FTP |
| Characteristics | extern |
| Execution | Premium |
| More information | 10GBit Ethernet, 1,500 MHz transmission frequency, GHMT PVP certified, PoE and PoE+ Power over Ethernet support, BauPVO class Cca, conductor material: Cu bare, halogen-free, flame-retardant |
| Notice | Conforms to the Normen ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1 |
| Cable length | 500 Meter |
| Weight | 71 kg |
