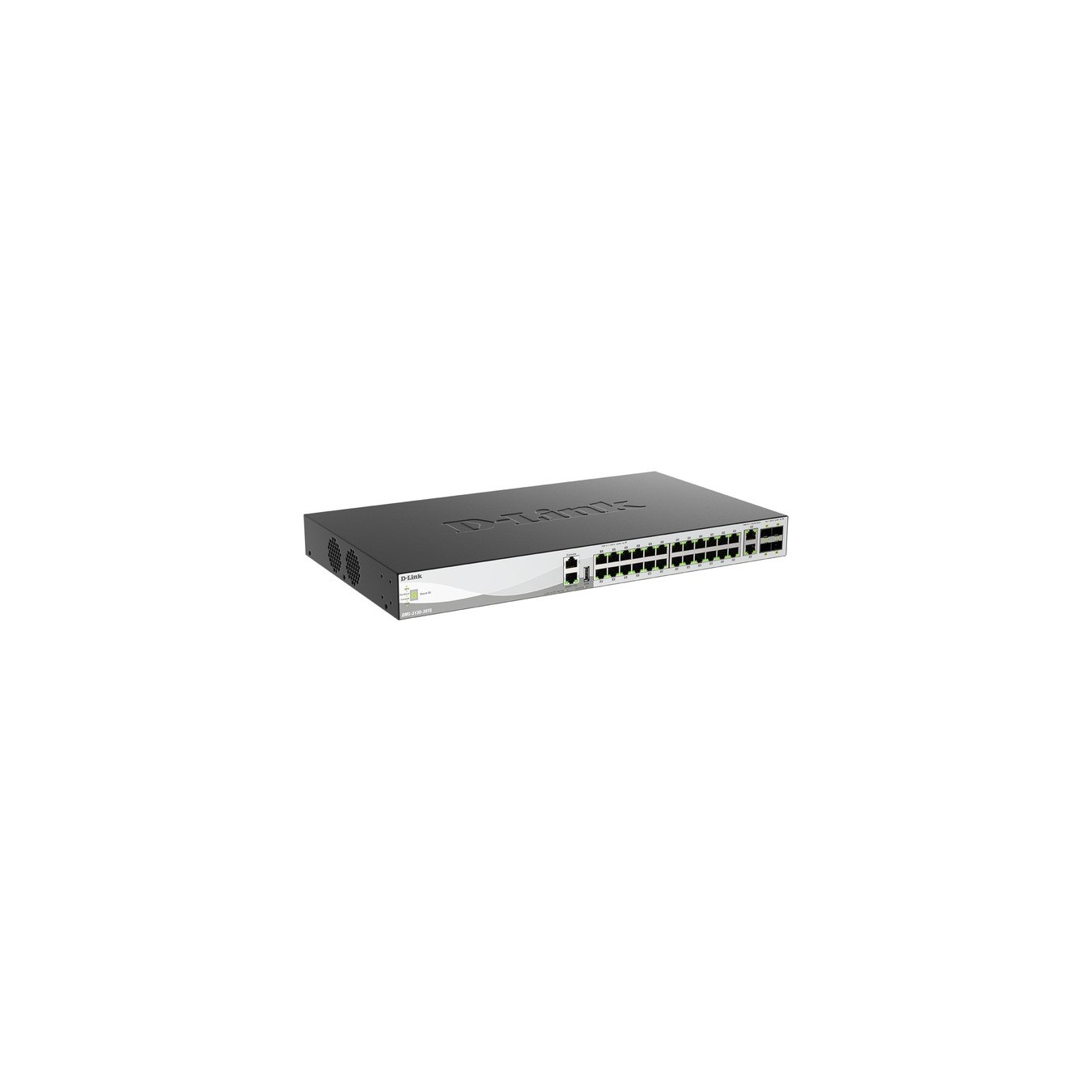

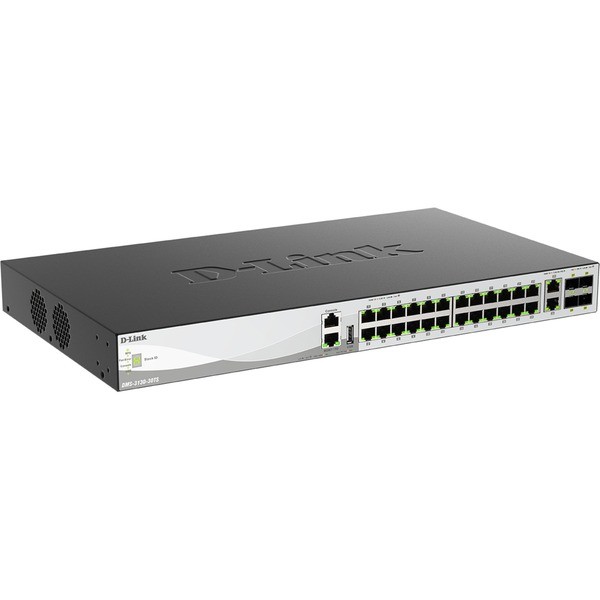

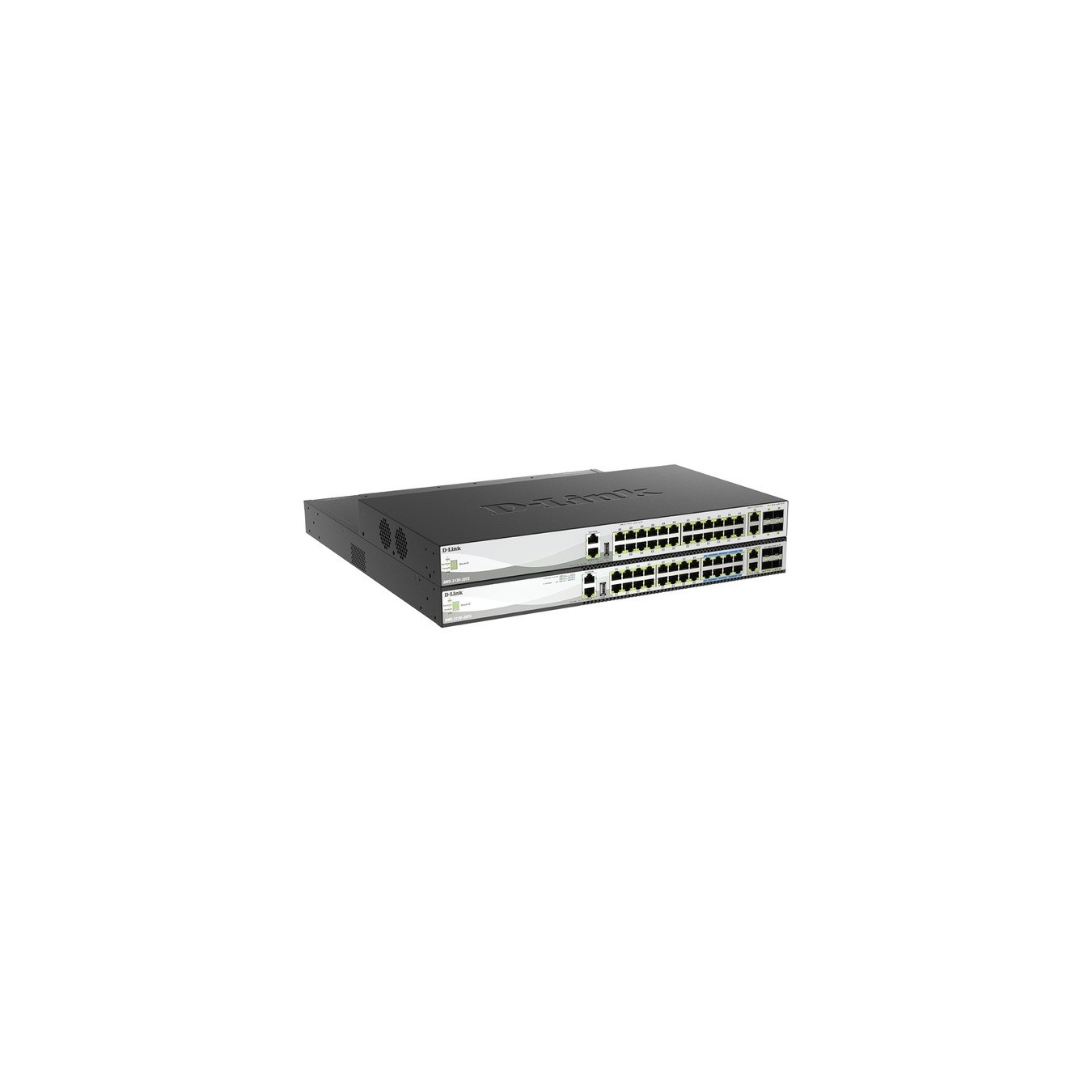

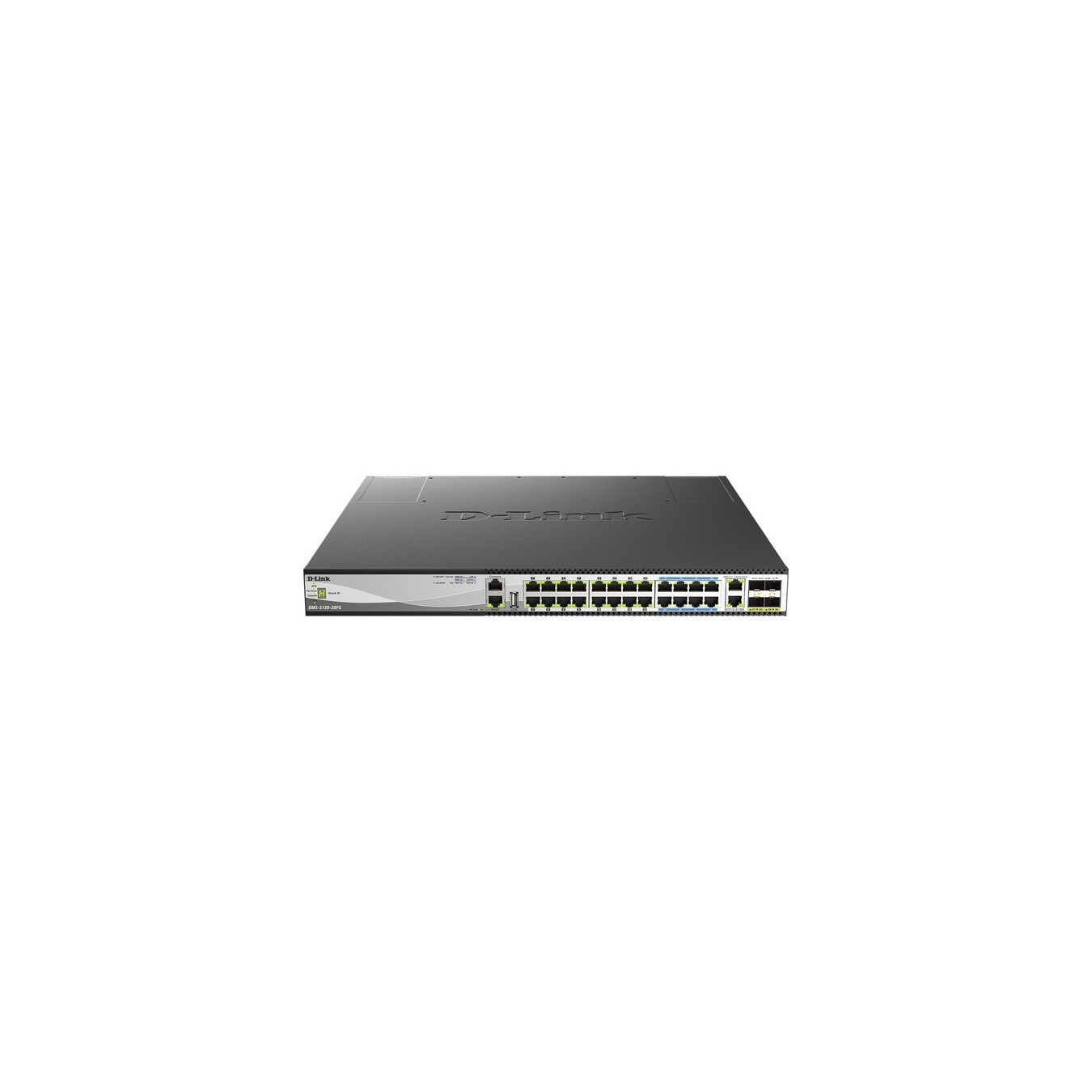

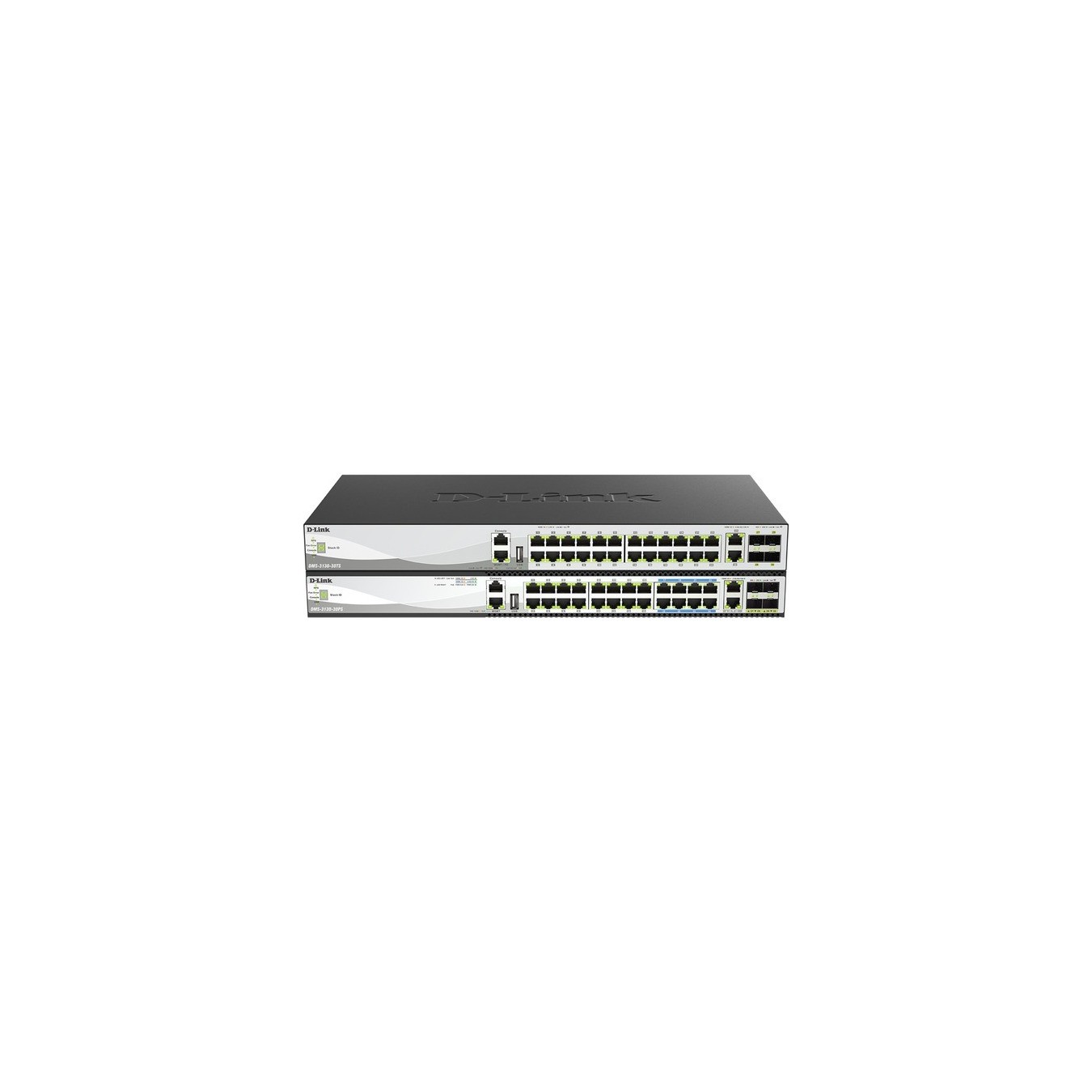

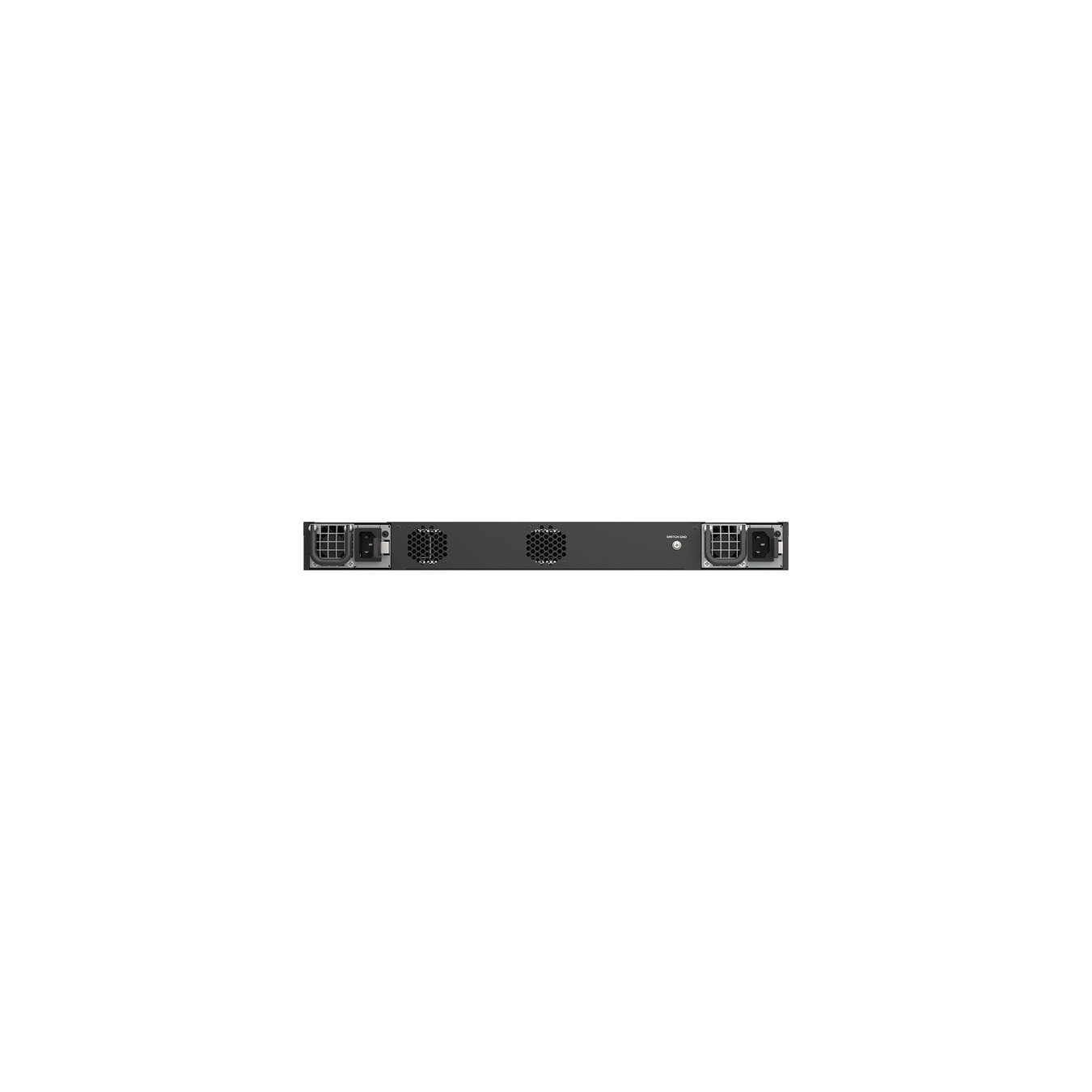

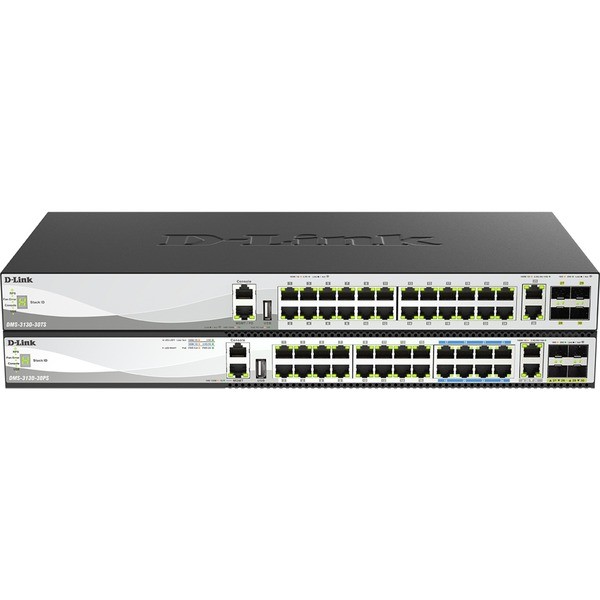

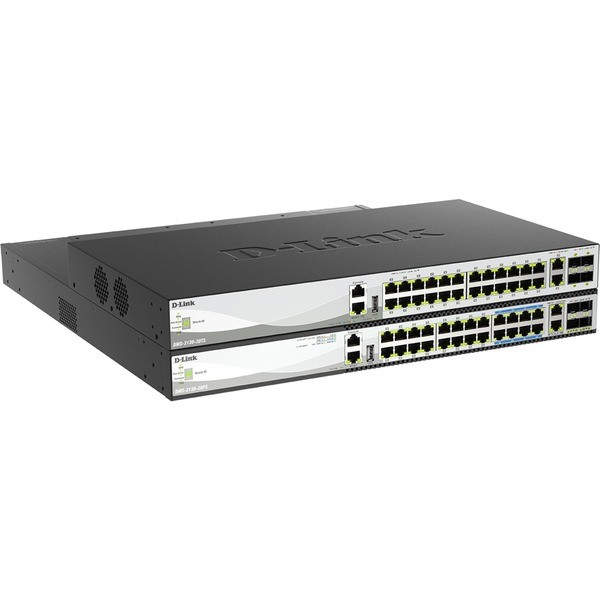

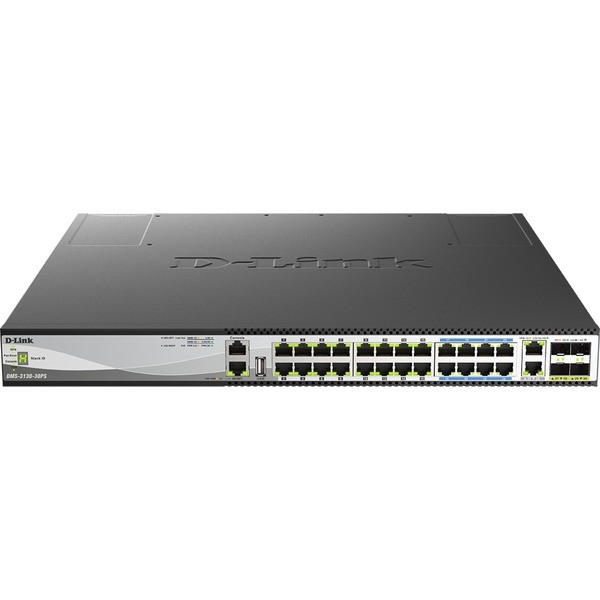

Switch - DMS-3130-30PS/E - Switch
Layer 3, stackable, multi-gigabit managed switch designed to securely connect end users in enterprise or metro Ethernet networks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DMS-3130 Series is a layer 3 stackable multi-gigabit managed switch specifically designed to securely connect end users in enterprise or metro Ethernet access networks. These switches support multicasting and advanced security features, making them the ideal solution for multi-gigabit access networks. Each model is equipped with two 10GBASE-T ports and four 10G/25G SFP28 ports, providing both versatility and high speed. This makes the DMS-3130 switches perfect for demanding network applications where performance, security and scalability are paramount.
| Typ | Switch |
| EAN | 0790069467172 |
| Manufacturer no. | DMS-3130-30PS/E |
| Design | Rack |
| Area of application | Business |
| Connections - Network | RJ-45 26x (of which: 16x 100/1000/2500, 8x 100/1000/2500/5000, 2x 1000/2500/5000/10000, 1x console port) |
| Routing & Switching - Layer | Layer 3 Routing, Layer 2 Switching |
| Power supply | Power consumption including PoE devices: 1211.5 W, PoE total budget: 740 W, max. PoE supply per port: 60 W |
| Feature | MAC Address Table: 32K (32,768) entries | Flow Control | 802.3x Flow Control | HOL Blocking Prevention | Jumbo Frames up to 9 Kbytes | 802.1AX/802.3ad Link Aggregation | Max. 32 groups per device, 8 ports per group | Spanning Tree Protocols | 802.1D STP | 802.1w RSTP | 802.1s MSTP | BPDU Filtering | Root Guard | Loop Guard | Loopback Detection | Port Mirroring | Supports One-to-One, Many-to-One | Supports Mirroring for both Tx/Rx | Supports 4 mirroring groups | Flow mirroring | Supports Mirroring for Tx/Rx | VLAN Mirroring | RSPAN | L2 Protocol Tunneling | Ethernet Ring Protection Switching (ERPS) v1/v2 || IGMP Snooping | IGMP v1/v2/v3 Snooping | Supports 1024 IGMP groups | IGMP Snooping Fast Leave | Supports 128 static IGMP groups | Per VLAN IGMP Snooping | Data Driven Learning | IGMP Snooping Querier | IGMP Authentication | IGMP Accounting | Report Suppression | MLD Snooping | MLD v1/v2 Snooping | Support 1024 MLD Groups | Host-based MLD Snooping Fast Leave | Supports 64 static MLD groups | MLD Snooping Querier | Per VLAN MLD Snooping | MLD Proxy Reporting |
| More information | 1x 10/100/1000BASE-T RJ-45 port for out-of-band IP management | Stacking Ports: 4 |
| Dimensions | Width: 440mm x Height: 44mm x Depth/Length: 470mm |
| Weight | 6,5 kg |
