DisplayPort Splitter - 1.4 to 3x HDMI MST
Delock 87770 DisplayPort Splitter (Black) splits a DP signal to three HDMI displays via MST; external adapter.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The splitter 87770 from Delock receives a DisplayPort signal from a PC or notebook and splits it between three connected screens. This means that three HDMI monitors can be operated on one DisplayPort connection. The splitter 87770 is a Multi-Stream Transport (MST) hub and supports extended desktop configuration of DisplayPort. Under Windows, the connected monitors are controlled individually and can be combined into one large display. Thanks to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3,840 x 2,160) are supported.
| Typ | DisplayPort Splitter |
| Color | schwarz |
| EAN | 4043619877706 |
| Manufacturer no. | 87770 |
| Application example | For connecting 2 HDMI monitors to a DisplayPort socket |
| Area | Audio / Video |
| Connection - from | 1x DisplayPort (Stecker) |
| Video classification | DisplayPort 1.4 |
| taps | 4 |
| Characteristics | Adapter, extern |
| Feature | Active converter, single/multi-stream transport hub (SST/MST), transmission of audio and video signals |
| More information | Chipset: VMM5300, Features: Mirroring or Extending (Windows only), supports Display Stream Compression 1.2 (DSC), HDR and HDCP 1.4 and 2.2, maximum resolution (depending on system and connected hardware): DisplayPort 1.4 Multi-Stream Transport (MST): 2 displays: up to 3,840 x 2,160 @ 60Hz, 3 displays: up to 3,840 x 2,160 @ 30Hz + 1x up to 3,840 x 2,160 @ 60Hz, DisplayPort 1.4 Multi-Stream Transport (MST) + DSC: 3 displays: up to 3,840 x 2,160 @ 60Hz |
| Notice | System requirements: Windows 8.1 / 8.1-64 / 10 / 10-64, charger USB Type-A 5V / 2A |

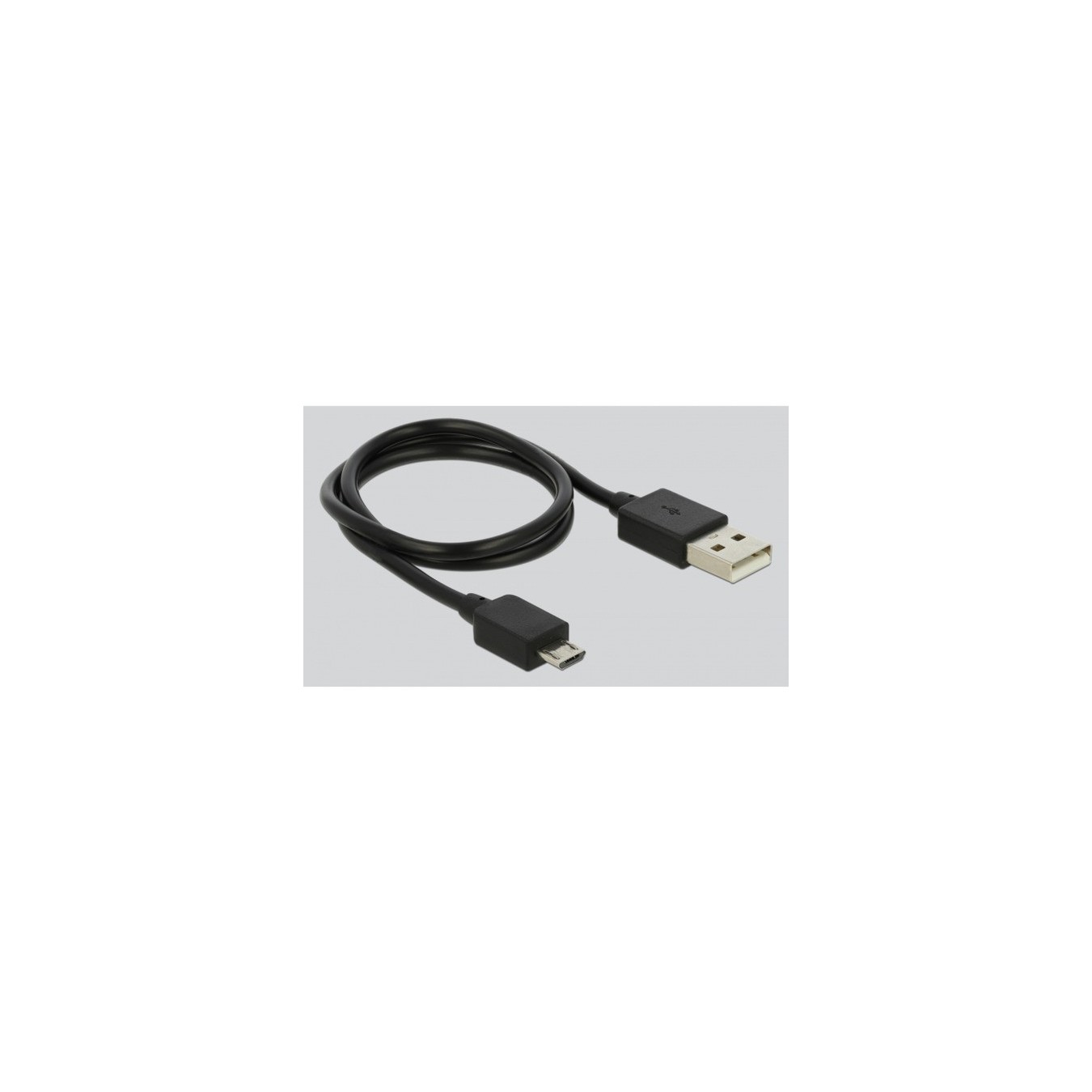

| Accessories - available | Operating instructions, USB power cable (length approx. 0.5m) |
| Dimensions | Width: 43mm x Height: 14mm x Depth/Length: 105mm |
| Cable length | 12,5 cm |
