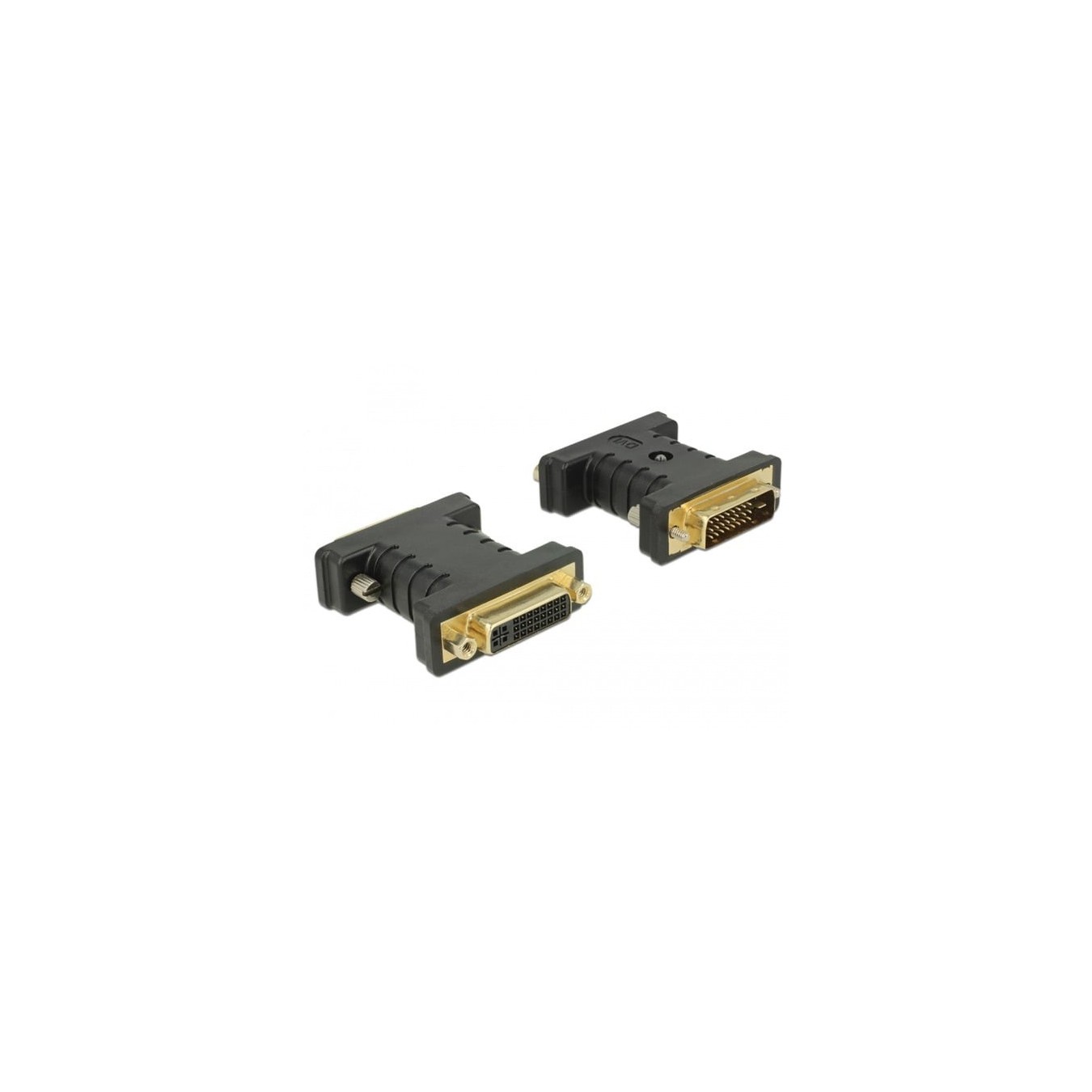

DVI Adapter - DVI 24+1 (male) to DVI 24+5 (female), EDID emulator
DVI-D adapter with EDID emulator (63313) by Delock; emulates a monitor to prevent signal shutdown or resolution changes when no display is connected.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DVI adapter and EDID emulator 63313 from Delock emulates a monitor so that the signal source does not switch off the signal or change the resolution even without a connected screen. The EDID Emulator contains a standard set of EDID/DDC data, but it can also read and save the data from a connected monitor.
| Typ | Adapter |
| Color | schwarz |
| EAN | 4043619633135 |
| Manufacturer no. | 63313 |
| Application example | Emulation of a monitor, reading out the data |
| Area | Audio / Video |
| Connection - from | 1x DVI-D (Stecker) |
| taps | 2 |
| Characteristics | Adapter, extern |
| More information | Resolution up to 3,840 x 2,160 @ 60Hz (depending on the system and the connected hardware), does not require an external power supply, LED display, plastic housing |

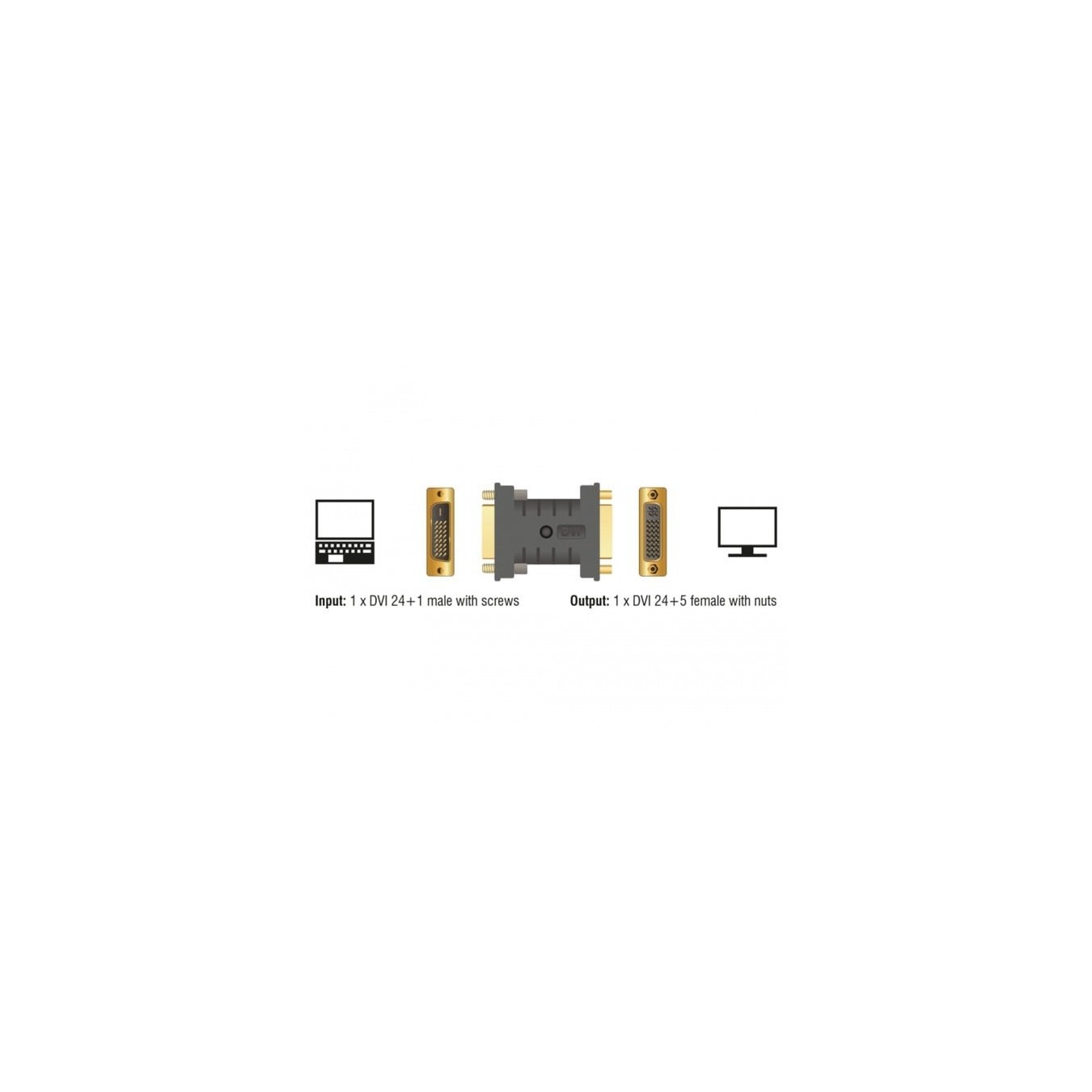

| Notice | DVI 24+1 plug with screws, DVI 24+5 socket with nuts, DVI-D (Single Link), VGA not connected |
| Accessories - available | Instruction manual |
| Dimensions | Width: 43mm x Height: 15mm x Depth/Length: 55mm |
| Weight | 50 Gramm |
