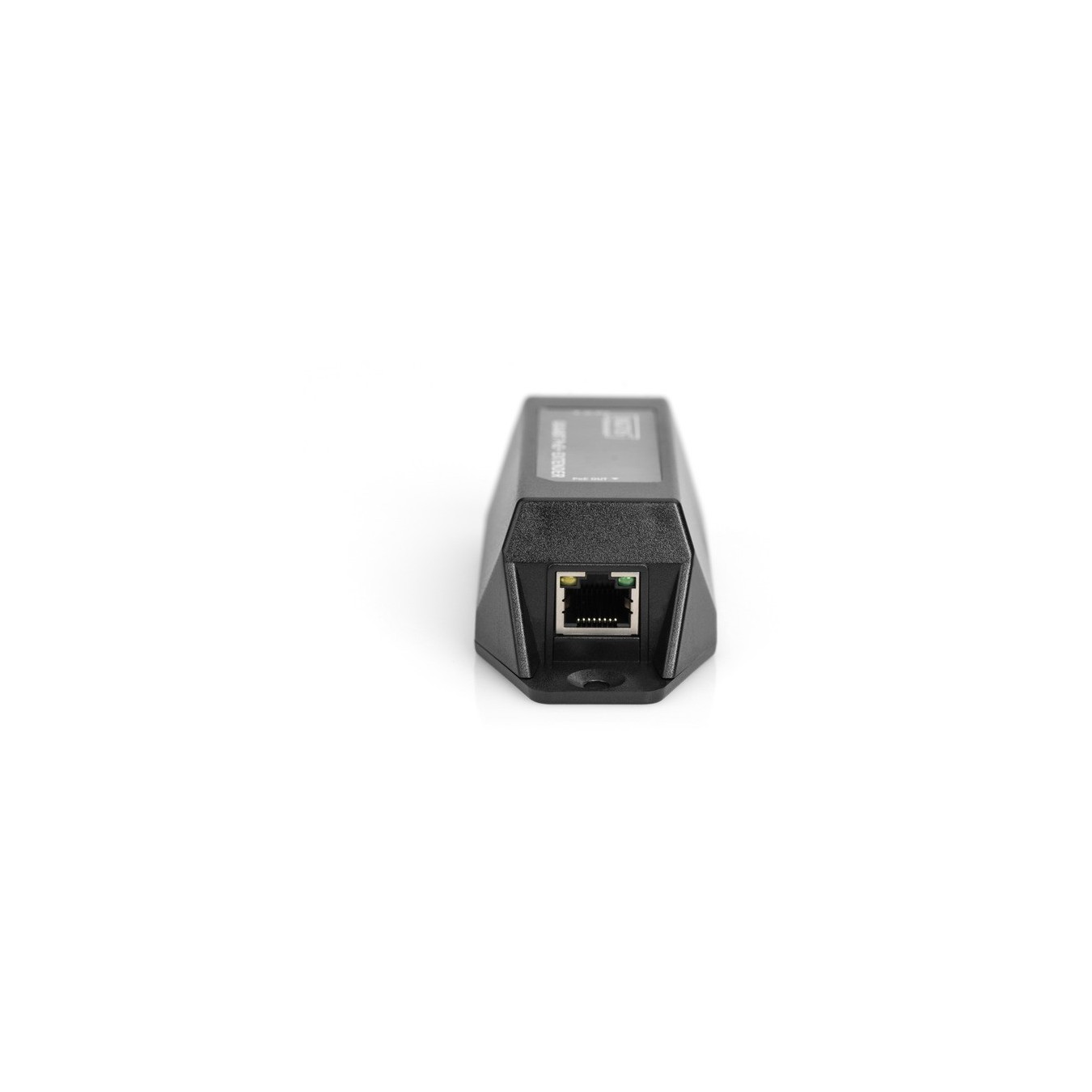

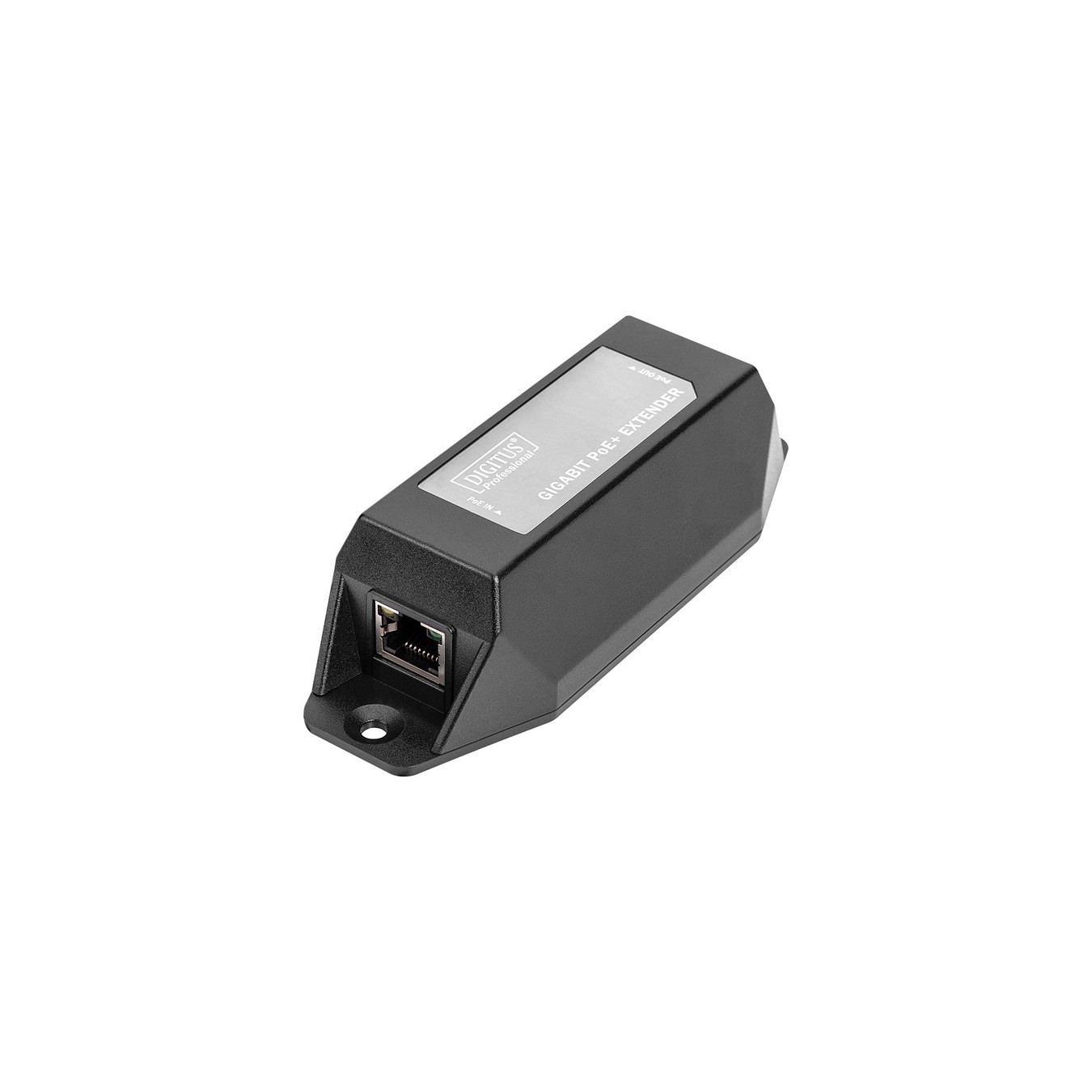

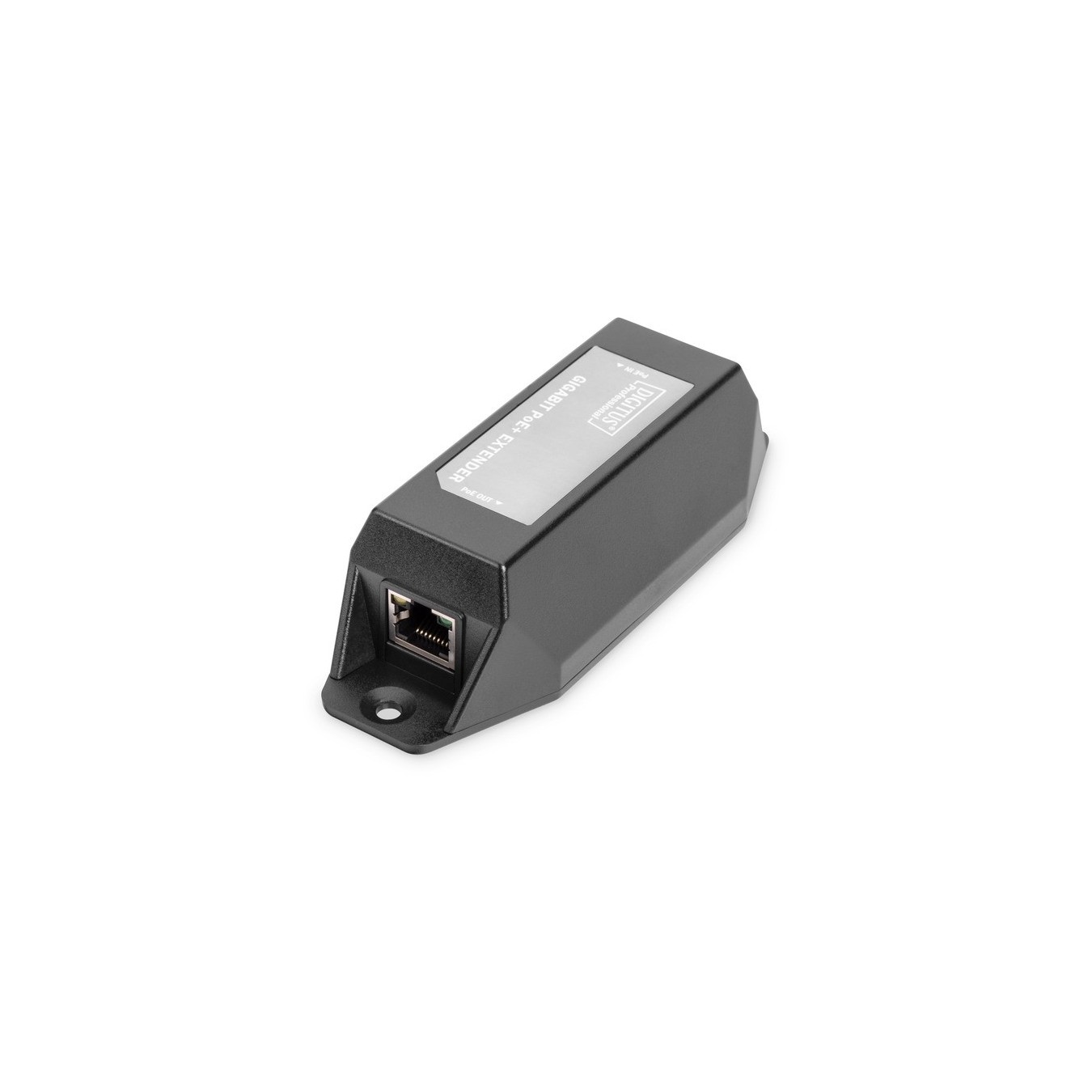

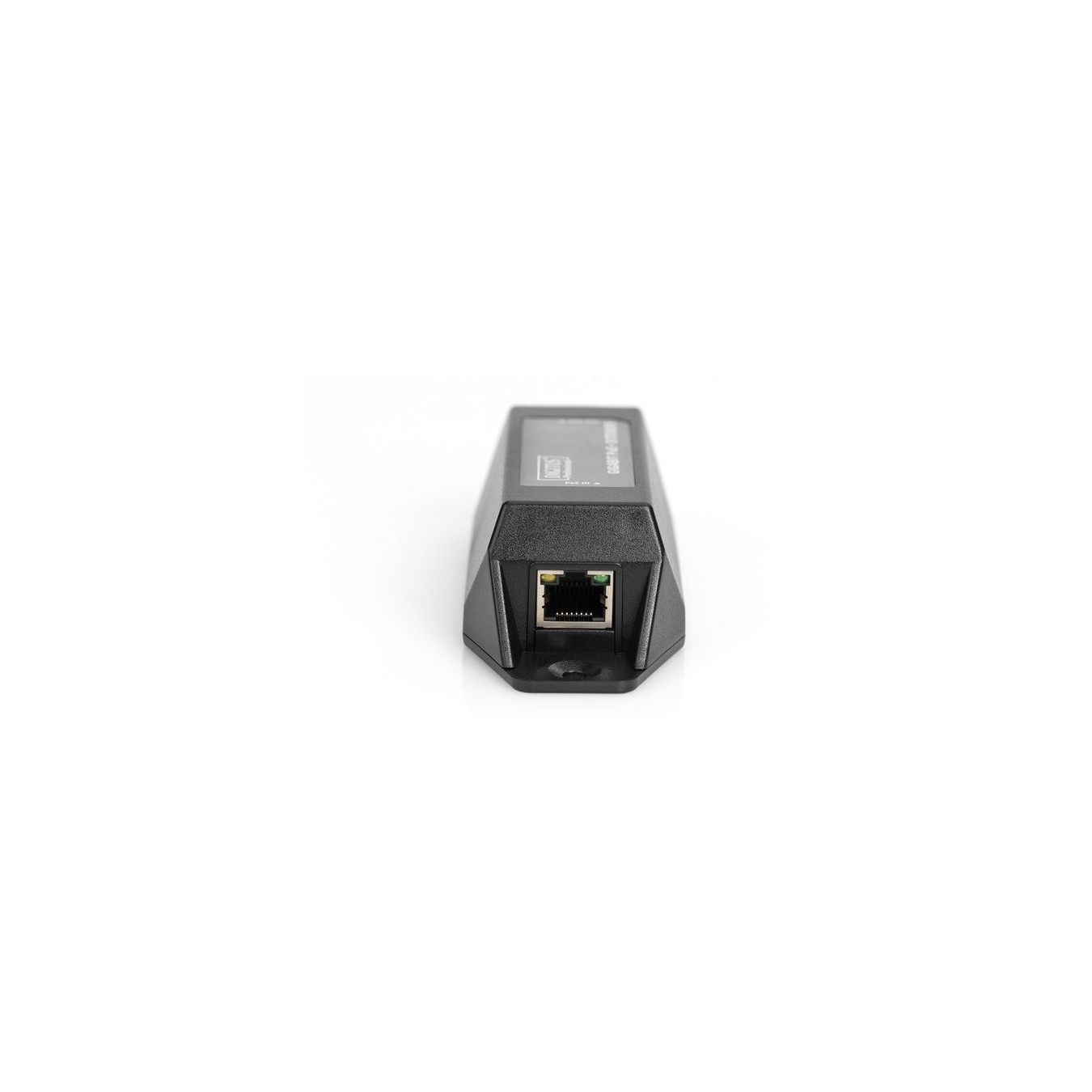

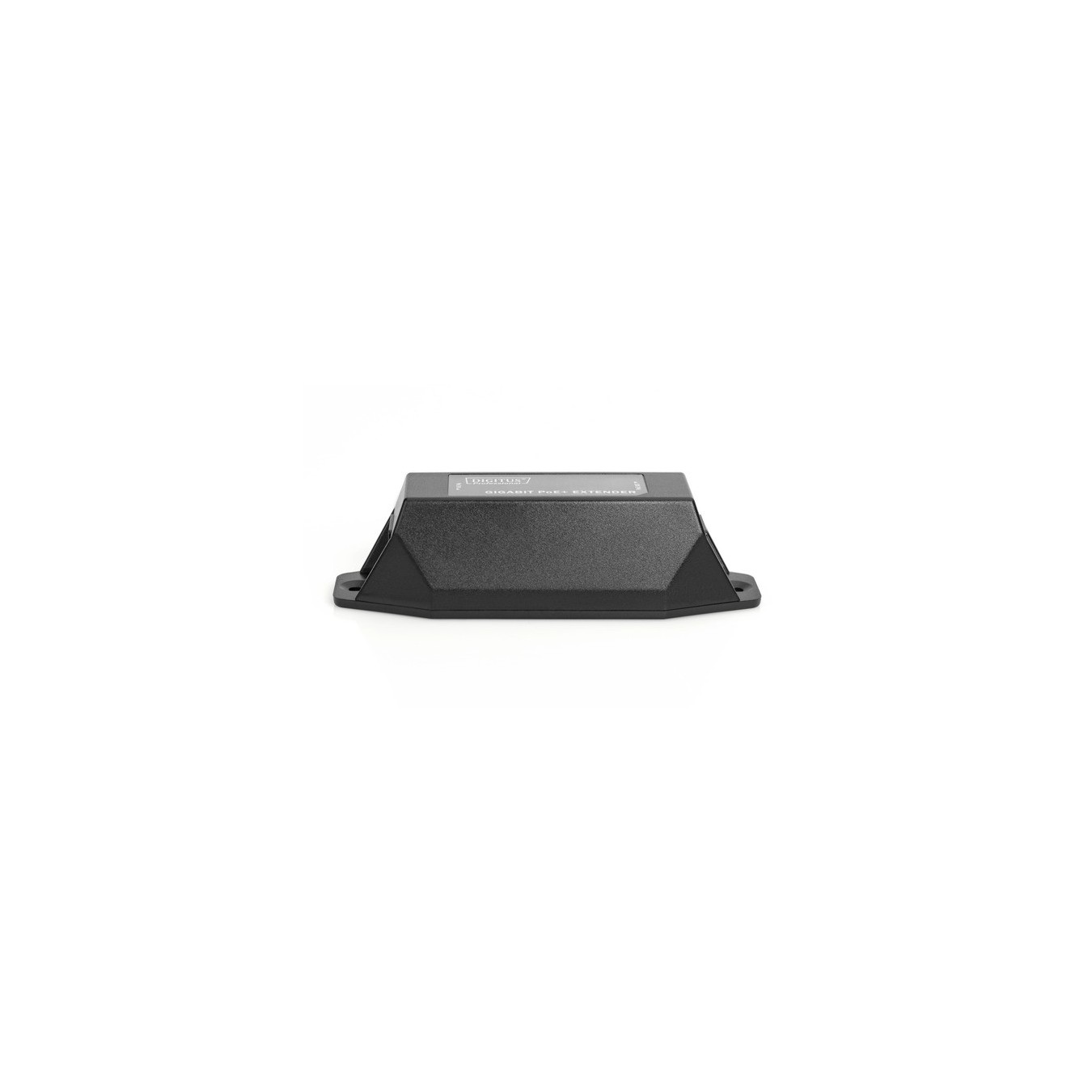

Gigabit Ethernet PoE+ Repeater - 802.3at 22 W - PoE-Repeater (Boxed)
DIGITUS Gigabit PoE+ Repeater (DN-95123) extends Ethernet and PoE up to 100m per unit, total 500m via cascading. Supports IEEE 802.3af/at, 22W output, Gigabit speeds. Plug-and-play, wall-mountable, no extra power needed.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PoE Injectors & Splitters - Device Function | PoE Extender / Repeater |
|---|---|
| PoE Injectors & Splitters - PoE Standard | PoE (802.3af) PoE+ (802.3at) |
| PoE Injectors & Splitters - Power | 15W - 29W |
| PoE Injectors & Splitters - Output Voltage | Auto-Negotiated (Active) |
| PoE Injectors & Splitters - Environment | Indoor Desktop Indoor Wall-Mount |
| PoE Injectors & Splitters - Port Count | 2 Ports |

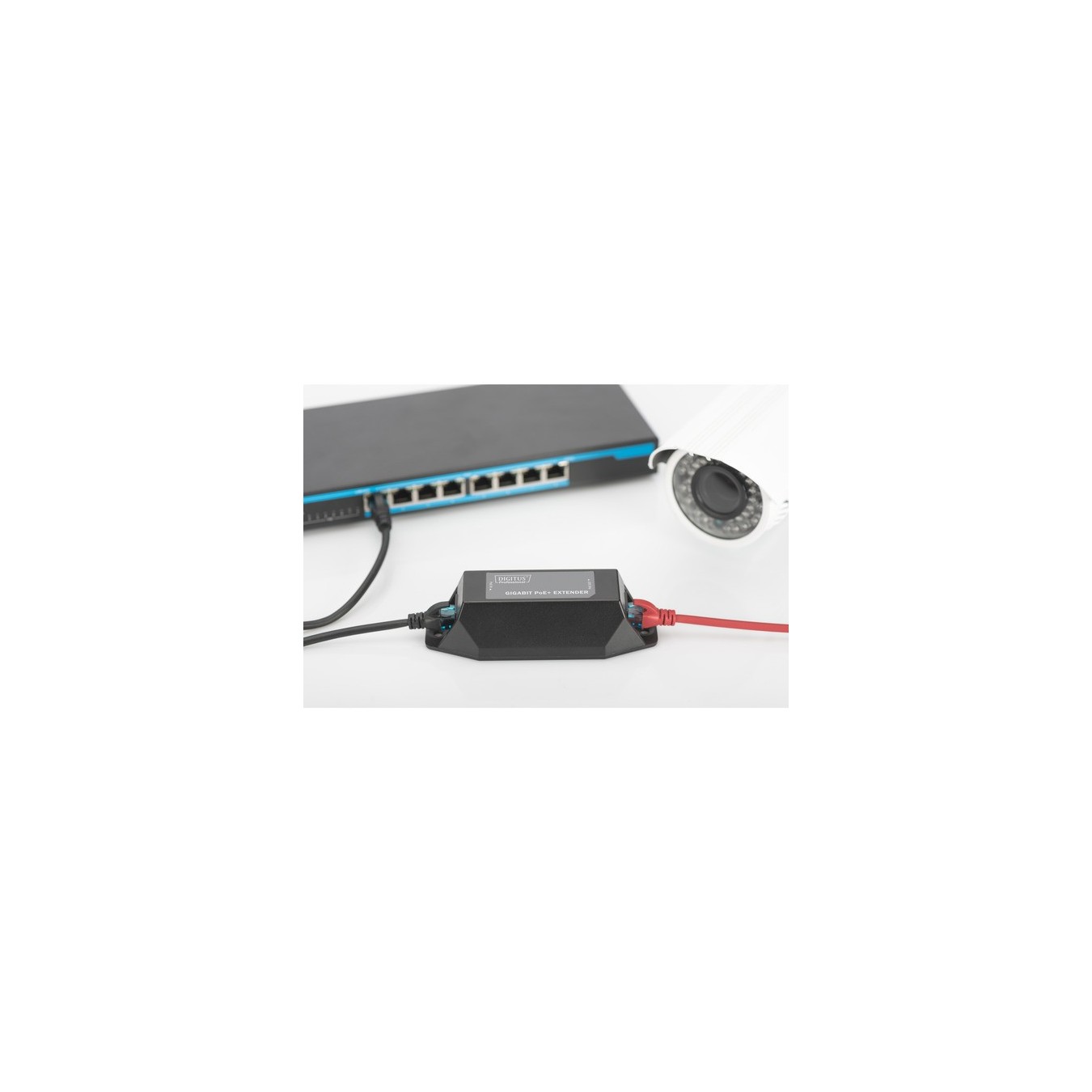

The DIGITUS Gigabit Ethernet PoE+ Repeater (DN-95123) extends your Ethernet network and PoE power up to 100 meters per unit, achieving a total range of 500 meters when cascaded. Powered entirely via PoE input, it eliminates the need for separate power supplies, making it ideal for installations without nearby outlets, such as security cameras or remote access points.
Compliant with IEEE 802.3af and 802.3at standards, this repeater delivers up to 22W PoE output at Gigabit speeds (10/100/1000 Mbps, half/full duplex). It features status LEDs for power and network, overvoltage/short-circuit protection, and wall-mounting points for flexible deployment. Plug-and-play setup requires no configuration.
With compact dimensions and robust build, it's suited for indoor use in professional networking environments. PoE pinout: Input supports both modes, output 1/2 (-), 3/6 (+). Operating temperature: -10 to 45°C.
- Ethernet Speed: 10/100/1000 Mbps Gigabit
- PoE Output: 22W max
- Range: 100m per unit, up to 500m cascaded
- Cascading: Up to 4 units (at), 3 units (af)
- Ports: 2x RJ-45
- Mounting: Wall-mountable
| Type | PoE-Repeater |
| Color | Black |
| EAN | 4016032391531 |
| Manufacturer no. | DN-95123 |
| Connections | 2x RJ-45 |
| Ethernet Speed | 10/100/1000Mbps Gigabit Half/Full Duplex |
| PoE standard | IEEE802.3af / IEEE802.3at |
| Range | up to 500 m (through cascading) |
| Cascading | up to 3 extenders (af.) and up to 4 extenders (at.) |
| Maximum PoE output power | 22 watts |
| Status LEDs | PoE and network display |
| Protection | against overvoltage and short circuit |
| Mounting | Fixing points for wall mounting |
| PoE pins input | 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| PoE pins output | 1/2 (-), 3/6 (+) |
| Operating temperature | -10 to 45 °C |
| Power consumption (max.) | 5W |
| Dimensions | Width: 47mm x Height: 37mm x Depth/Length: 127mm |
| Weight | 140 g |
| Country of origin | China |
