PCI Express x4 Card - 1 x M.2 Key B + 1 x NVMe M.2 Key M, Controller
Delock PCIe x4 card with 1x M.2 Key B and 1x NVMe M.2 Key M; supports M.2 modules in sizes 22110, 2280, 2260, 2242, 2230 (B for SATA, M for PCIe).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

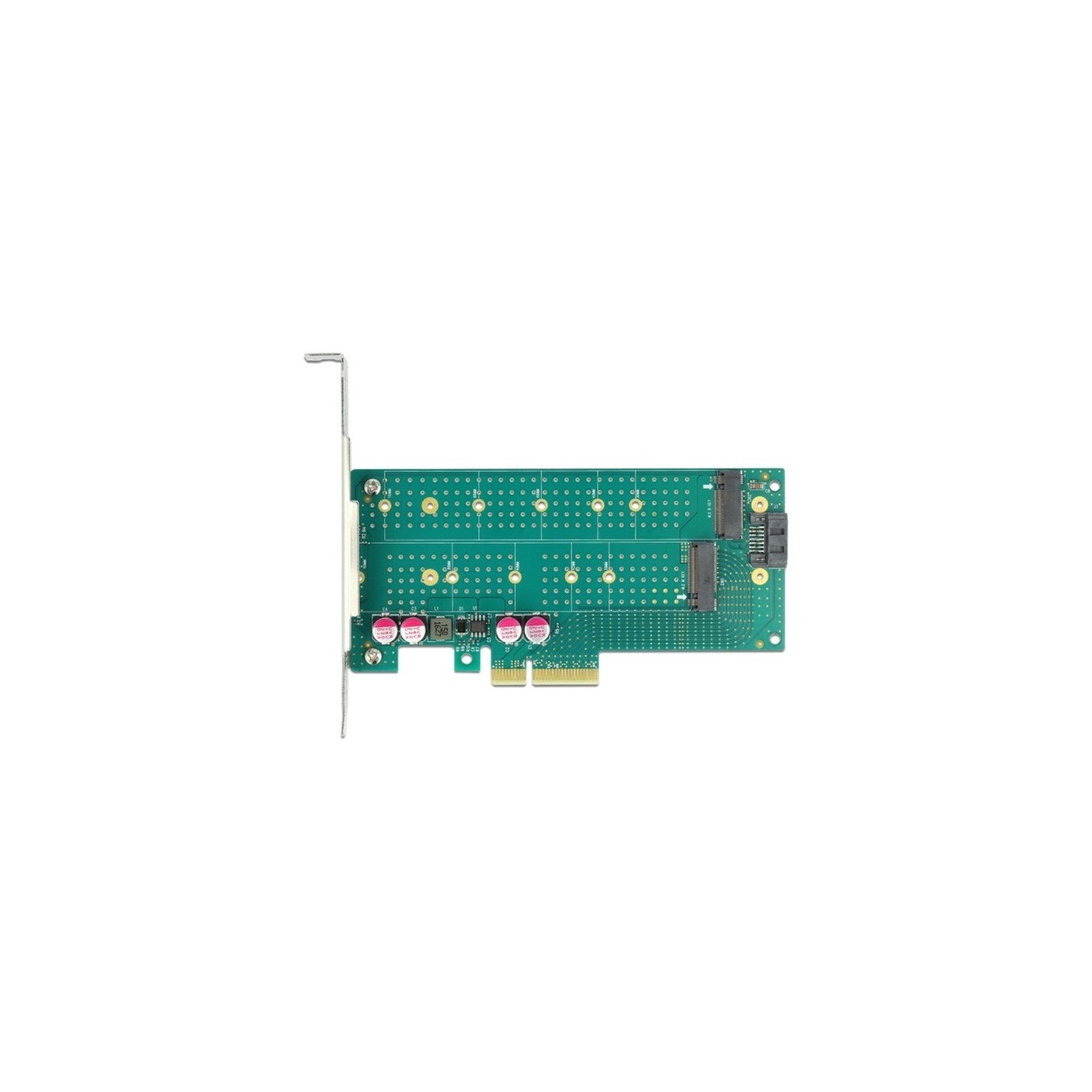

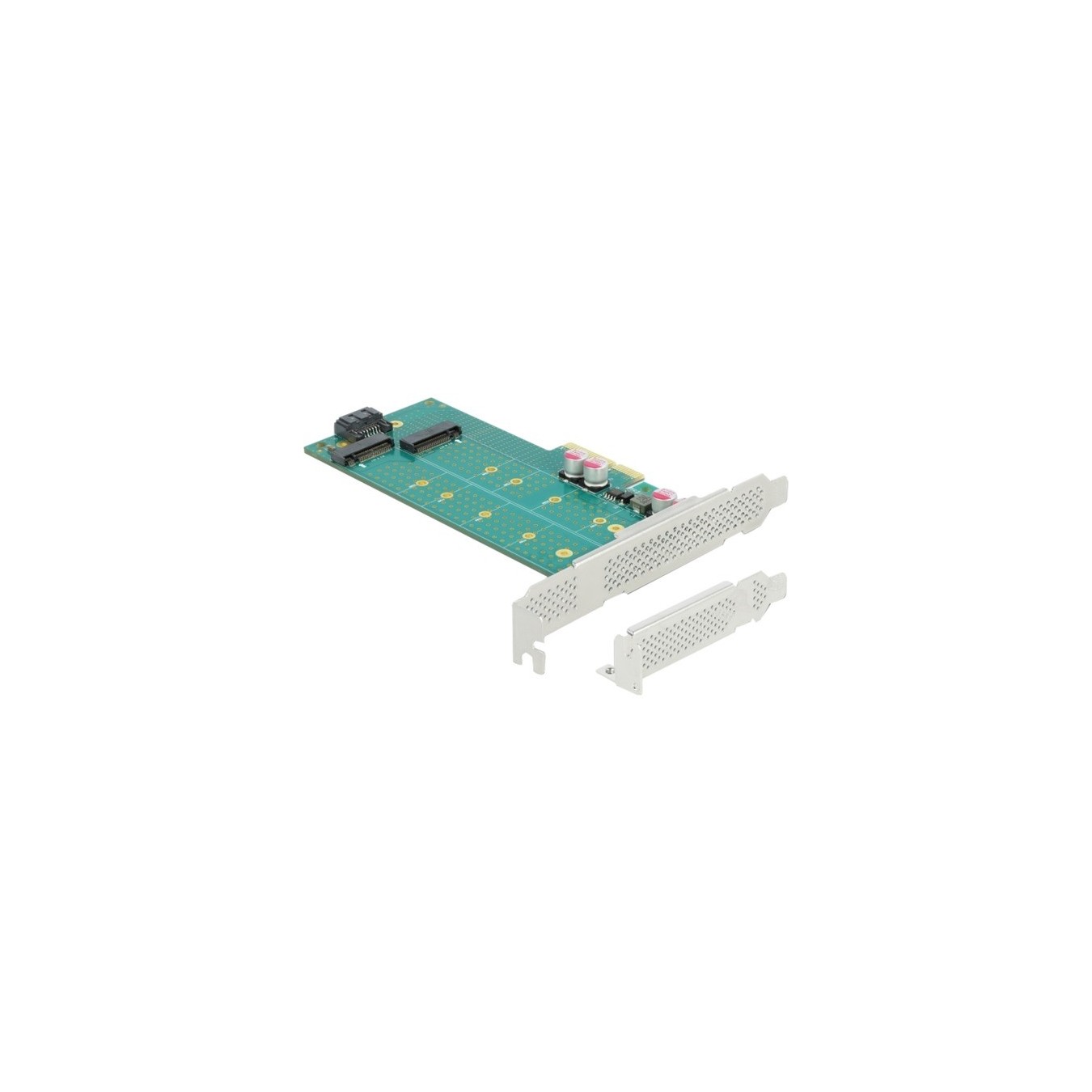

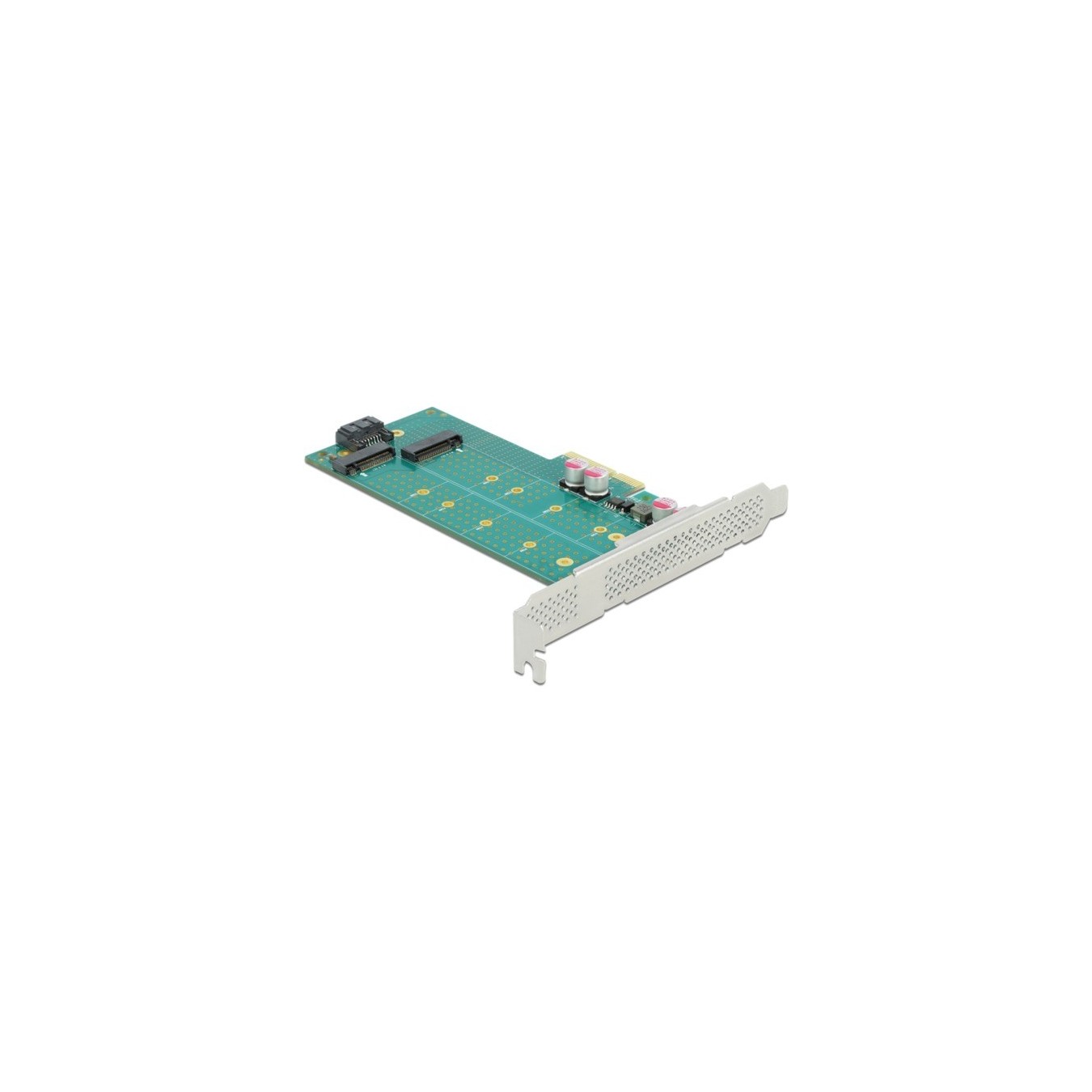

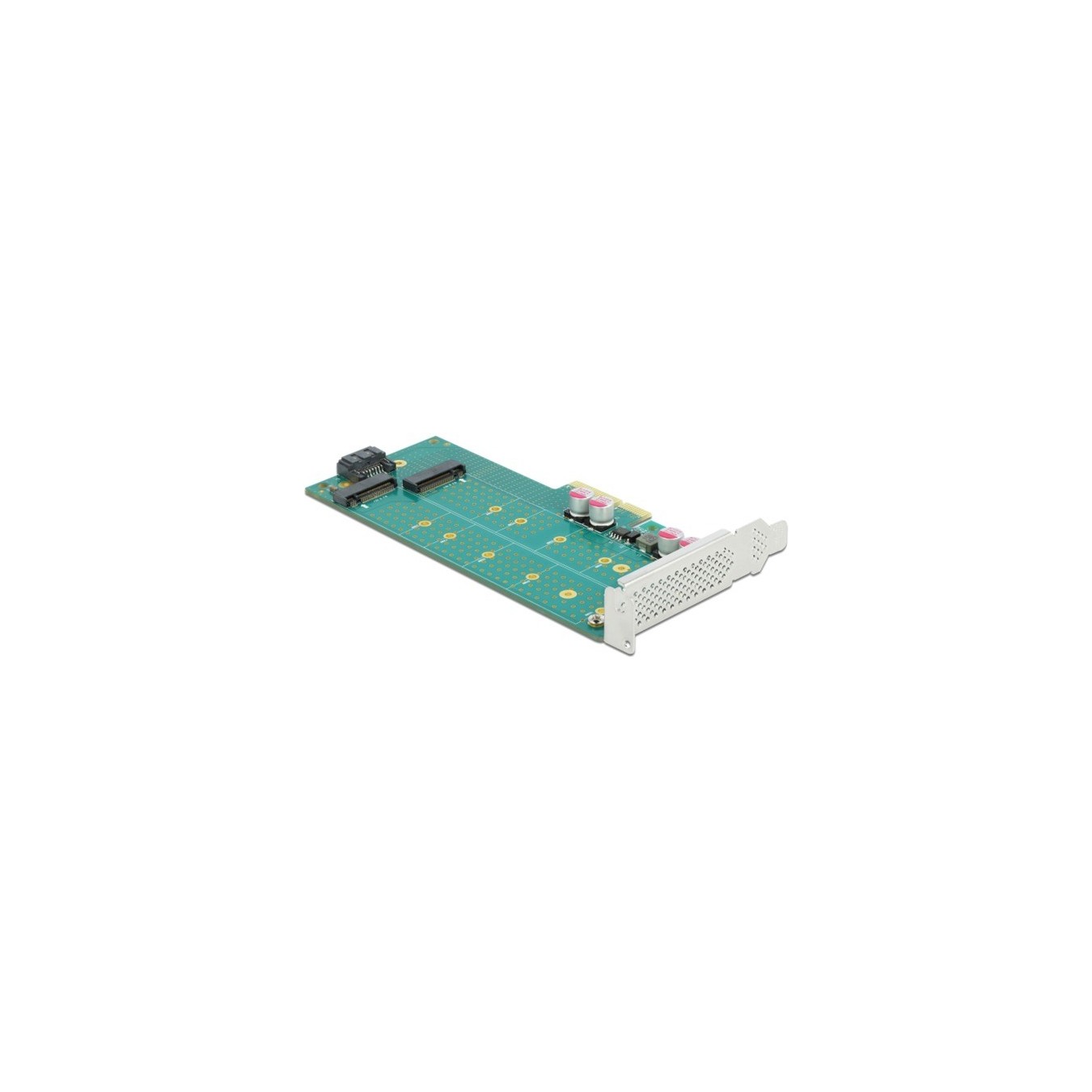

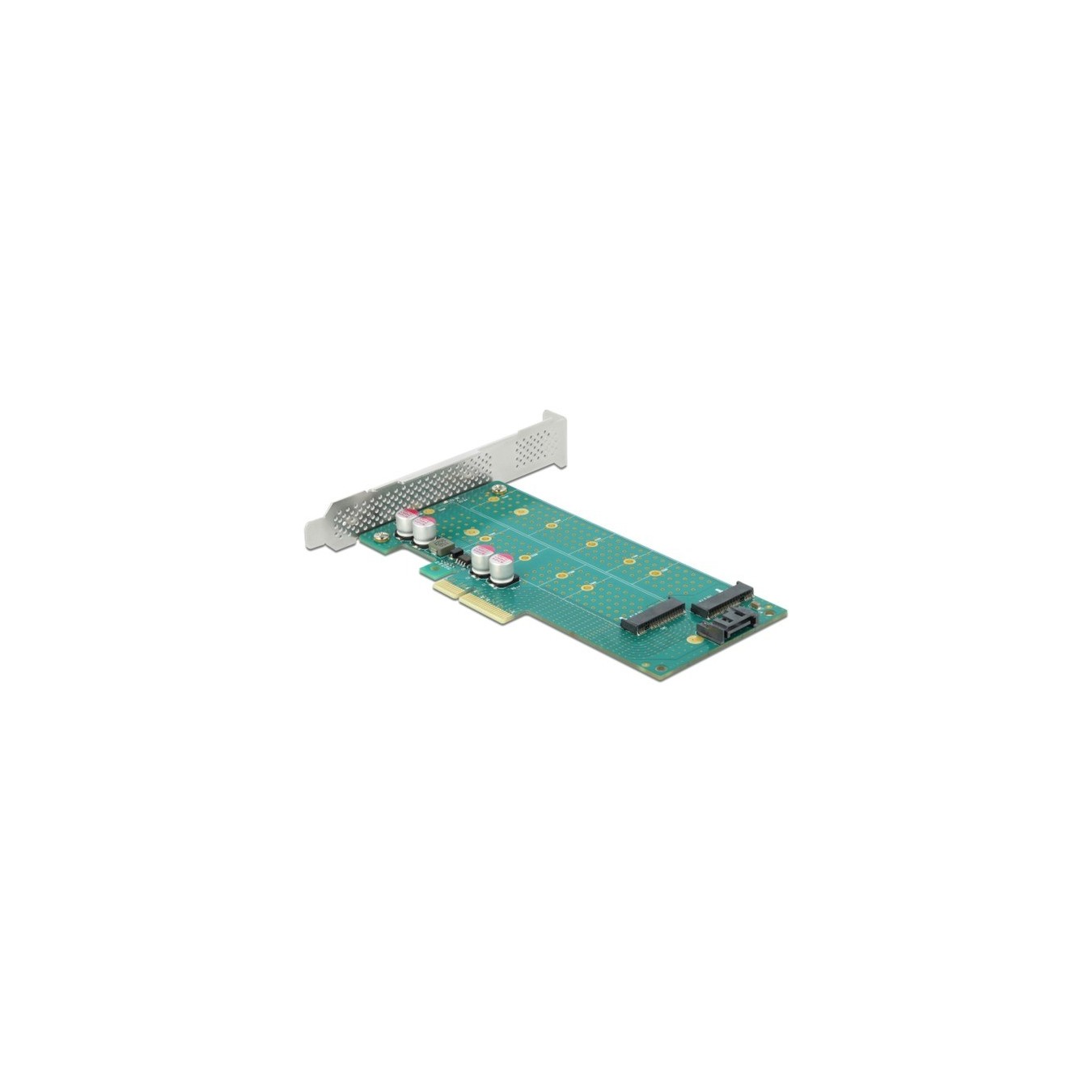

This Delock PCI Express x4 card with 1 x M.2 Key B + 1 x NVMe M.2 Key M expands the PC by two M.2 slots. An M.2 SATA module in 22110, 2280, 2260, 2242, 2230 format can be connected to this card and connected to the mainboard via SATA cable. An M.2 PCIe module in 22110, 2280, 2260, 2242, 2230 format can also be connected. Both slots can be used at the same time.
| Typ | Controller |
| EAN | 4043619890477 |
| Manufacturer no. | 89047 |
| Controller Art | M.2 |
| slot | PCIe x4 Version 4.0 |
| Connections - internal | 2x M.2 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows Server 2016 |
| Low Profile | optional |
| More information | Supports an M.2 module in the format 22110, 2280, 2260, 2242 and 2230 with Key B or Key B+M on a SATA basis and an M.2 module in the format 22110, 2280, 2260, 2242 and 2230 with Key M or Key B+M on a PCIe basis, maximum height of the components on the module: 1.5 mm, Use of modules equipped on both sides possible. System requirements: Linux Kernel 4.6.4 or higher, Windows Server 2016, Windows 8.1/8.1-64/10/10-64, PC with a free PCI Express x4 / x8 / x16 / x32 slot |

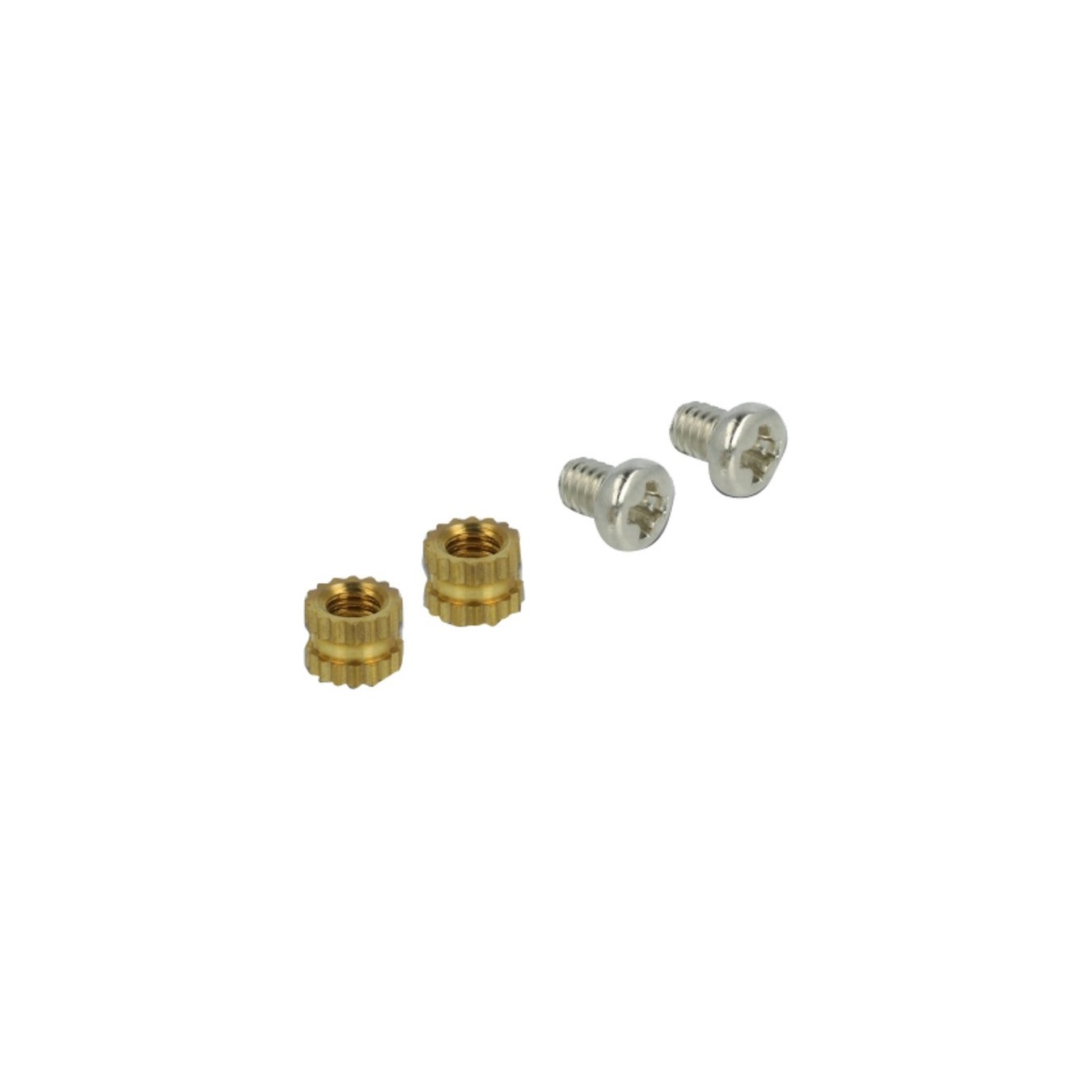

| Accessories - available | Low profile cover, mounting material, operating instructions |
