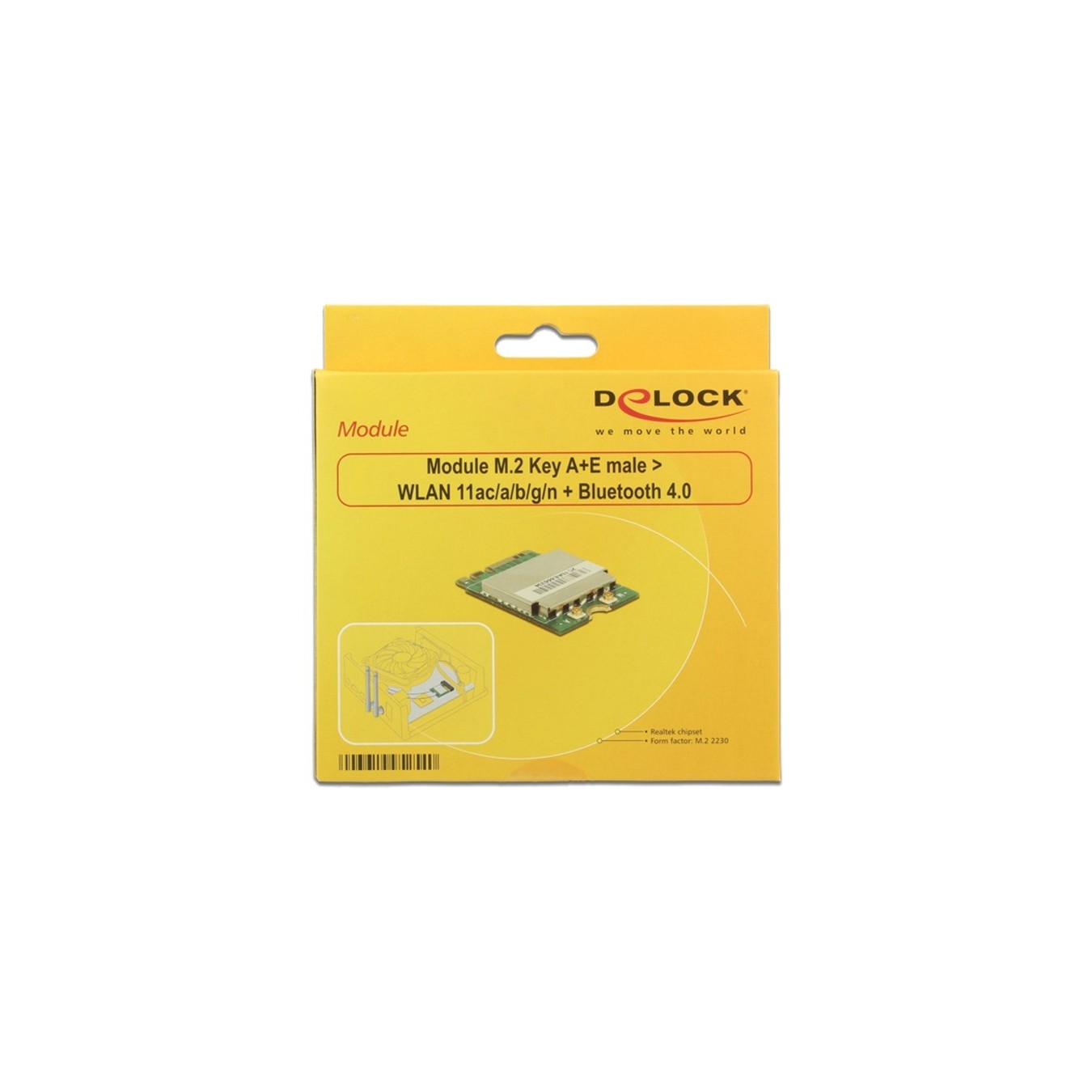

M.2 Module - WLAN + Bluetooth 4.0, LAN Adapter
Delock M.2 module with WLAN, Bluetooth 4.0, and LAN adapter; fits M.2 Key A/E; interfaces via PCIe and USB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

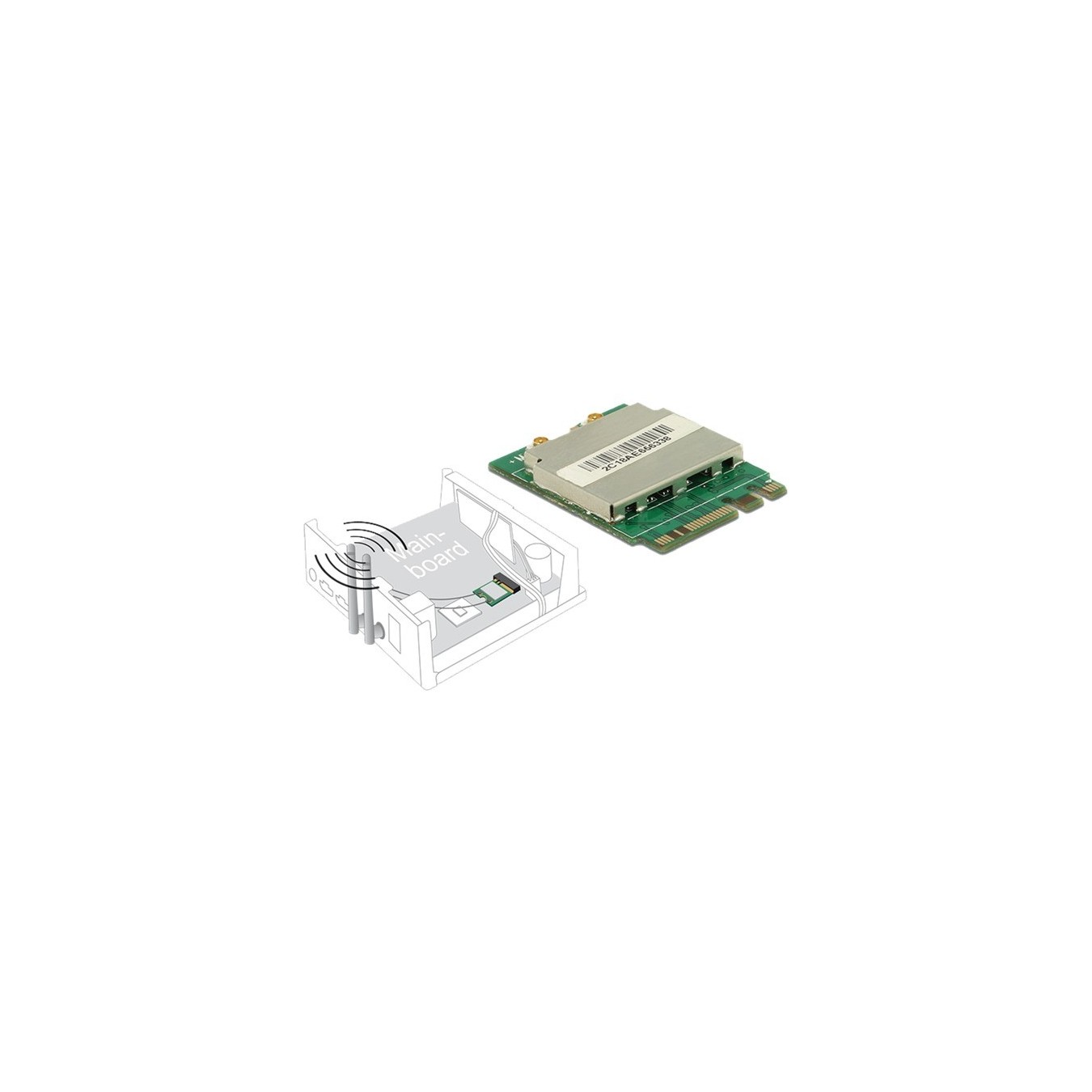

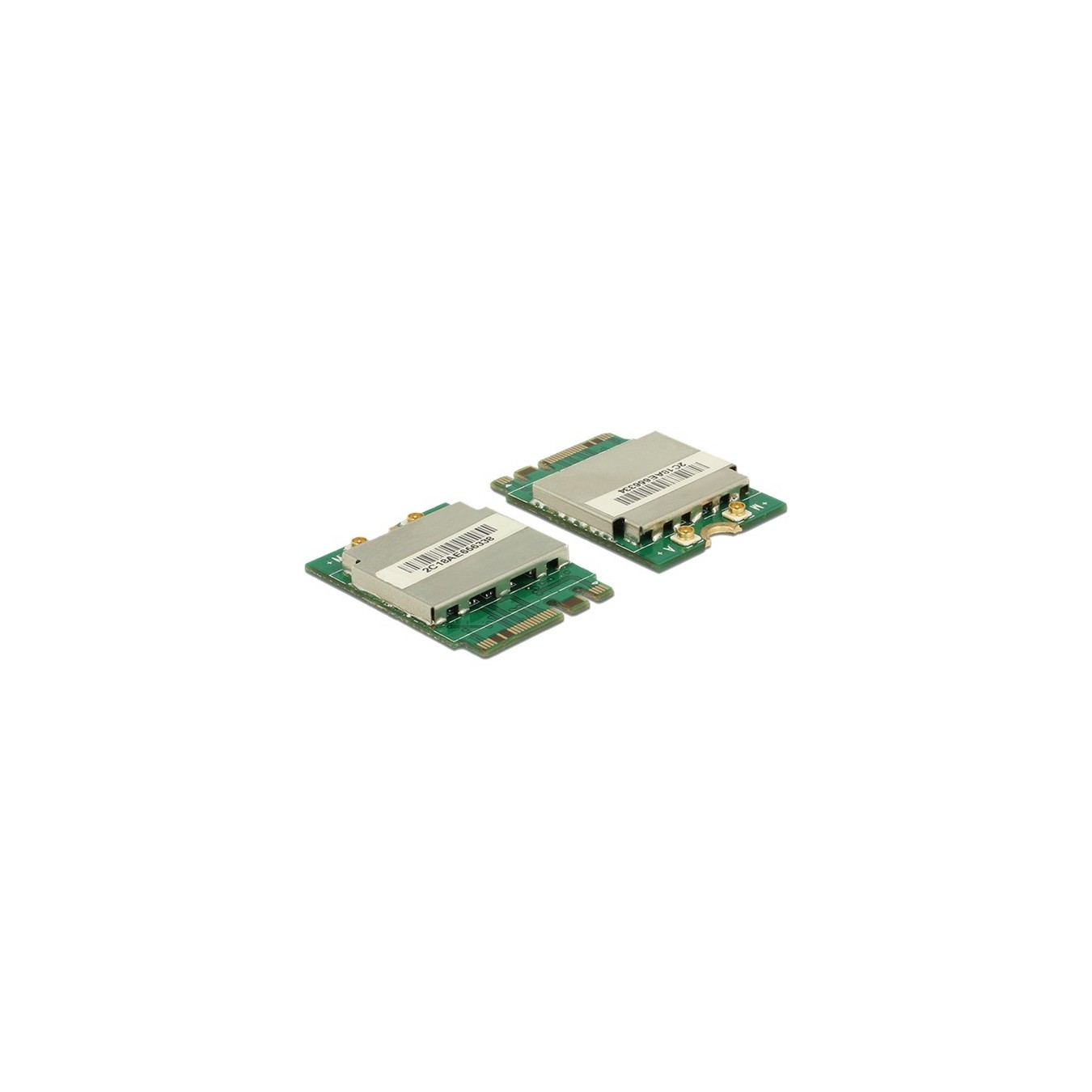

This M.2 module from Delock can be inserted into an M.2 slot with Key A or Key E. It provides a WLAN interface, which exchanges signals with the system via PCIe, and a Bluetooth interface, which exchanges signals with the system via USB.
| Typ | LAN-Adapter |
| EAN | 4043619952540 |
| Manufacturer no. | 95254 |
| slot | PCIe x1 Version 1.1 , USB |
| Chipset | Realtek RTL8821AE |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| More information | Connections: 1x 59 pin M.2 Key A+E connector; 2x MHF antenna connection; Interface: PCIe 1.1 + USB 1.1; Suitable for M.2 slot with Key A or Key E on PCIe and USB basis; WiFi: Frequency range: 2.4 GHz and 5 GHz; Compatible with IEEE 802.11ac/a/n/b/g; Data transfer rate: 11ac up to 433.3 Mb/s, 11n up to 150 Mb/s, 11a/g up to 54 Mb/s; Supports IEEE 802.11e Quality of Service (QoS) for Multimedia Applications (WMM); Supports IEEE 802.11i WPA and WPA2; Supports WiFi Direct, WAPI; Bluetooth frequency range: 2400 ~ 2483.5 MHz; Supports BT 4.0 dual mode with simultaneous LE and BR/EDR use; Supports AFH; Bluetooth backwards compatible to 3.0 and 2.1; |
| Dimensions | Width: 300mm x Height: 25mm x Depth/Length: 220mm |
| Weight | 100 Gramm |
