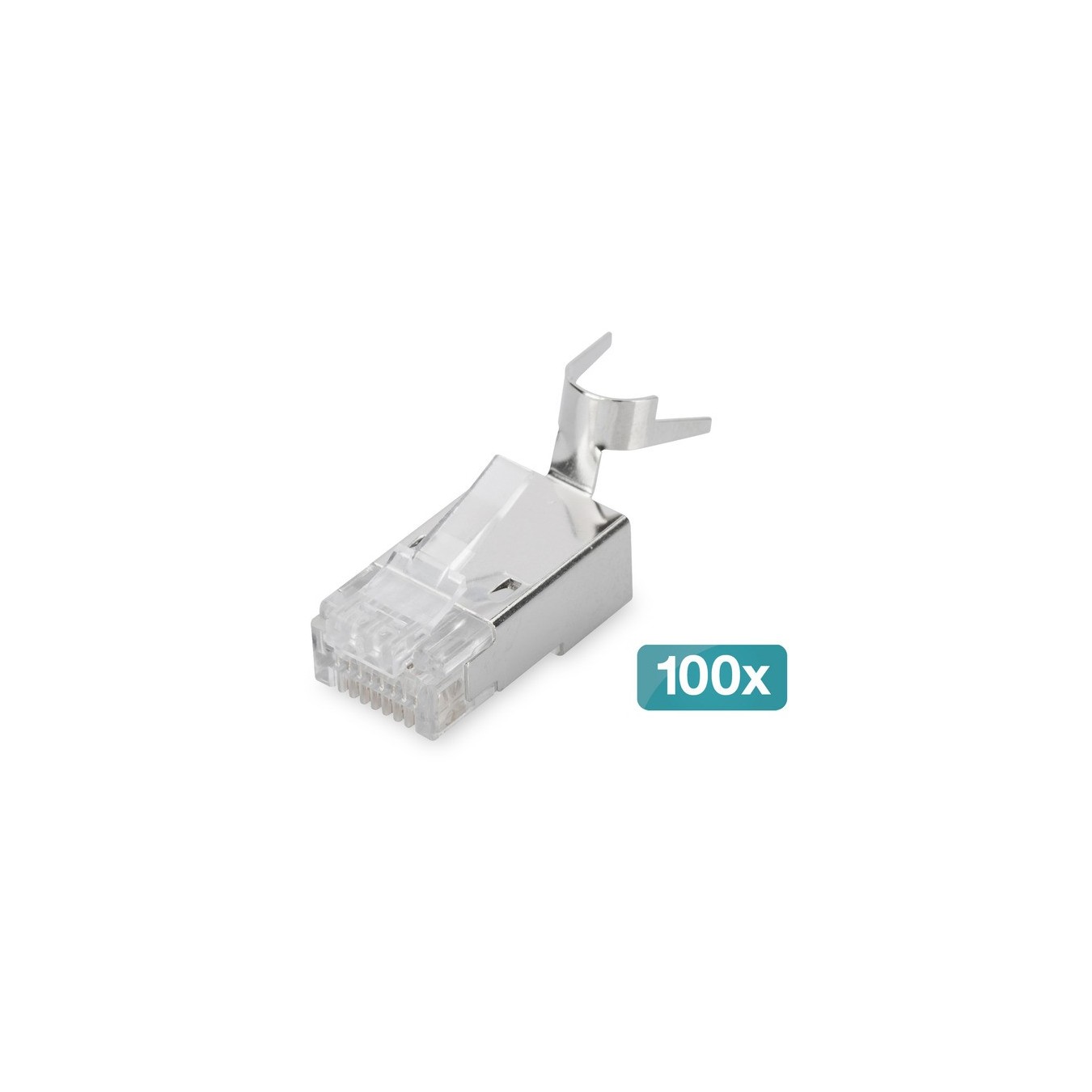

Modular plug for round cable - CAT 6A - Shielded
Modular plug for CAT 6A shielded round cables; quick, easy self-assembly for patch cable assemblies.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
These modular plugs are suitable for quick and easy self-assembly.
| Typ | Plug |
| Color | silber |
| EAN | 4016032380627 |
| Manufacturer no. | AK-219604 |
| Application example | Patch cable assembly |
| Connection - from | 1x RJ-45 (plug) |
| Feature | Normine: ISO/IEC 11801 3rd Ed., IN 50173-1, EIA/TIA 568-C | UL-value | Steckzyklus Buchse: > 750 gems. ISO/IEC 11801, IEC 60603-5-5 |
| More information | Plug housing material: polycarbonate, natural | Plug contact: phosphor bronze, nickel 0.6 μ gold-plated | Flammability: UL 94V-2 | Insertion force: ≤ 30 N | Diameter Cu conductor: AWG (23/1... 22/1) | Operating temperature: -40 °C to +80 °C | Current carrying capacity: 1A -1.5A at 50°C |
