HDMI Fiber KVM IP Extender Set, KVM-Switch - HDMI Fiber KVM IP Extender Set
HDMI Fiber KVM Extender Set enables 4K/60Hz AV transmission over fiber optic cables; supports single-mode and multi-mode fiber.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

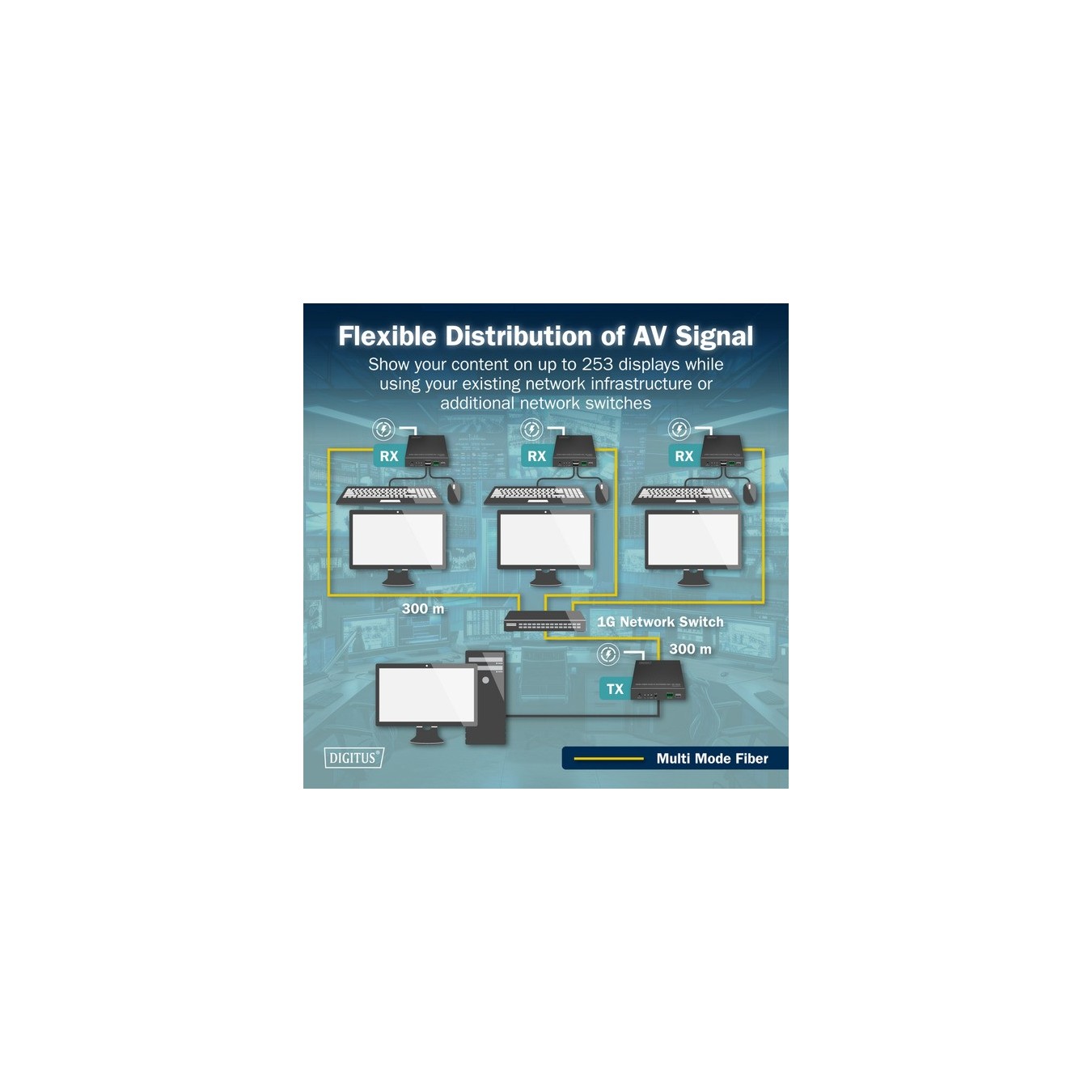

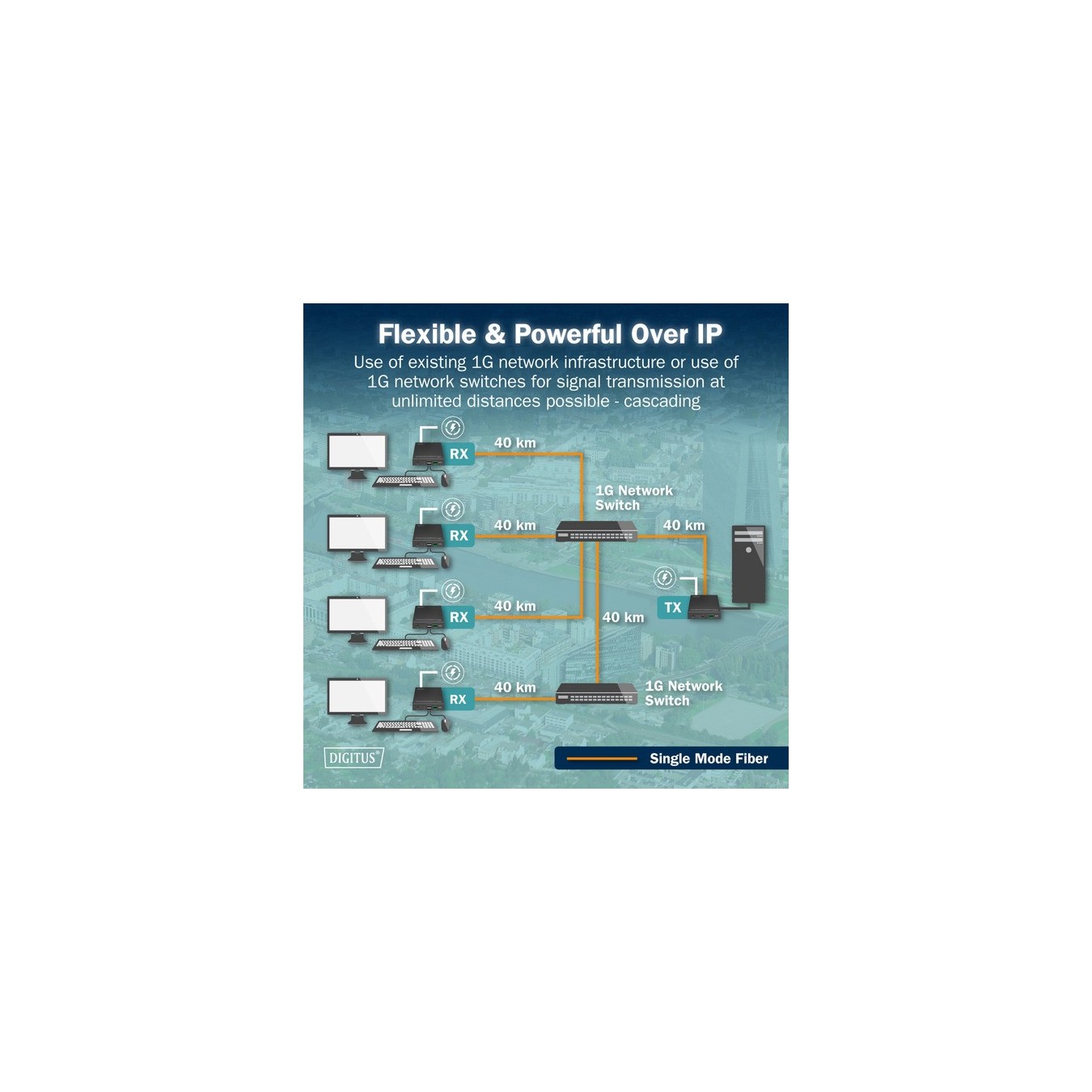

The HDMI Fiber KVM Extender Set enables high-resolution AV signal transmission in 4K/60Hz (3840x2160p) over long distances using fiber optic cables. Both single-mode (SM) and multi-mode (MM) cables are supported. In a point-to-point connection, signals can be transmitted loss-free over up to 40 km (single mode) or 300 m (multimode). In addition, the device allows a point-to-multipoint connection to distribute signals to up to 253 receivers (displays). Thanks to the support of 1G network switches and the use of the existing 1G infrastructure, signal transmission over unlimited distances is possible. For added flexibility, the system is compatible with LC & SC SFP modules as well as singlemode and multimode fiber optic cables. Another outstanding feature of the extender is the KVM function on the receiver side, which allows you to connect a mouse and keyboard to directly control the signal source. In addition, a 3.5 mm stereo connection is available for separate audio output to enable optimal sound transmission.
| Typ | KVM-Switch |
| Color | schwarz |
| EAN | 4016032501862 |
| Manufacturer no. | DS-55348 |
| max. supported resolution | 3840 x 2160 Pixel |

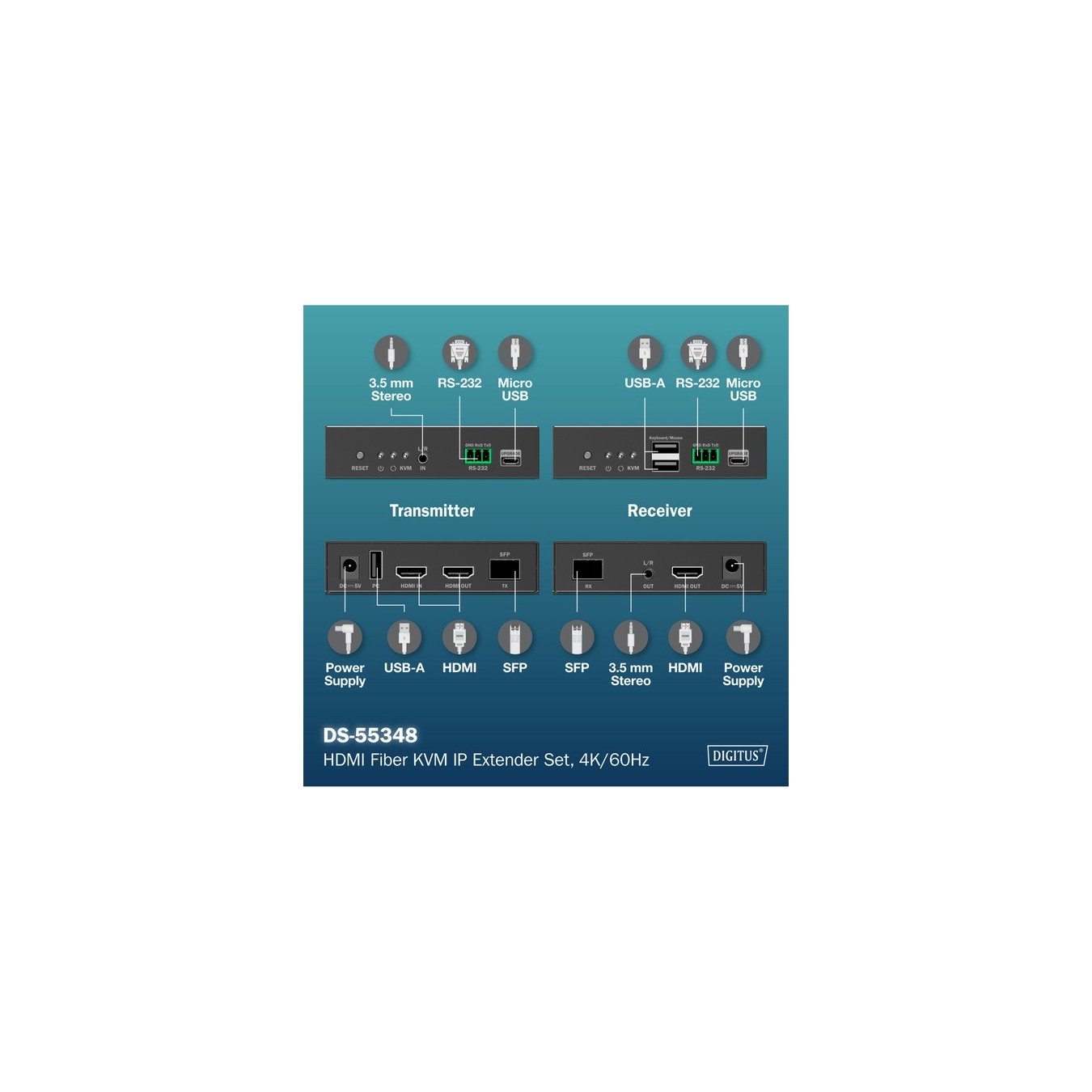

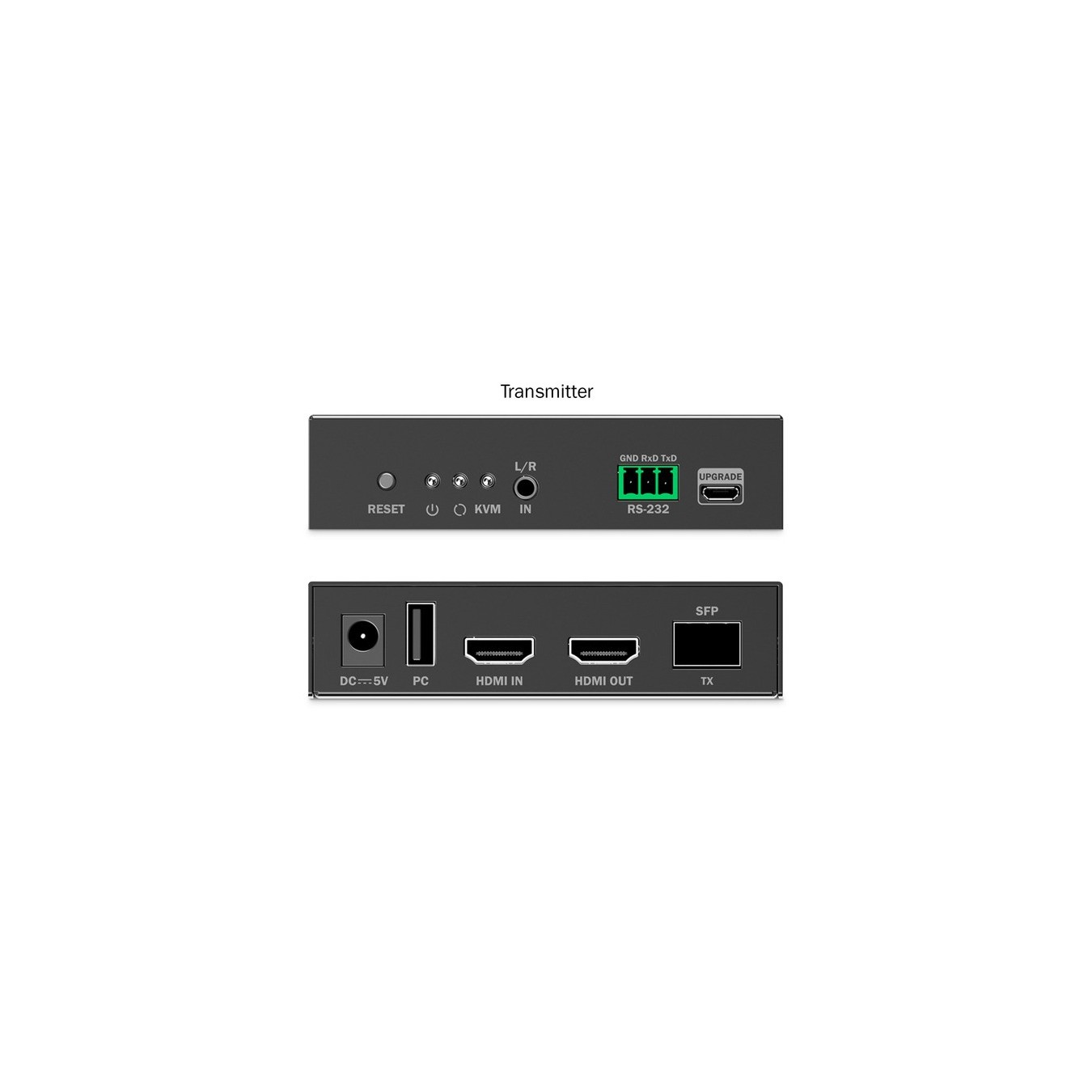

| More information | Connections for transmitter unit (TX): 1x HDMI input (4K/60Hz) - signal source connection, 1x HDMI output (4K/60Hz) - local display connection, 1x SFP output (LC, SC) - SFP module connection, 1x USB-A (1.1) - signal source connection (PC), 1x power supply connection (DC 5V/2A) - external power supply connection, 1x RS232 pass trough - control connected Devices, 1x Micro USB - FW update port, 1x 3.5 mm stereo audio input - separate audio output, 1x reset button, 3x status LED; Receiver unit connections (RX): 1x HDMI output (4K/60Hz) - display connection, 1x SFP input (LC, SC) - SFP module connection, 2x USB-A (1.1) - mouse & keyboard connection, 1x power supply connection (DC 5V/2A) - external power supply connection, 1x RS232 pass trough - control of connected devices, 1x Micro USB - FW update port, 1x 3.5 mm Stereo audio output - Separate audio output, 1x reset button, 3x status LED |
| Notice | Dimensions (1 unit): L 10.6 x W 10.3 x H 2.6 cm; Weight: TX 307g, RX 303g |
| Accessories - available | 2x power supply, EU plug (DC 5V/2A, 1.2 m), 1x USB cable (1.2 m), 1x mounting material wall mounting brackets, screws), 2x RS232 terminal block, 2x ground screws, 1x operating instructions |
