DIN rail clip for circuit board - 4 pieces

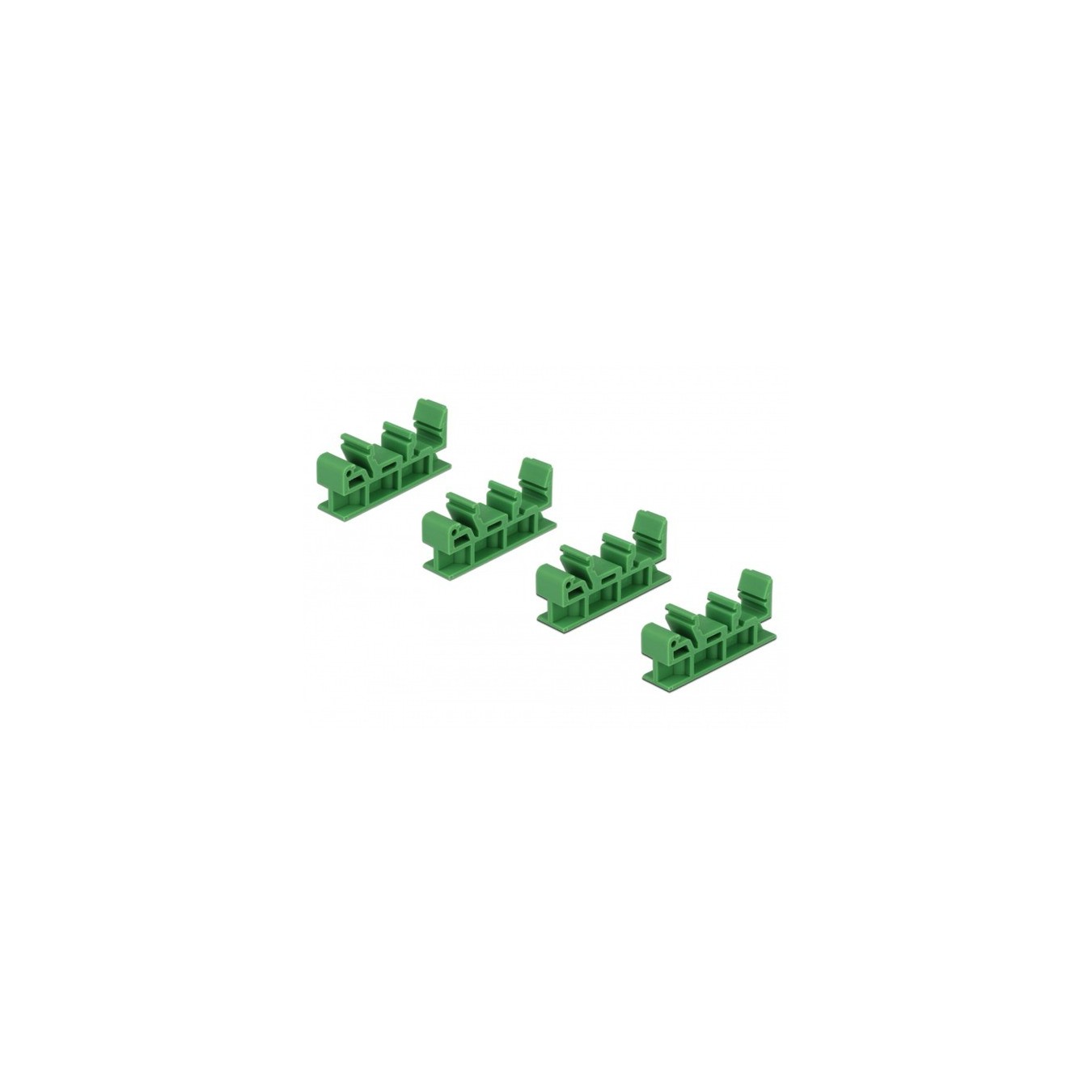

DeLOCK DIN rail clip 65961 for attaching a circuit board to 15 or 35 mm DIN rails; includes 4 clips and 10 screws (3x10 mm).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

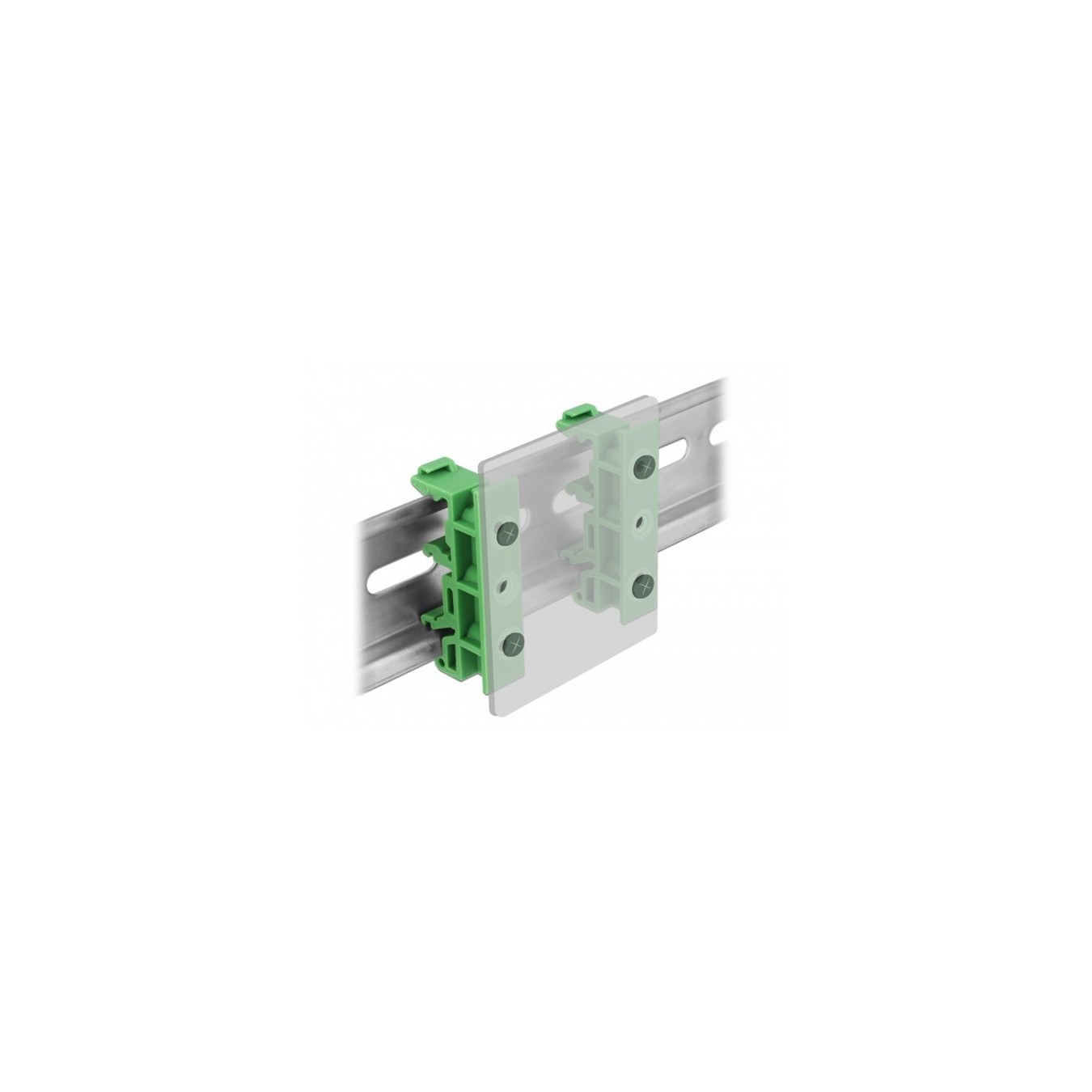

With the DeLOCK DIN rail clip 65961, for example, a circuit board or single-board computer can be attached to a 15 mm or 35 mm wide DIN rail.
| Typ | Clip |
| Color | green |
| EAN | 4043619659616 |
| Manufacturer no. | 65961 |
| Manufactured in | China |
| Suitable for | 15 mm or 35 mm top hat rail |
| Characteristics | Ambient temperature: -10°C ~ 70°C |

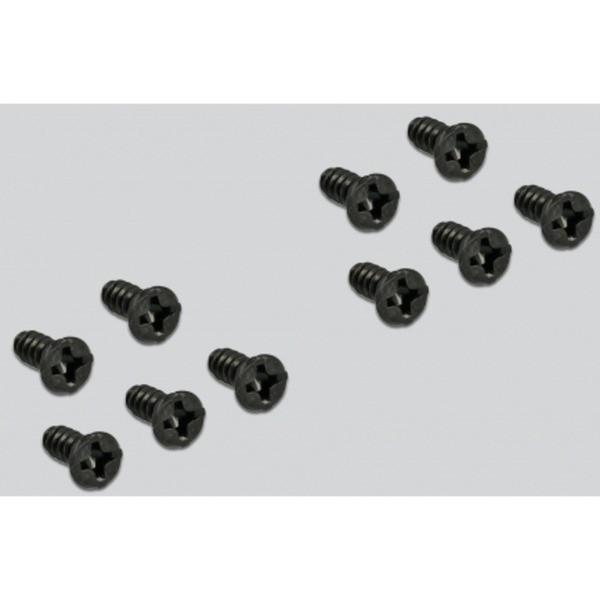

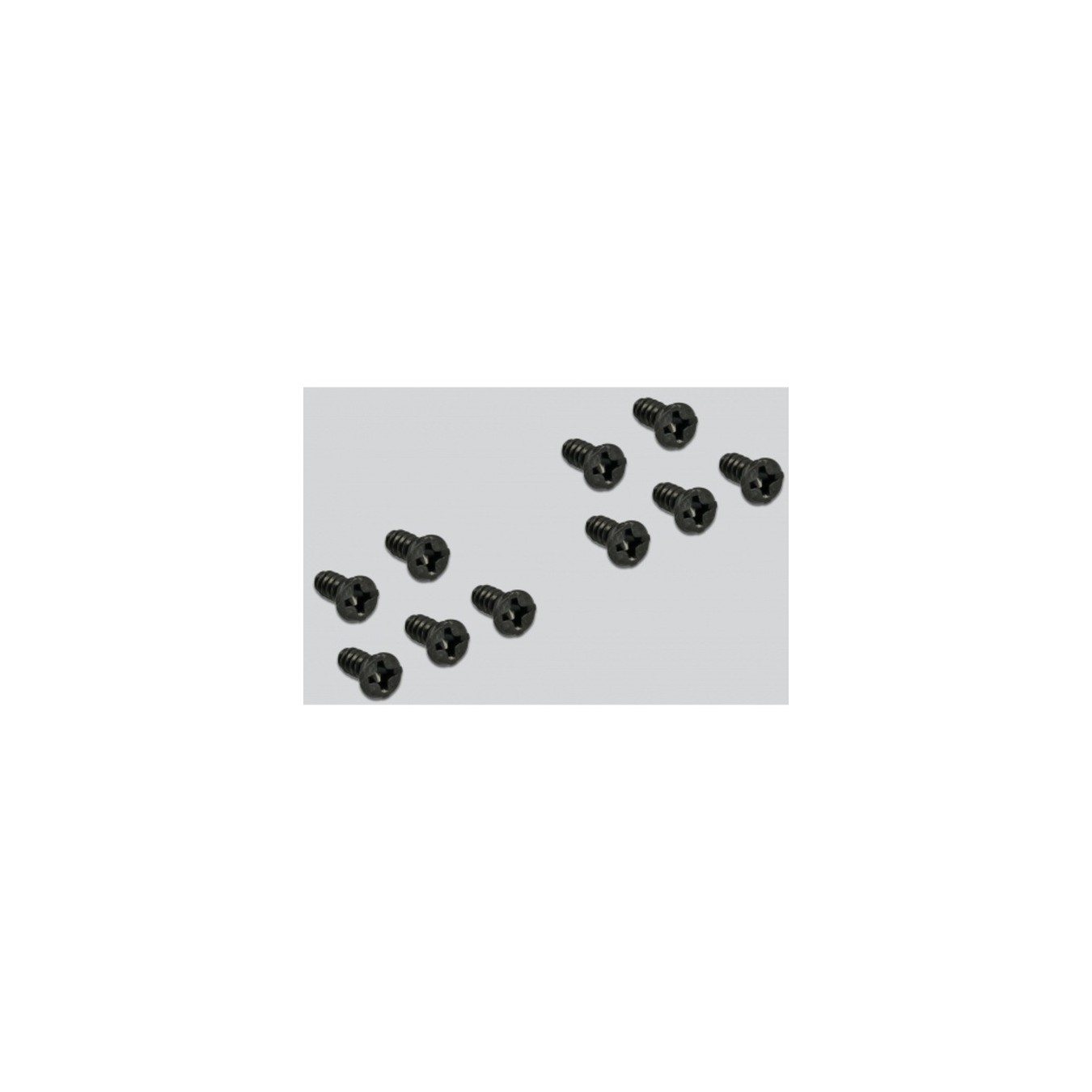

| Contents | 4x DIN rail clip, 10x screws of 3x10 mm each |
| Material | plastic |
| Montage | 3x mounting holes, mounting hole diameter: 1.35 mm, hole spacing: approx. 12.5 mm |
| Dimensions | Width: 19.3mm x Height: 10mm x Depth/Length: 42.9mm |
| Weight | 20 Gramm |
