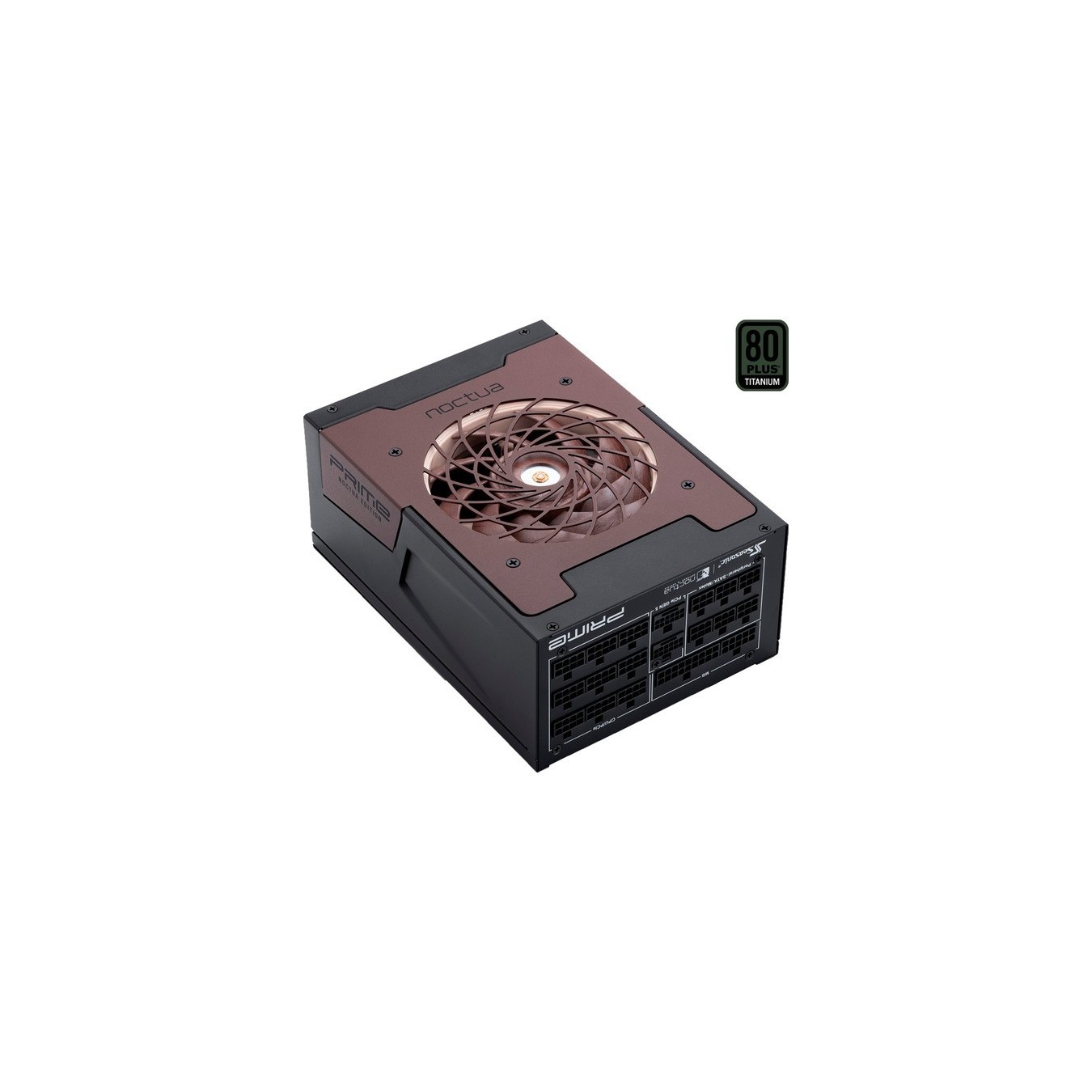

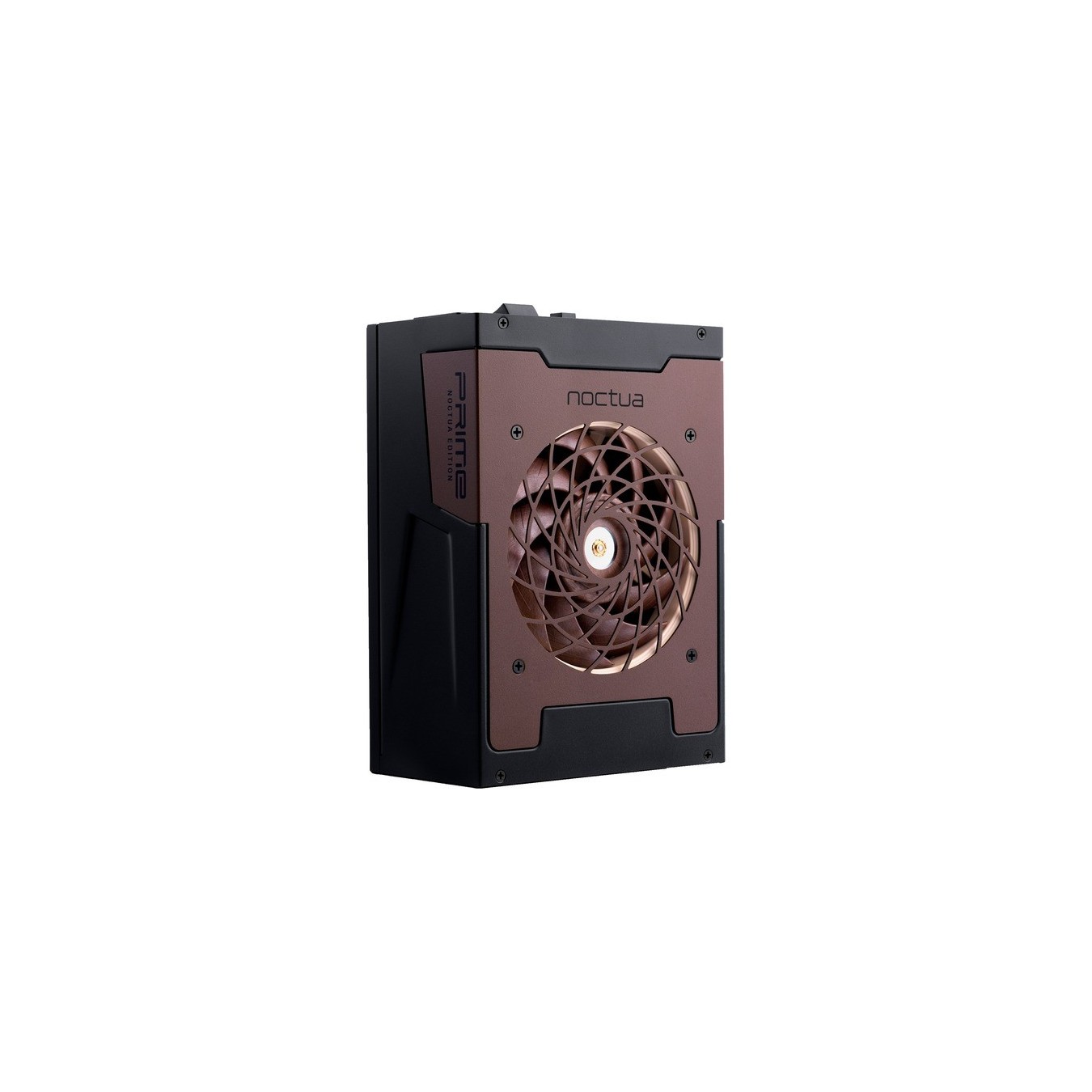

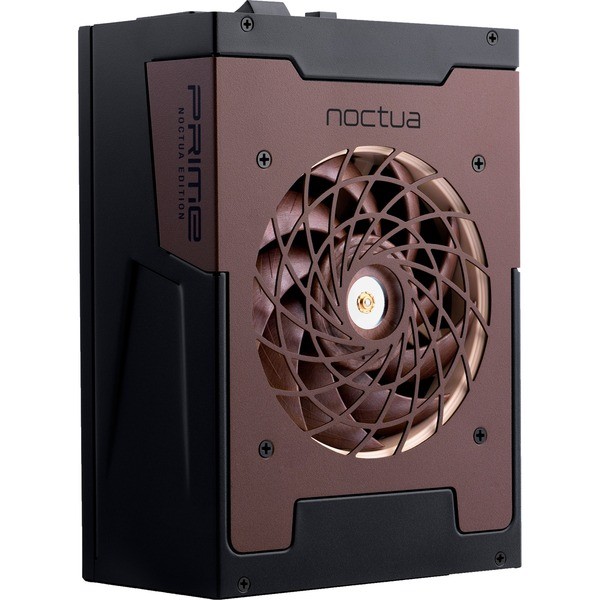

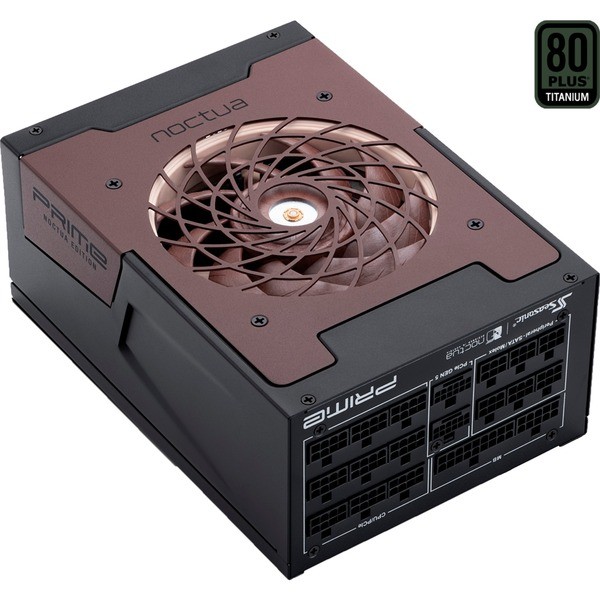

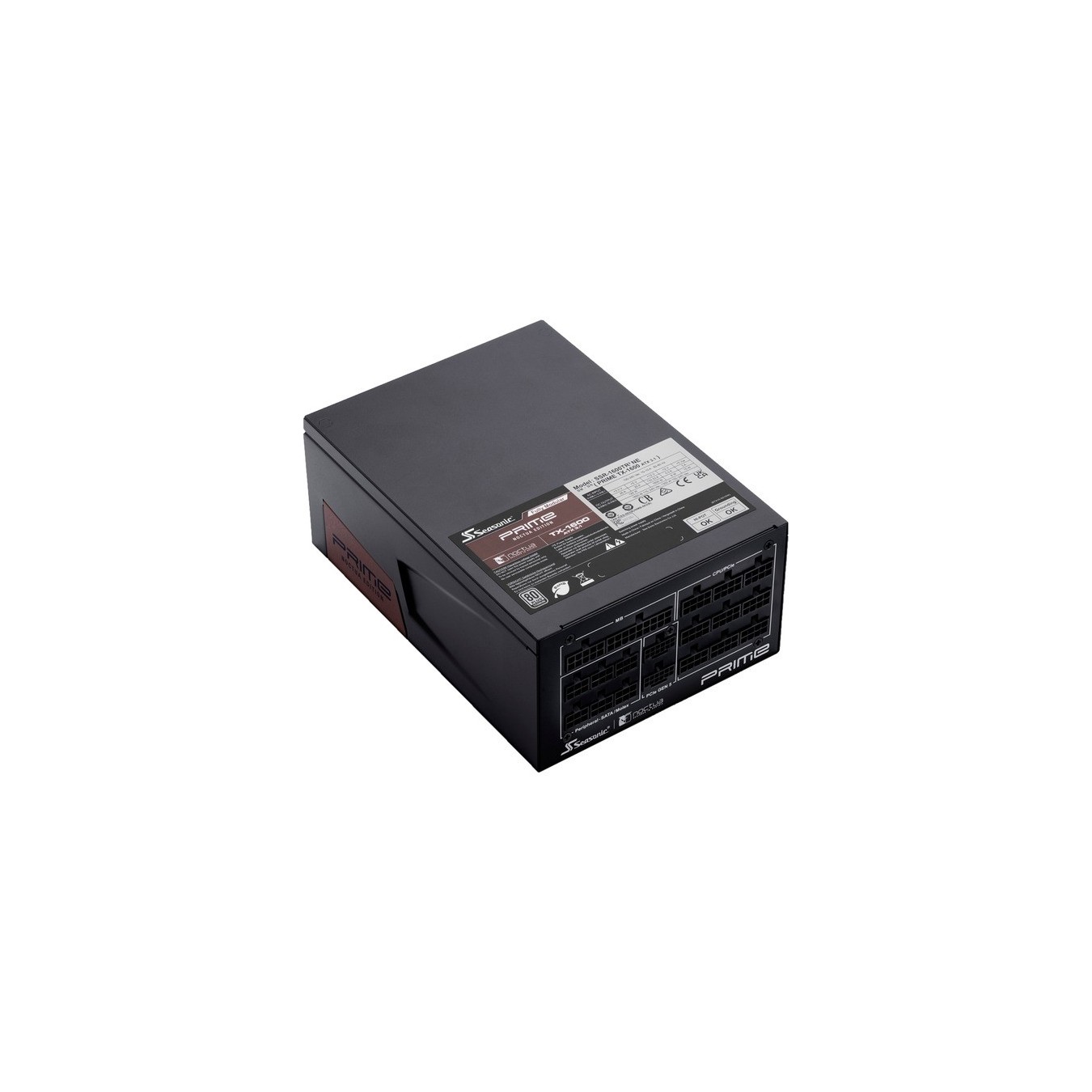

PRIME Noctua Edition - TX-1600 - PC power supply
Seasonic PRIME TX-1600 Noctua Edition PC power supply; 80 PLUS Titanium certified flagship series.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Length | 180+ mm |
|---|

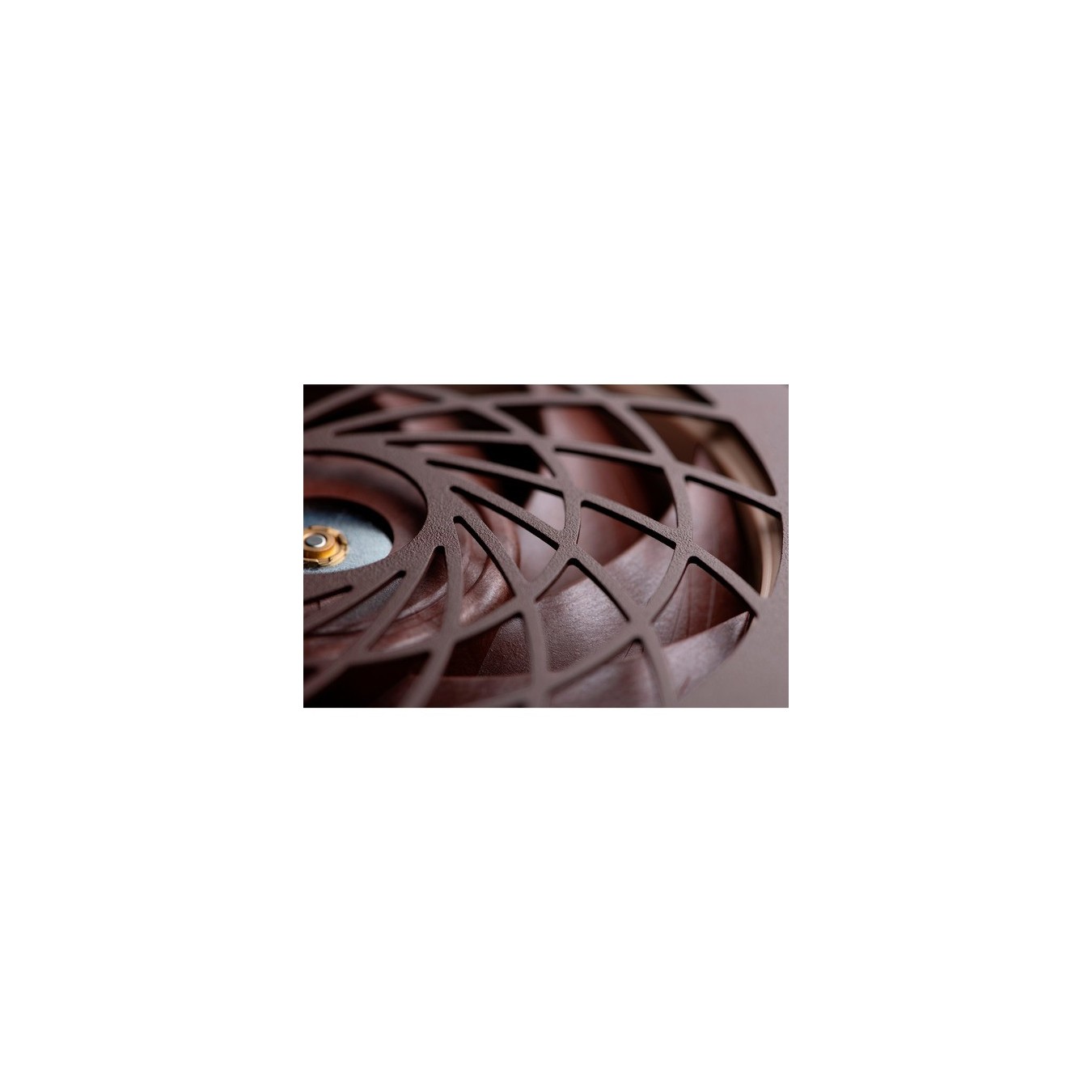

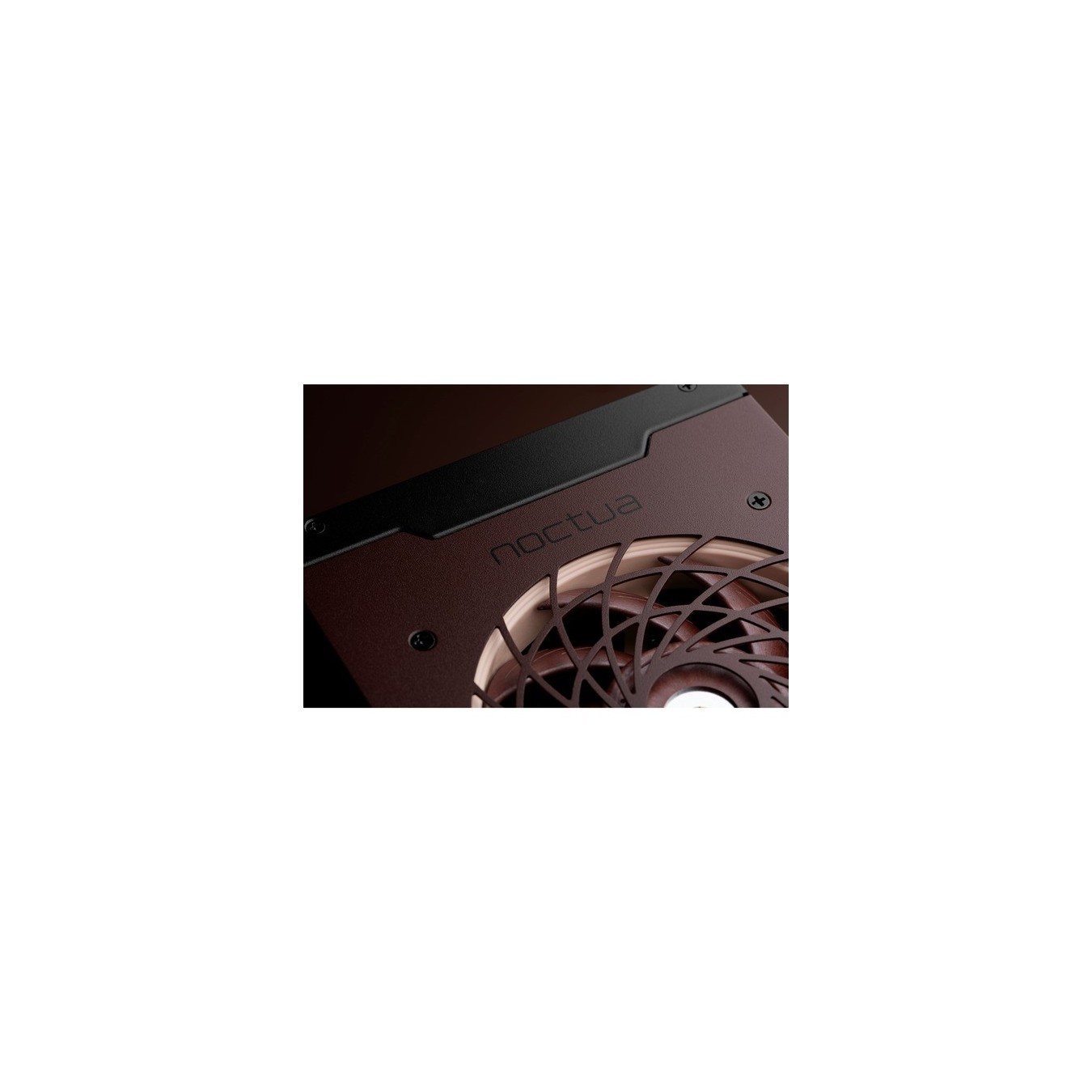

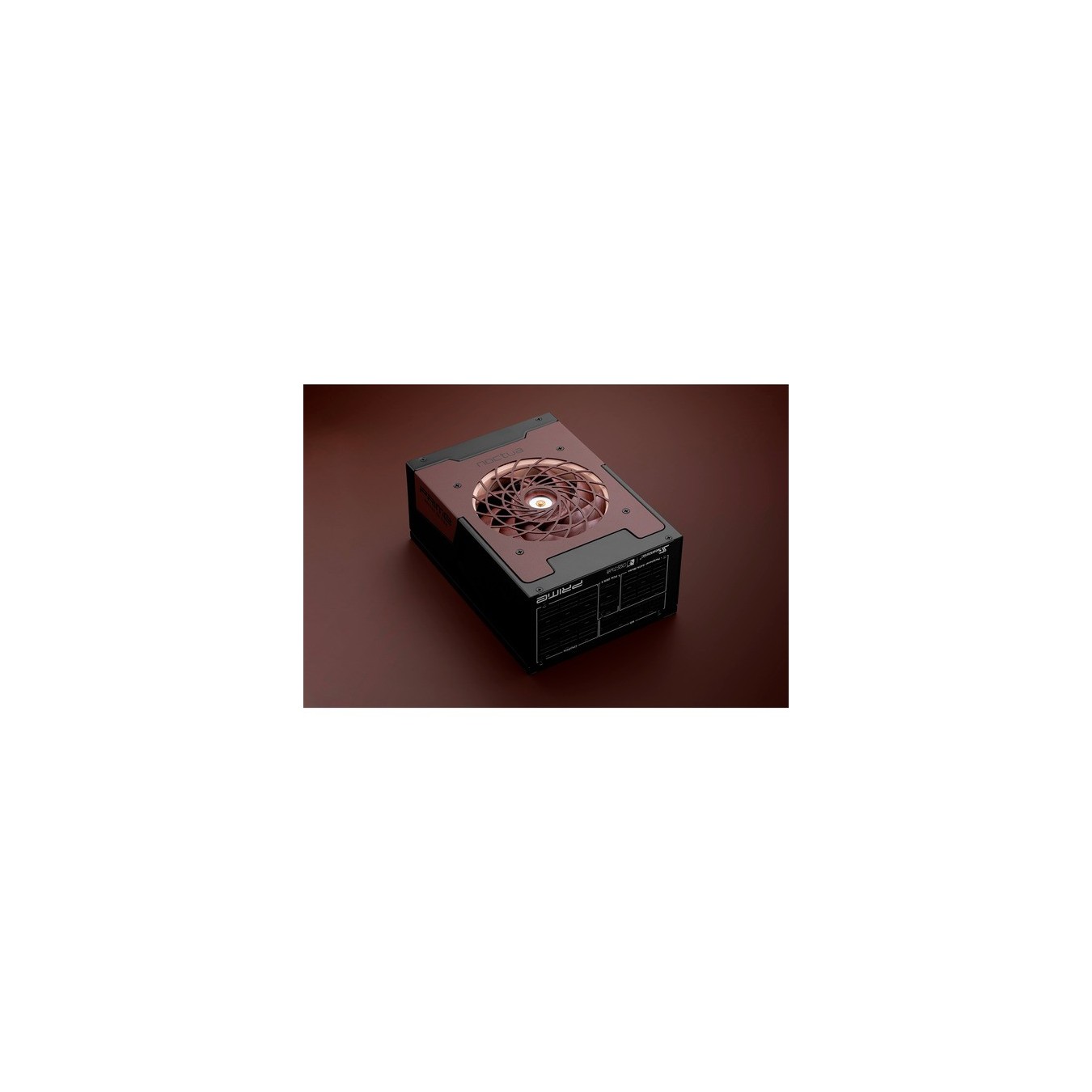

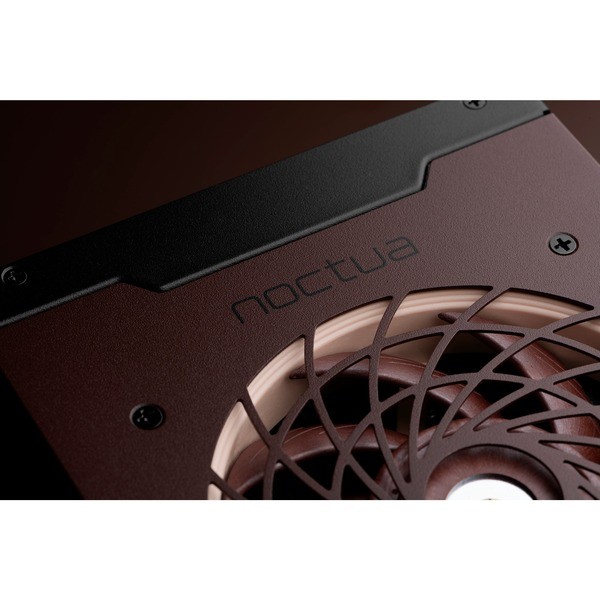

Seasonic is known as one of the leading manufacturers of premium PC power supplies. The PRIME TX Series is the company's award-winning, 80 PLUS® Titanium certified flagship product and features state-of-the-art electronic design, premium quality components, top performance and exceptional efficiency. The Noctua Edition of the top-of-the-range TX-1600 takes this excellent platform and combines it with the iconic, groundbreaking NF-A12x25 fan and a custom-made, highly optimized fan grille, making it a further ~8-10dB(A) quieter than the already quiet standard model. Thanks to its semi-passive fan control, the TX-1600 Noctua Edition power supply works completely passively at typical ambient temperatures (≤25°C) up to a load of approx. 50% and only slowly ramps up the fan when the load or temperature increases. This makes it a fantastic choice not only for power-hungry high-end builds, but also for quiet systems that require less than 1600W, leaving the PSU running most of the time with the fan turned off or almost inaudible. Even at 100% load, the Noctua Edition operates whisper-quietly in ambient temperatures of up to 25°C, producing just ~24dB(A) versus ~34dB(A) for the regular model. [This massive reduction in noise emissions is reflected in an improvement in the Cybenetics Lambda average SPL rating from A to A++.] Complemented by ATX 3.1 and PCIe 5.1 support as well as fully modular Noctua-design cables, the Seasonic PRIME TX-1600 Noctua Edition is the ultimate choice for the most demanding PC enthusiasts who require uncompromising quality, best-in-class performance and exceptional quietness.
| Typ | PC power supply |
| Color | schwarz |
| EAN | 9010018900248 |
| Manufacturer no. | SS Prime TX-1600 EU/ROW |
| Serie | PRIME TX |
| Performance - Overall | 1600 W |
| Standard | ATX12V 3.1 |
| Design | ATX |
| Certification | 80 PLUS Titanium |
| Current strengths - +3.3 V | 25 A |
| Power factor correction | Active PFC |

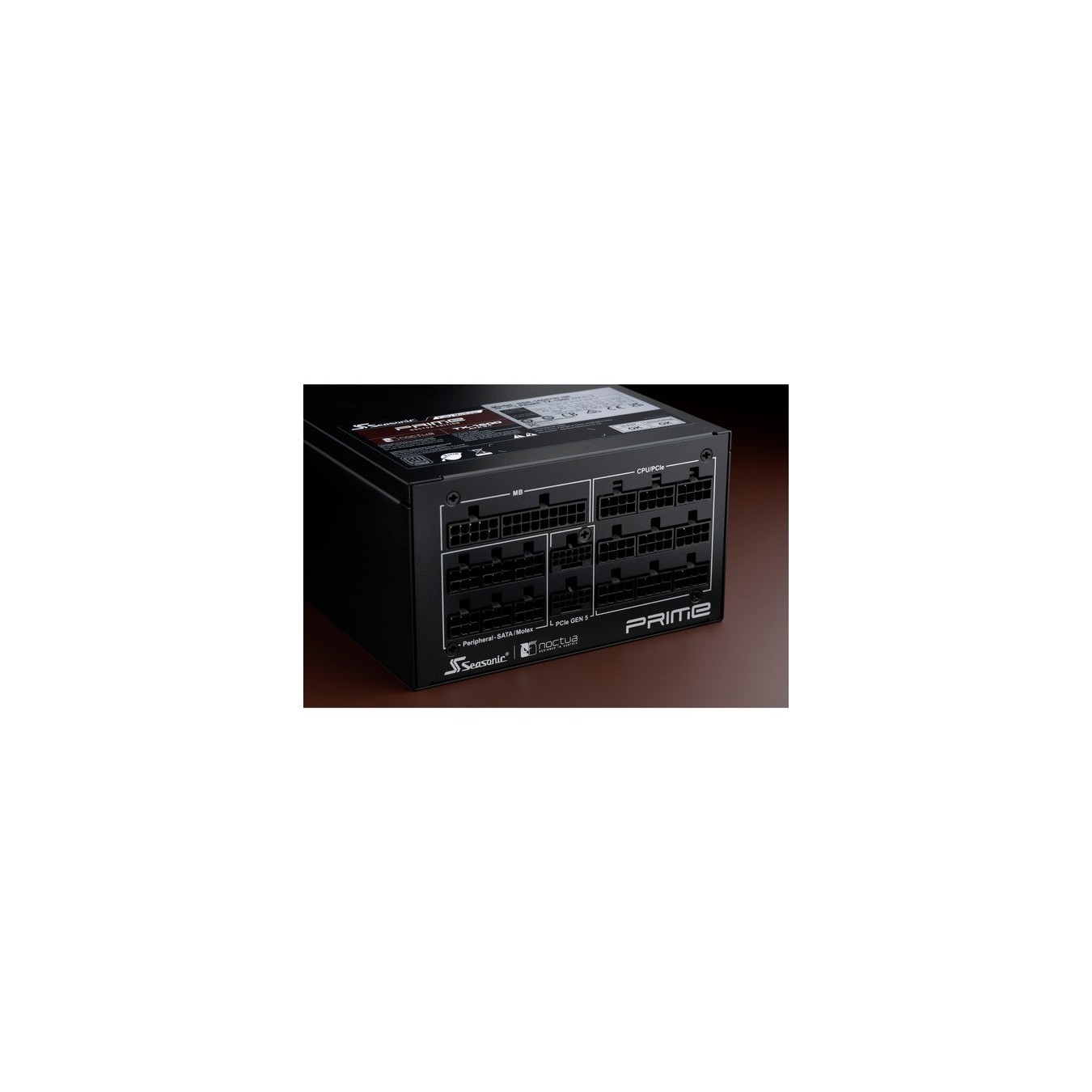

| Connections | 1x 24-Pin-ATX12V-2.x, 3x 4+4-Pin-12V, 1x 4-Pin-5,25", 6x 6+2-Pin-Grafik, 2x 12+4 Pin (12VHPWR), 4x 15-Pin-SATA |
| Cable - Cable-Management | And |
| Cooling - number of fans | 1x 120mm fan |
| volume | 28.8 dB(A) at 100% load |
| Protective functions | Current surge protection (OCP), over voltage protection (OVP), under voltage protection (UVP), overload protection (OLP/OPP), short circuit protection (SCP), overheating protection (OTP) |
| Feature | Quiet NF-A12x25 120mm fan | Cybenetics Lambda A++ Sound Level Rating | Blade geometry: A-Series with Flow Acceleration Channels | Frame technology: AAO (Advanced Acoustic Optimization) | Material: Sterrox® LCP |
| Notice | Recommended installation of the 12 Pin High Power GPU cable: Both 8-pin connectors must always be connected to the power supply. All plugs must be inserted correctly and click-locked. DO NOT bend the cable or apply force to the cable after it is plugged in. |
| Dimensions | Width: 150mm x Height: 86mm x Depth/Length: 210mm |
