External Enclosure for M.2 NVMe PCIe SSD - Drive Enclosure
Delock external enclosure for M.2 NVMe PCIe SSD; supports 2242/2260/2280; USB connection to PC/notebook; sturdy metal housing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

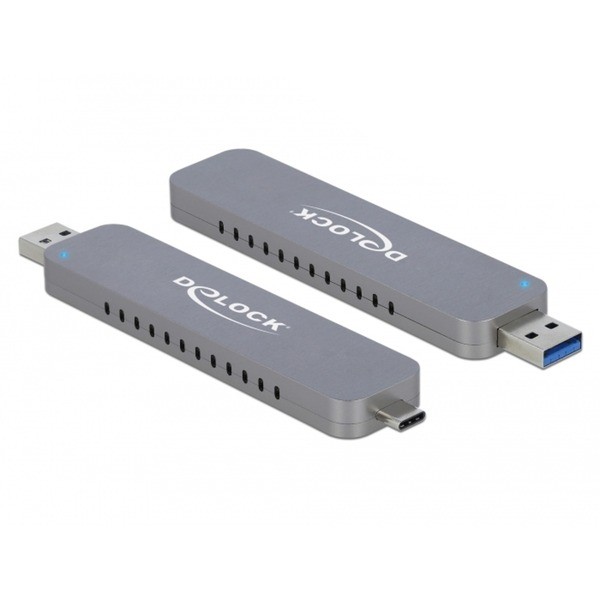

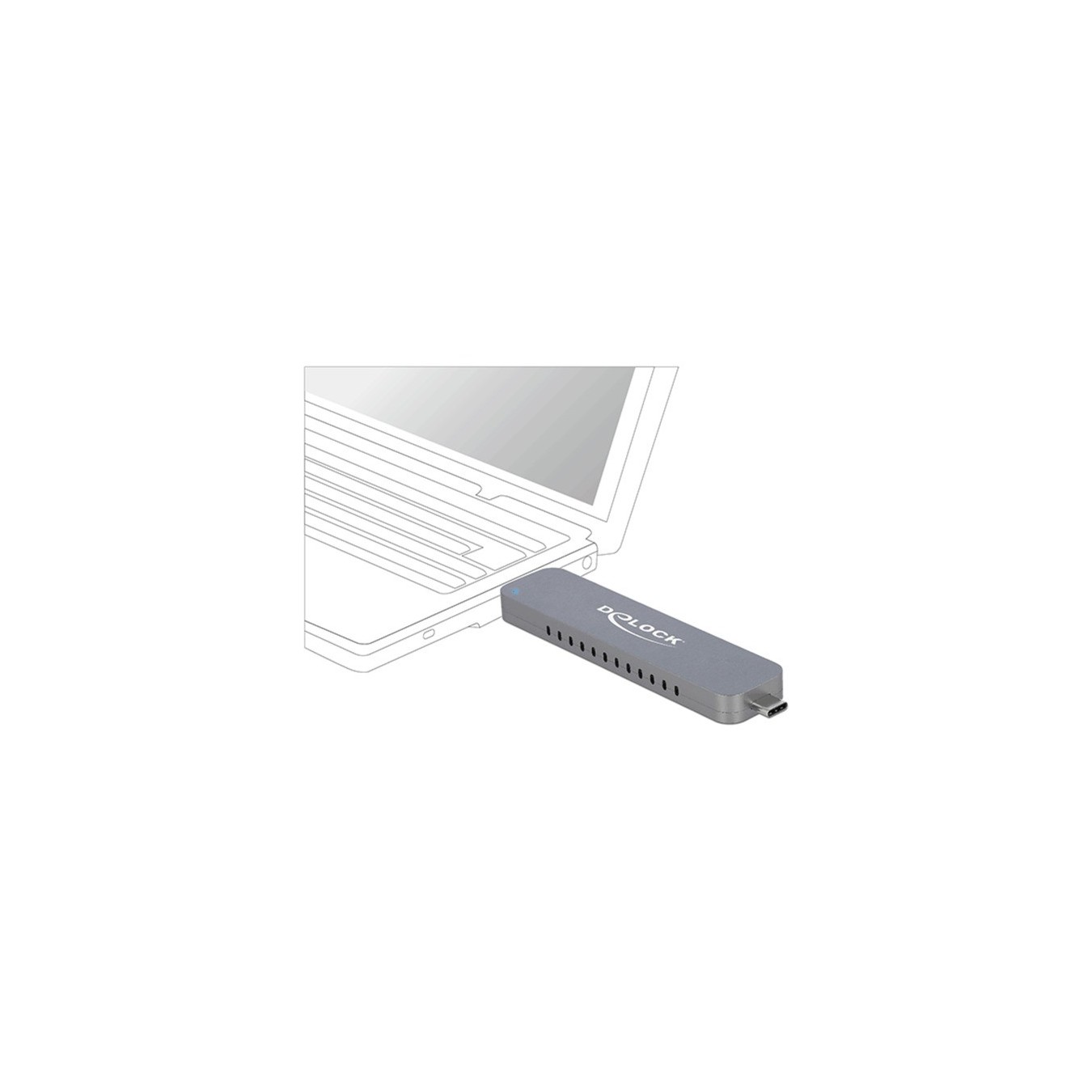

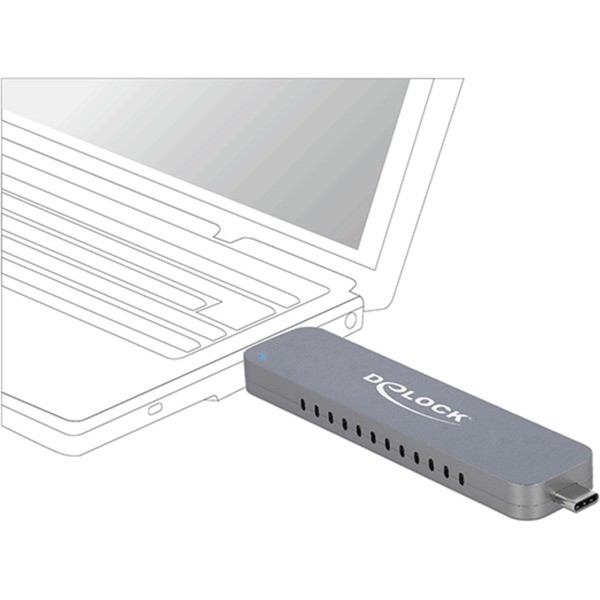

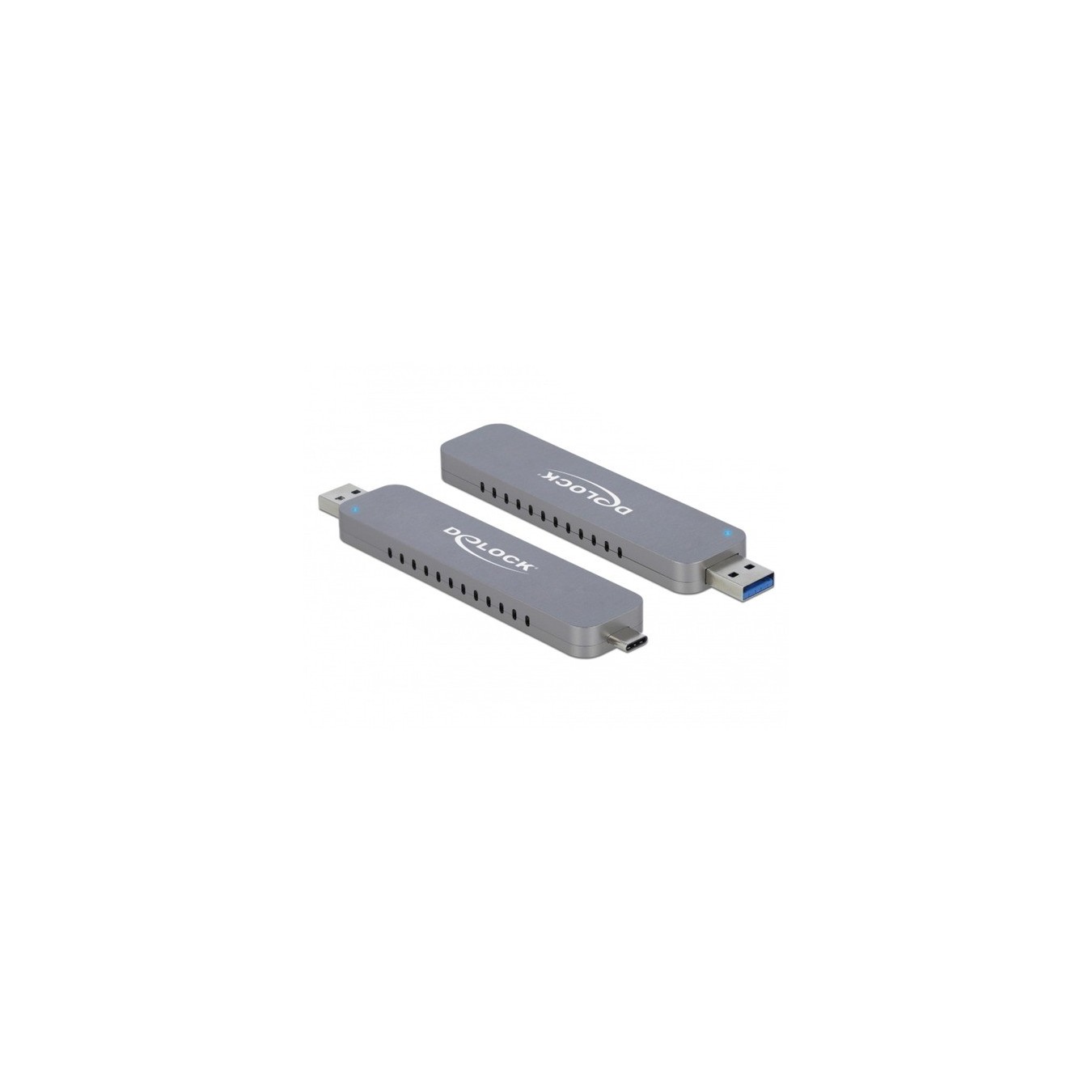

The Delock housing allows the installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 format, and can be connected to a PC or notebook via USB. The robust metal housing ensures an optimal temperature of the memory.
| Typ | drive enclosure |
| Color | silber |
| EAN | 4043619426164 |
| Manufacturer no. | 42616 |
| Material | Metal case |
| Suitable for | PC-System |
| Connections - external | 1x USB-A 3.2 Gen 2 (10 Gbit/s), 1x USB-C 3.2 Gen 2 (10 Gbit/s) |
| Interface | PCIe |
| Chipset | JMicron JMS583 |
| back | 1x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C Stecker, 1x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Typ-A Stecker |

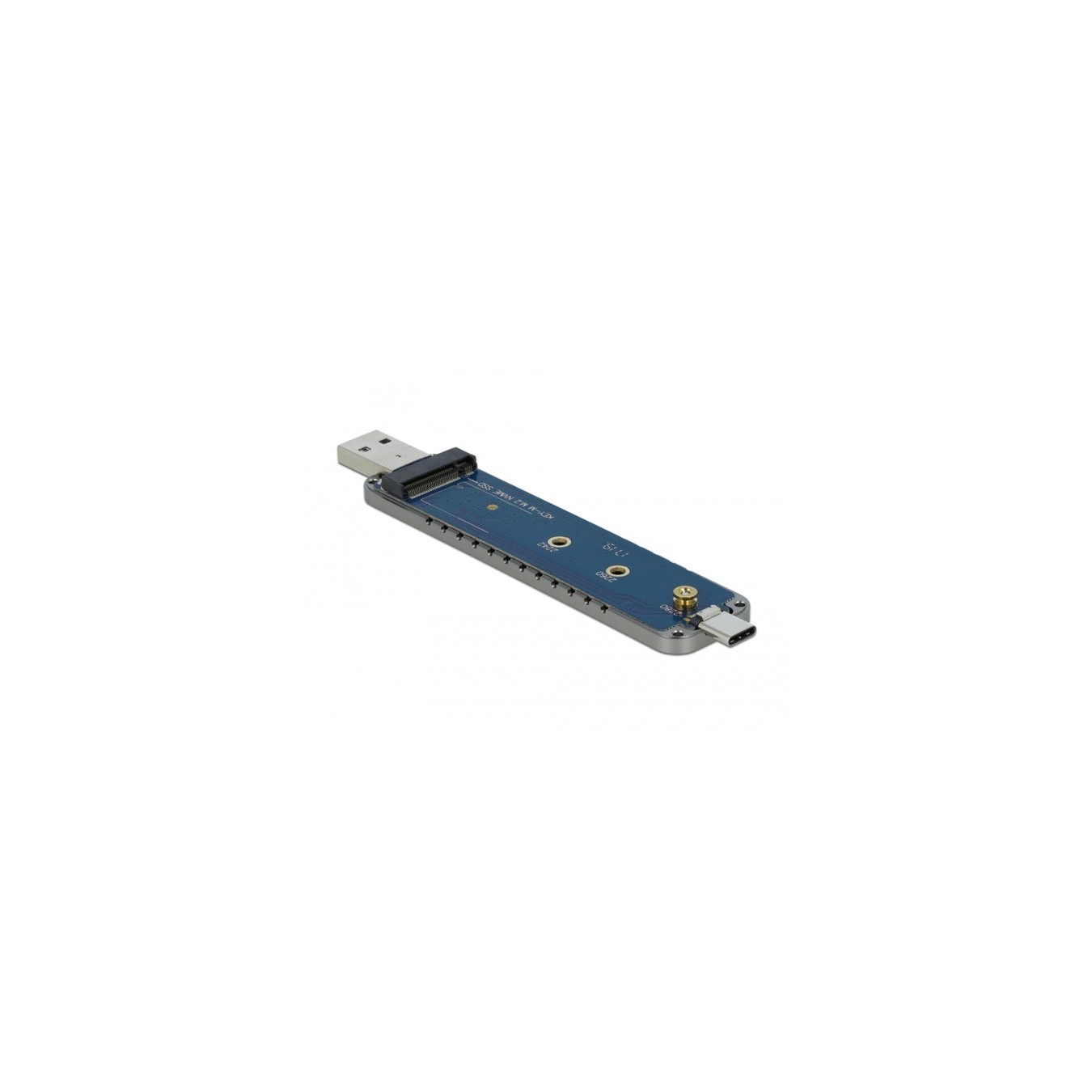

| Notes | Hot Plug, Plug & Play, internal connection: 1x 67 pin M.2 Key M slot, supports M.2 modules in format 2280, 2260 and 2242 with Key M or Key B+M on PCIe (NVMe) basis, maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible, bootable, supports NVM Express (NVMe), data transfer rate up to 10 Gbps, LED display for power and access |
| Compatible with | Android, Chrome, Linux, MacOS, Windows 7, Windows 8, Windows 8.1, Windows 10 |
| More information | System requirements: Android 9.0 or higher, Chrome OS 72.0 or higher, Linux Kernel 4.6.4 or higher, Mac OS 10.14.5 or higher, Windows 7/7-64/8.1/8.1-64/10/10-64, PC or notebook with a free USB Type-C port |

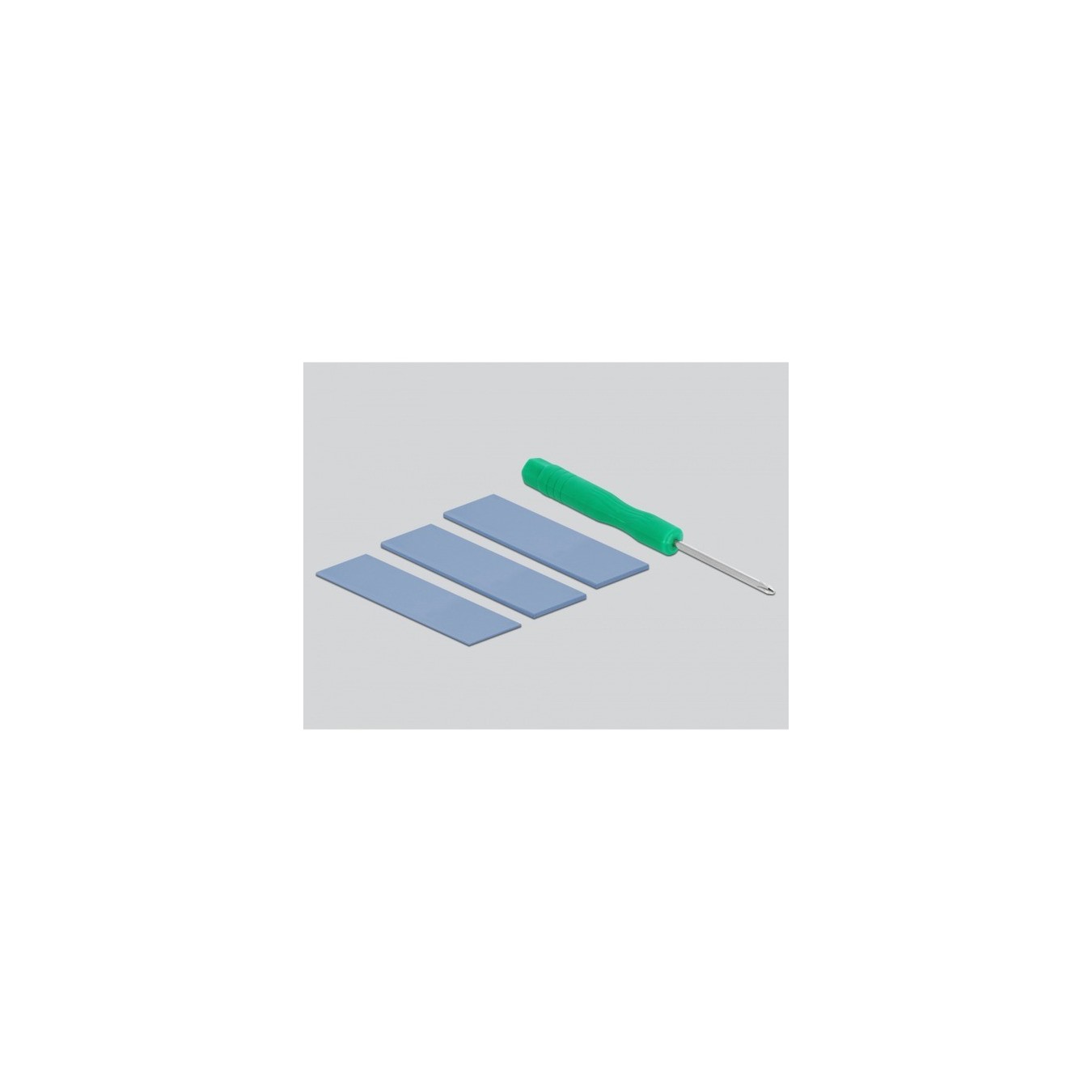

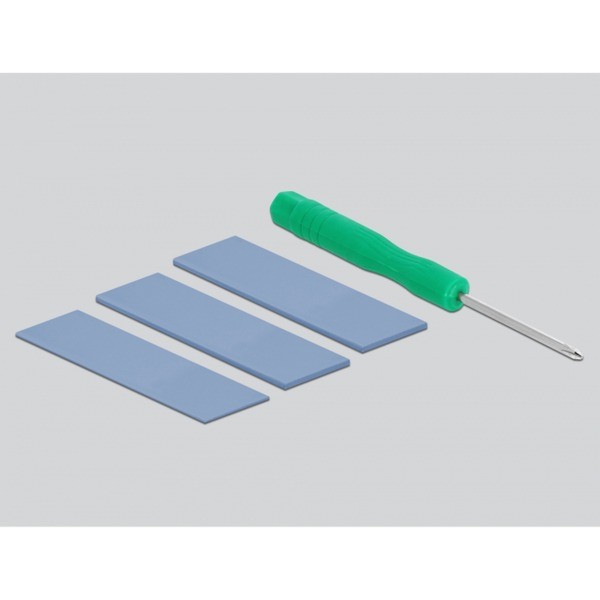

| Accessories - available | Fastening material, screwdriver, 3x heat pad, operating instructions |
| Dimensions | Width: 25mm x Height: 9mm x Depth/Length: 122mm |
| Weight | 100 Gramm |
