Solid colored LC Simplex OS2 Pigtails - Cable

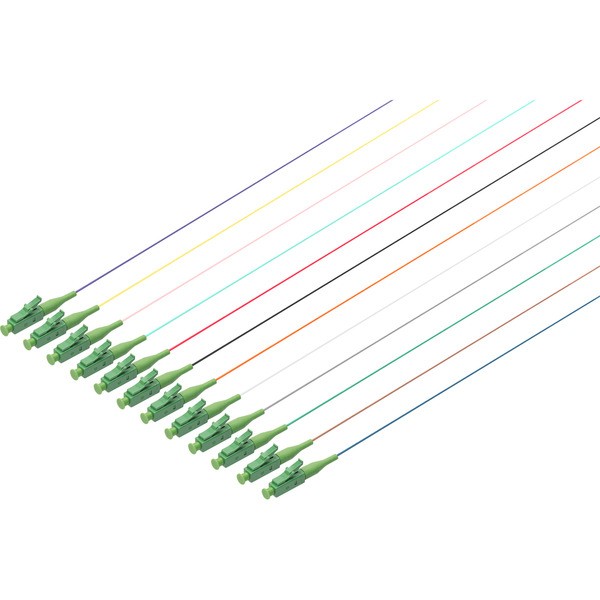

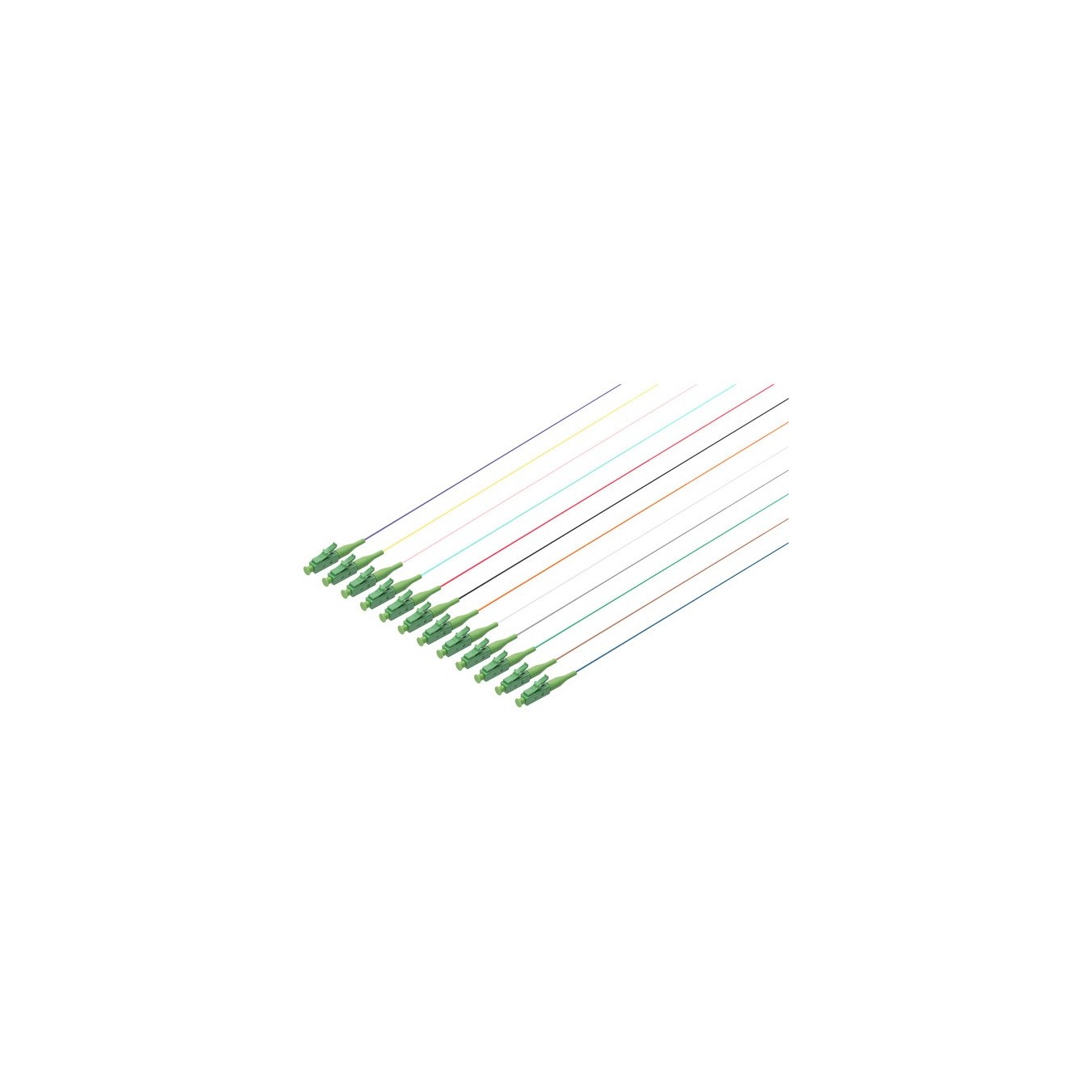

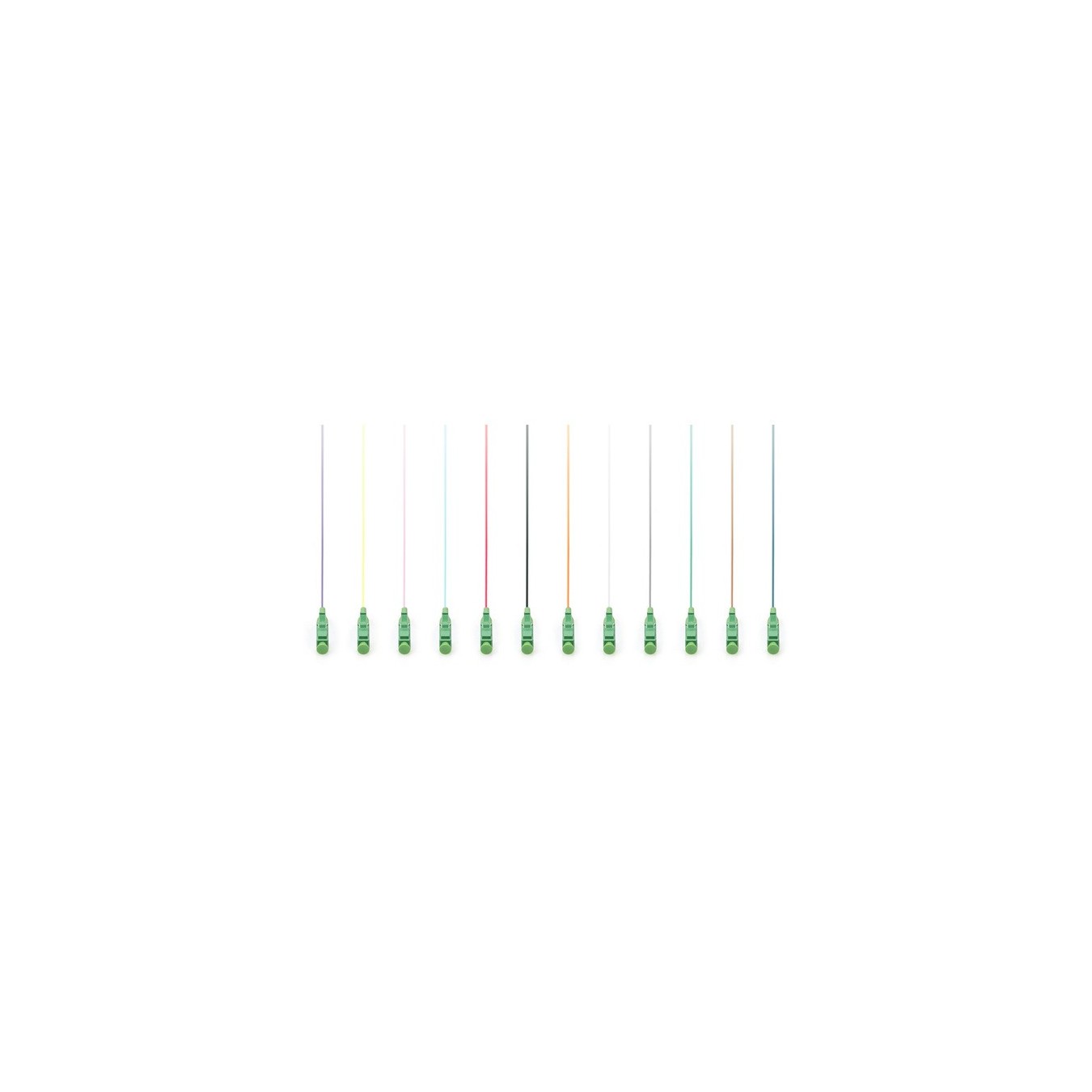

LC Simplex OS2 singlemode fiber pigtails, 2 m length, 12 pieces, zirconia ceramic ferrule, APC termination, manufactured in Türkiye.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The DIGITUS fiber optic pigtails are available as LC Simplex, SC Simplex and ST Simplex versions and offer you excellent performance and connection quality for your network with classes OS2, OM2, OM3 and OM4. The connector complies with the IEC 61754-4 2002 standard and is equipped with a zirconia ceramic ferrule. The colored fiber sets are color coded according to IEC 304 (white, purple, turquoise, black, red, pink, orange, gray, green, yellow, brown, blue).
| Typ | Cable |
| Color | multicolored |
| EAN | 4016032428848 |
| Manufacturer no. | DK-29332-02/APC |
| Manufactured in | Türkiye |
| Number | 12 pieces |
| Area | network |
| Connection - from | 1x LC (Stecker) |
| taps | 1 |
| Characteristics | Set |
| Feature | Fiber Class: OS2 | Insertion loss MM PC: max. 0.4 dB | Return loss MM PC: > 25 dB | Secondary coating dimensions: Ø 0.9 ± 0.1 mm | Primary coating: Acrylates; Ø 250 ± 15 µm | Loose buffer | Singlemode | Fiber diameter: 9/125µ |
| More information | Zirconia Ceramic Ferrule | Connector according to standard IEC 61754-4 2002 | Operating temperature: -25 °C - +80 °C | Transport and storage temperature range: -20 °C - +65 °C |
| Cable length | 2 Meter |
| Warnings and safety information | Safety instructions: When working with fiber optic cables, especially when testing or working with lasers, safety glasses that protect against harmful radiation should always be worn. Be careful never to look directly into the light of a fiber optic, even if the light source is invisible to the naked eye. |
