Converter M.2 Key B+M connector to 2 x USB 5 Gbps Type-A - interface extension
Delock interface extension adds two USB 5 Gbps Type-A ports via PCIe, with bracket output.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

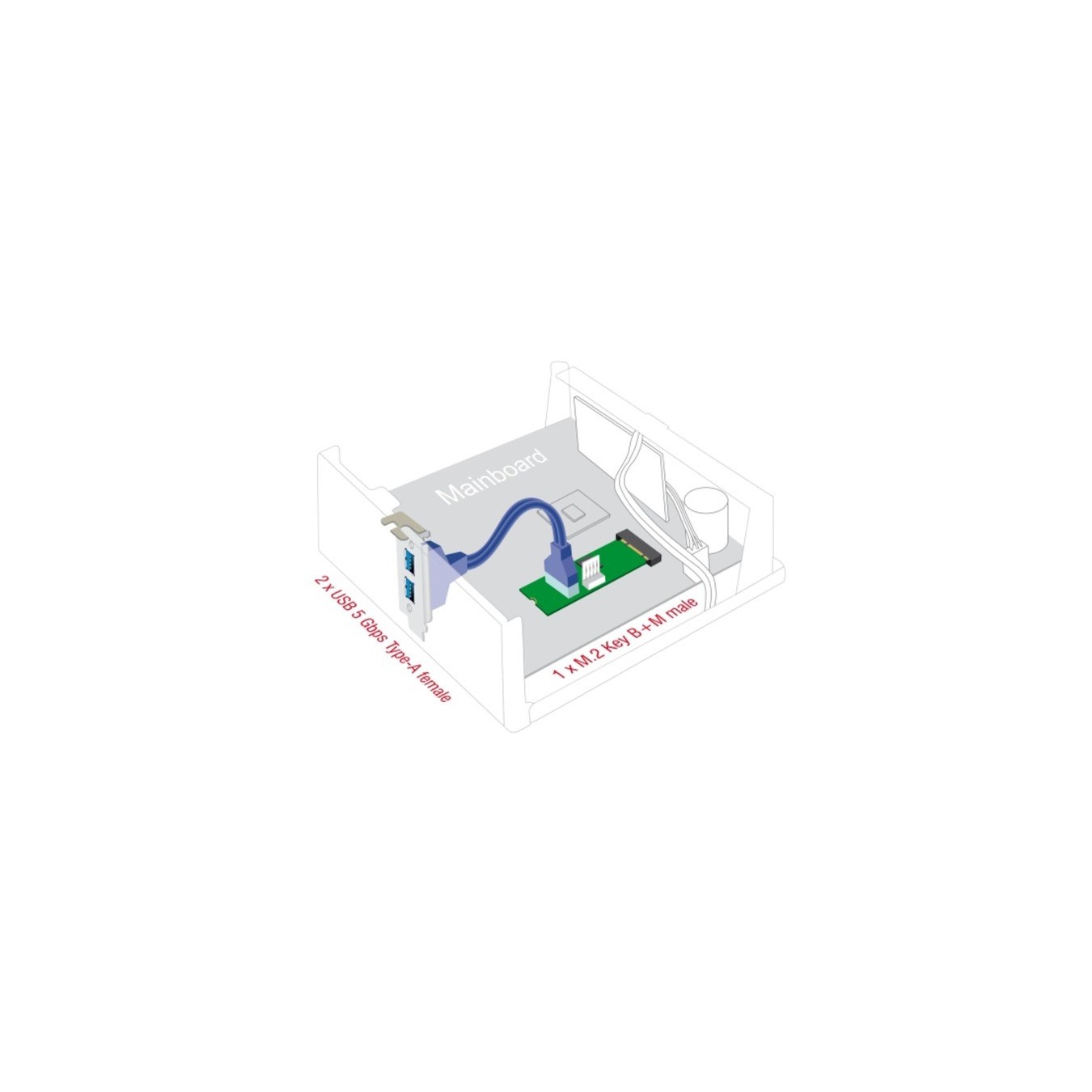

This converter from Delock expands the system with two USB 5 Gbps Type-A sockets, which can be led out via the slot bracket.
| Typ | Interface extension |
| EAN | 4043619610655 |
| Manufacturer no. | 61065 |
| Controller Art | USB 3.2 (5 Gbit/s) |
| slot | PCIe x1 |

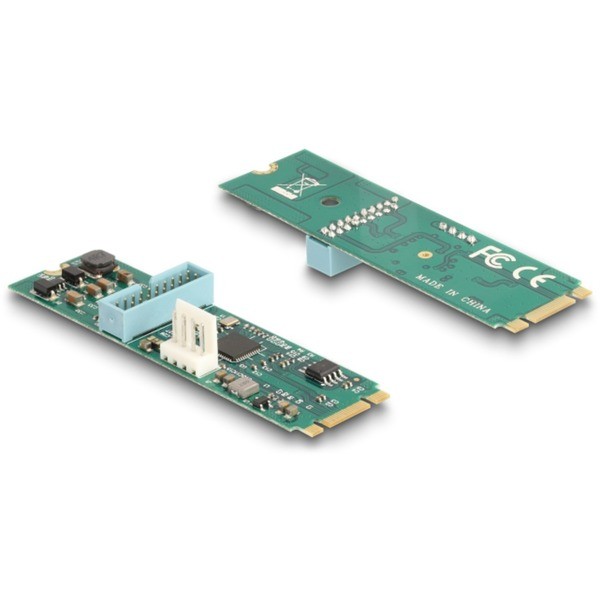

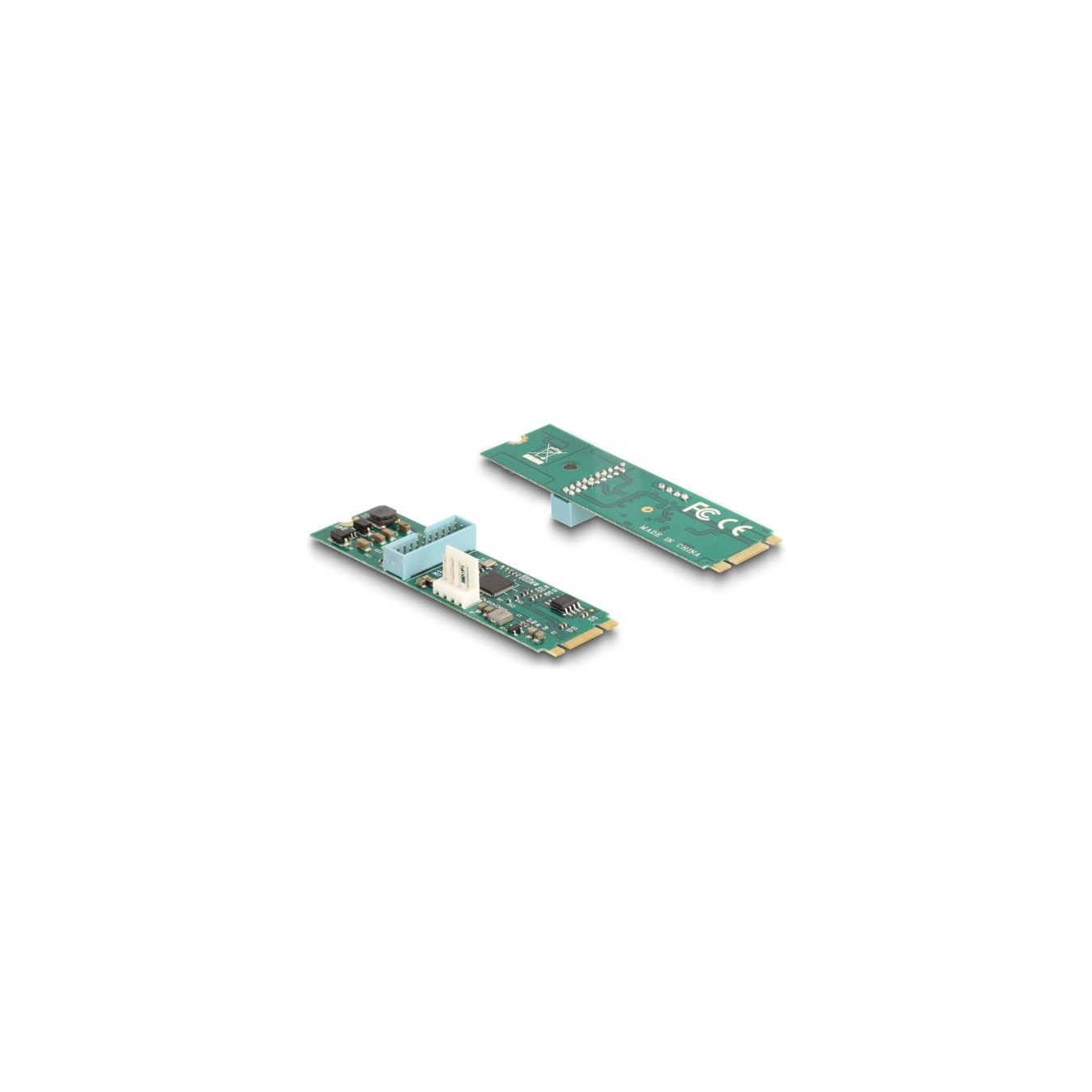

| Chip | Renesas uPD720202 |
| Protocol | USB 3.2 Gen 1 (5 Gbit/s), PCIe x1 |
| Connections - external | 2x USB A |
| Feature | Bootable |
| More information | 1 x Floppy 4 Pin Power Connector (optional for power supply) |

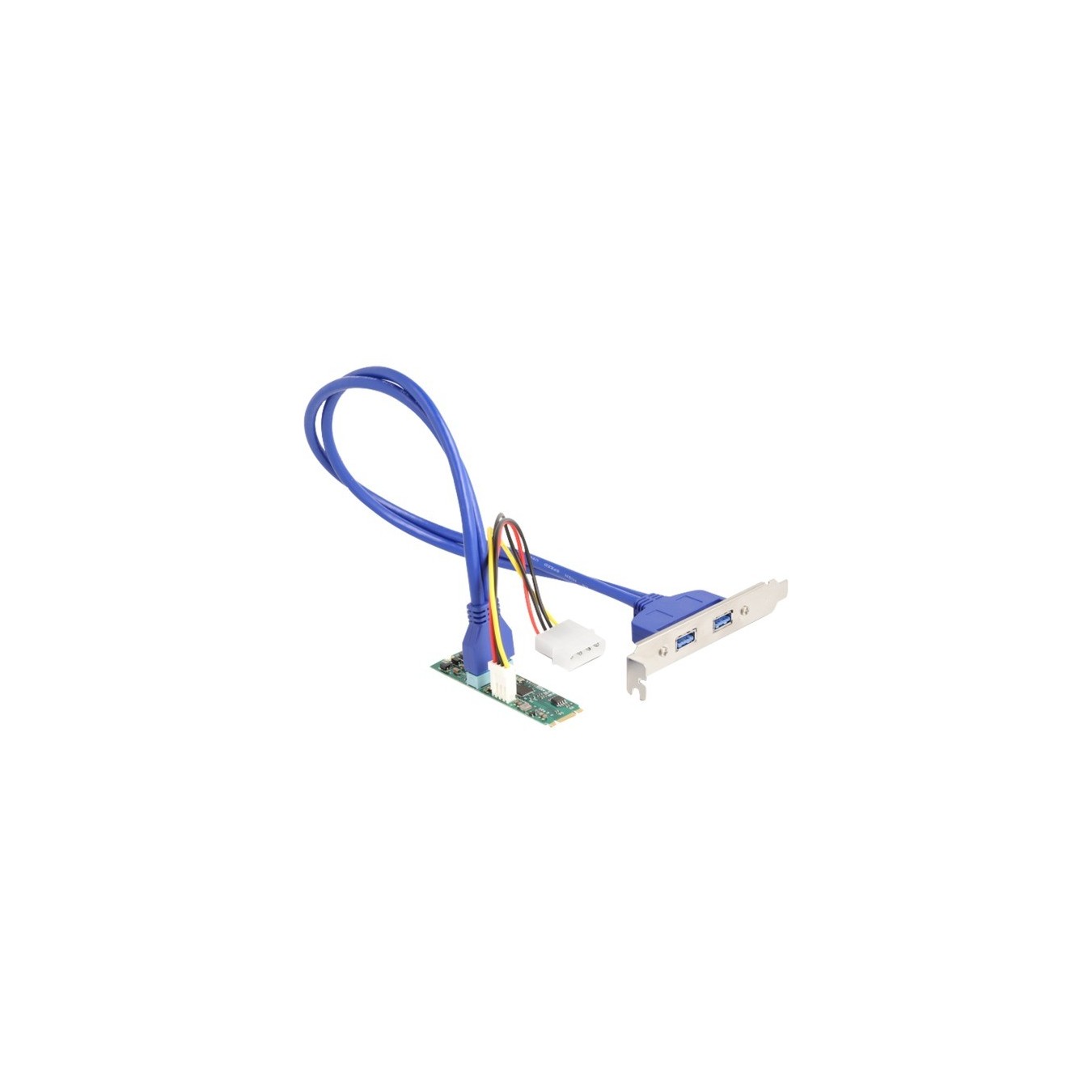

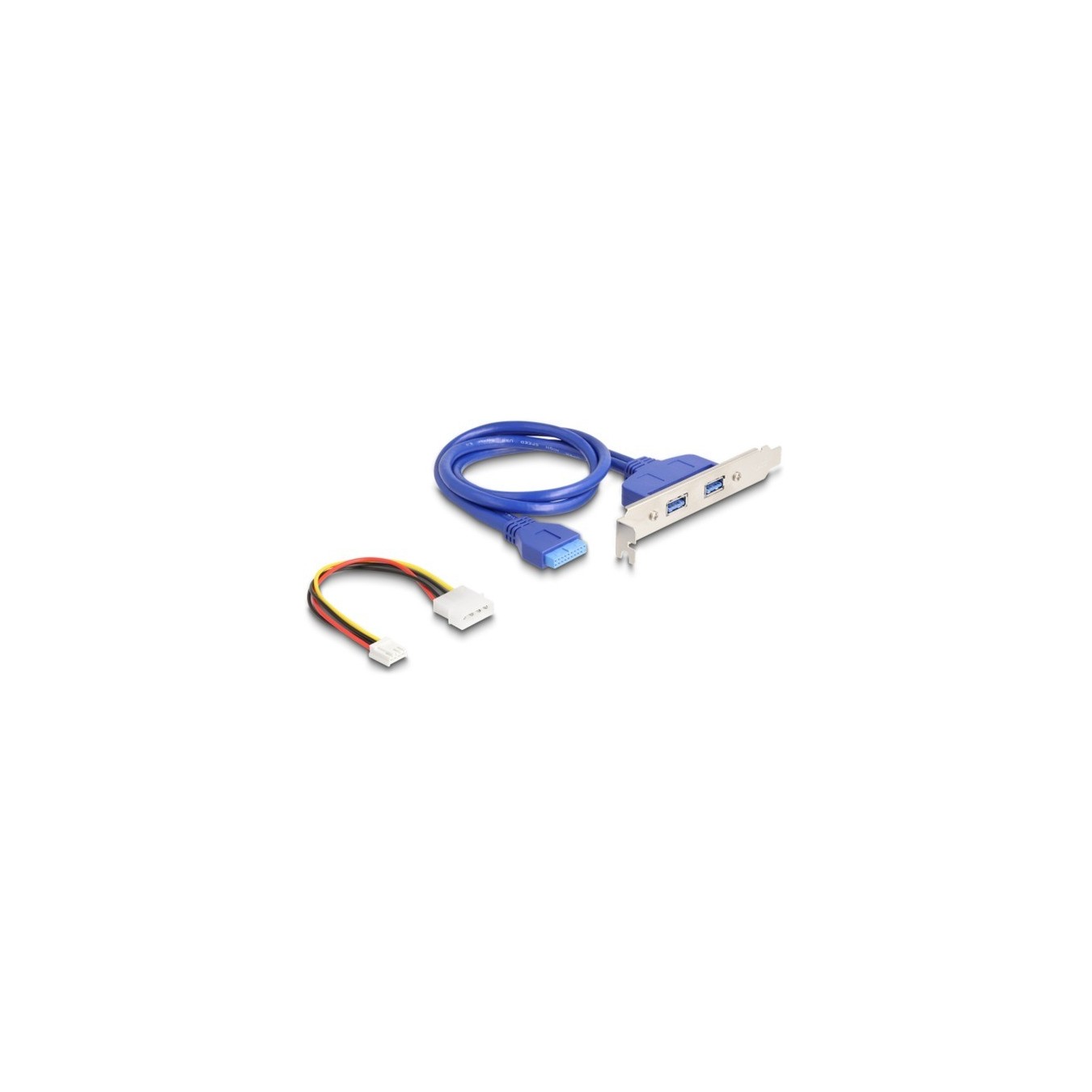

| Accessories - available | 1 x connection cable USB post socket to 2 x USB Type-A socket, length approx. 50 cm, power cable, length approx. 20 cm, operating instructions |

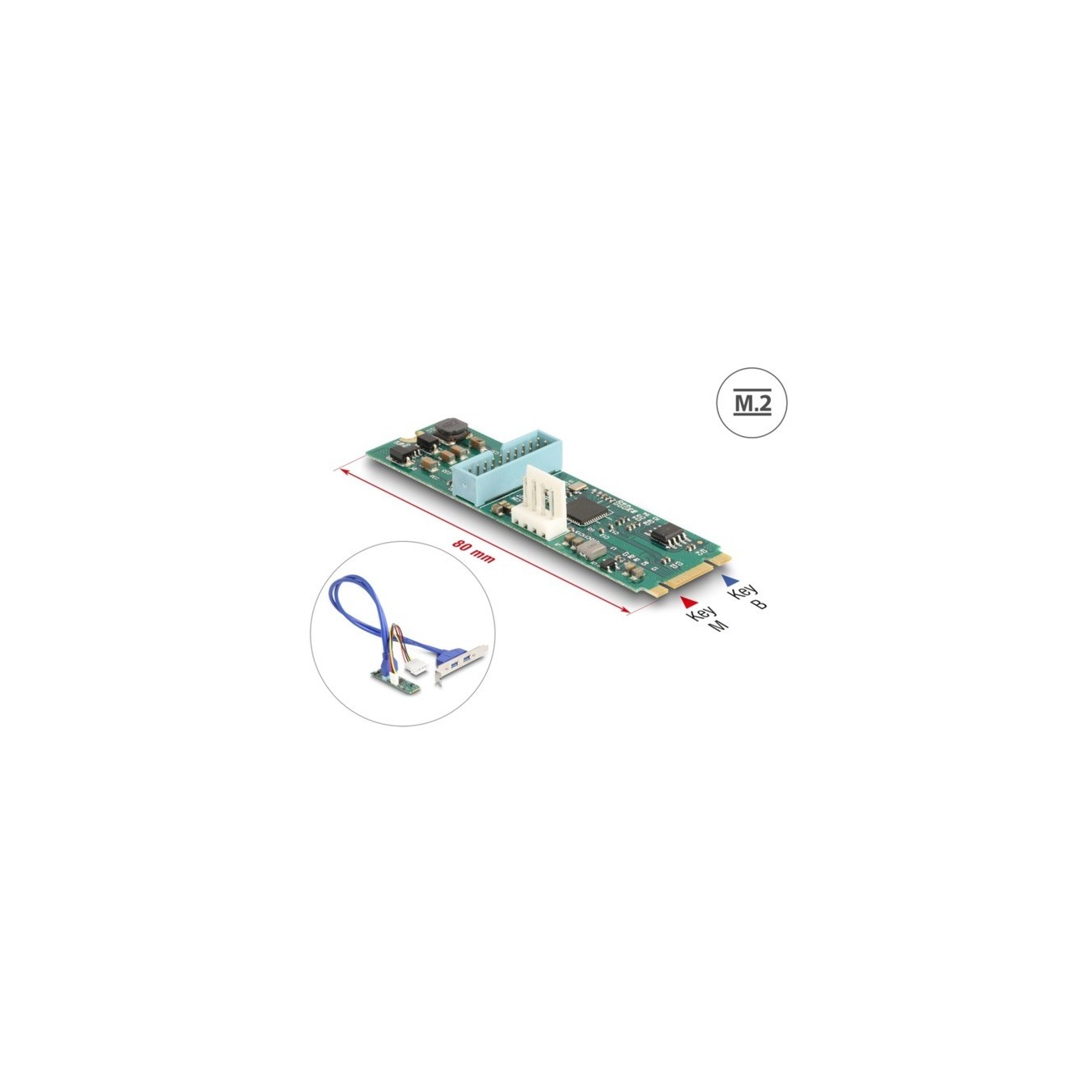

| Dimensions | Width: 22mm x Height: 17mm x Depth/Length: 80mm |
