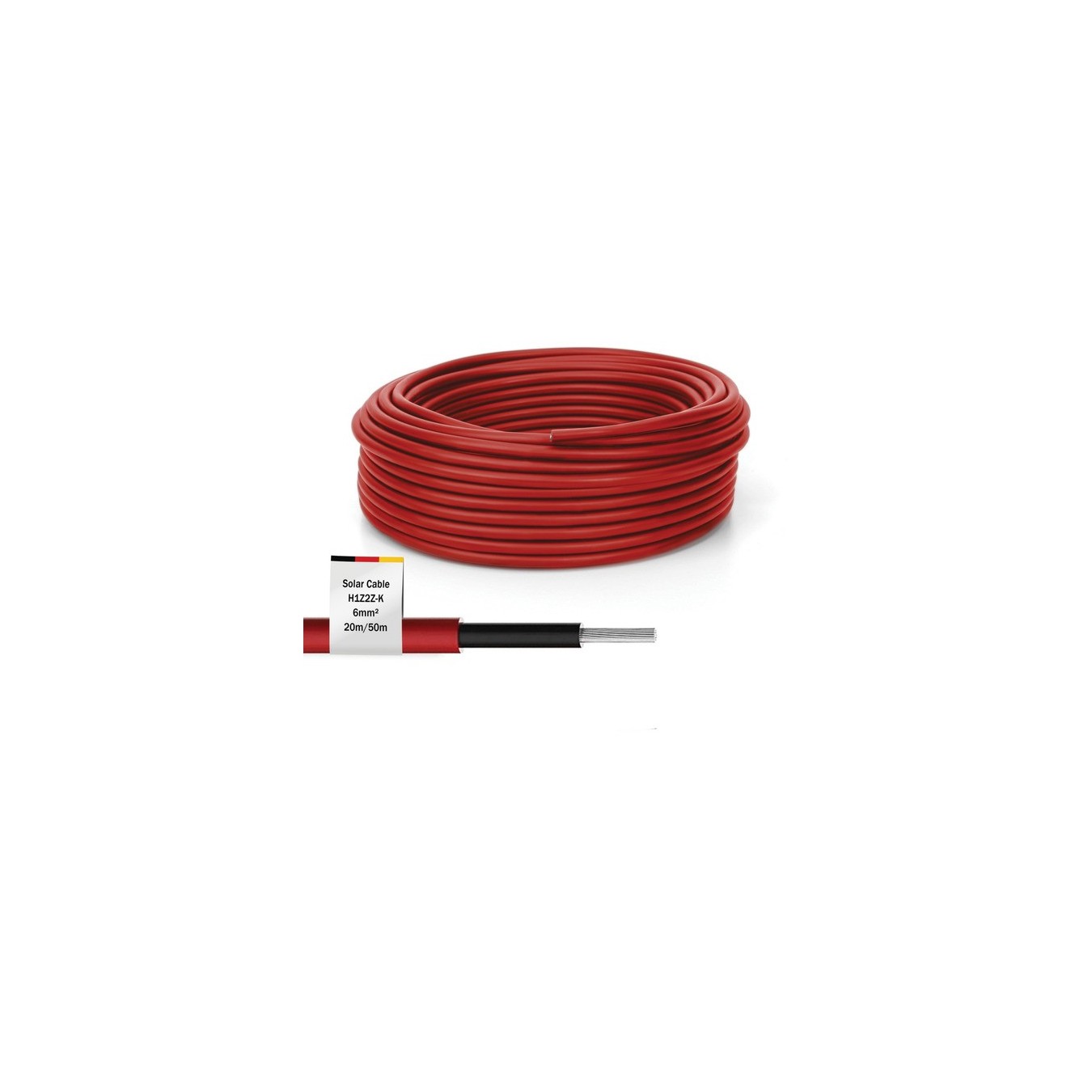

Solar Cable Installation - Ø 6mm2 PV 1,500 Volt
DK-SCIC6R-0500 solar cable, 6mm² cross-section, 50 m length, for photovoltaic systems.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

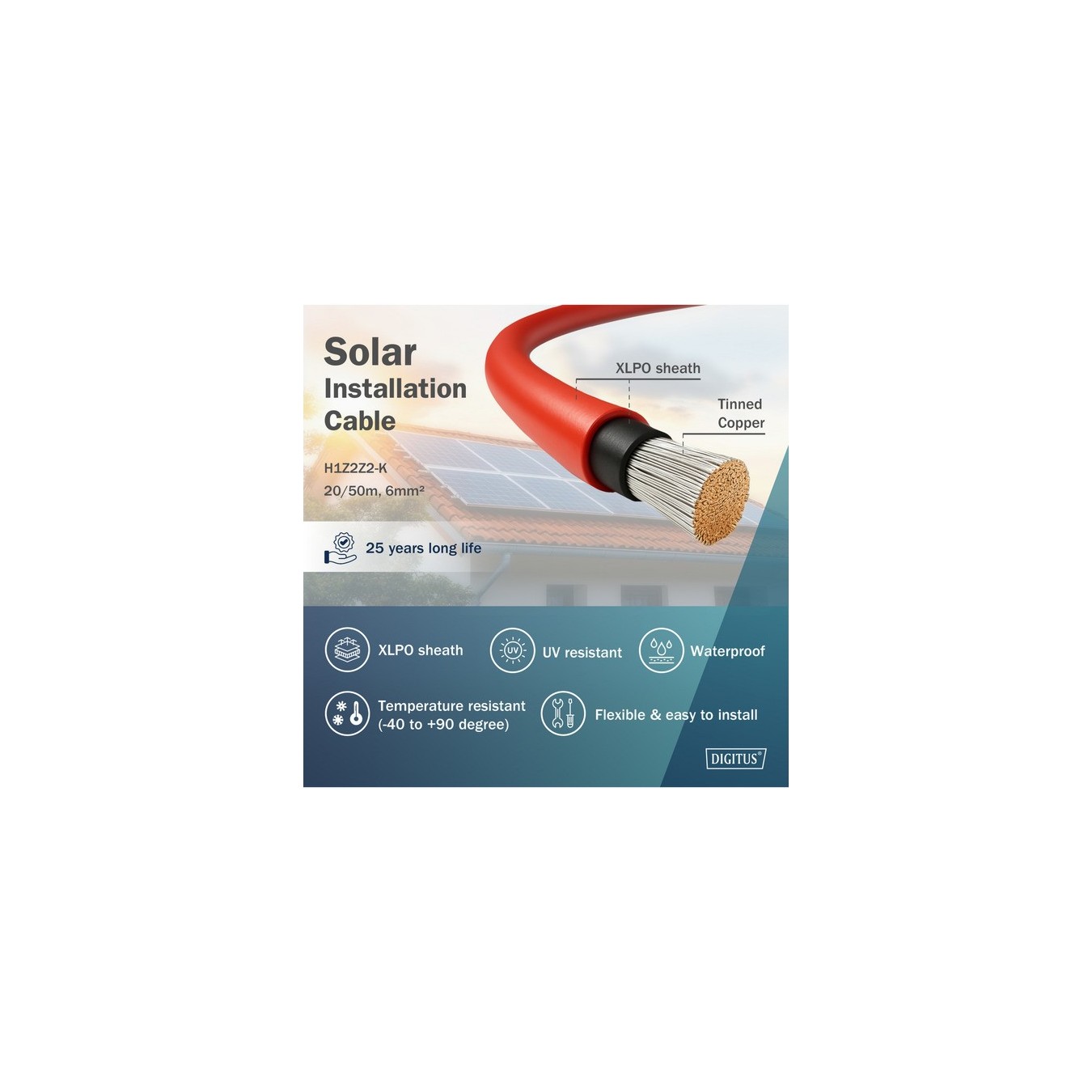

The high-quality solar cable DK-SCIC6R-0500 from DIGITUS with a 6mm² cross section and 50 meters long is the ideal connection solution for photovoltaic systems and solar systems. It is ideal for use between solar modules, inverters and other components, thanks to its high voltage strength of DC 1500V / AC 1kV. The tinned copper conductor offers optimal conductivity and excellent corrosion protection. The robust XLPO insulation reliably protects against UV radiation, heat, ozone and moisture. The cable is flexible, abrasion-resistant and temperature-resistant from -40°C to +90°C. It meets the requirements of the EN 50618:2014 standard and is flame retardant. With a conductor resistance of ≤3.39Ω/k and an insulation resistance of ≥500MΩ·km, it enables low power losses and high operational reliability. The solar cable is weatherproof, durable and environmentally friendly, ideal for long-term outdoor use in professional and residential PV projects.
| Typ | Cable |
| Color | rot |
| EAN | 4016032490784 |
| Manufacturer no. | DK-SCIC6R-0500 |
| Manufactured in | China |
| Application example | Solar cable for self-assembly |
| Area | Power supply |
| Specially for device | Balcony power plant / solar system |
| Connection - from | 1x cable end without plug |
| Characteristics | extern |
| Feature | Up to 25 years lifespan, designed for maximum durability and efficiency, flexible & easy to install, weatherproof & UV resistant |

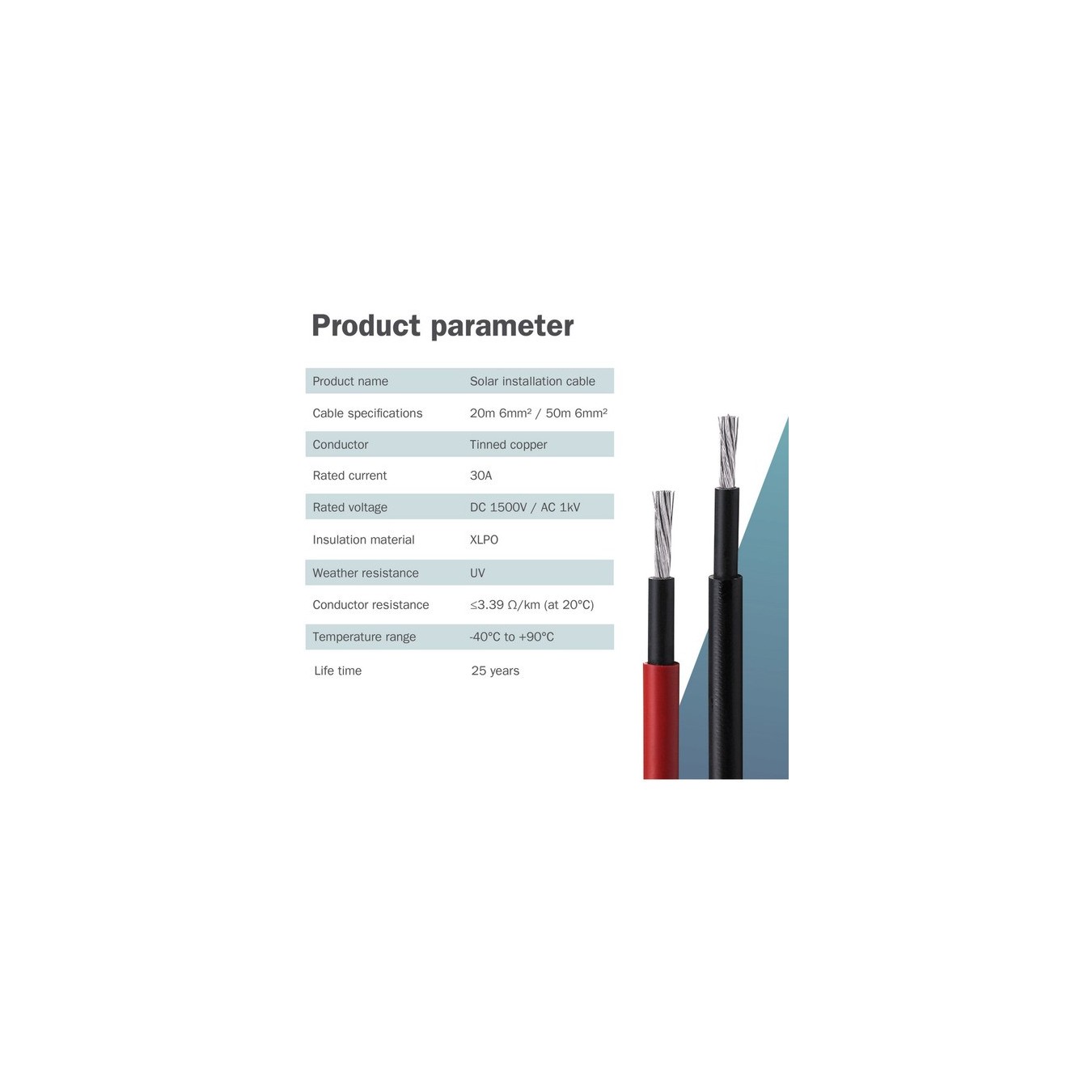

| More information | Flexible conductor structure (TS 84 / 0.285mm), conductor diameter 3.0mm, XLPO jacket (outer shell), insulation diameter 4.4mm ± 0.1mm, outer diameter 6.1mm ± 0.2mm, nominal voltage DC 1,500V / AC 1kV, dielectric strength AC 6.5kV / DC 15kV (5 minutes), spark test 7kV, operating temperature -40°C to +90°C |
| Notice | Flame retardant according to EN50618:2014 |
| Cable length | 50 Meter |
| Weight | 4 kg |
