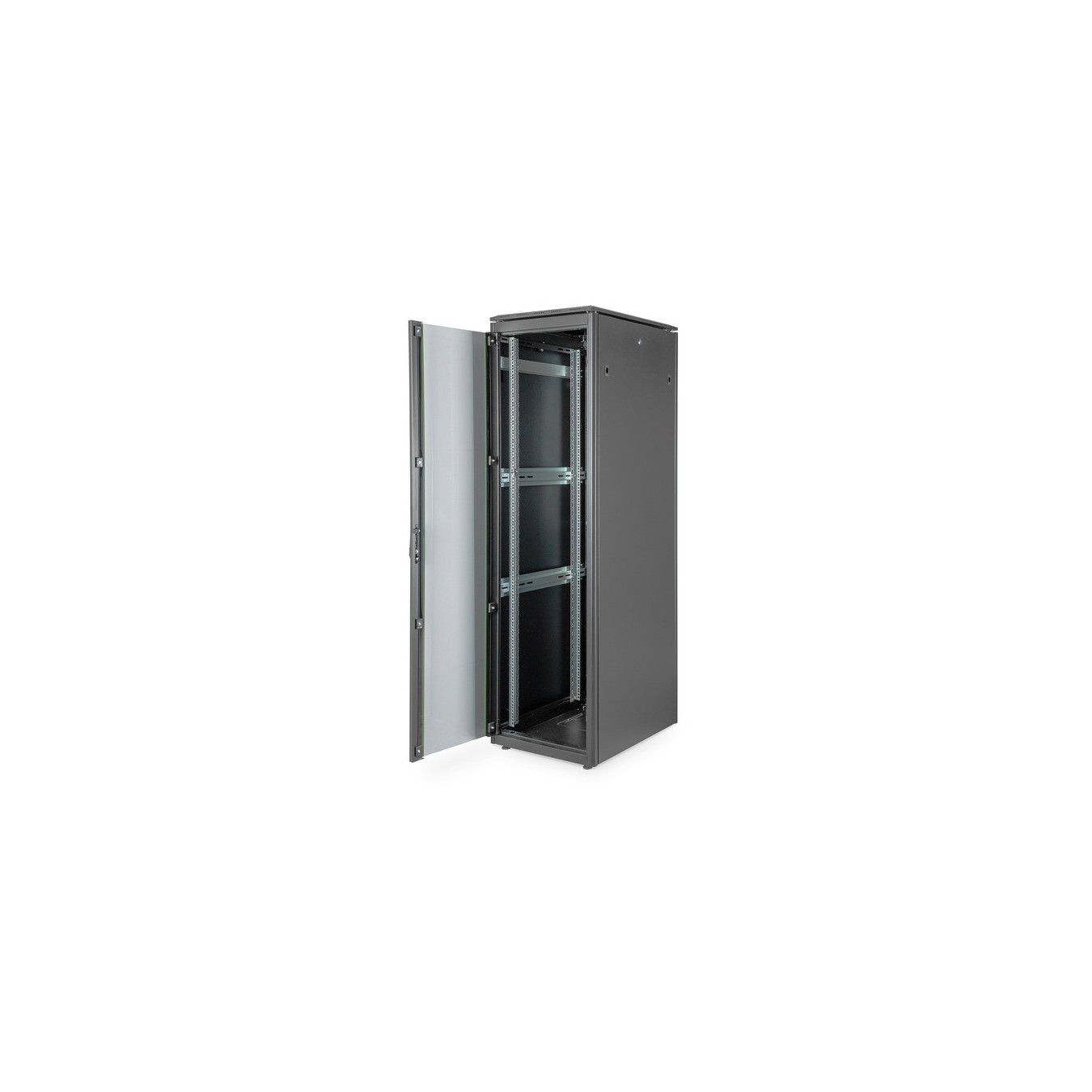

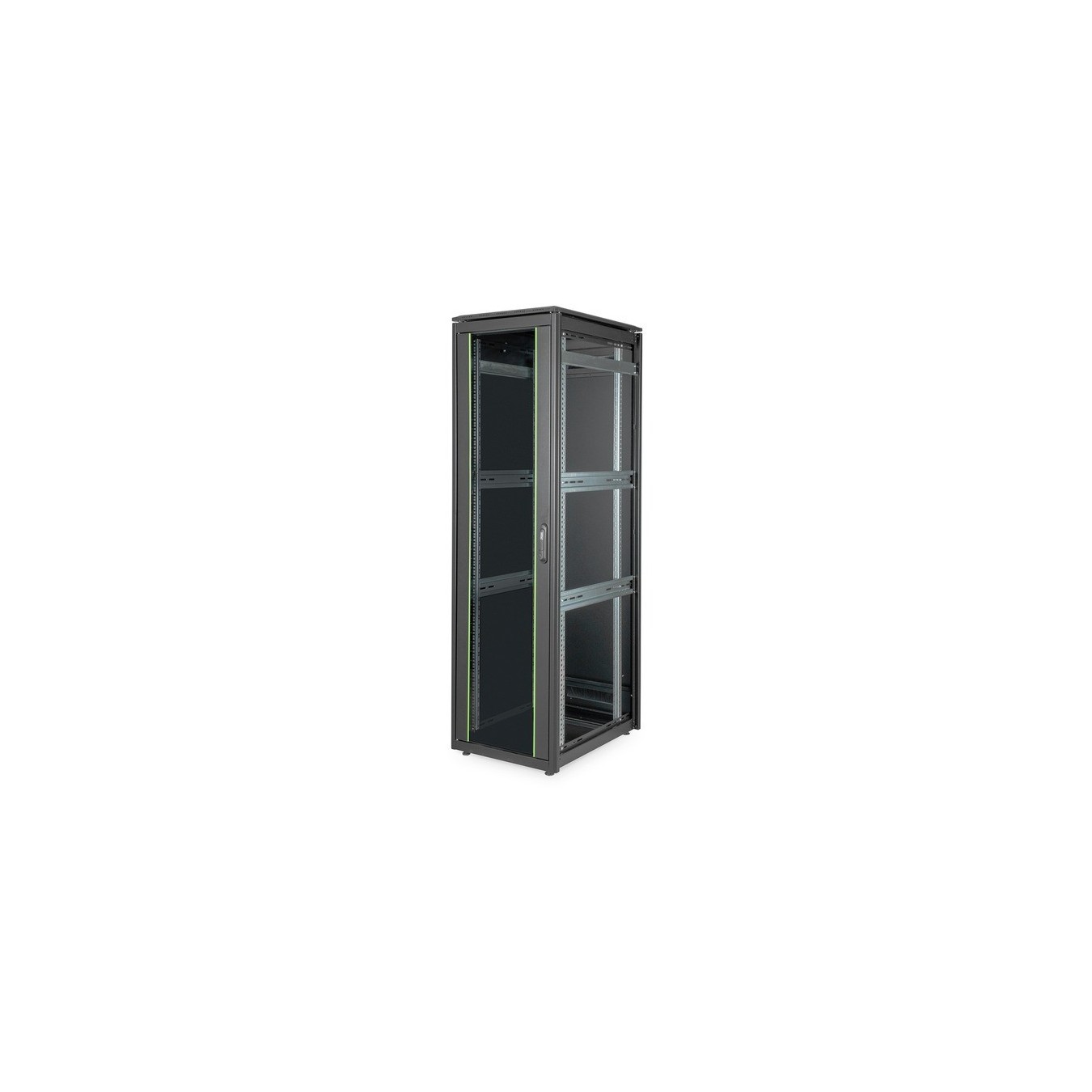

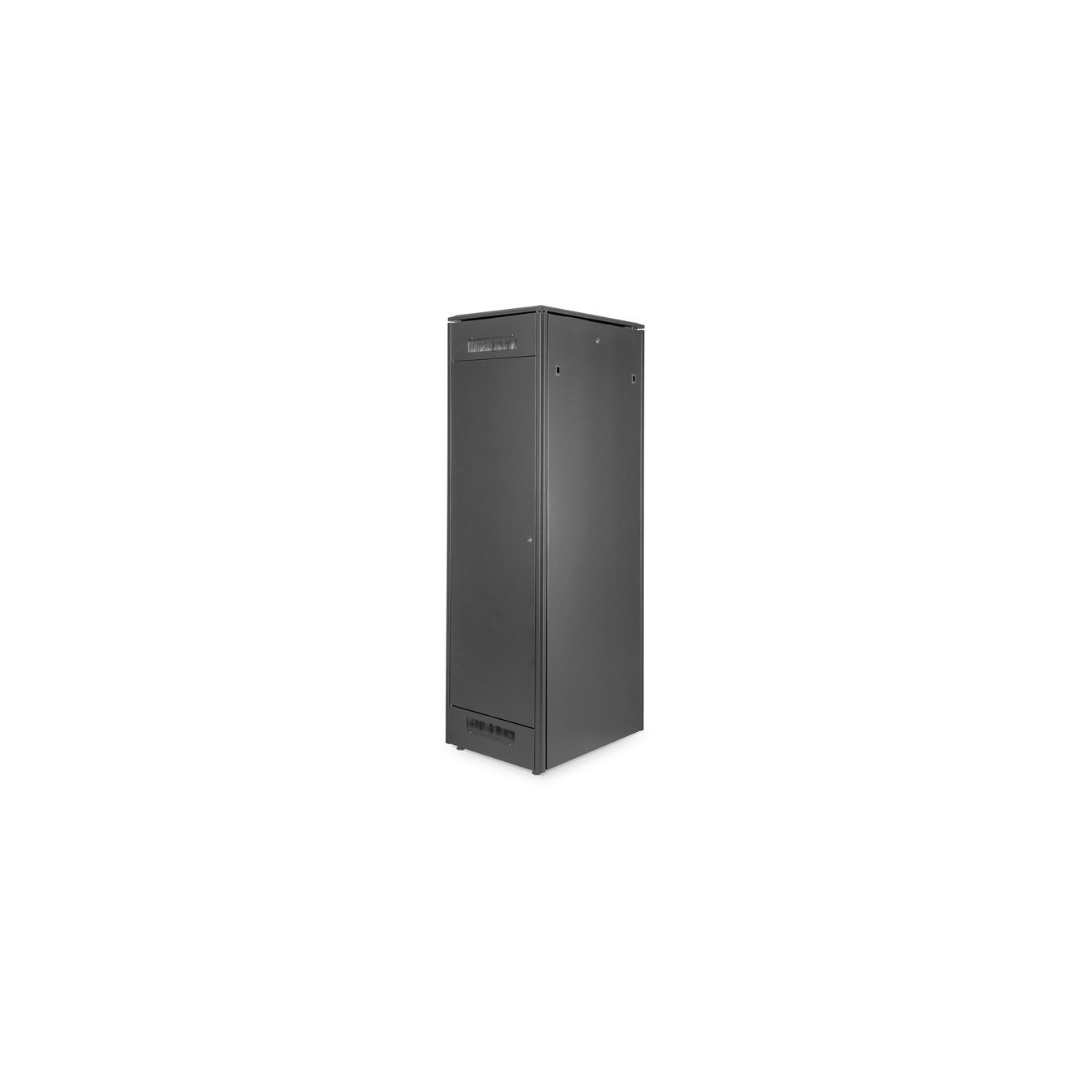

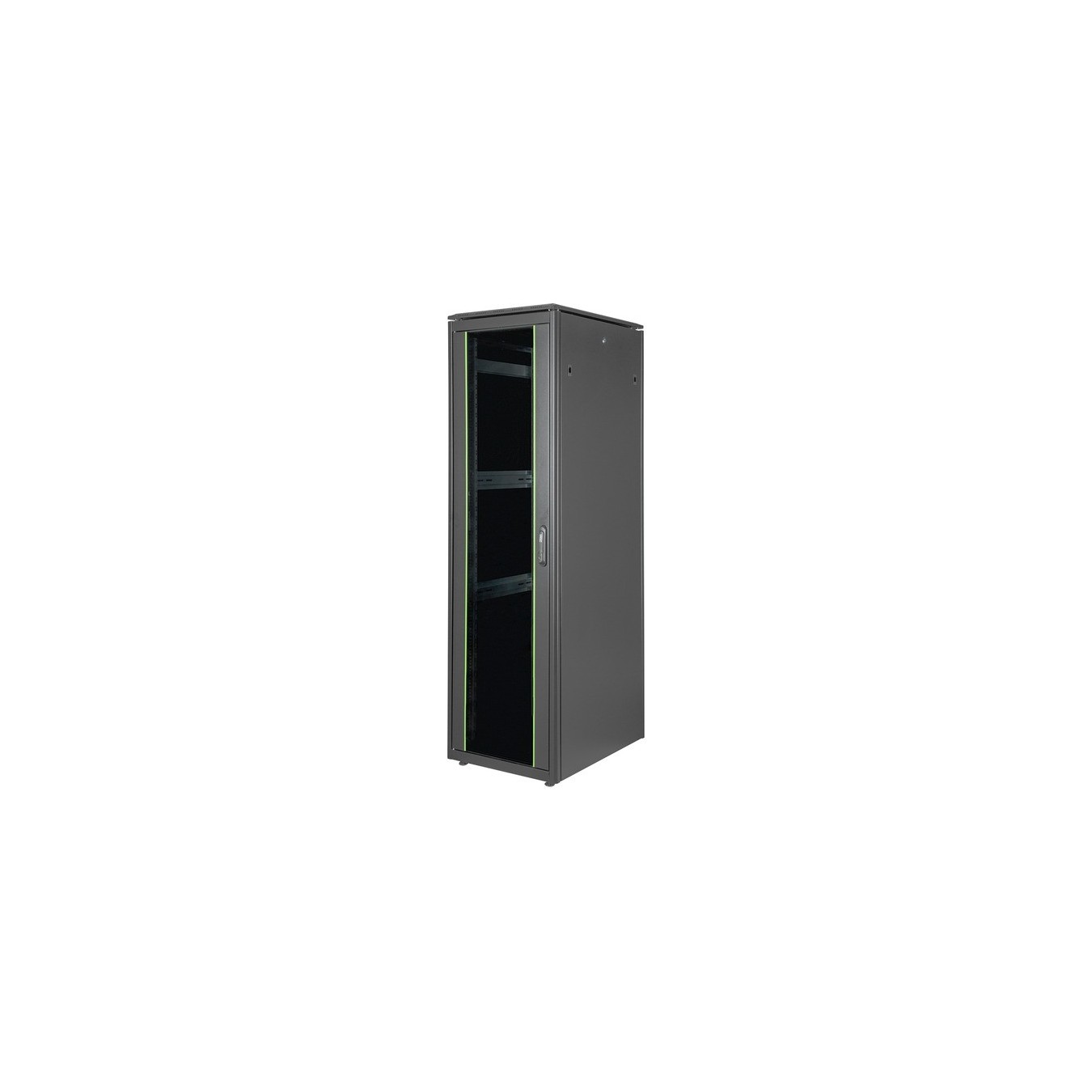

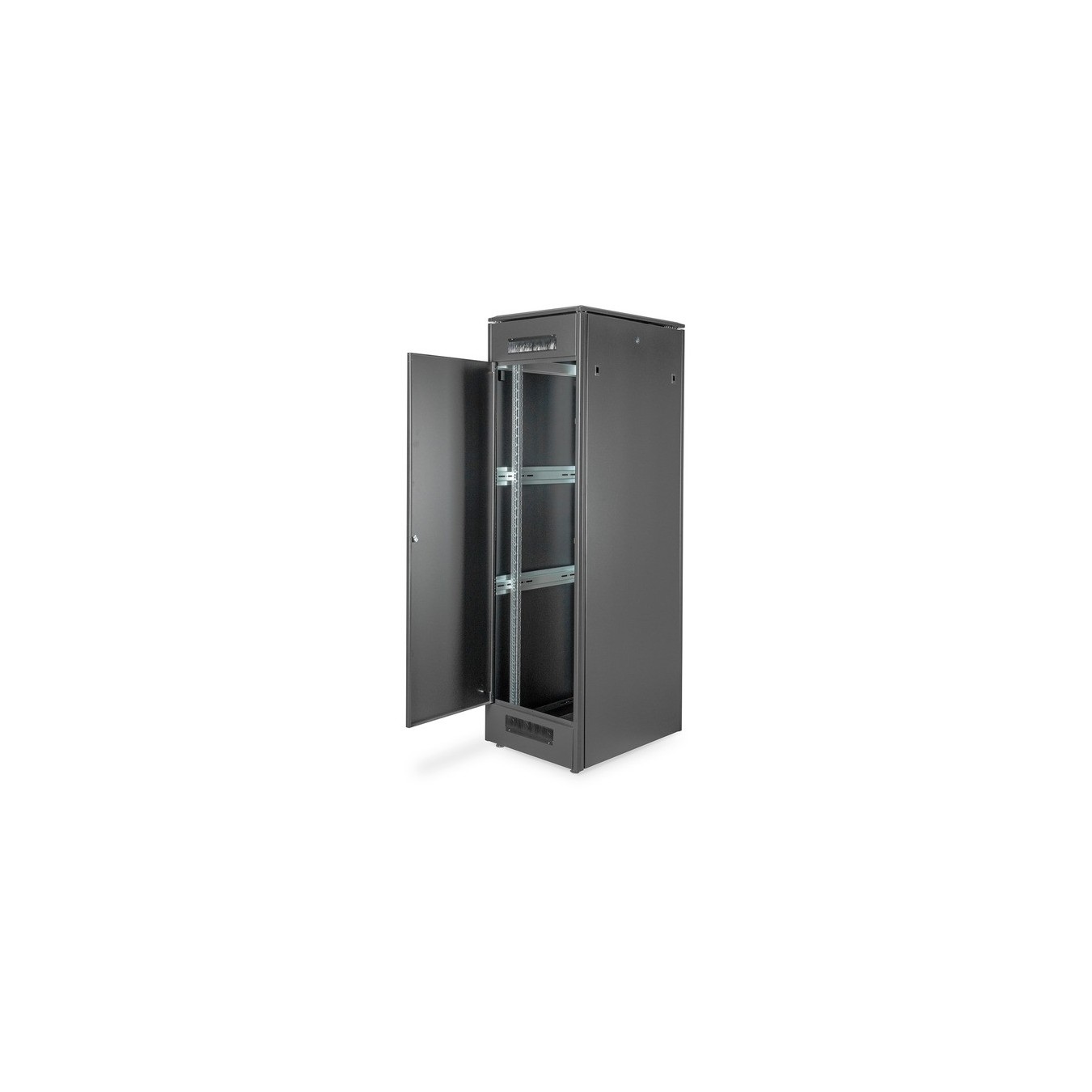

Network cabinet Unique series - 600x800 mm (WxD), IT cabinet
Unique series IT network cabinet, 600x800 mm, 19-inch server size, black powder-coated sheet steel, lockable viewing door, fully assembled, with cable routing options.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Rack Cabinets - Width | 600 mm |
|---|---|
| Rack Cabinets - Side Panels | Removable |
The Unique series network cabinet was developed and produced for cabling and network components. A variety of optimizations lead to optimal performance in terms of quality and added value. The cabinets are designed to be user-friendly and aesthetic in appearance. The front door consists of a complete metal frame with safety glass. The lockable swivel lever handle is prepared to accept profile half cylinders (adapter is included). All side panels are lockable and can be easily removed. Each cabinet contains galvanized 483 mm (19") profile rails, mounted at the front and back inside the cabinet. They are depth-adjustable and have a marking for the respective height unit. The vertical cable routing channels are installed next to the front profile rails (for cabinets with a width of 800 mm or more). They offer easy routing of patch and installation cables. The roof is prepared to accommodate a fan unit. The fully assembled 483 mm (19") cabinets are available in different versions Height units available from 22U up to 47U and a width of 600 or 800 mm and a depth of 600, 800 or 1000 mm. Standard color gray (RAL 7035) and black (RAL 9005).
| Typ | IT cabinet |
| Color | schwarz |
| EAN | 4016032332435 |
| Manufacturer no. | DN-19 42U-6/8-B-1 |
| Serie | Unique |
| use | Network cabinet |
| Server size | 19 inches |
| Cable routing | Slidable cable inlet with foam rubber seal in the base, cable inlet with brush strip on the upper and lower back of the cabinet |
| Material | Sheet steel (powder-coated) |
| Montage | Delivered fully assembled |
| Doors | Lockable, viewing door |
| cooling | Roof module for ventilation unit |
| Installation - width | maximal 482 mm |
| Protection class (IP) | 20 |
| Side parts | removable |
| Dimensions | Width: 60cm x Height: 205.3cm x Depth/Length: 80cm |
| Weight | 91 kg |
