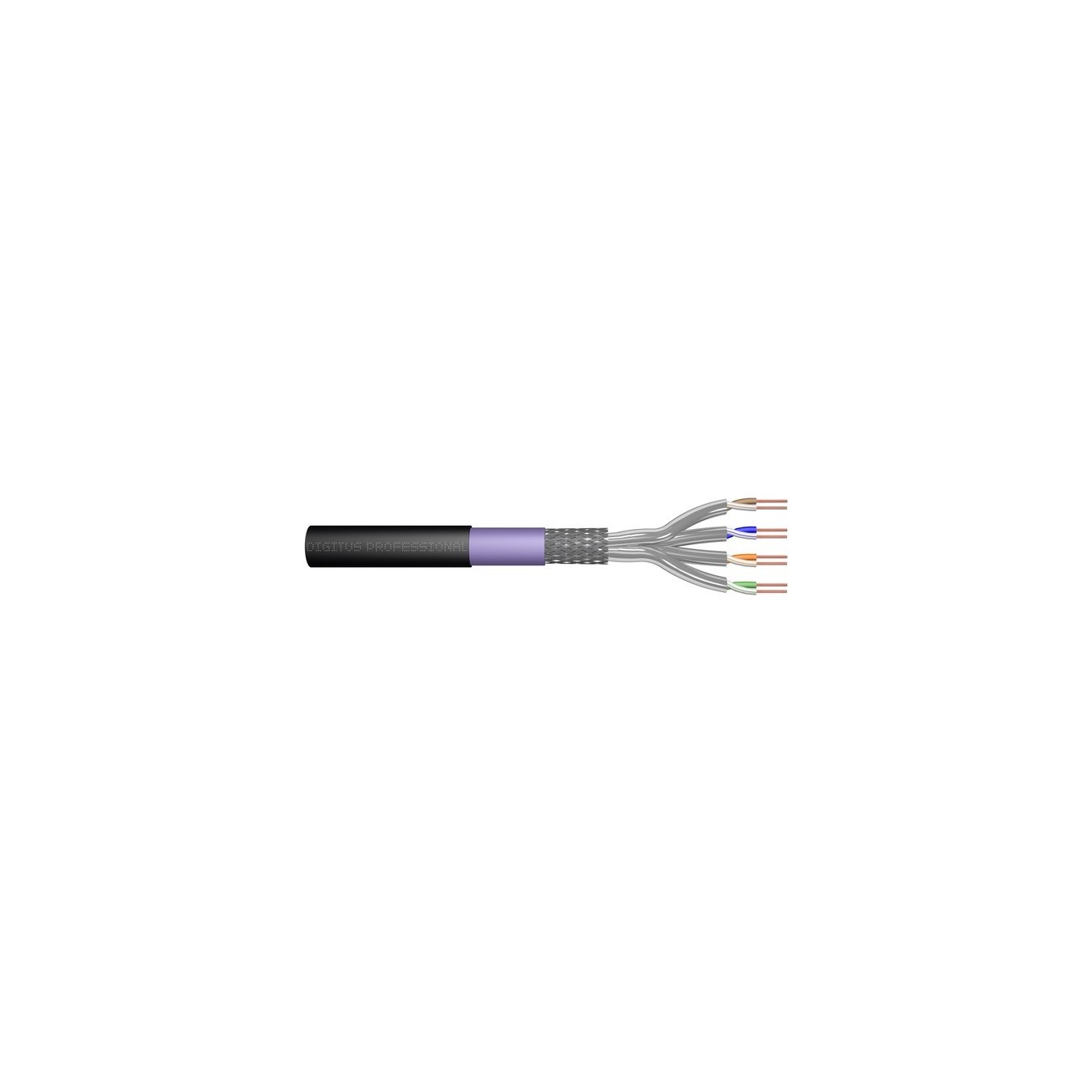

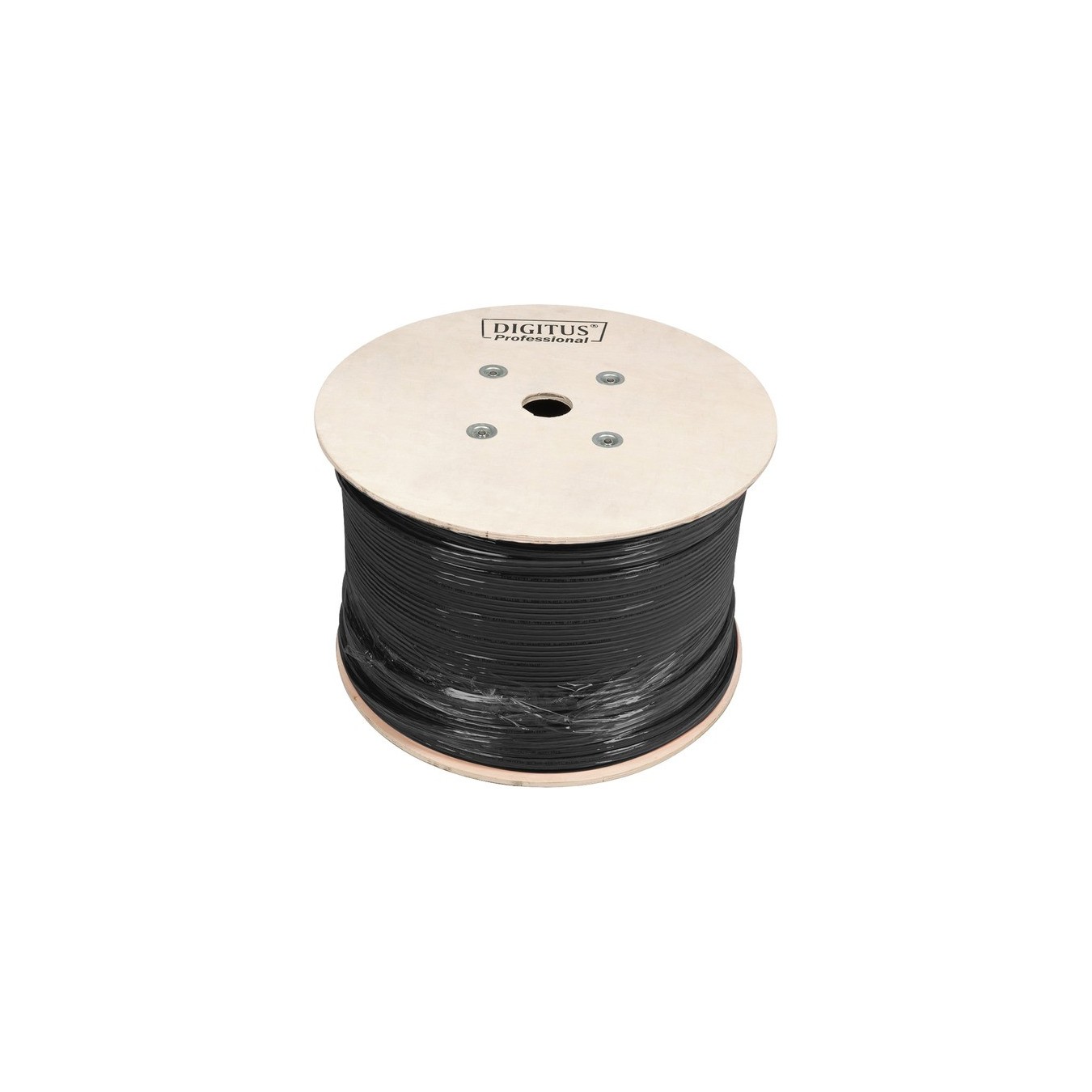

Professional Cat.7 S/FTP Underground Cable - simplex, PE
Digitus Professional Cat.7 S/FTP underground cable DK-1741-VH-10-OD features 4x2x AWG23/1 structure and up to 1,200 MHz transmission.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - AWG | 23 AWG |
|---|---|
| Ethernet Cables - Length Range | Other |
| Ethernet Cables - PoE Compatible | Yes |
The Digitus Professional Cat.7 S/FTP underground cable DK-1741-VH-10-OD is characterized by a 4x2x AWG23/1 cable structure and achieves a transmission frequency of up to 1,200 MHz. The PE outer jacket and the halogen-free inner jacket are compliant with the IEC 60332-1, FRNC-B, LSZH-1 and the BauPVO Euroclass Eca standards. The cable is suitable for structured building cabling in dry or damp rooms, outdoors or underground. It also has excellent mechanical properties, it offers a tensile load of max. 150N, the dynamic bending radius is at least 8x OD mm, the static bending radius is at least 4x OD mm.
| Typ | Cable |
| Color | schwarz |
| EAN | 4016032354130 |
| Manufacturer no. | DK-1741-VH-10-OD |
| Manufactured in | China |
| Application example | For cabling buildings |
| Area | network |
| Connection - from | 1x cable end without plug |
| Cable cross section | 23 AWG |
| Category - Cable | Cat.7 |
| shielding | S/FTP |
| Characteristics | extern |
| Execution | Premium |
| More information | UV-resistant, 10GBit Ethernet, 1,200 MHz transmission frequency, supports PoE and is permanent link certified, PE outer jacket, conductor material: Cu bare, AWG 23/1, operating temperature range -50°C to +60°C |
| Notice | Conforms to IEC 60332-1, FRNC-B, LSZH-1 standards |
| Cable length | 1.000 Meter |
