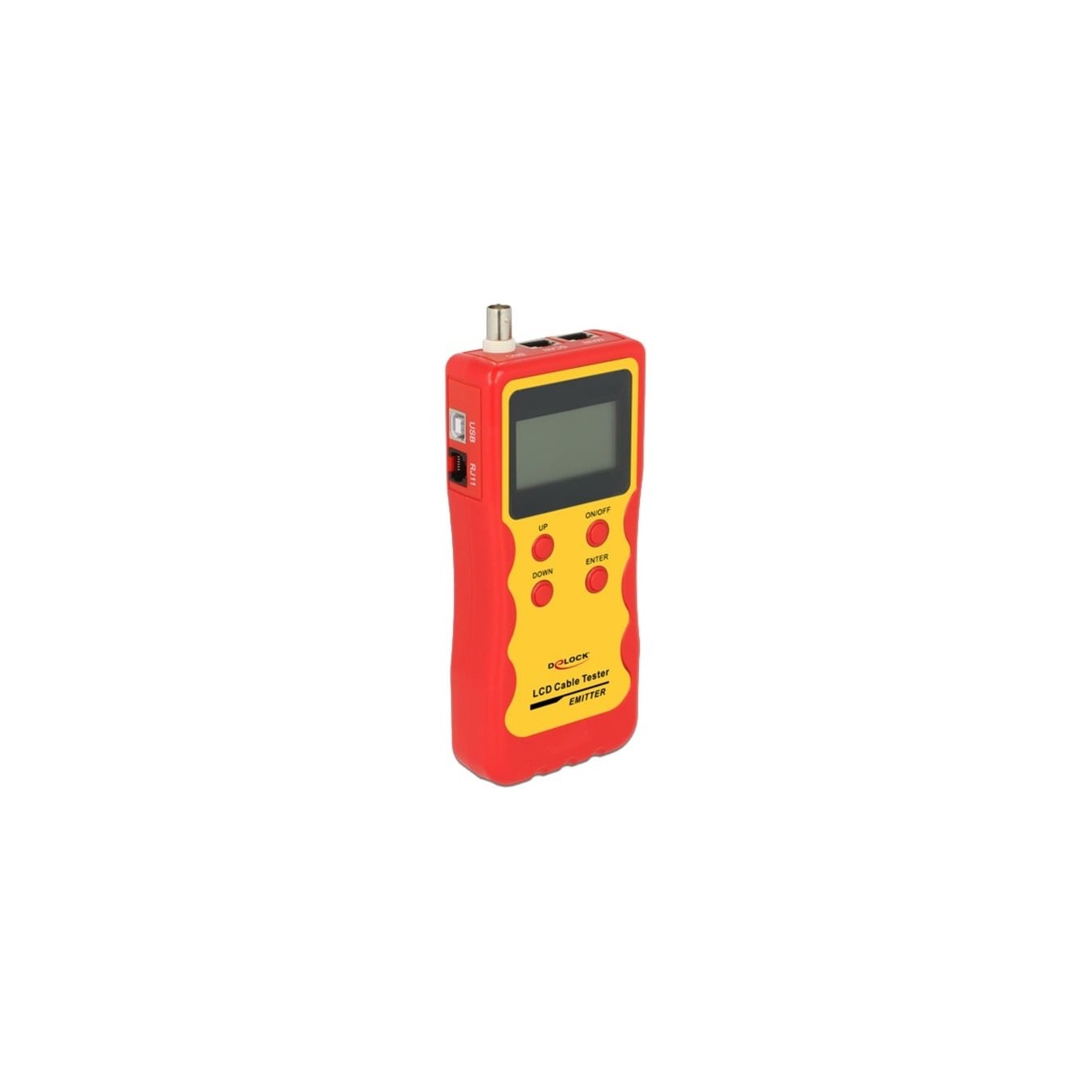

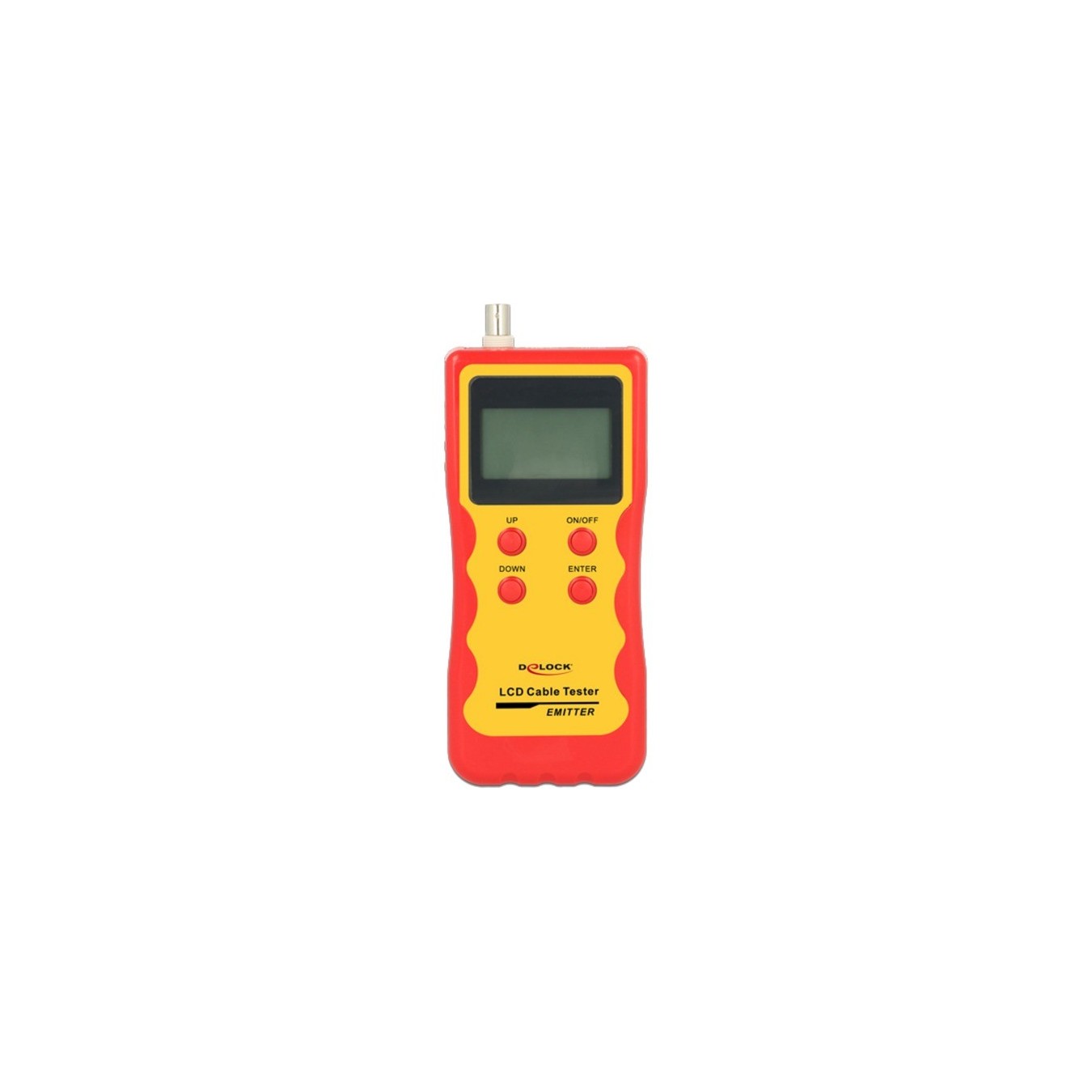

LCD Cable Tester - RJ45 RJ12 BNC USB
Delock 86108 cable tester for RJ45, RJ12, BNC and USB cables; tests cable length and wiring.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

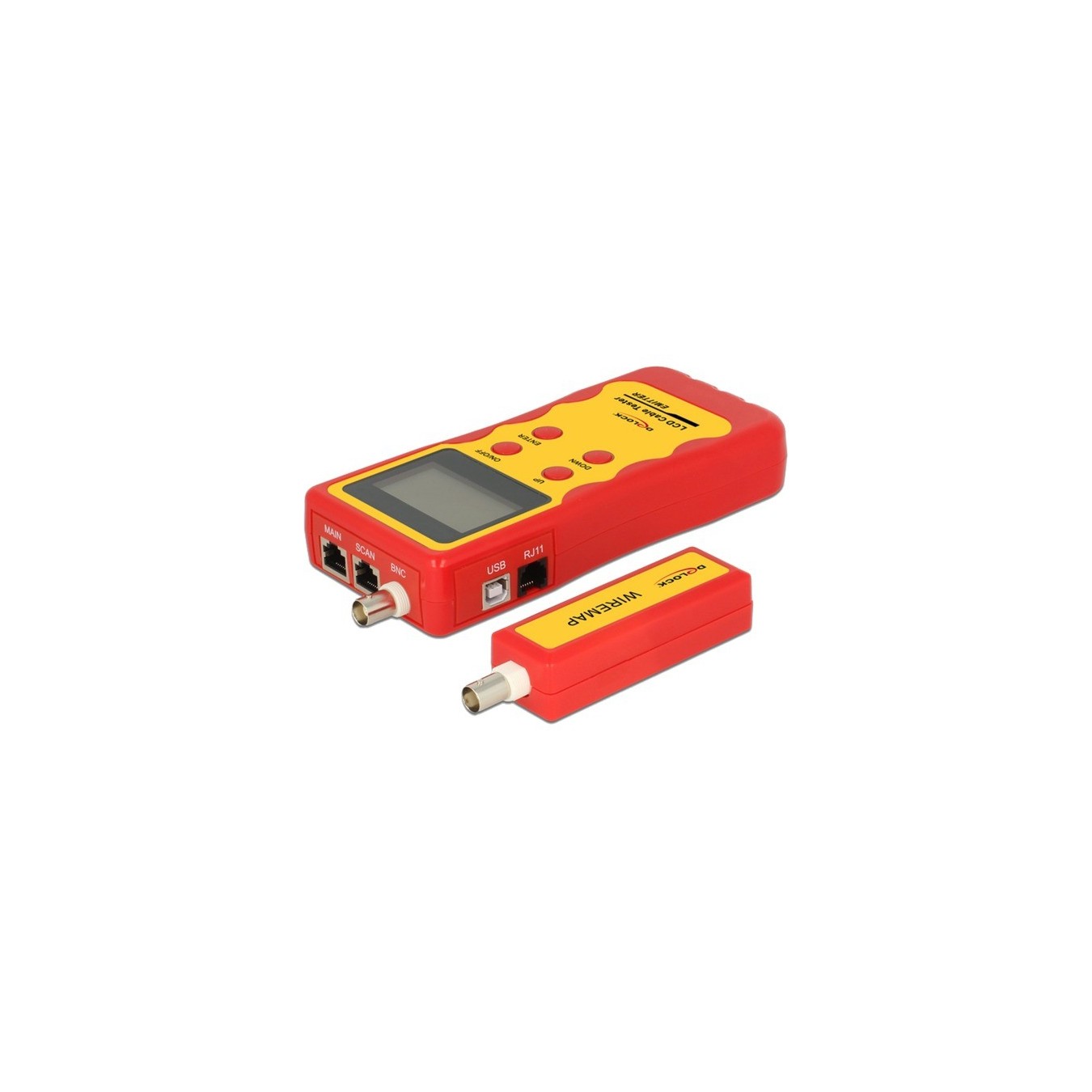

With the cable tester 86108 from Delock you can quickly and easily test the assignment of different cables; it has connections for modular cables, network cables, BNC and USB cables. In addition to RJ-45, RJ-12, BNC, the USB cables can also be tested. If there are errors in the assignment, they are clearly displayed on the LCD display. Network cables can be tested for split pairs, which degrade performance due to crosstalk. The remote unit can be used to check cables that have already been laid. The length of the connected cables can also be measured.
| Typ | Cable tester |
| Color | rot |
| EAN | 4043619861088 |
| Manufacturer no. | 86108 |
| Purpose of use | For measuring the length and assignment of different cable types |
| Suitable for | network |
| Operating mode | Battery operation |
| Service | Automatic power-off mode, 4 control buttons: Up, Down, On/Off, Enter |
| Display/display | Matrix LCD display with backlight, display of open circuit, short circuit, crossed wires |
| Feature | Measurement of cable length, detection of split pairs (crosstalk) |
| More information | 4 in 1 cable tester for RJ45/RJ12/BNC/USB |

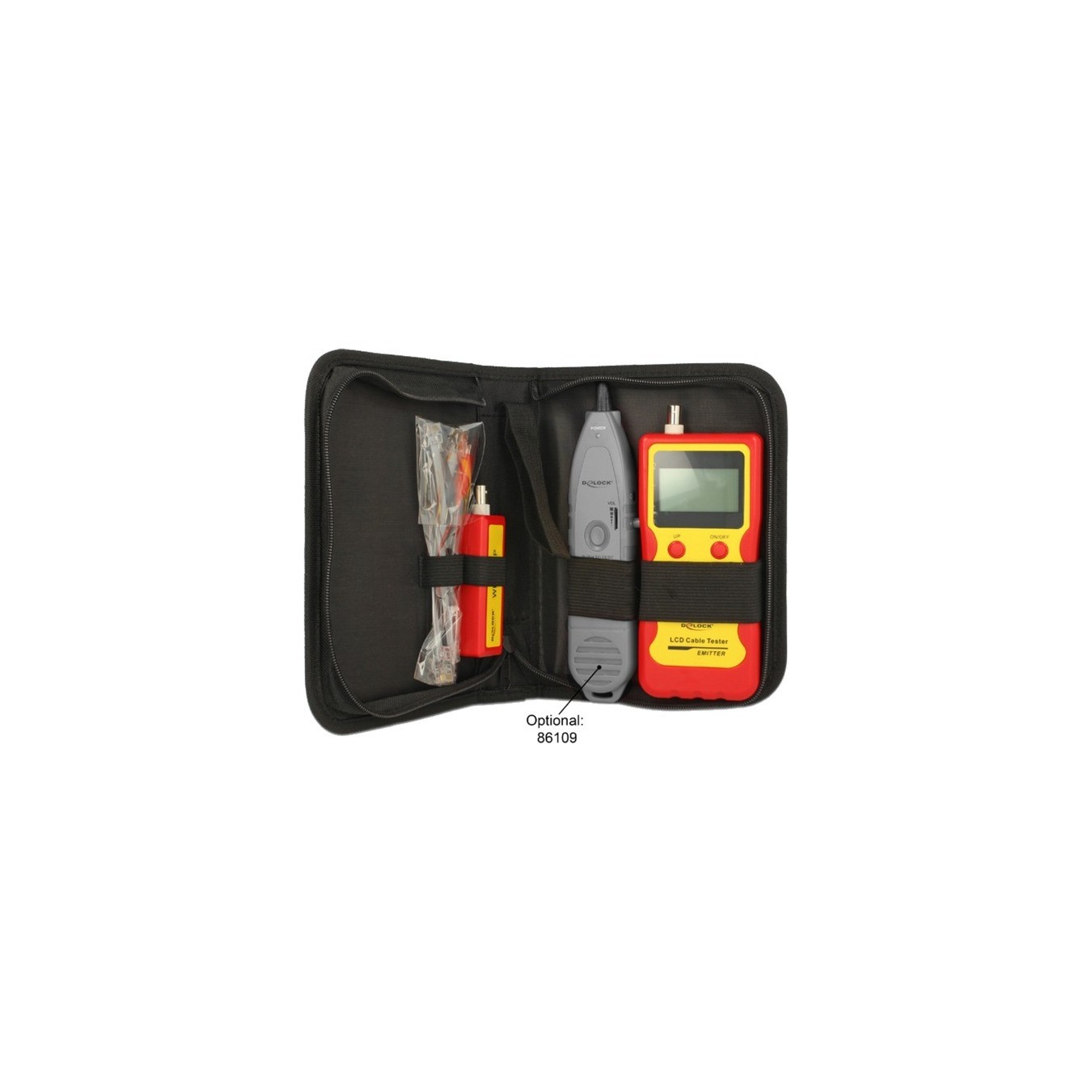

| Accessories - available | Remote unit, 3 x test cables, bag, user manual |
| Dimensions - General | Width: 80mm x Height: 32mm x Depth/Length: 185mm |
| Weight | 549 Gramm |
