Wall housing - IP55 - for outdoor use - 600x600 mm (WxD), IT cabinet
Outdoor IP55-rated wall cabinet for IT equipment with a 600x600 mm footprint.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Rack Cabinets - Width | 600 mm |
|---|

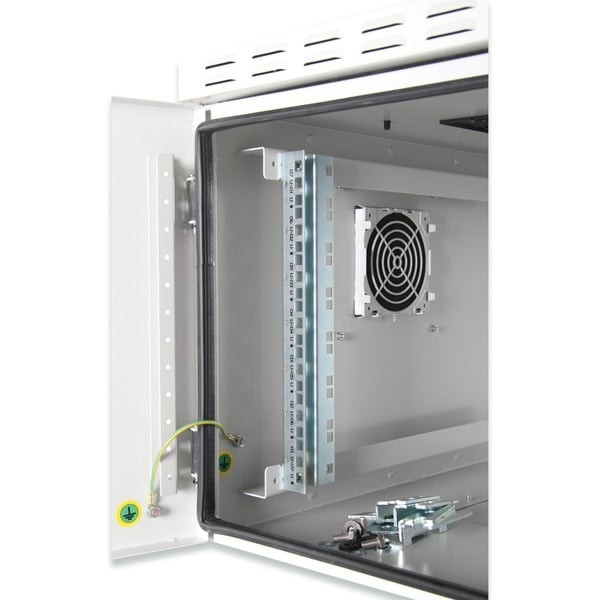

The DIGITUS IP55 outdoor wall enclosures were manufactured for industrial applications. With protection against water and dust according to protection class IP55. The 483 mm (19") IP55 outdoor wall enclosures were manufactured for industrial applications. They are based on the IP55 protection class and are therefore protected against water and dust ingress. Each network distribution cabinet is prepared for the installation of a separately available roof fan unit. The ventilation units and filter installations are based on the IP54 protection class. The wall enclosures offer the best performance, among other things, thanks to the 3-point locking system with a lockable Pivoting lever handle and insulated cable entries. Integrated ventilation filter housings ensure fresh air intake (protection against water and dust ingress according to IP54). Areas of application are outdoor areas that are exposed to environmental effects (rain, dust, hail, snow, splash water).
| Typ | IT cabinet |
| Color | light gray |
| EAN | 4016032362135 |
| Manufacturer no. | DN-19 07U-6/6-I-OD |
| use | Closet |
| Server size | 19 inches |

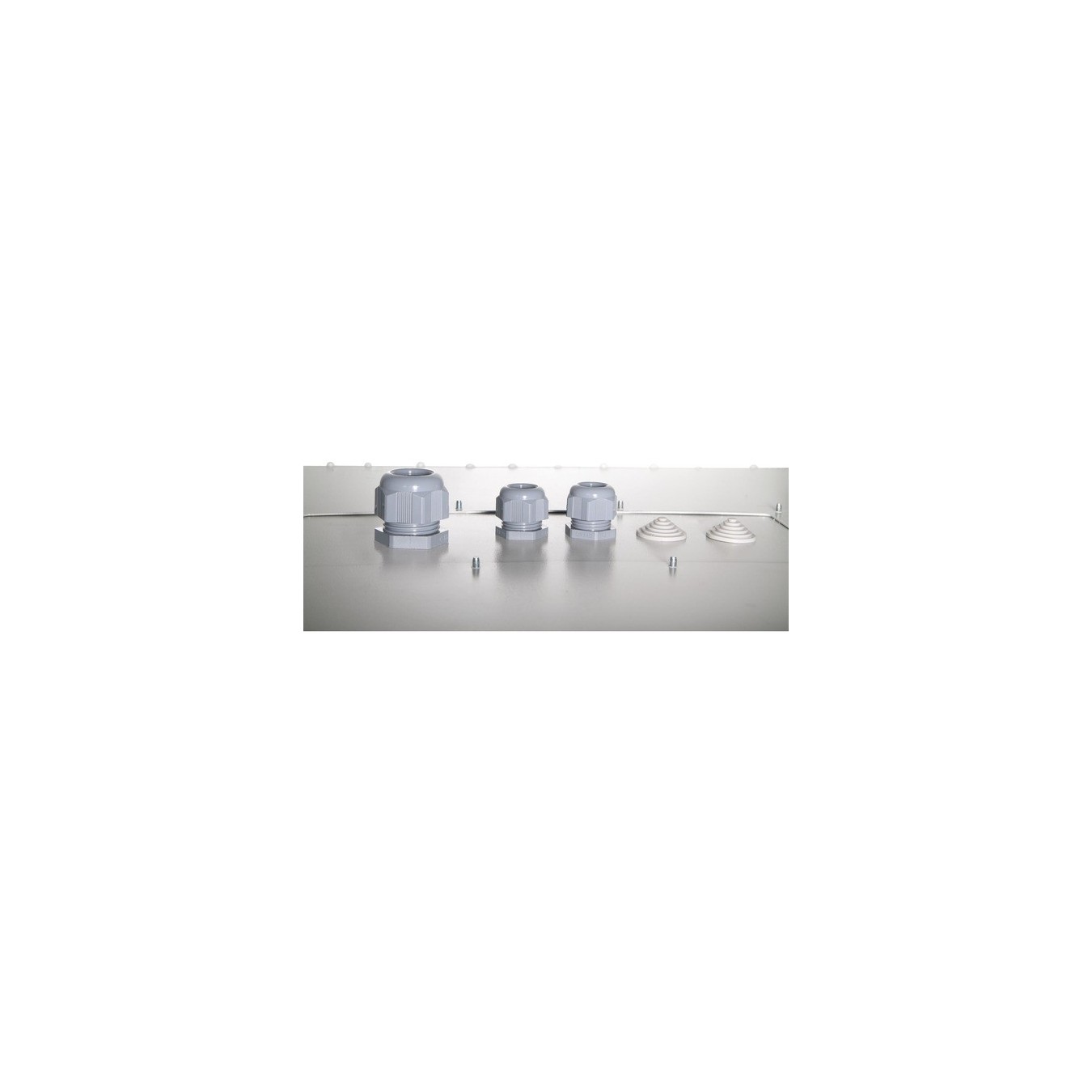

| Cable routing | Cable entries in the floor: 2x M32, 1x M63, 2x PVC blind cap (with 28 mm diameter) |
| Material | Sheet steel (powder-coated) |
| Montage | Mounted: no, including 4 mounting brackets with 3 mm thickness for wall mounting as well as matching screws and washers |
| Doors | Lockable |
| cooling | Roof module for ventilation unit |
| Installation - width | maximal 483 mm |
| Protection class (IP) | 55 |
| Feature | Lockable steel front door with swing lever handle, 140° door opening angle, 3-point four-locking of the front door |
| Notice | Color: light gray, RAL 7035 |
| Dimensions | Width: 60 cm x Height: 49 cm x Depth/Length: 60 cm |
| Weight | 37 kg |
