External enclosure - M.2 PCIe with USB 3.2 Gen 2x2 USB-C - drive enclosure
Delock external enclosure for M.2 PCIe NVMe SSDs (2280/2260/2242/2230) with USB-C and USB 3.2 Gen 2x2 connection; robust metal case.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

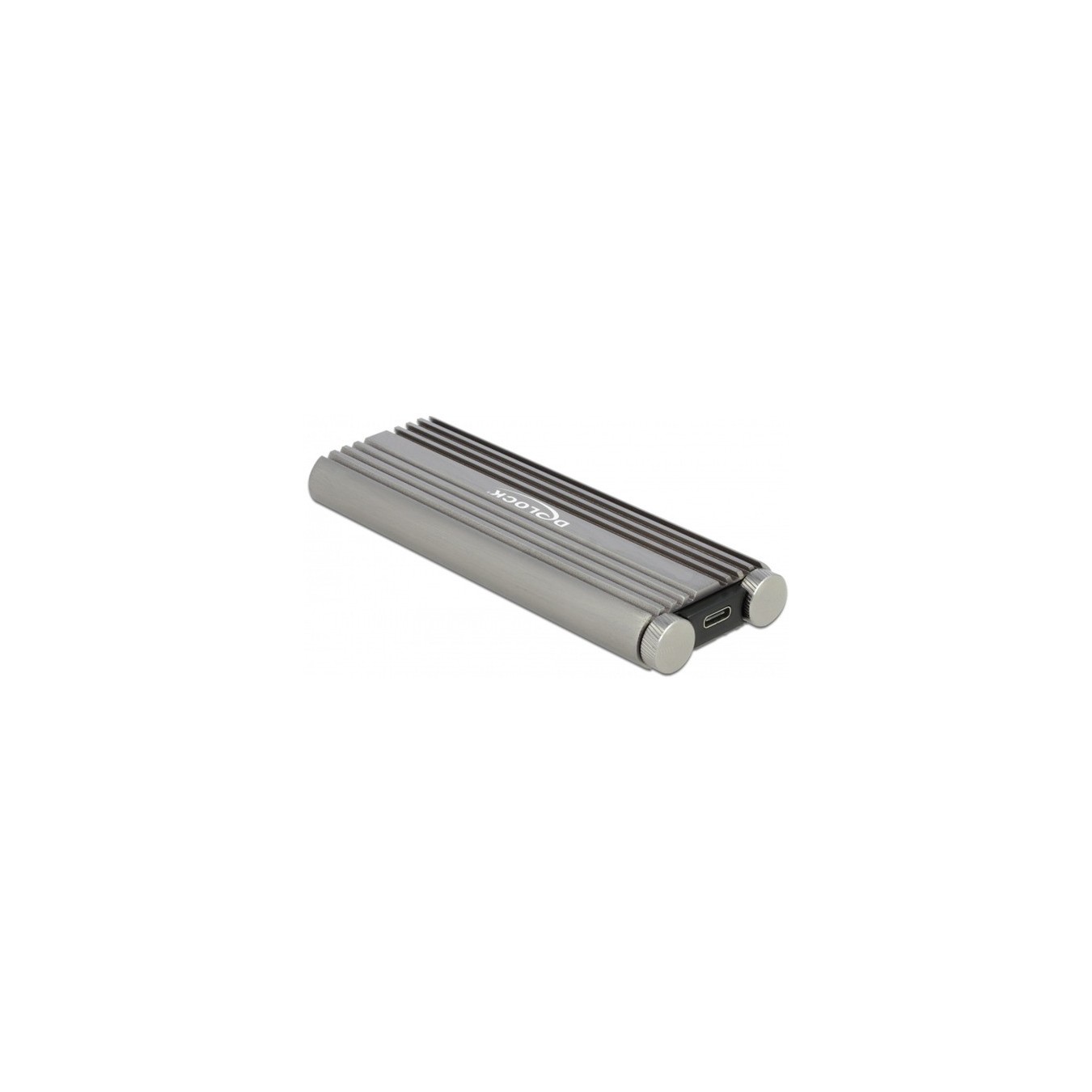

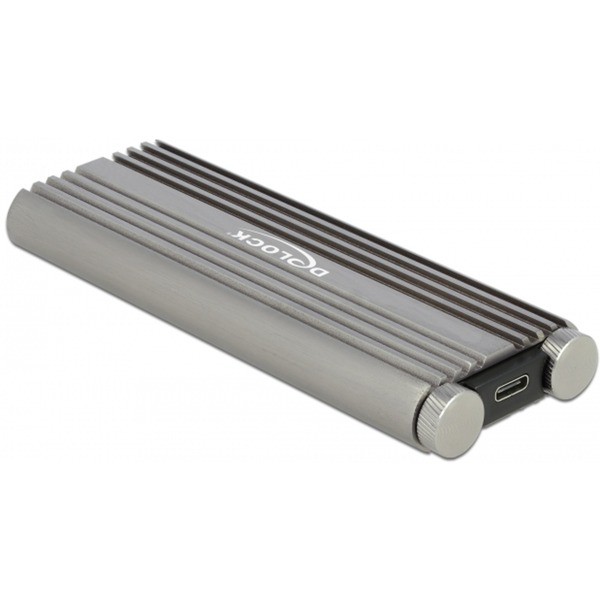

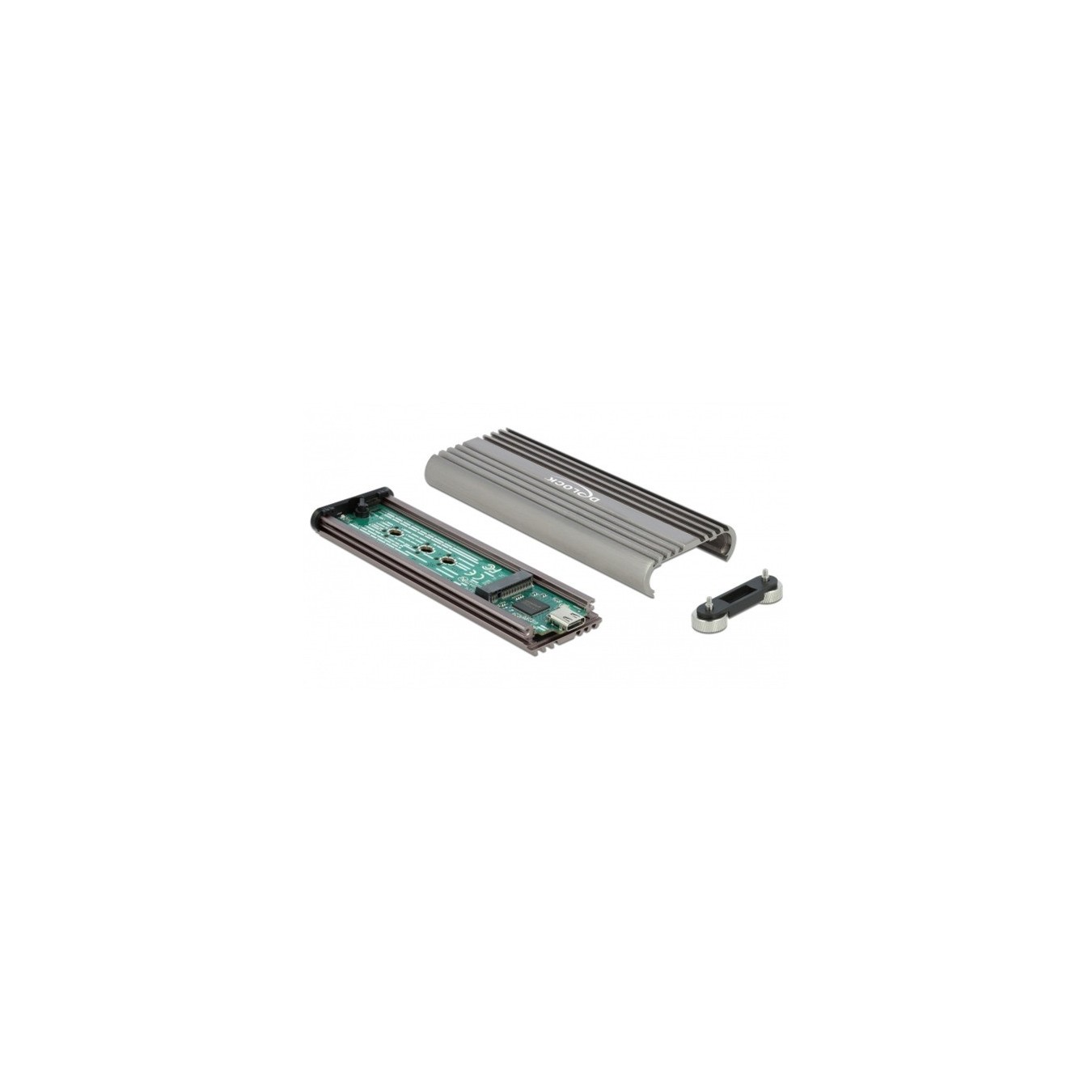

This housing from Delock allows the installation of an M.2 PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, and can be connected to a PC or notebook via USB. The robust metal housing with cooling fins ensures an optimal temperature of the memory. The housing enables a data transfer rate of 20 Gbps on the USB-C port. The special thing about this case is that no tools are required to install the M.2 SSD.
| Typ | drive enclosure |
| EAN | 4043619420018 |
| Manufacturer no. | 42001 |
| Controller Art | USB 3.2 (20 Gbit/s), M.2 |
| Chip | Asmedia ASM2364 |
| Protocol | USB 3.2 Gen 2x2 (20 Gbit/s) |
| Data throughput | 20 GBit/s |
| Connections - external | 1x USB C |
| directly usable devices | 1 |
| Feature | Supports M.2 modules in 2280, 2260, 2242 and 2230 format with Key M or Key | B+M based on PCIe (NVMe) | Maximum height of components on the module: 1.5 mm, use of two-sided | equipped modules possible | Supports NVM Express (NVMe) | Data transfer rate up to 20 Gbit/s | LED display for power and access | Metal case | Hot plug, plug & play |
| More information | Requires: Android 9.0 or higher, Chrome OS 78.0 or higher, Linux Kernel 3.18.37 or higher, Mac OS 10.15.5 or higher, Windows 8.1/8.1-64/10/10-64, device with a free USB Type-C port or with a free Thunderbolt 3 port |
