PCI Express x4 card - 1 x internal NVMe M.2 Key M, interface card
Delock PCIe x4 expansion card with an internal M.2 NVMe (M-Key) slot supporting 2230/2242/2260/2280 modules; heat sink included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

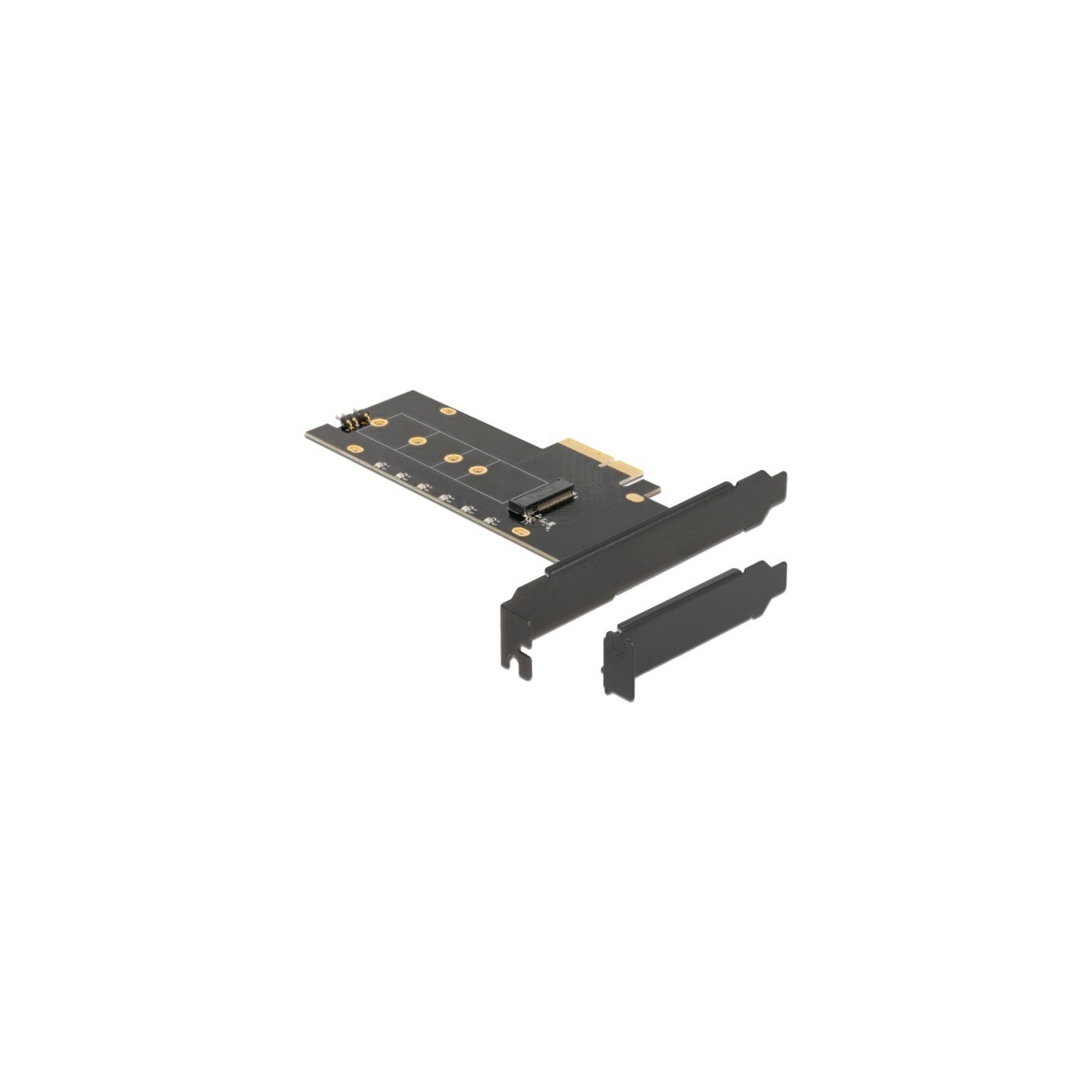

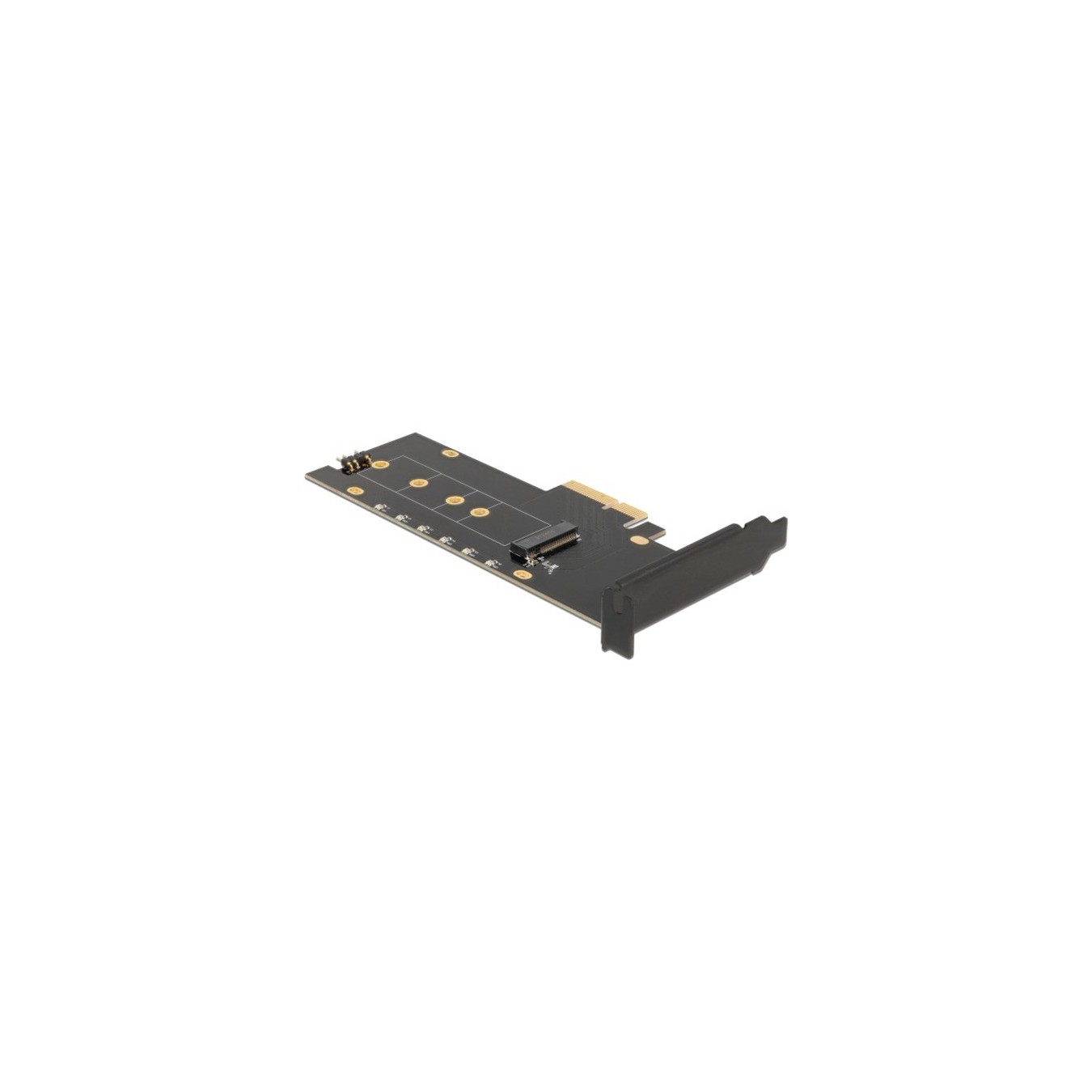

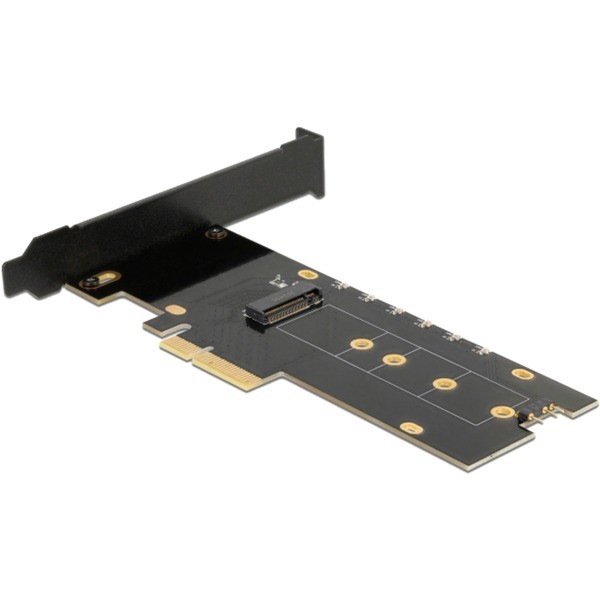

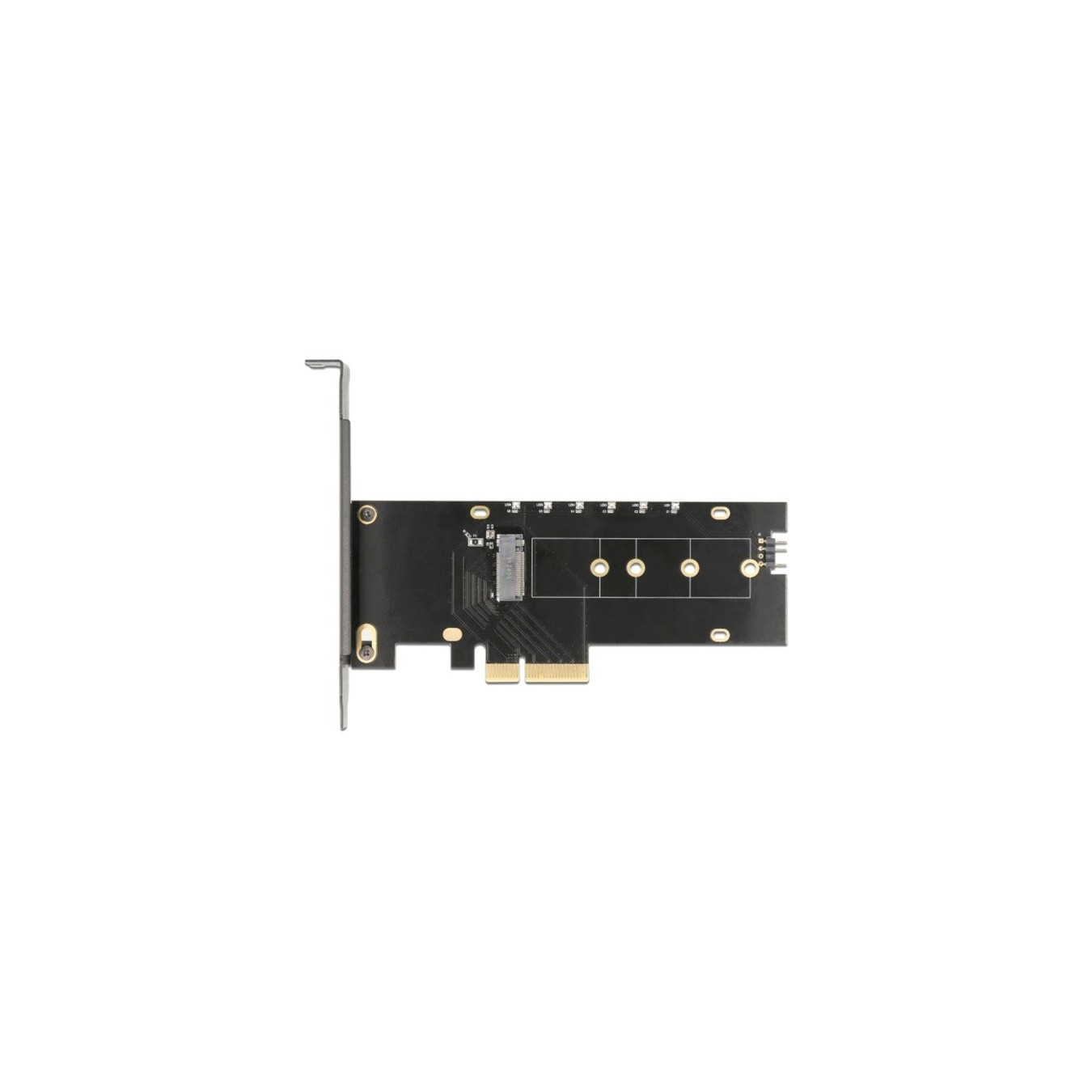

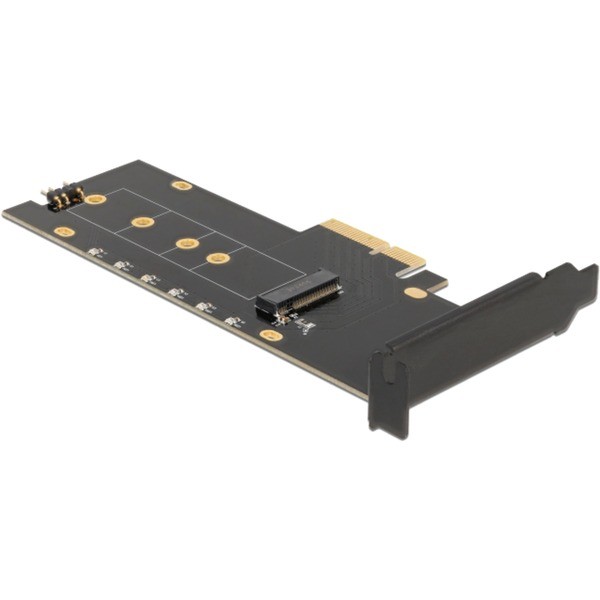

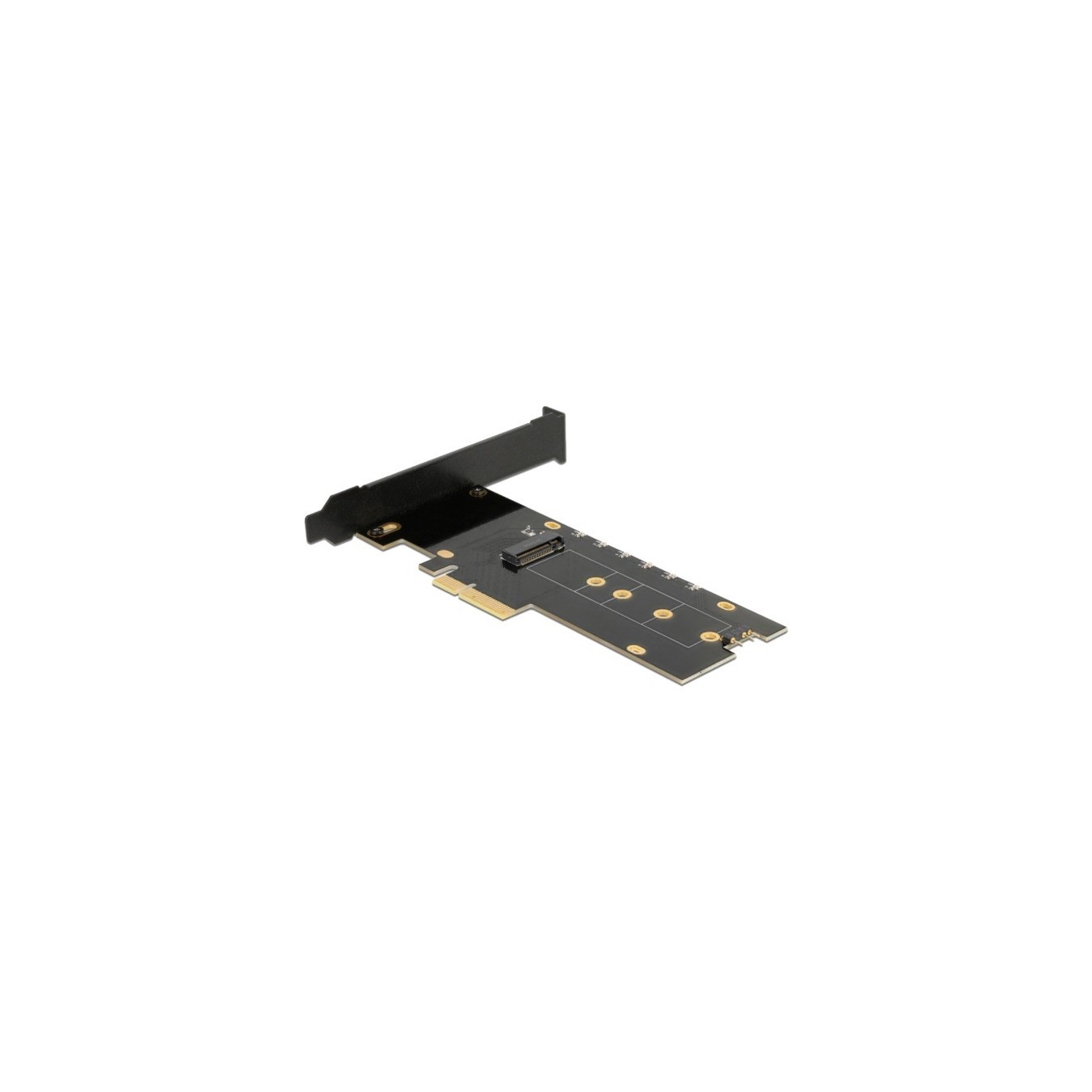

This PCI Express card from Delock expands the PC with an M.2 slot. An M.2 module in 2280, 2260, 2242 or 2230 format can be connected to the card. The large heat sink ensures sufficient cooling of the M.2 modules. The PCIe card has 6 LEDs to illuminate the inside of the computer. The enclosed transparent plastic cover is placed in the heat sink and the cable is also connected to the corresponding LED header connector on the mainboard. Various lighting settings can then be adjusted.
| Typ | Interface card |
| EAN | 4043619890132 |
| Manufacturer no. | 89013 |
| Controller Art | M.2 |
| slot | PCIe x4 Version 3.0 |
| Protocol | PCIe x4 |
| Connections - internal | 1x M.2 |
| Operating System - Supported | Windows 10 |
| Feature | M.2 module in 2280, 2260, 2242, 2230 form factor, bootable, supports NVM Express (NVMe), 1 x 3 pin LED header connector (5 V) |
| Accessories - available | Low profile cover, heat sink, plastic cover, 4 x thermal pad, post socket cable (LED), length approx. 45 cm, mounting material, screwdriver, operating instructions |
