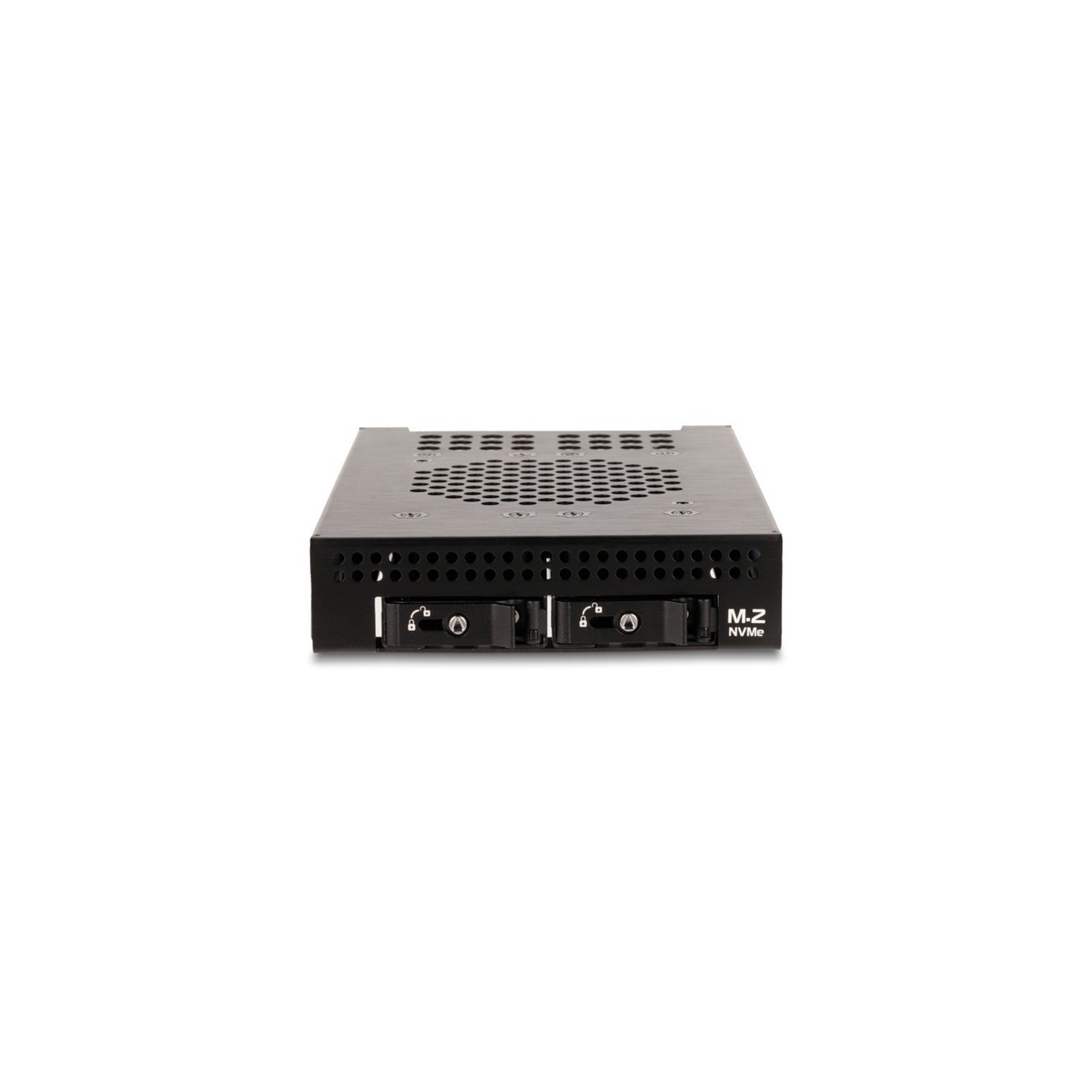

3.5'' Removable Frame for 2 x M.2 NVMe SSD
Delock metal removable frame for 3.5'' PC bay, provides 2x M.2 NVMe SSD slots in 2280/2260/2242/2230 formats.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

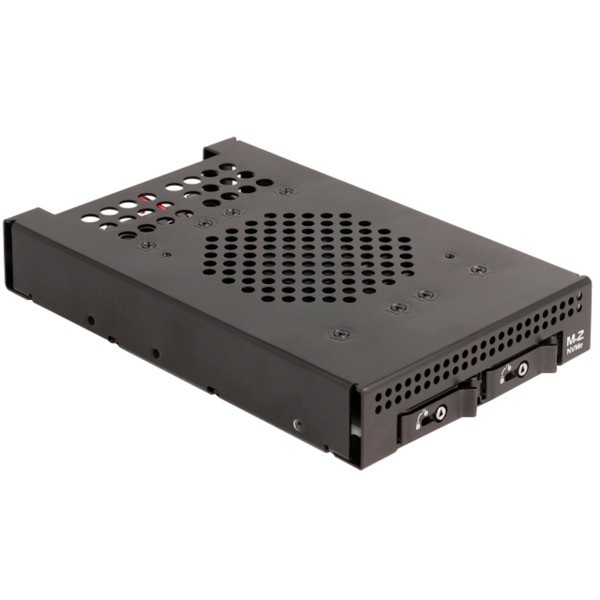

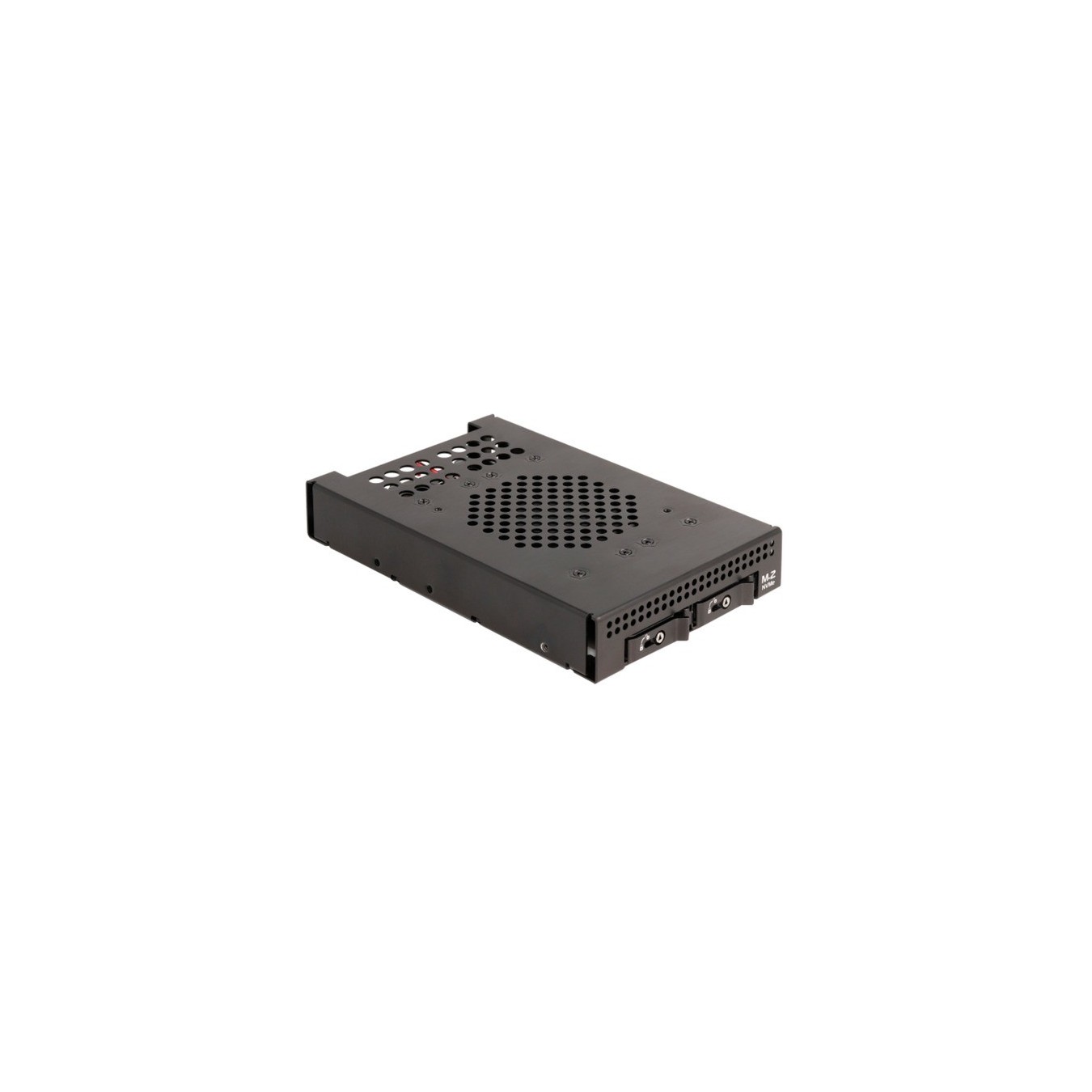

This sturdy metal removable frame from Delock can be installed in a 3.5″ bay of a PC and provides two M.2 slots in 2280, 2260, 2242 or 2230 format.
Item no.: 100060936
Warning:

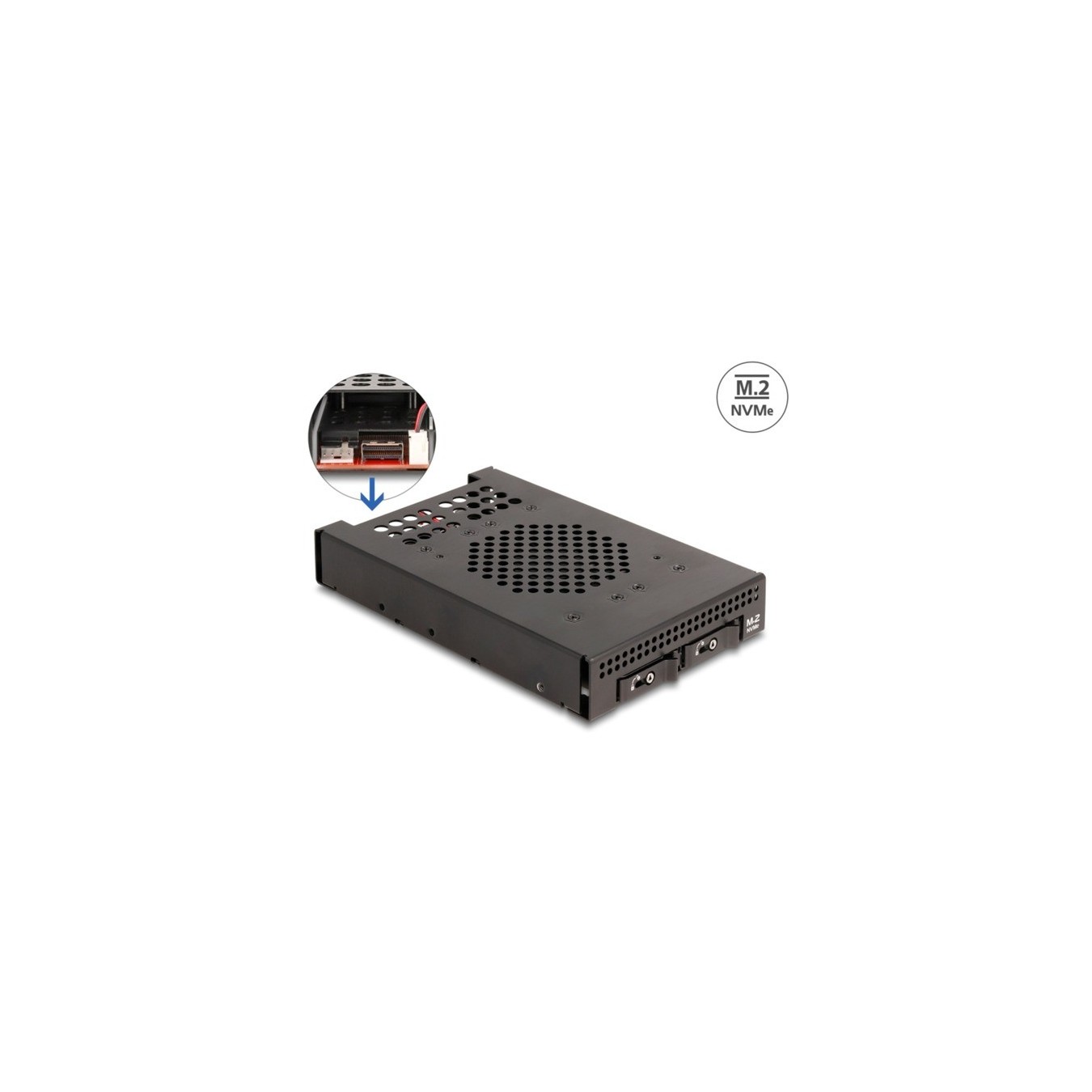

Care must be taken to ensure that the tray is fully inserted, otherwise connection to the SSD cannot be established.
| Typ | Removable frame |
| EAN | 4043619471171 |
| Manufacturer no. | 47117 |
| Suitable for | M.2 modules in format 2280, 2260, 2242 and 2230 with Key M or Key B+M based on PCIe |
| Material | Metal |
| Installable drives | 2x M.2 |
| Required installation shafts | 1x 3.5 inch external |

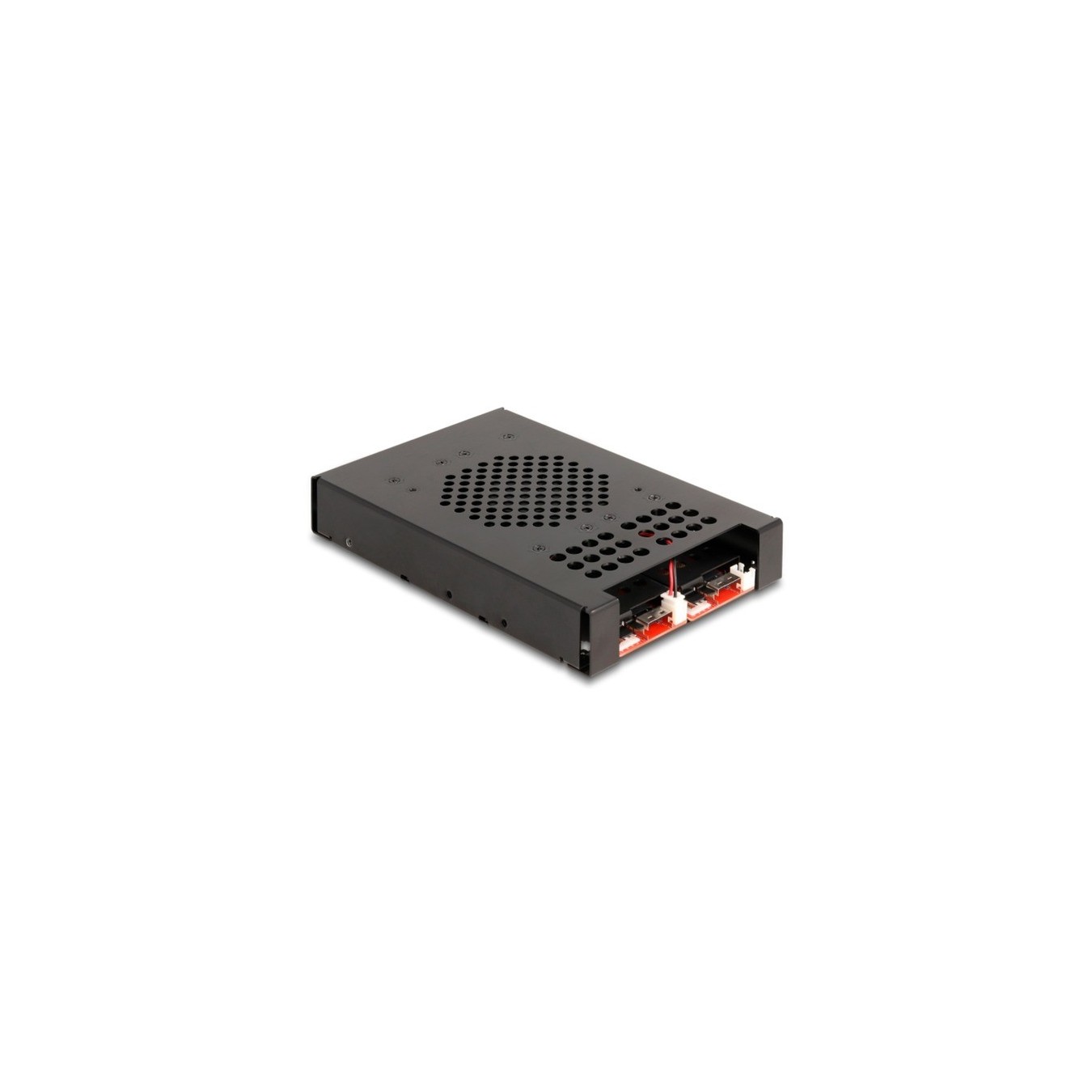

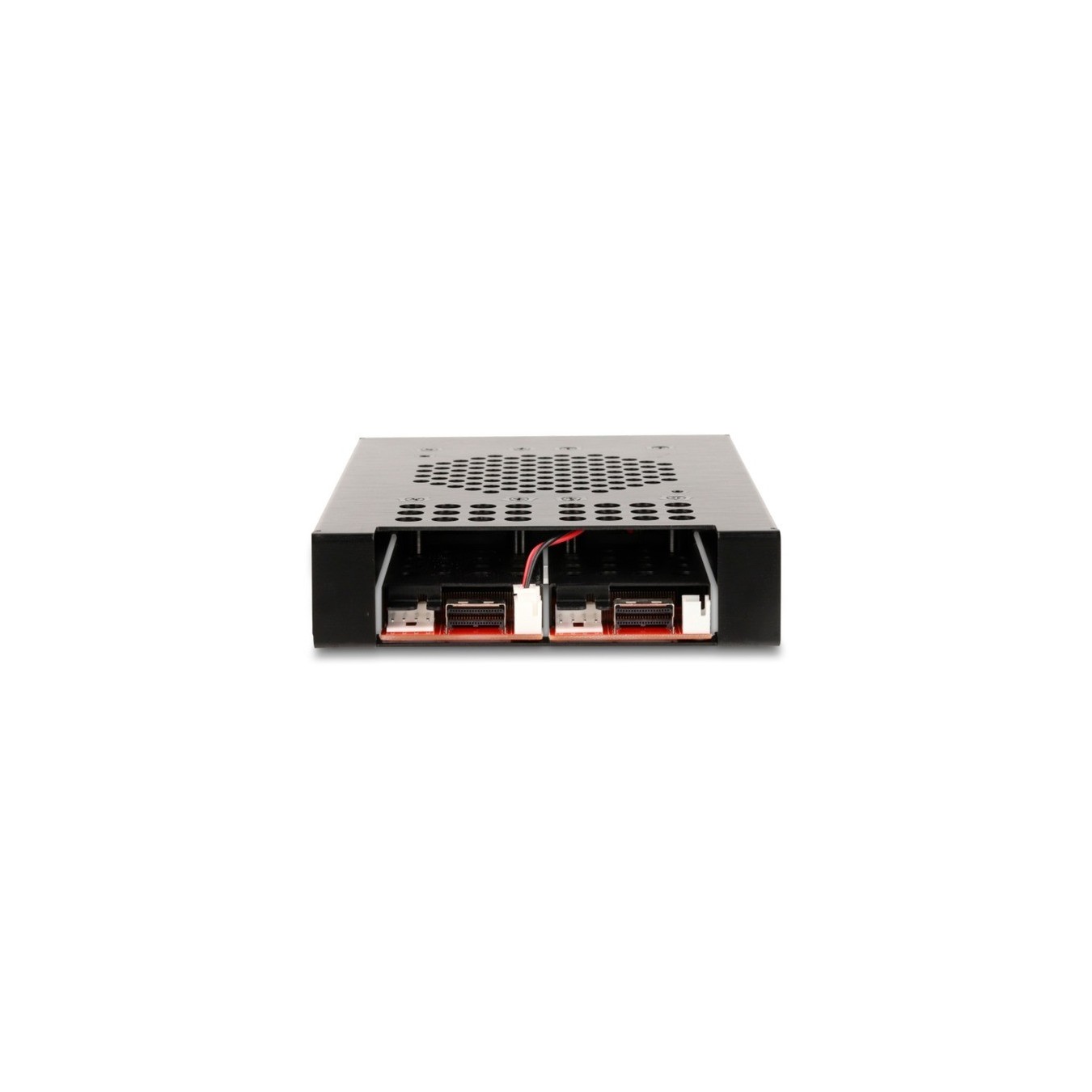

| Connections - external | 2x SFF-8654 |
| Feature | Compatible with PCI Express V4.0 | 4 x 4 pin floppy connector, 4 x 2 pin header connector for fans | 4 x LED display | Bootable, from UEFI version 2.3.1 | M.2 metal slot | Supports NVM Express (NVMe) | Supports S.M.A.R.T. | Key lock |
| More information | Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible |

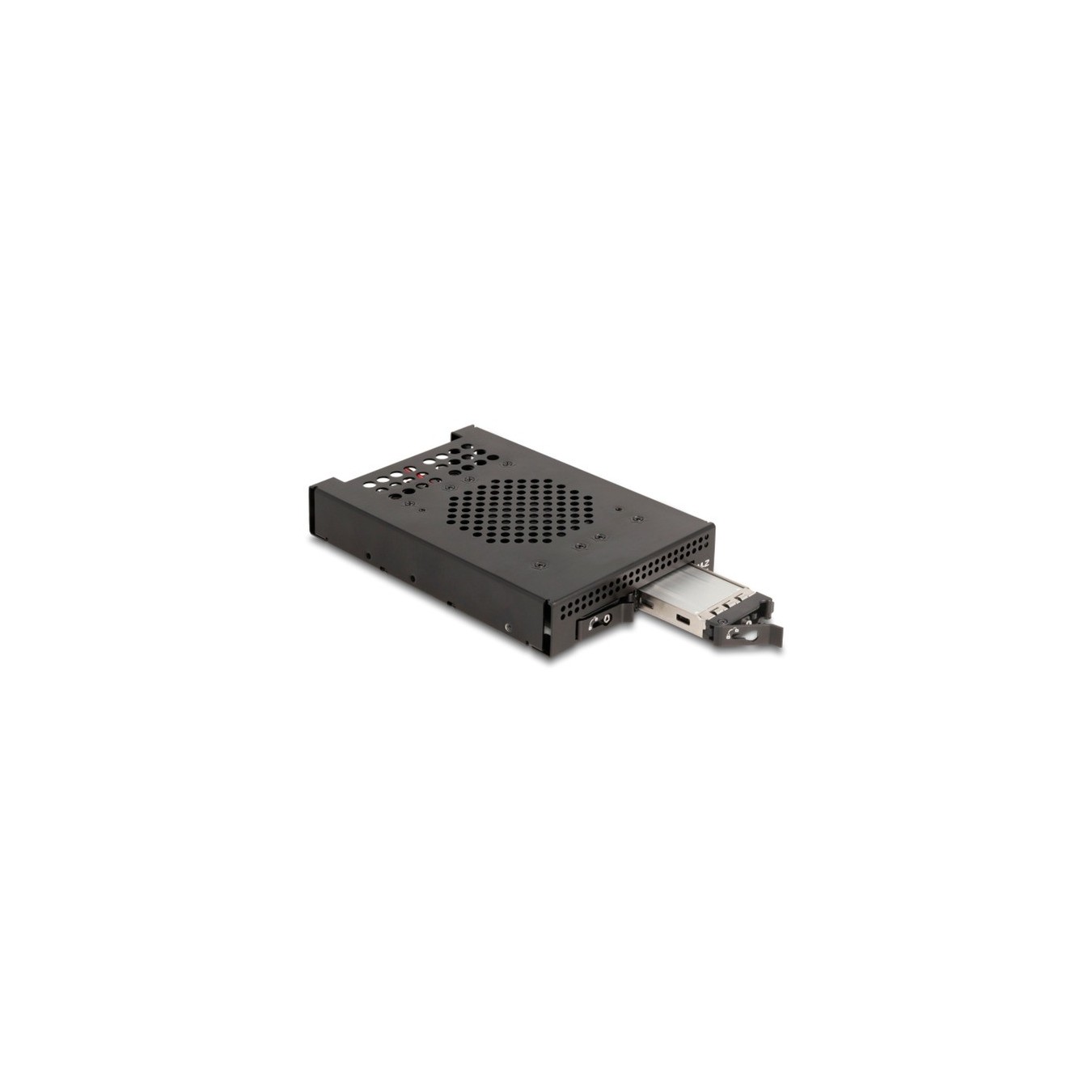

| Notice | Thanks to the special mechanism, the SSDs can be replaced quickly and easily. For example, B. Data backups can be removed and stored in a safe place. | The removable frame has a key lock so that only authorized people can remove the hard drive. The sturdy metal support has springs on the top and bottom that absorb vibrations and therefore also support use in mobile devices. |

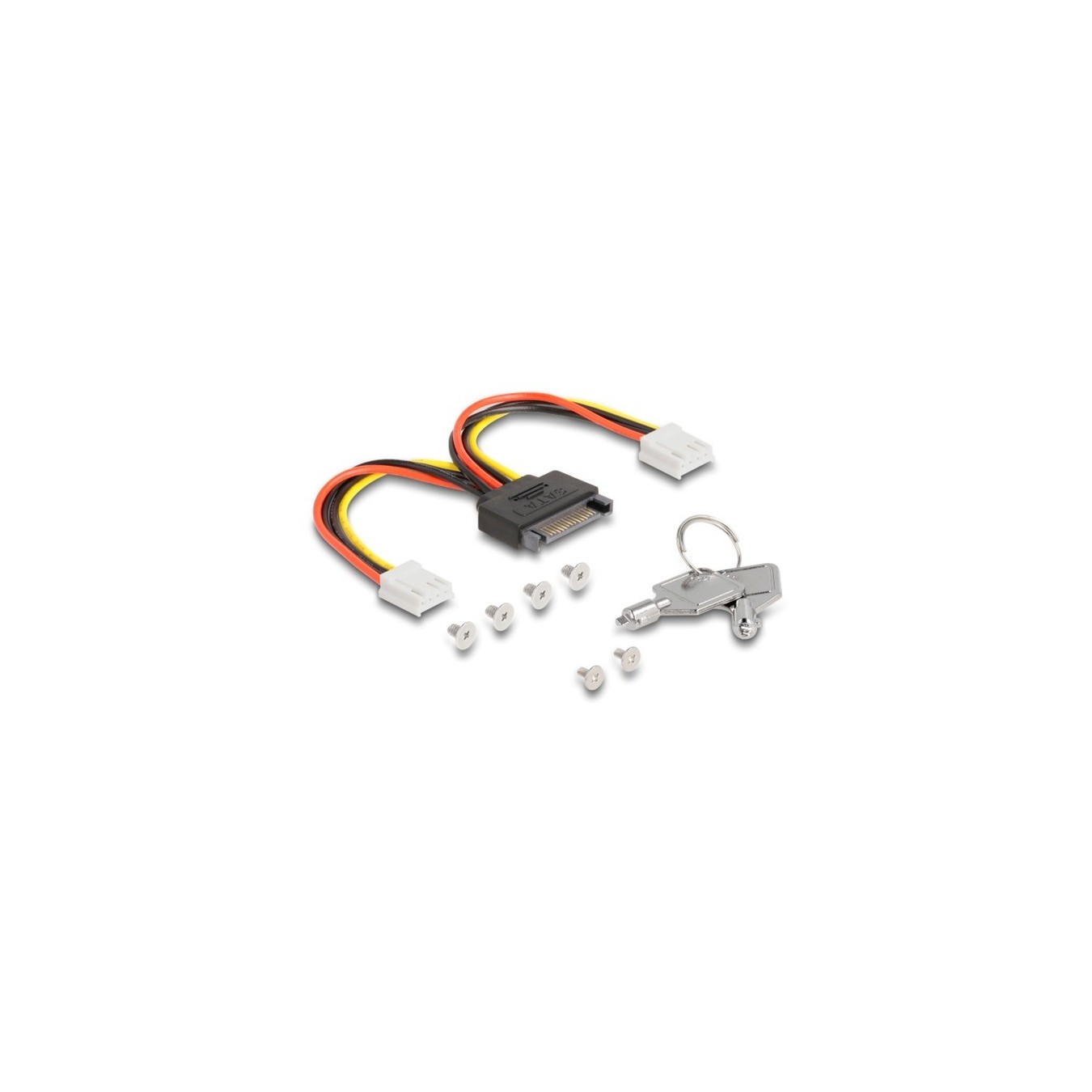

| Accessories - available | 2 x cable SATA 15 pin to 2 x 4 pin floppy socket, length approx. 12 cm, 2 x keys, 4 x screw I 6.0 x 5.0 mm, head 8.0 mm, 4 x screw IM 2.0 x 4.0 mm, head 5.0 mm, operating instructions |
