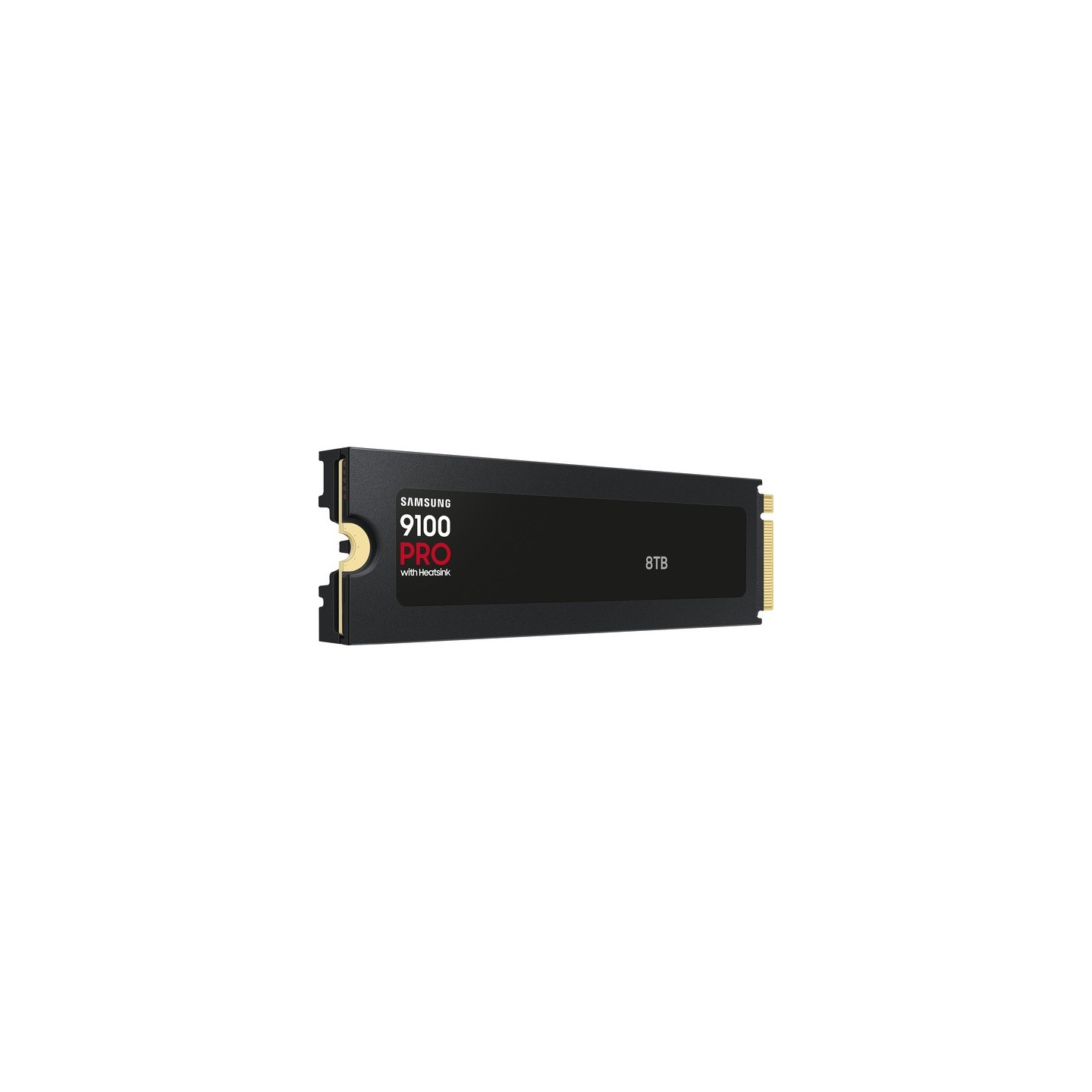

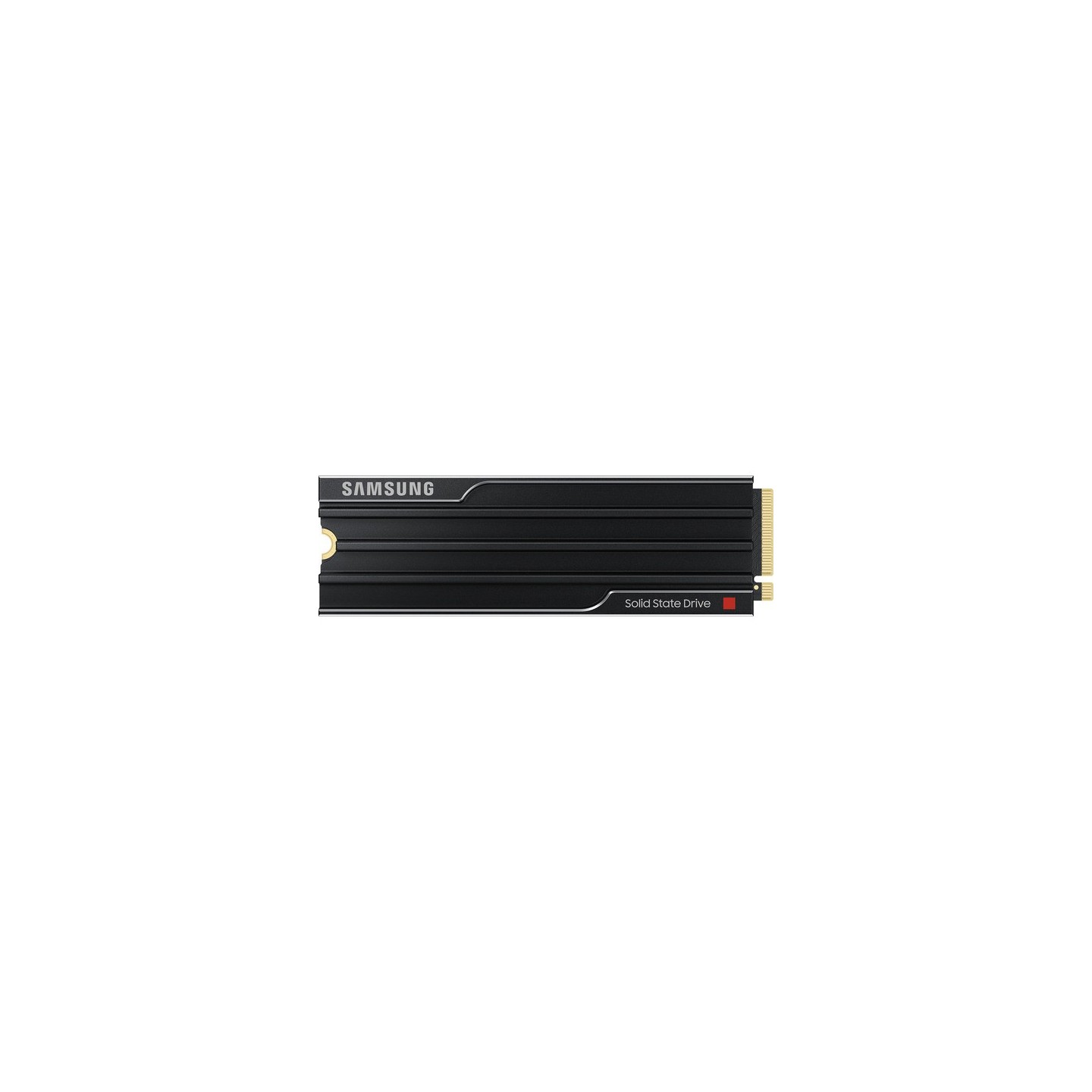

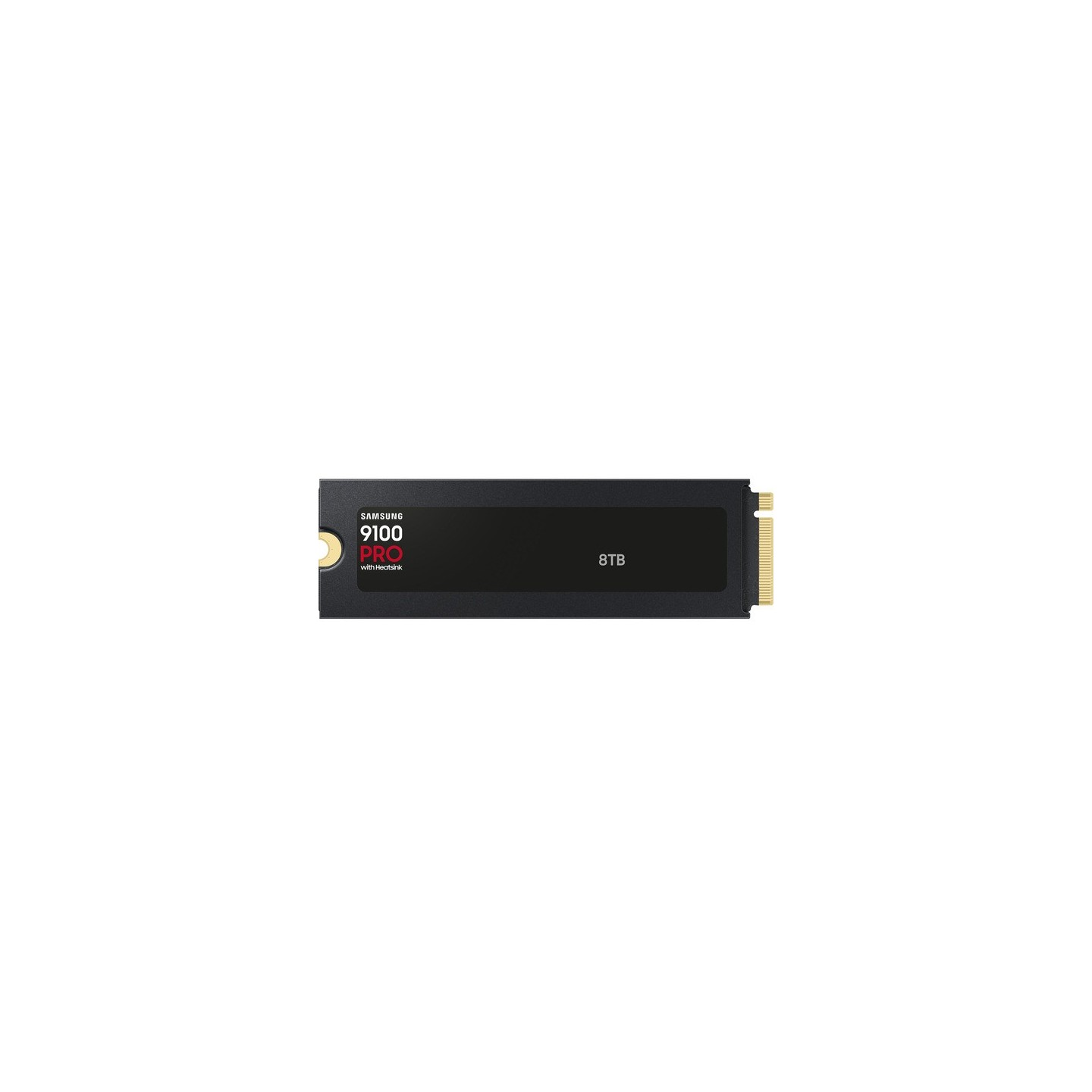

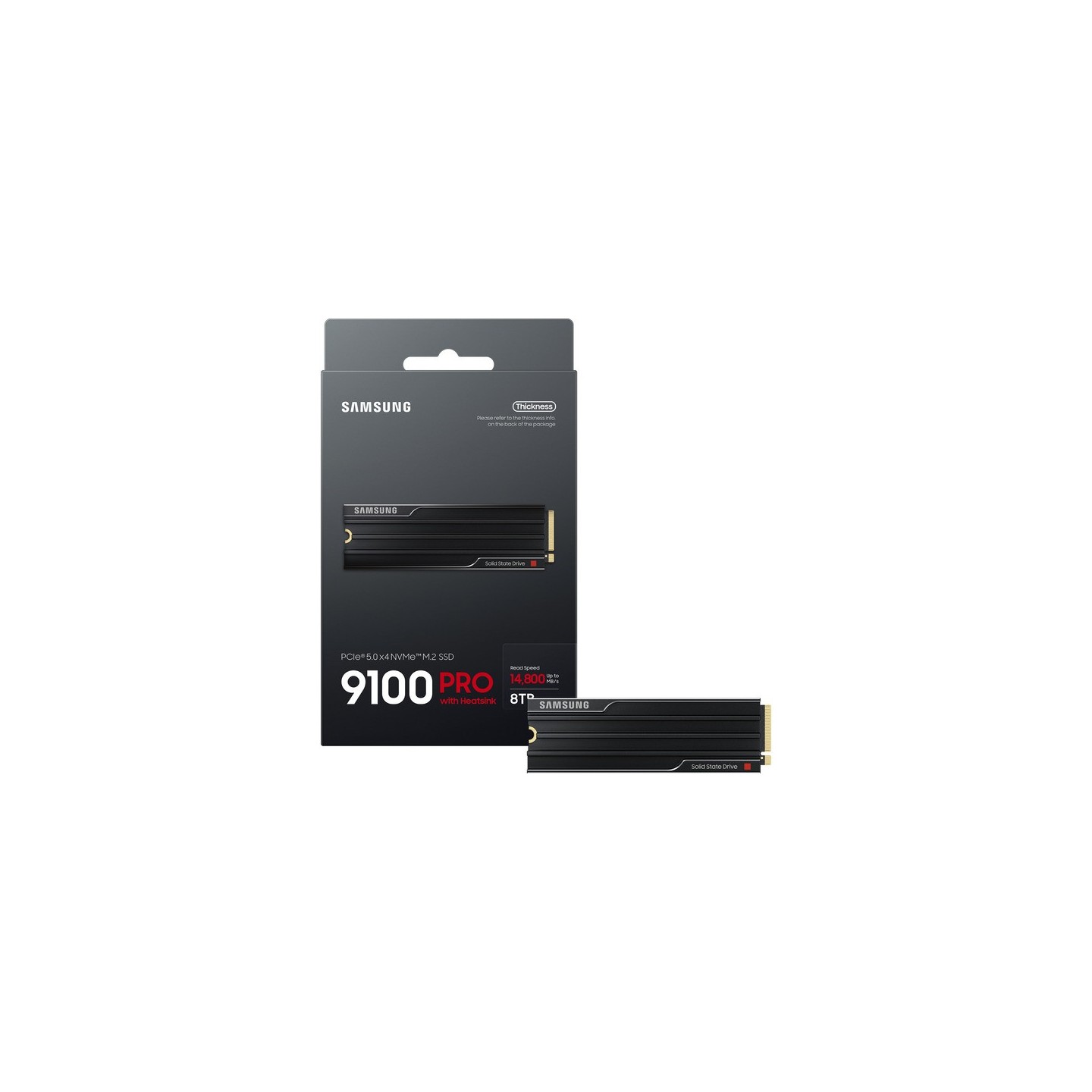

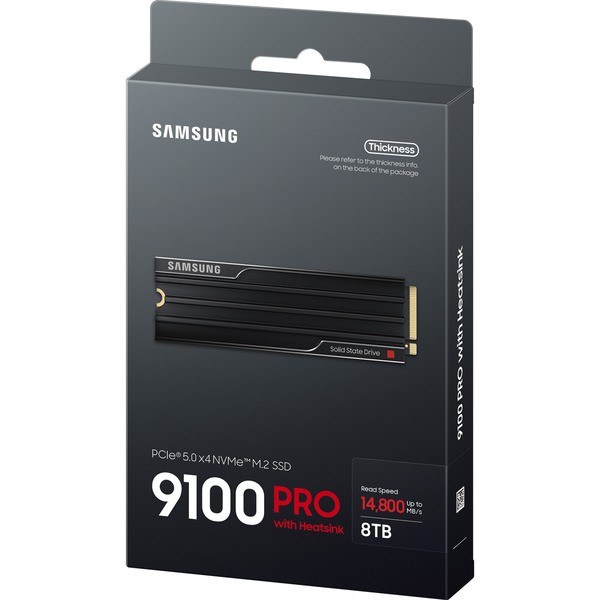

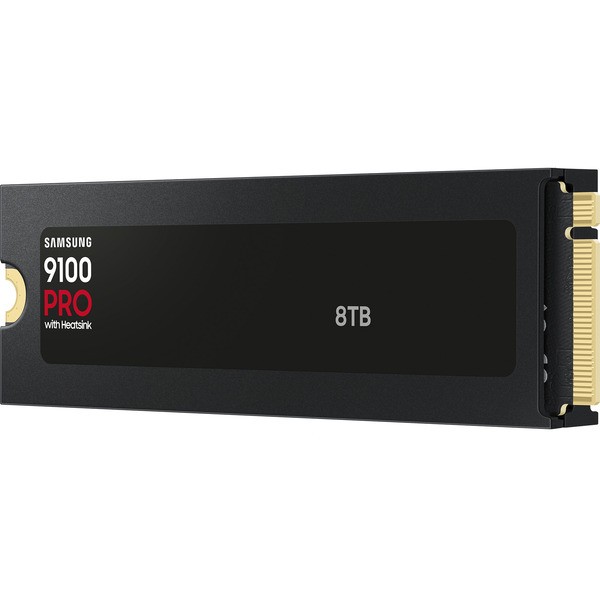

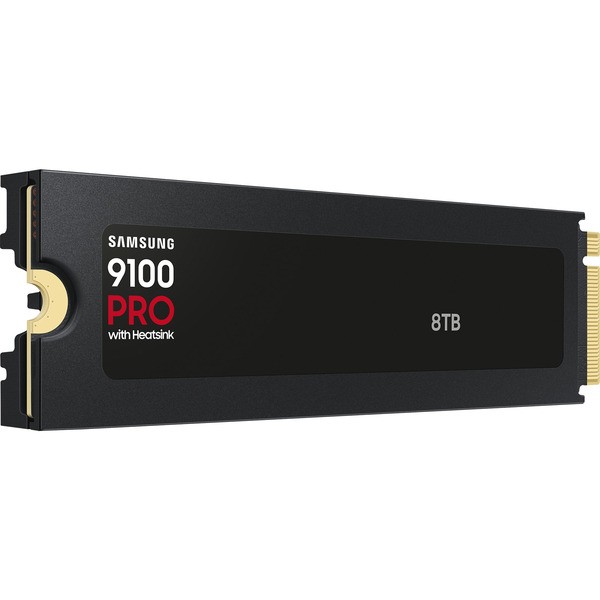

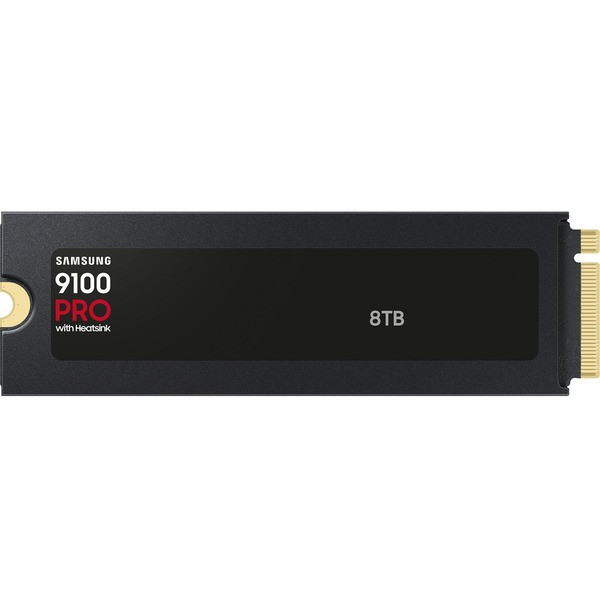

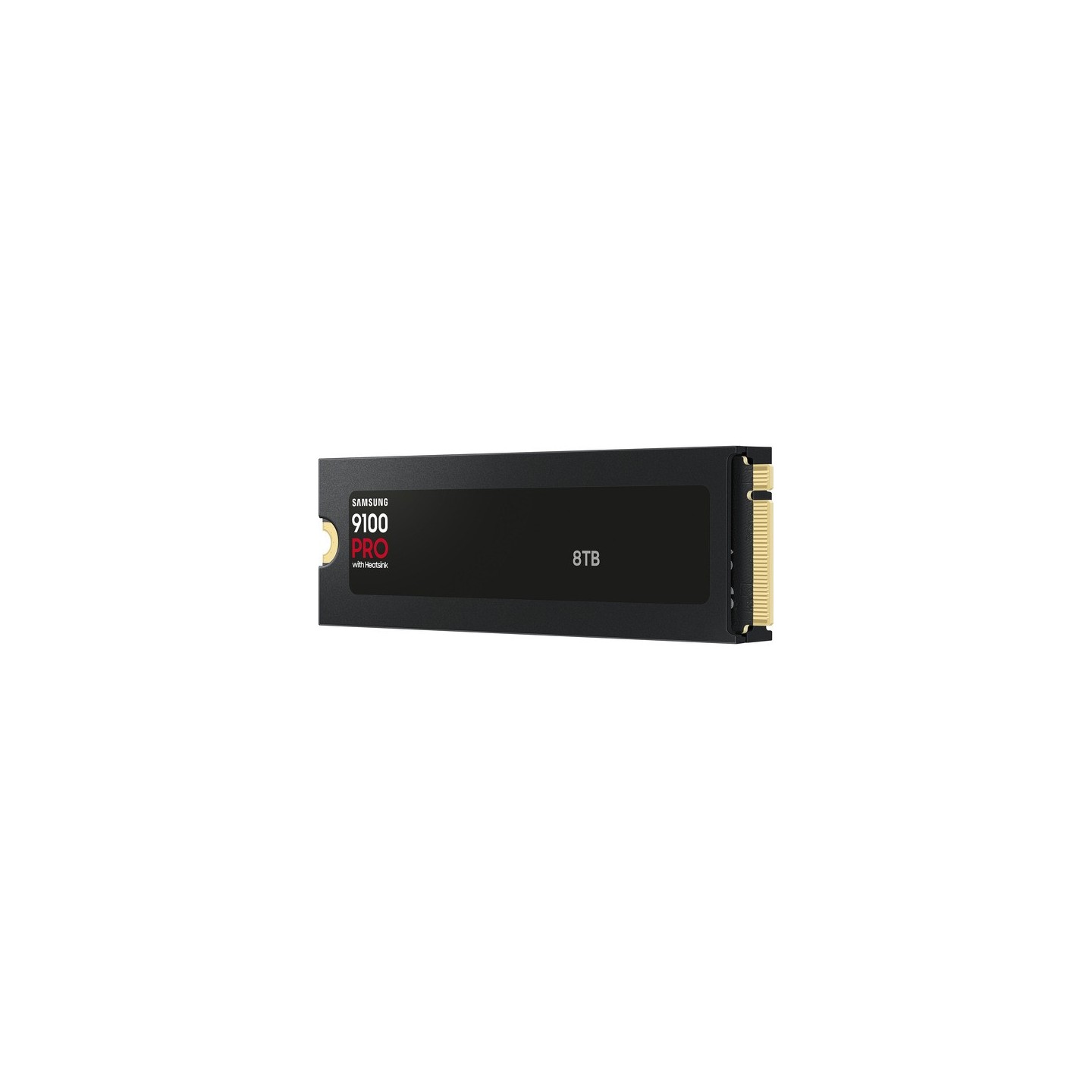

Samsung 9100 PRO 8TB M.2 NVMe SSD with Heatsink - PCIe 5.0 Gen5 - MZ-VAP8T0CW (Boxed)
Samsung 9100 PRO 8TB PCIe 5.0 M.2 NVMe SSD with heatsink. Delivers up to 14,800 MB/s read and 13,400 MB/s write speeds with 2,200K/2,600K IOPS. Features Samsung's Presto controller, 8GB LPDDR4X cache, and 236-layer TLC NAND. PS5-compatible.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 8TB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Above 10000 MB s |
| Storage (SSD & HDD) - Interface | PCIe 5.0 (Gen5) |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Heatsink (SSD) | Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The Samsung 9100 PRO 8TB is a flagship PCIe 5.0 NVMe SSD designed for professionals, content creators, and enthusiasts who demand maximum storage capacity without compromising performance. This drive delivers exceptional sequential read/write speeds of up to 14,800 MB/s and 13,400 MB/s respectively, with random performance reaching 2,200K/2,600K IOPS. Built on Samsung's proprietary Presto controller and featuring 236-layer TLC V-NAND, the 9100 PRO combines cutting-edge technology with proven reliability.
The 8TB capacity represents Samsung's first consumer M.2 drive to reach this milestone, doubling the storage of previous generations while maintaining consistent performance across all capacity levels. With 8GB of LPDDR4X DRAM cache and an integrated heatsink optimized for PS5 compatibility, this drive excels in demanding workloads including 4K/8K video editing, 3D rendering, AI model training, and next-generation gaming. The drive operates efficiently at just 8.2W under load and includes AES 256-bit encryption with TCG/Opal 2.0 support for enhanced security.
Key features and specifications:
- PCIe 5.0 Gen5 x4 interface with NVMe 2.0 support
- M.2 2280 form factor with integrated heatsink
- 4,800 TBW endurance rating for long-term reliability
- 5-year manufacturer warranty
- PS5-compatible heatsink design
- S.M.A.R.T support and full-disk encryption
- Dimensions: 80.15mm (L) × 25mm (W) × 11.25mm (H)
| Type | Internal SSD |
| Capacity | 8 TB |
| Interface | M.2 (M Key) |
| Form Factor | M.2 2280 |
| Internal Interface | PCIe 5.0 x4 |
| NVMe Version | NVMe 2.0 |
| Controller | Samsung Presto (5nm, 8-channel, 5-core ARM Cortex-R8) |
| NAND Type | TLC V-NAND (236-layer, 8th generation) |
| DRAM Cache | 8 GB LPDDR4X |
| Sequential Read Speed | 14,800 MB/s |
| Sequential Write Speed | 13,400 MB/s |
| Random Read IOPS | 2,200,000 IOPS |
| Random Write IOPS | 2,600,000 IOPS |
| Total Bytes Written (TBW) | 4,800 TBW |
| Power Consumption (Operating) | 8.2 W |
| MTBF | 1,500,000 hours |
| Warranty | 5 years |
| Heatsink | Included, PS5-compatible |
| Dimensions (Drive Only) | 80.15mm (L) × 25mm (W) × 11.25mm (H) |
| Weight (Drive Only) | 35 g |
| Security | AES 256-bit Full Disk Encryption, TCG/Opal 2.0, MS eDrive |
| Features | S.M.A.R.T support, TRIM support, Samsung Magician software compatible |
| Manufacturer Part Number | MZ-VAP8T0CW |
| EAN-13 | 8806095811642 |
