Server Chassis - 4U-4724 - Server chassis
Inter-Tech IPC 4U-4724 server enclosure, black steel, 24x hot-swap 3.5" bays, front USB-A 2.0, E-ATX support, 58 L.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

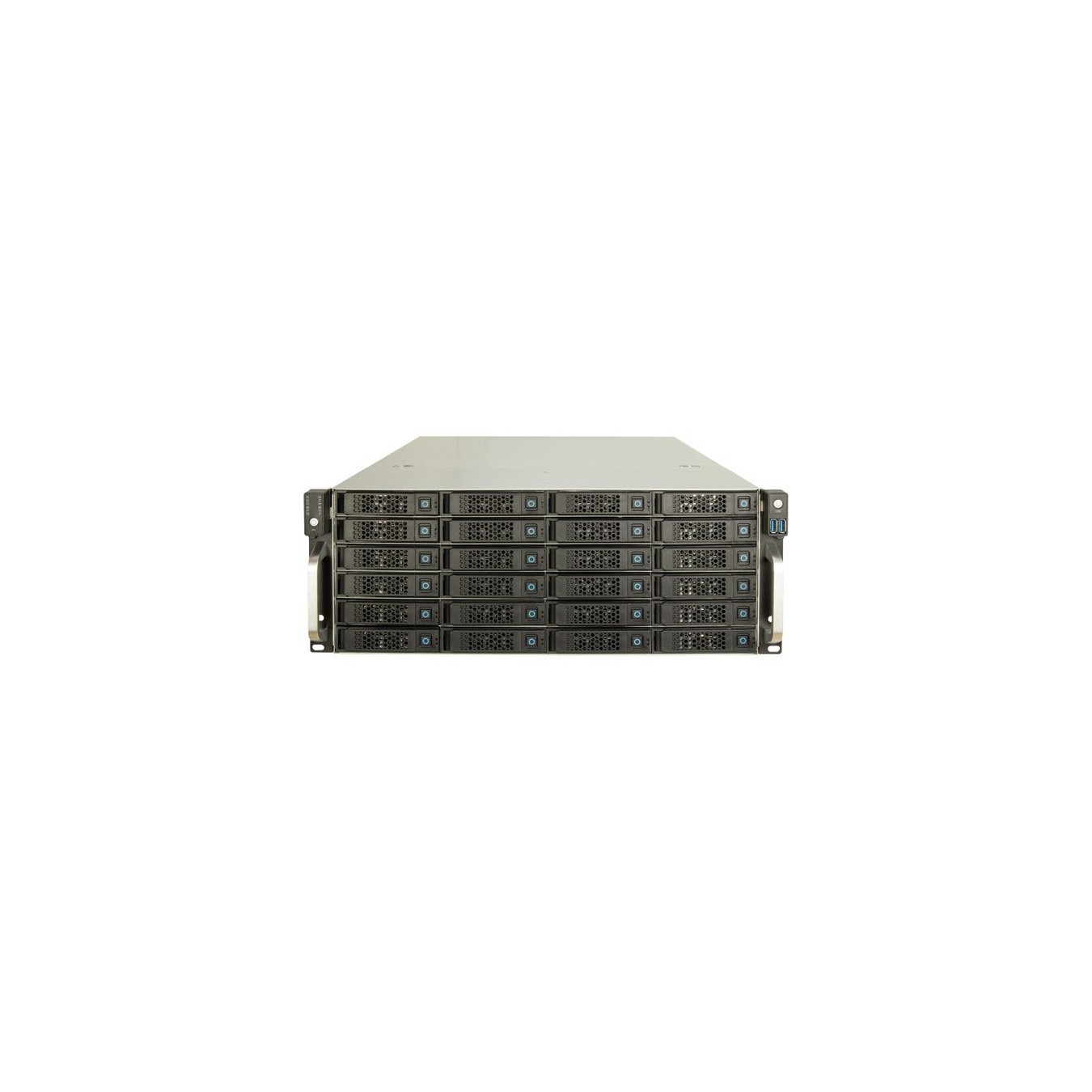

The IPC 4U 4724 is the perfect rack for a small and cost-effective storage system. Through the excellent material quality, combined with excellent workmanship, Inter-Tech has created the basis for an extremely variable housing. The IPC 4U 4724 offers the option of installing a maximum of 24x 2.5" or 3.5" hot-swap hard drives, as well as two 2.5" internal hard drives. The IPC 4U 4724 can accommodate 5 fans, of which three 120 mm fans can be placed internally directly behind the drive holders. Two further 80 mm fans can be installed on the back. Additional Extras such as the reusable and perforated slot brackets, USB 2.0 ports and the housing cover with snap-in closures complete this excellent overall package.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260455647250 |
| Manufacturer no. | 88887354 |
| Design | Rack |
| Mainboard Formfaktor | E-ATX |
| Material | 1.0-1.2mm steel |
| Internal dimensions - plug-in card length | maximal 340 mm |

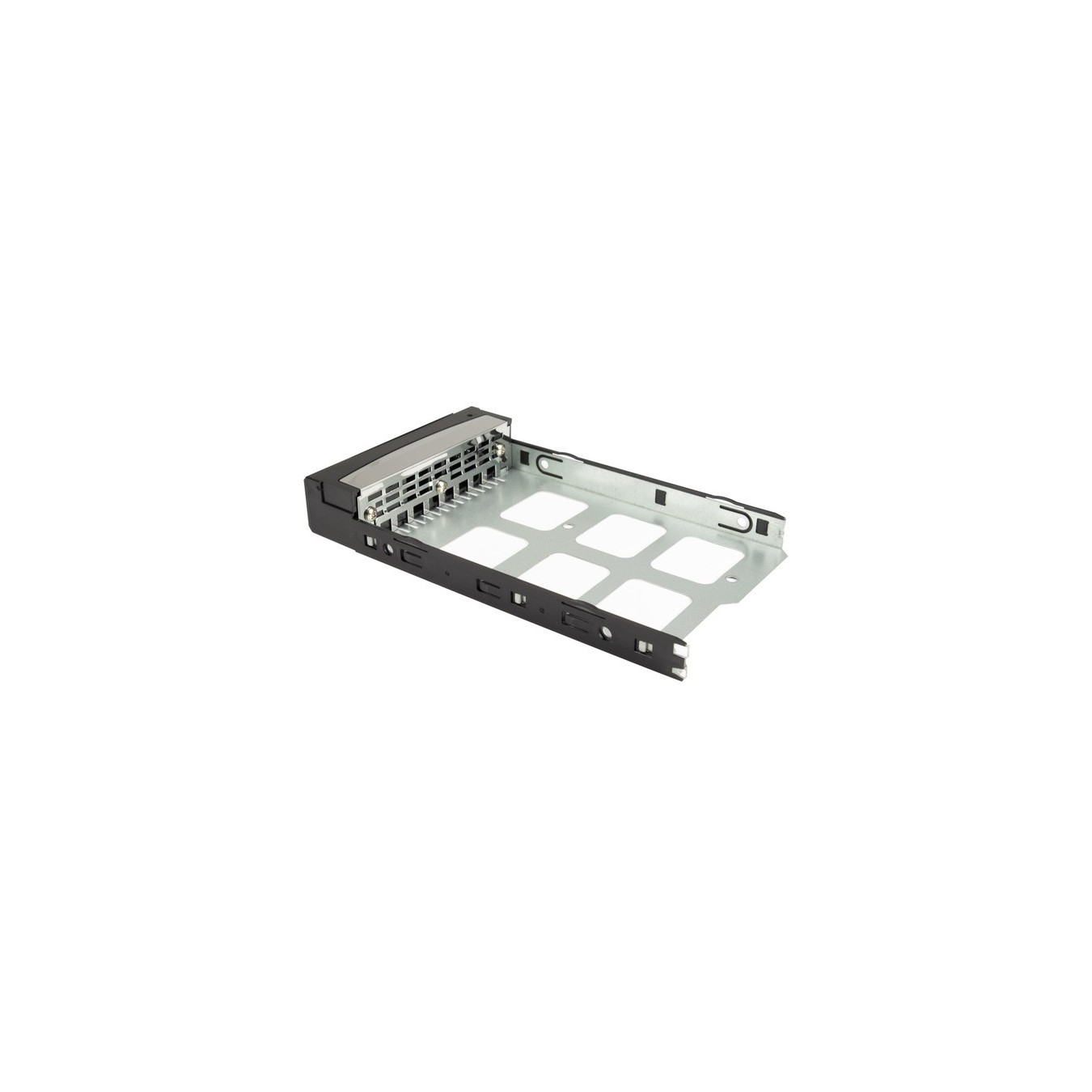

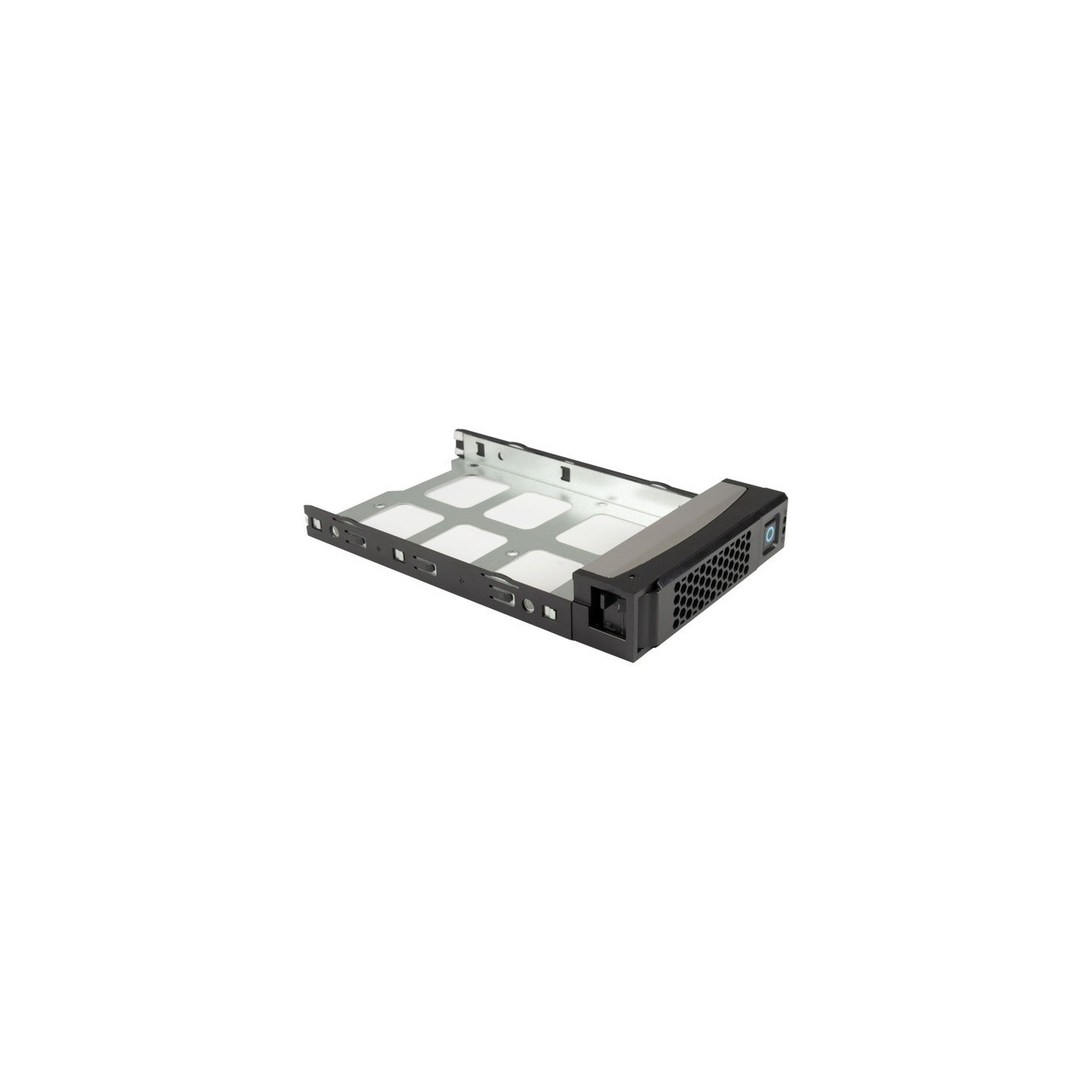

| Drive bays - 3.5 inches | Hot swap 24 pieces |
| Front connections | 2x USB-A 2.0 |
| front | Power switch, reset button, LED: power, hard drive activity, 2x network activity, 1x alarm, 1x temperature alarm |
| back | 2x 80 mm slots for fans can be installed |
| Notes | Inside: 3x 120 mm slots for fans can be installed (4-pin connection on backplane) |
| Rear connection of the mainboard | No |

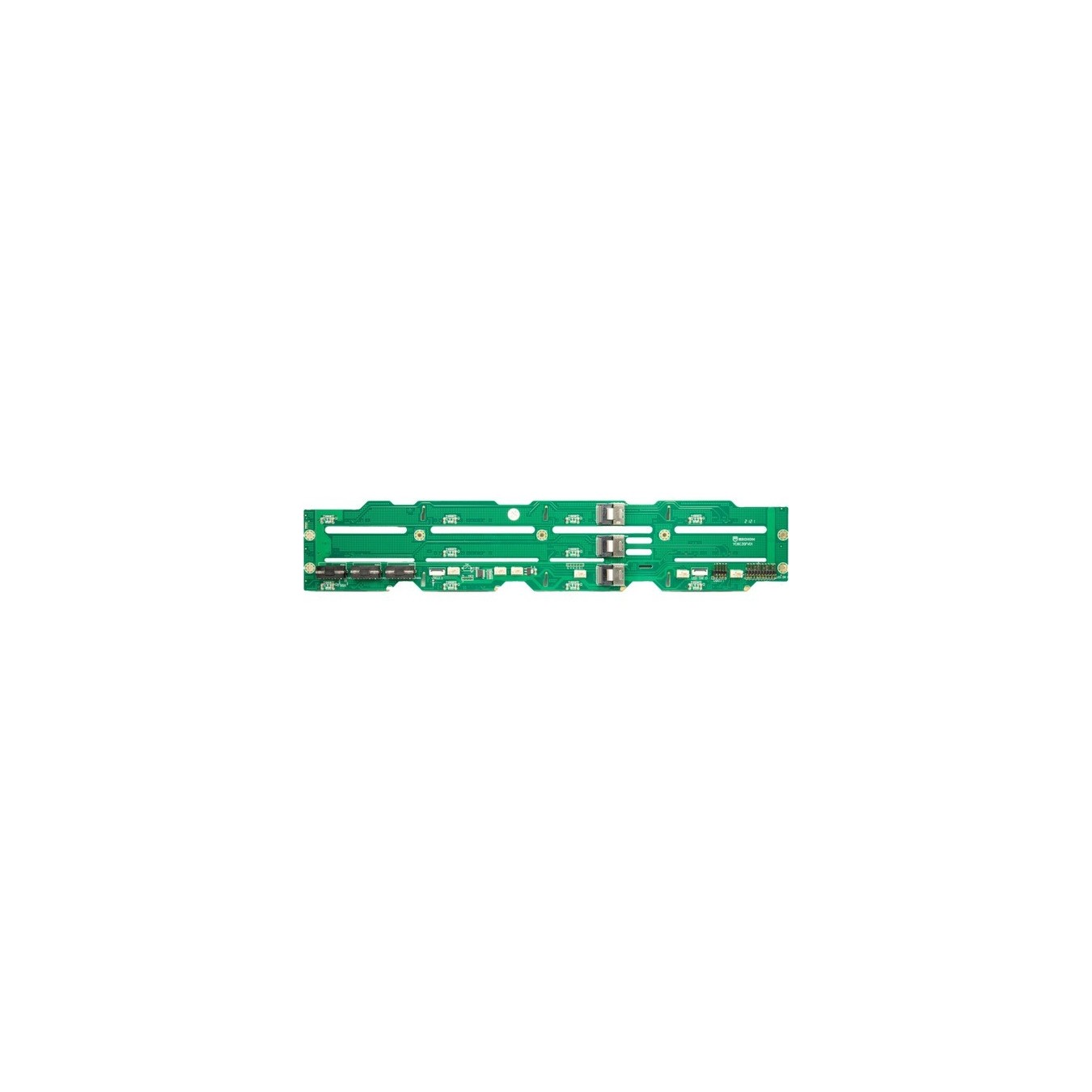

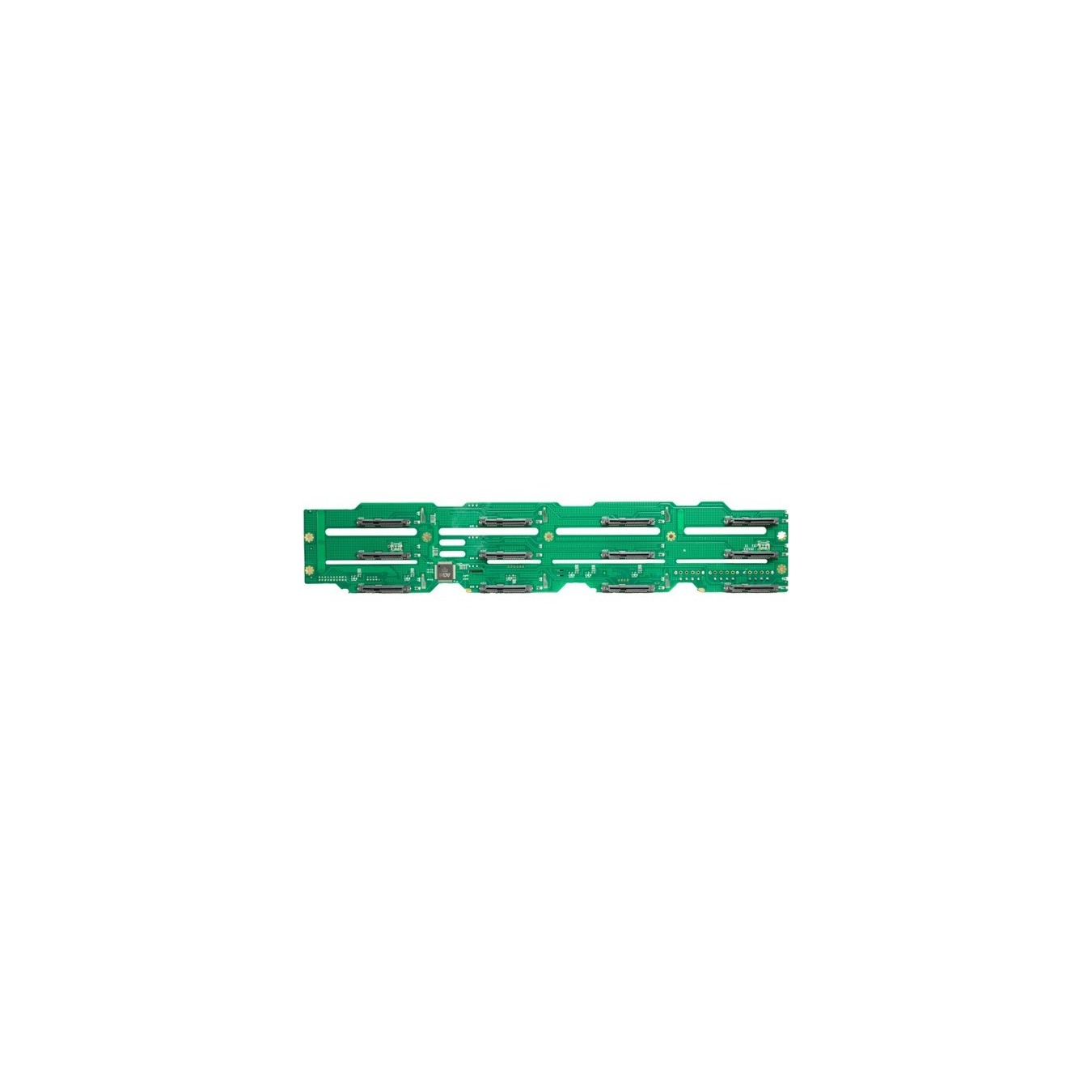

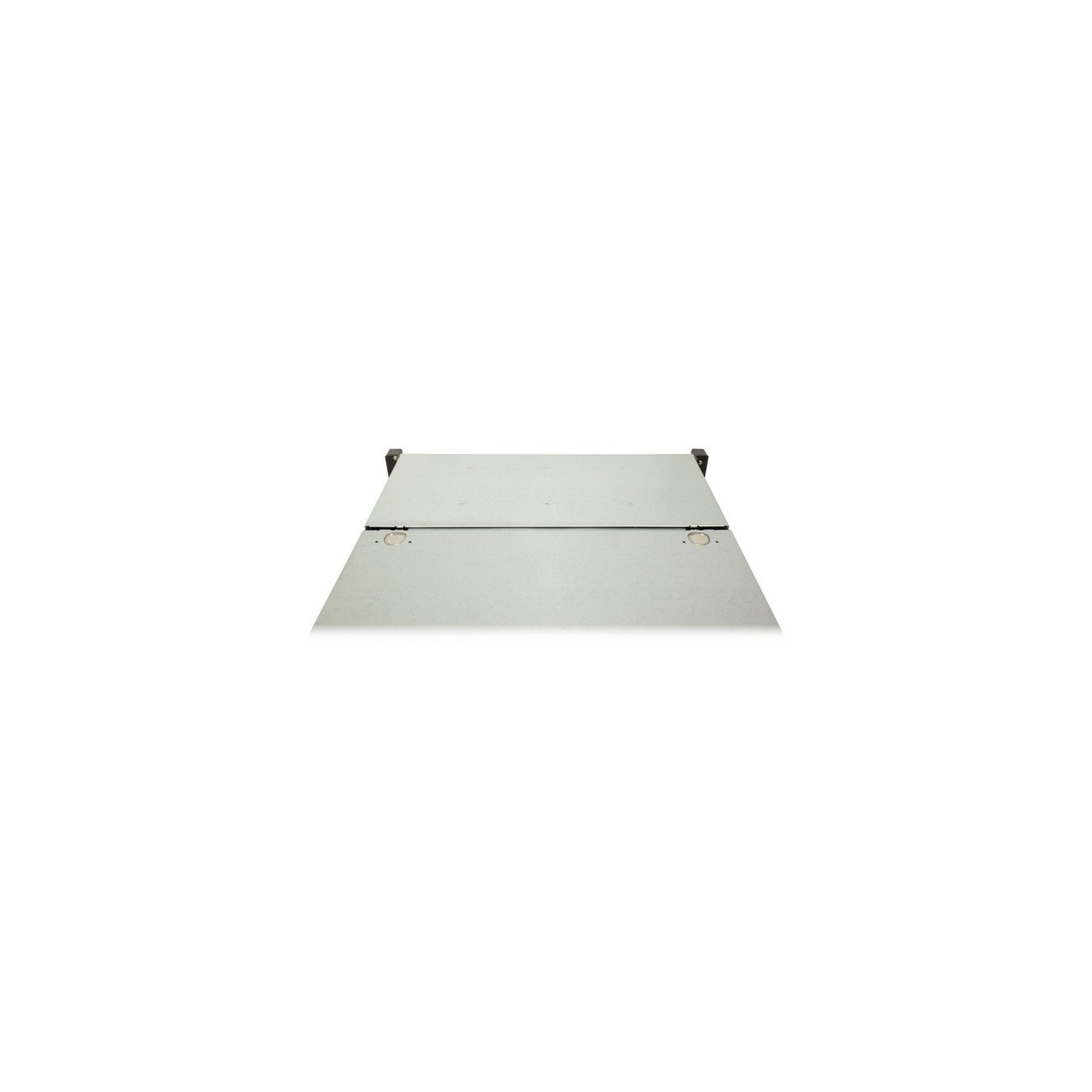

| More information | Cover with snap-in closure, 2x 12-fold S-ATA/SAS hot-swap backplane with 3x SFF-8087 (Note: The included backplane is only suitable for operation on a SAS controller with an SFF-8087 connection. For operation on a SATA controller, the separately available SFF-8087 cable to 4x SATA crossed is necessary in the appropriate number) |
| Notice | Maximum motherboard size: 305 mm x 345 mm (12" x 13.5") |
| Accessories - available | Assortment of screws, power supply bracket for ATX (pre-assembled) and 4U redundant power supplies |
| Volume | 58 l |
| Dimensions | Width: 48.1 cm x Height: 17.6 cm x Depth/Length: 68.5 cm |
| Weight | 15,6 kg |
