M.2 Key B+M connector to 2 x USB 3.0 header connector - Converter
Delock M.2 to USB 3.0 header converter with 2x USB 3.0 headers; 80 mm long, adjustable to 60 mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

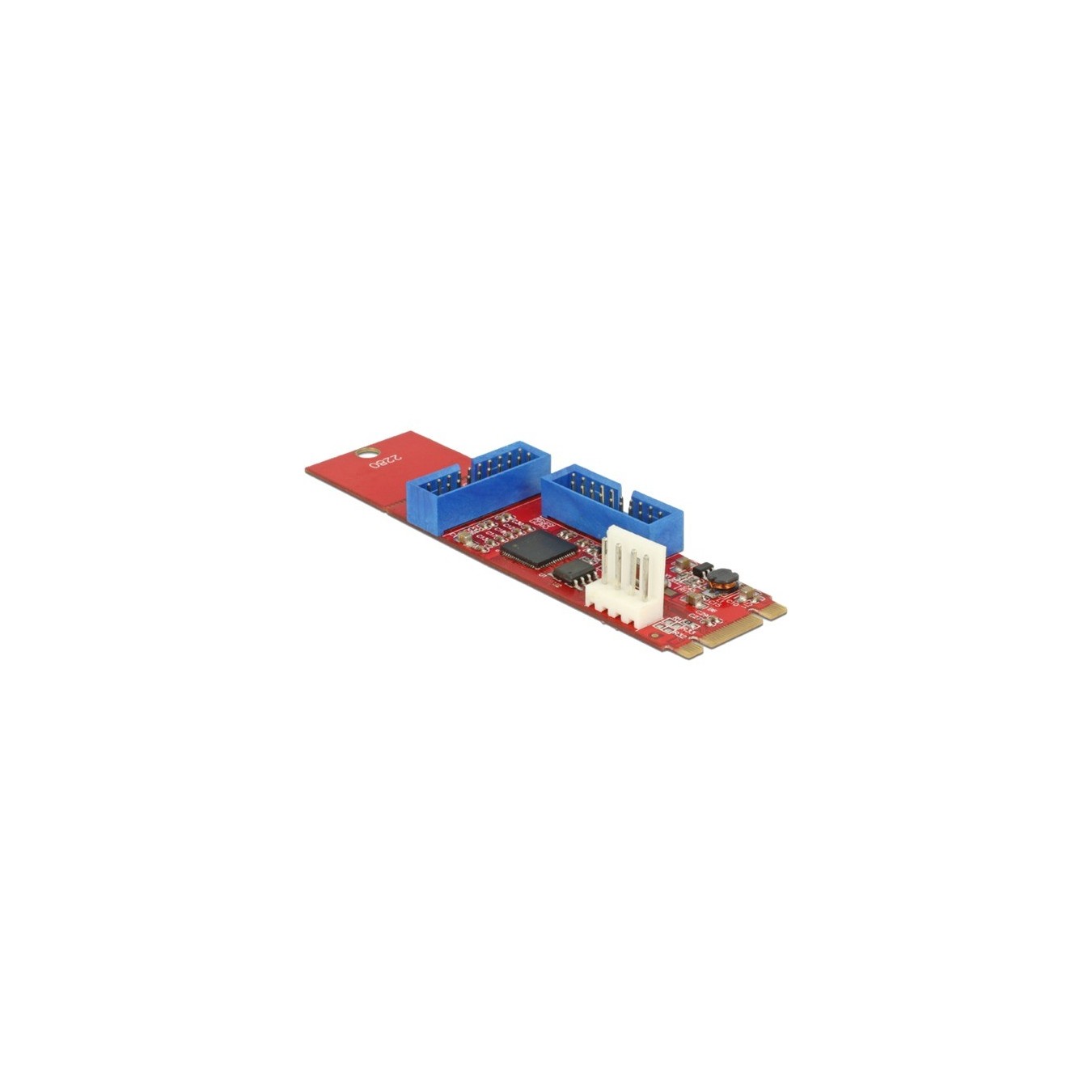

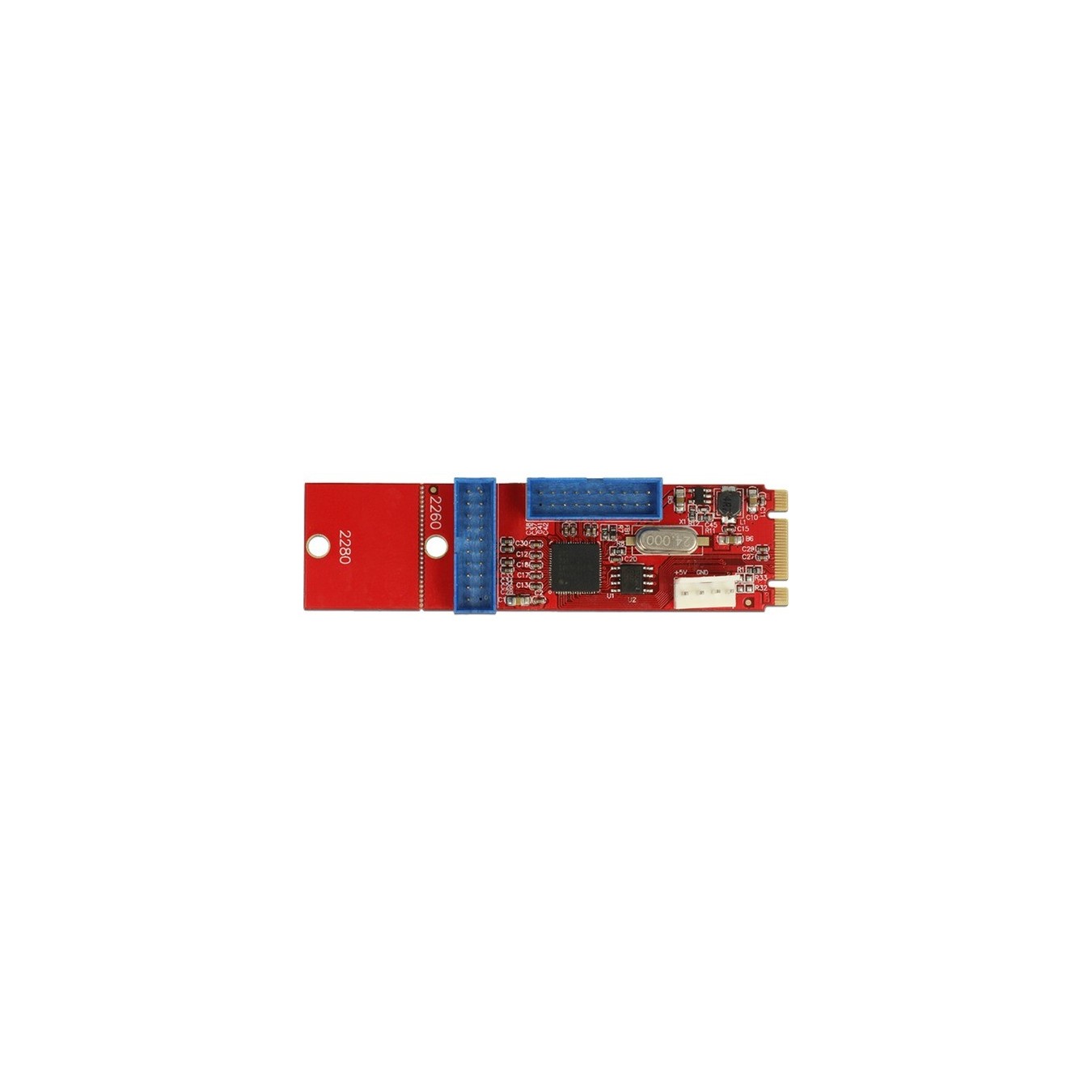

This converter from Delock expands the system with two USB 3.0 header connectors. The converter is 80 mm long and can be shortened to 60 mm using the predetermined breaking point. Suitable for M.2 slot with Key M or Key B+M on PCIe basis.
| Typ | Converter |
| EAN | 4043619628438 |
| Manufacturer no. | 62843 |
| Controller Art | M.2 |
| Connections - internal | 2x USB-Header, 1x M.2 |
| Feature | Suitable for M.2 slot with Key M or Key B+M on PCIe basis, data transfer rate up to 5 Gbps, bootable |
| More information | Connections: 1x 59 pin M.2 Key B+M connector > 2x 19 pin USB 3.0 header plug, 1x 4 pin header plug (optional for power supply), chipset: Renesas, interface: PCIe, form factor: M.2 2280 (2260) |
| Notice | System requirements Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64, Linux Kernel 3.16 |

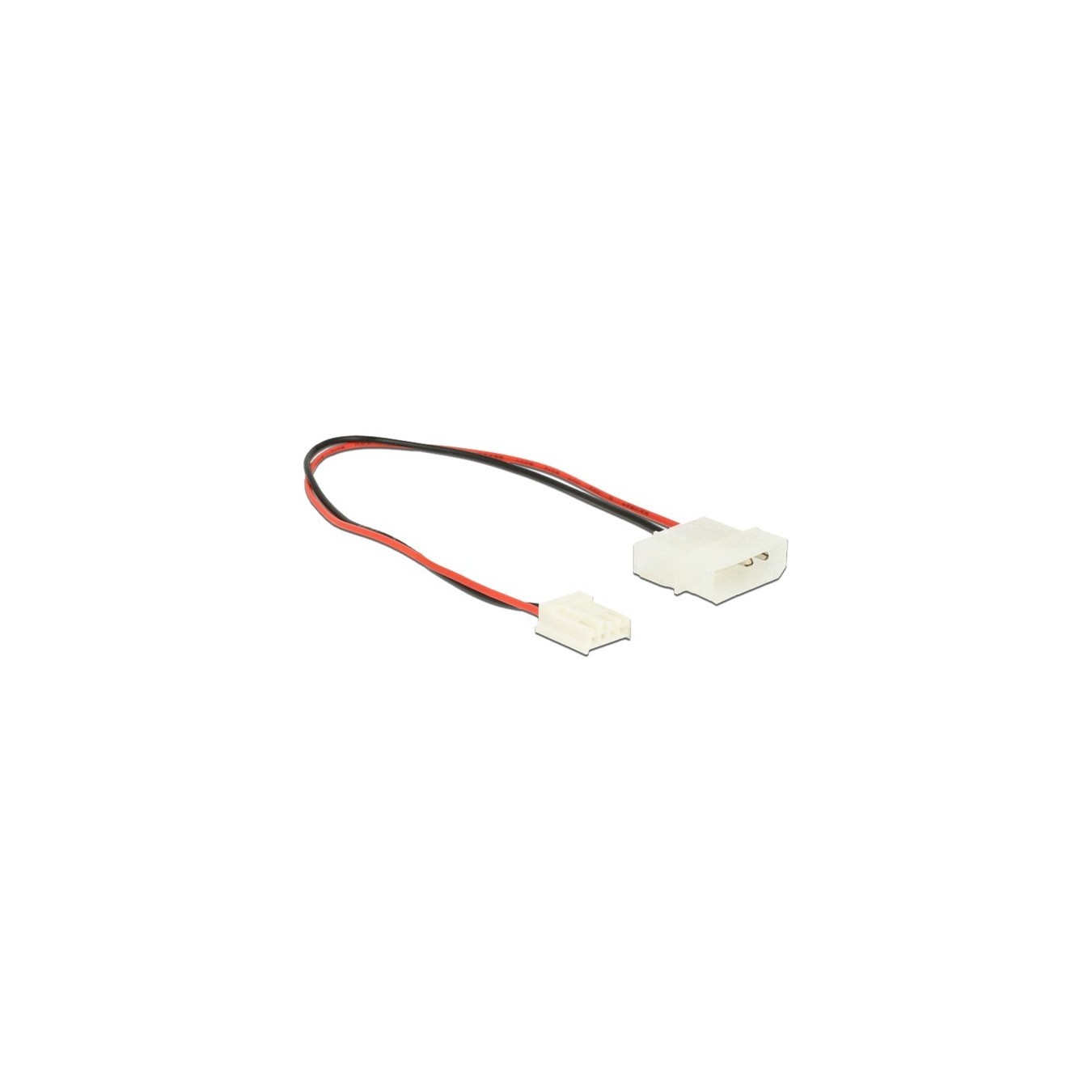

| Accessories - available | Directions. Driver CD, power cable |
| Dimensions | Width: 22mm x Height: 14mm x Depth/Length: 82mm |
