Network Switch - 16 port Gigabit Ethernet network, switch
Industrial Gigabit Ethernet switch with 16x RJ45 10/100/1000 and 2x 1000 Mbps base-FX; operating temperature -40°C to 80°C.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

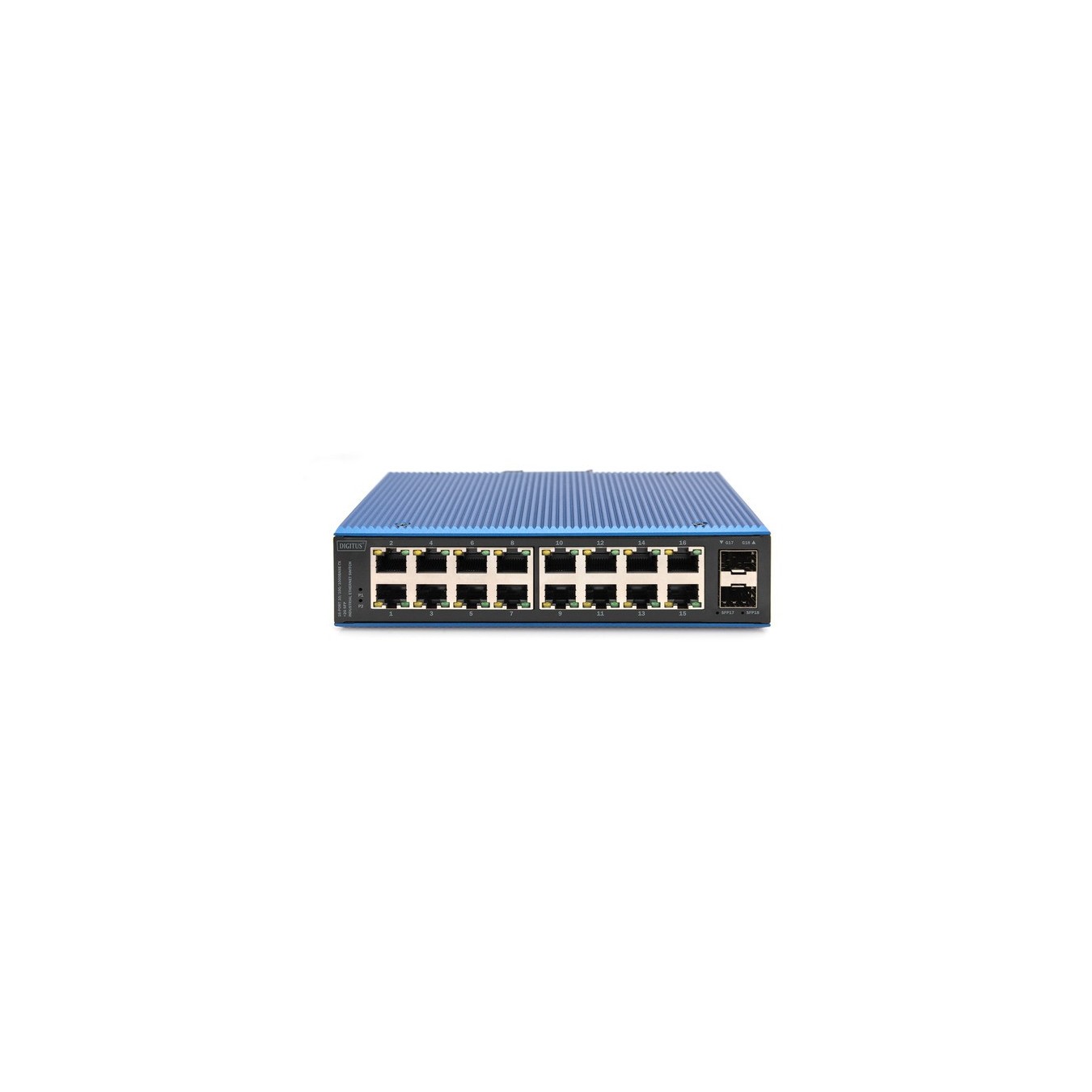

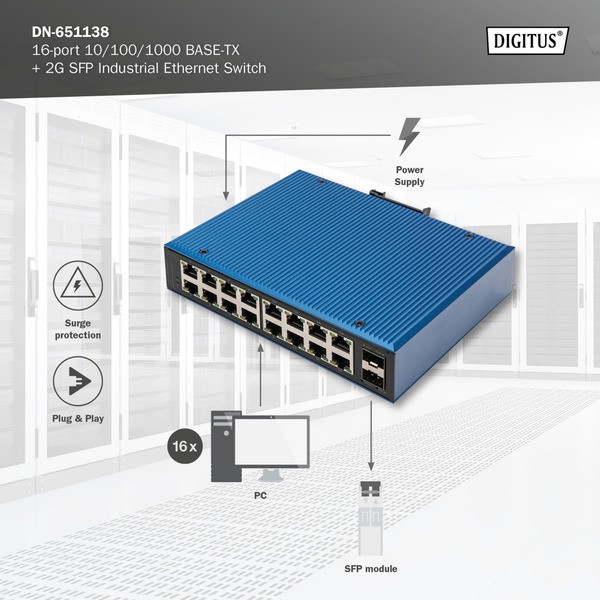

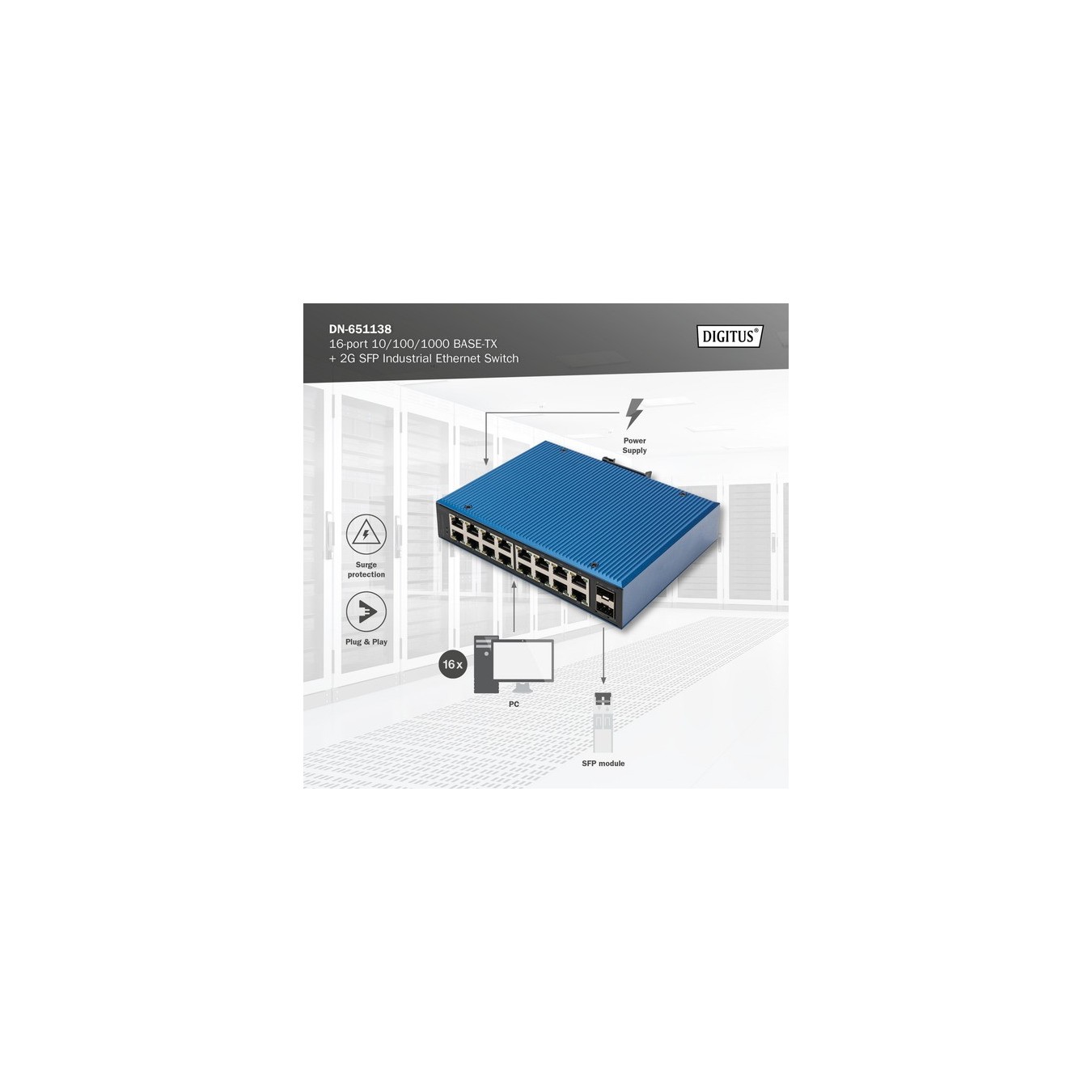

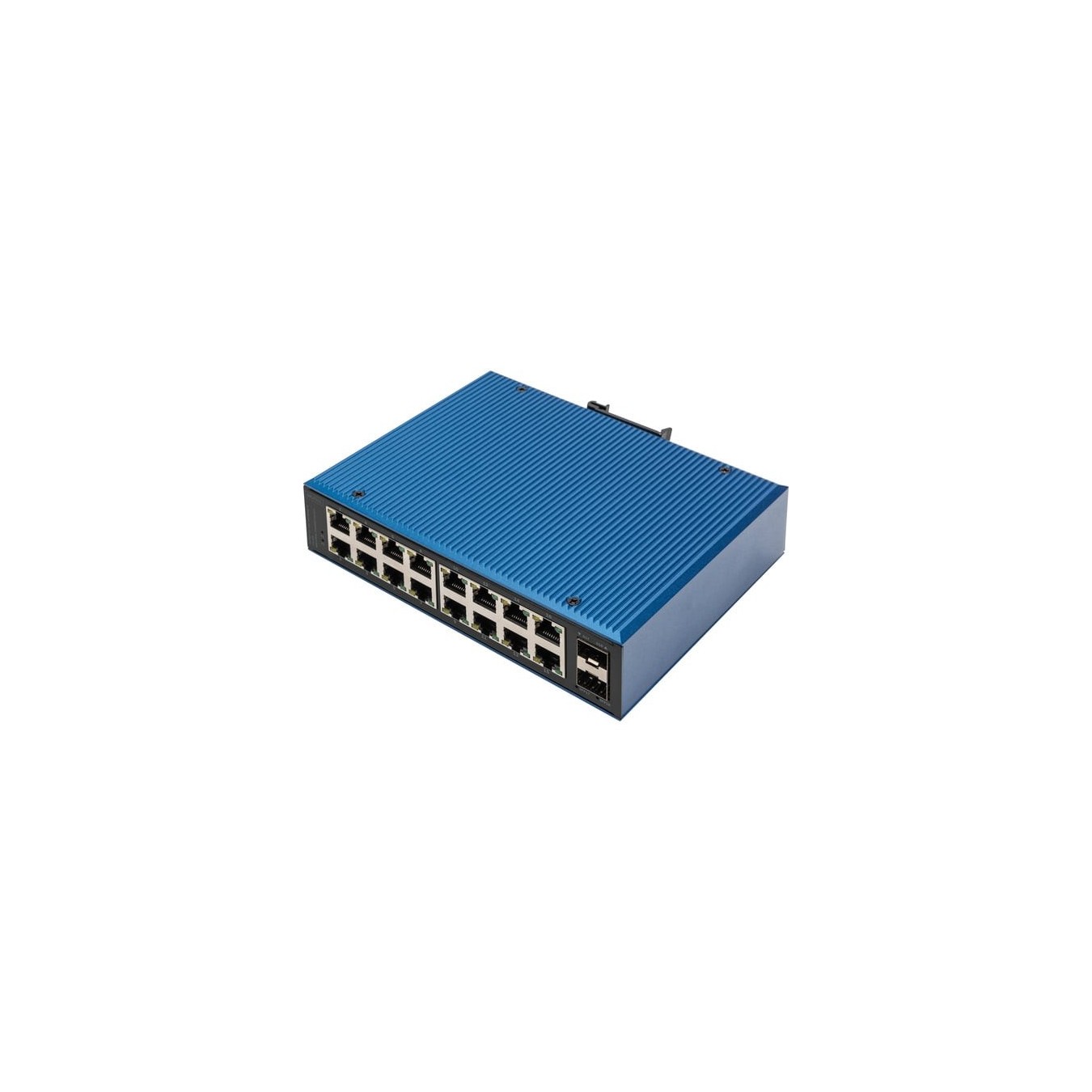

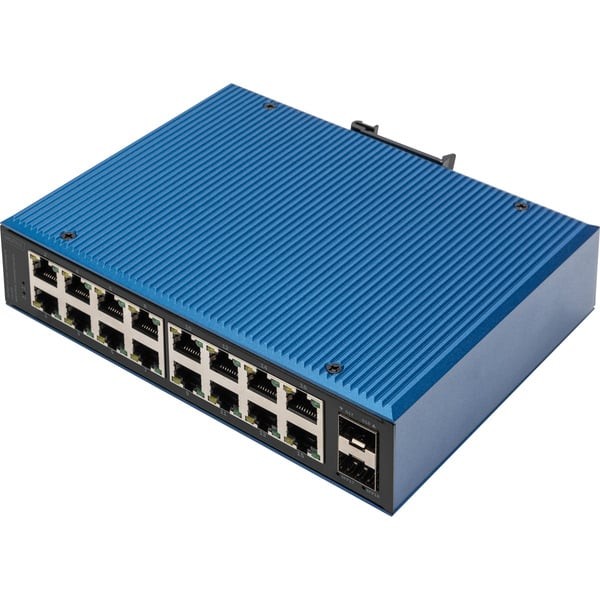

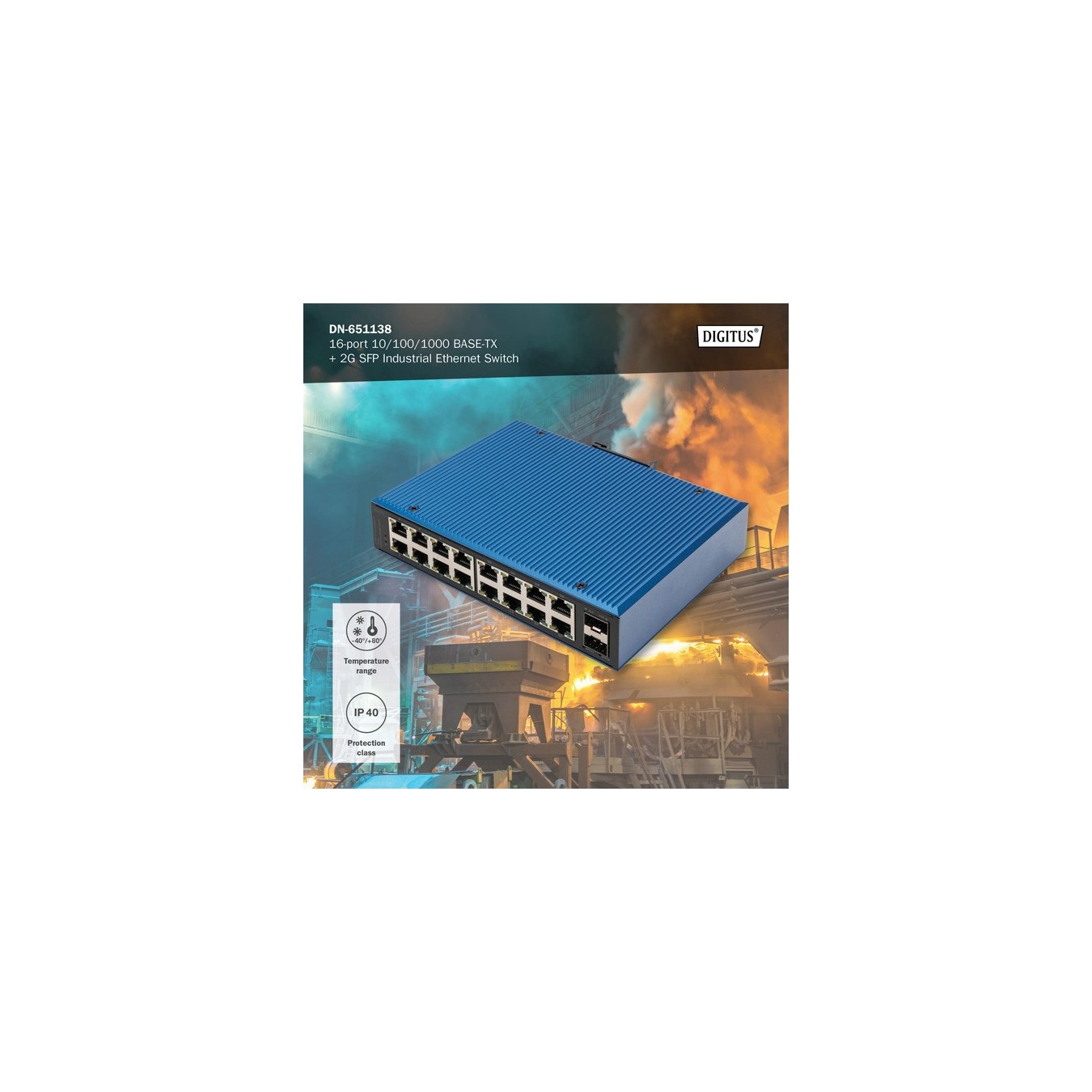

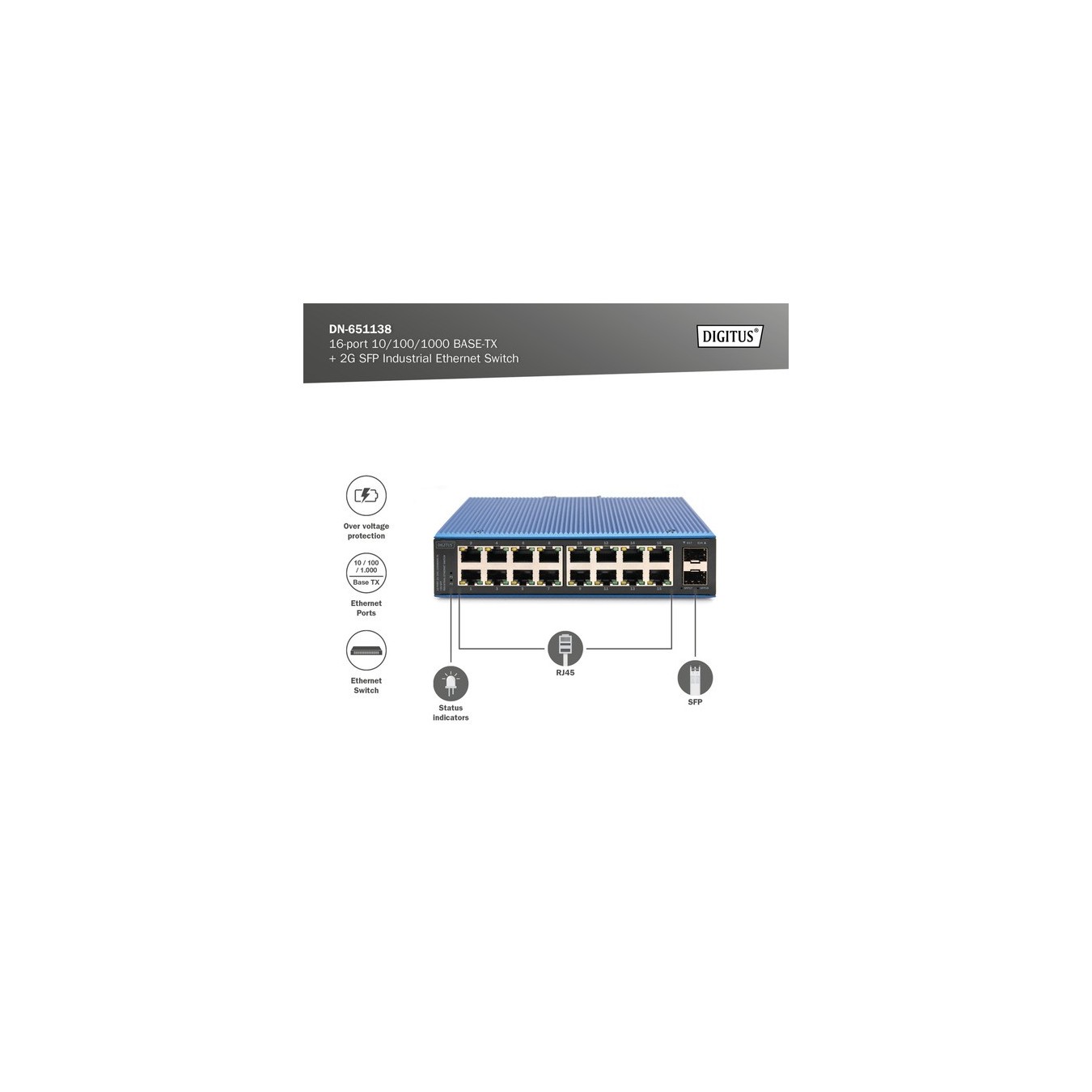

DN-651138 is an industrial Gigabit Ethernet switch with 16 port 10/100/1000 Mbps RJ45 +2 port 1000 Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, is robustly manufactured and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40 housing and LED indicator make the DN-651138 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
| Typ | Switch |
| EAN | 4016032486084 |
| Manufacturer no. | DN-651138 |

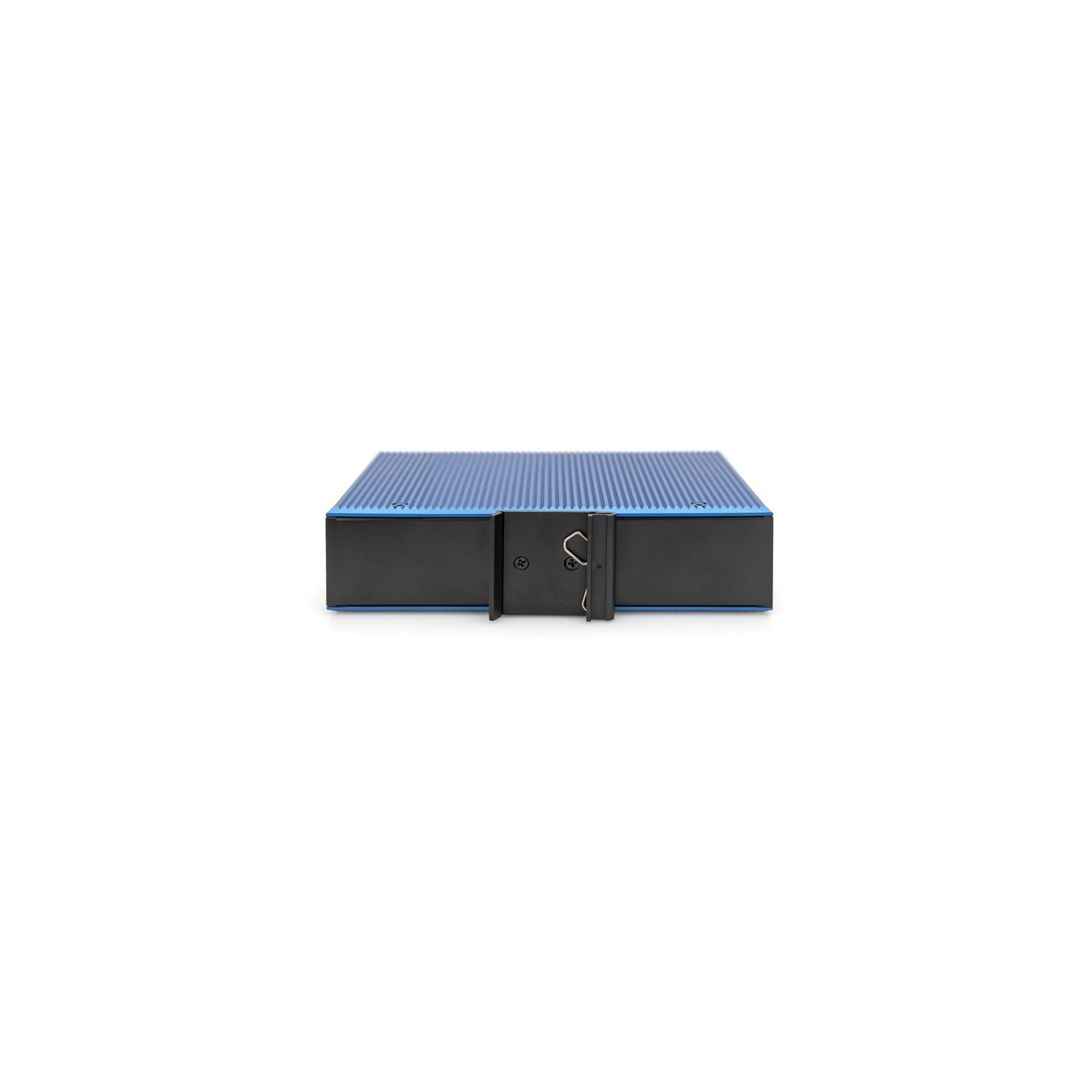

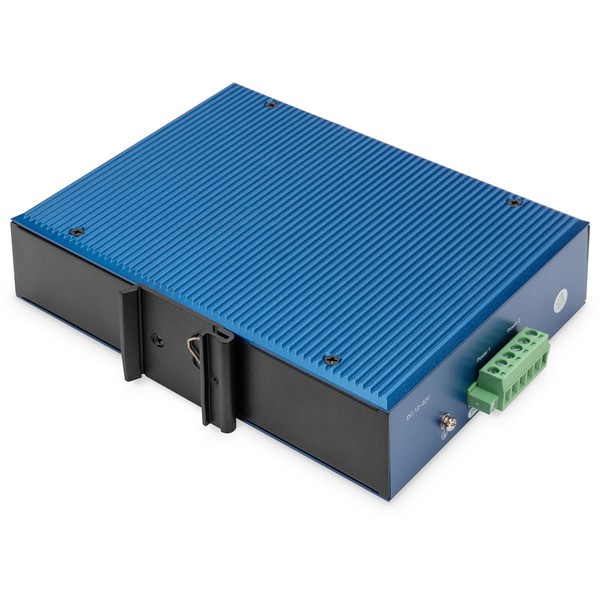

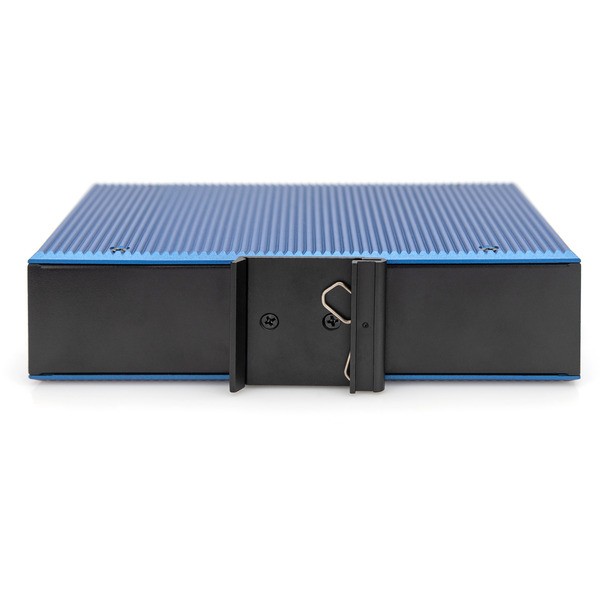

| Design | DIN-Rails |
| Connections - Network | RJ-45 16x (of which: 16x 10/100/1000) |
| Routing & Switching - Switching Bandbreite | 52 GBit/s |
| Power supply | Power consumption operation: 10 W |
| Feature | Protection against vibration, shock and falls | Flow control: Uses backpressure technology for half duplex, Uses "pause frame" technology in full duplex mode | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |

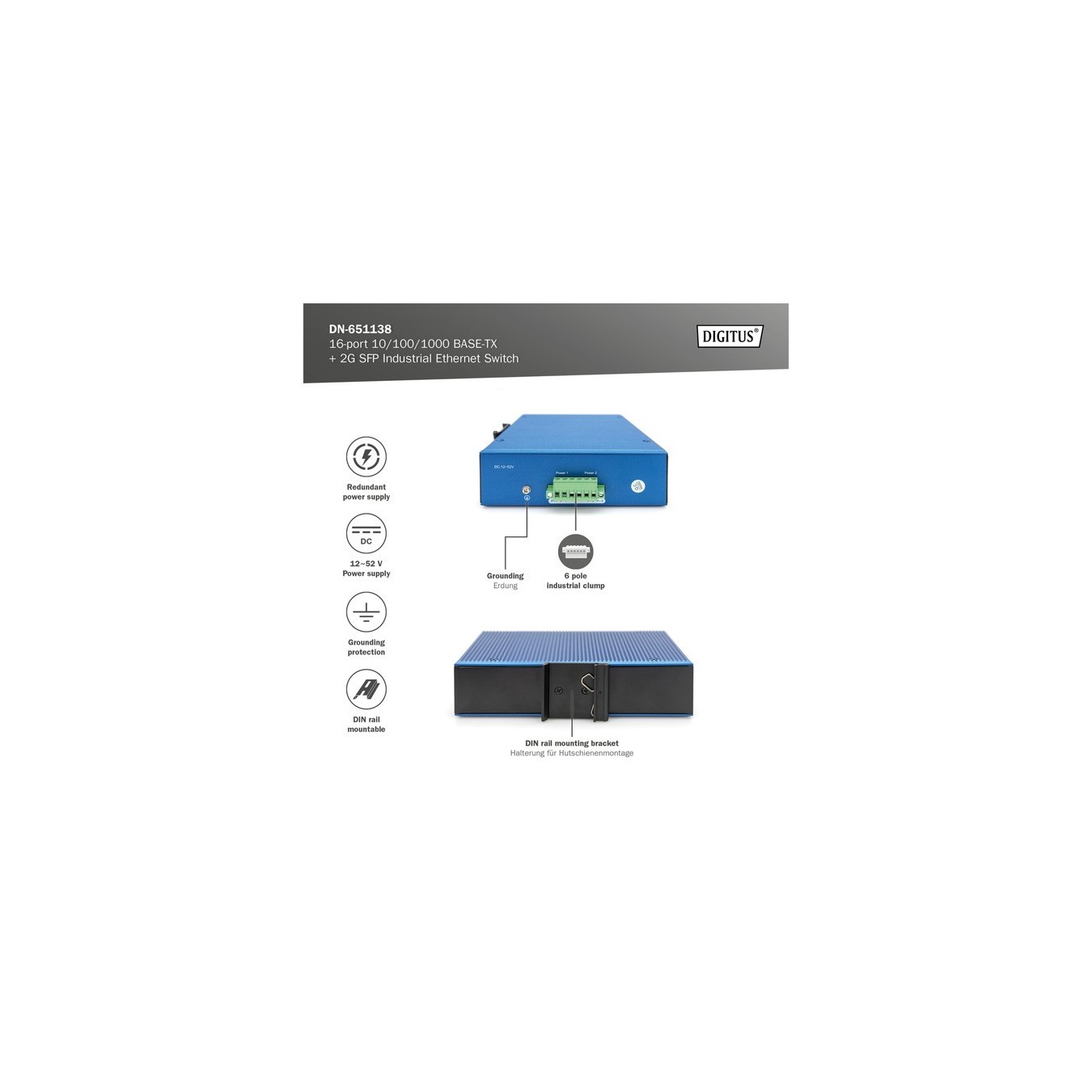

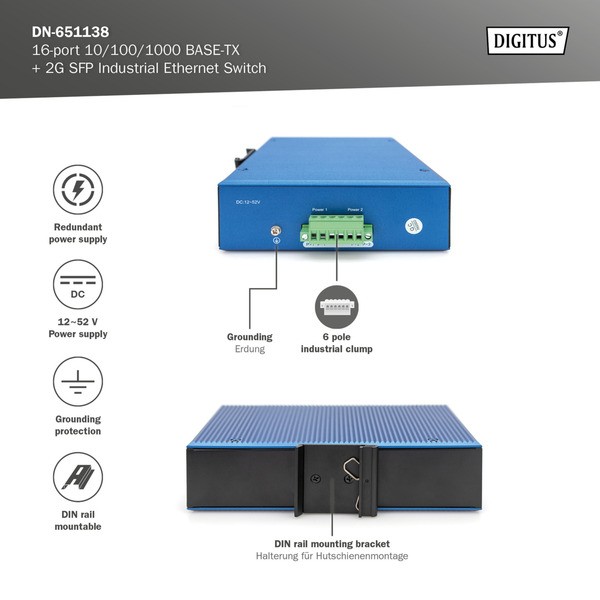

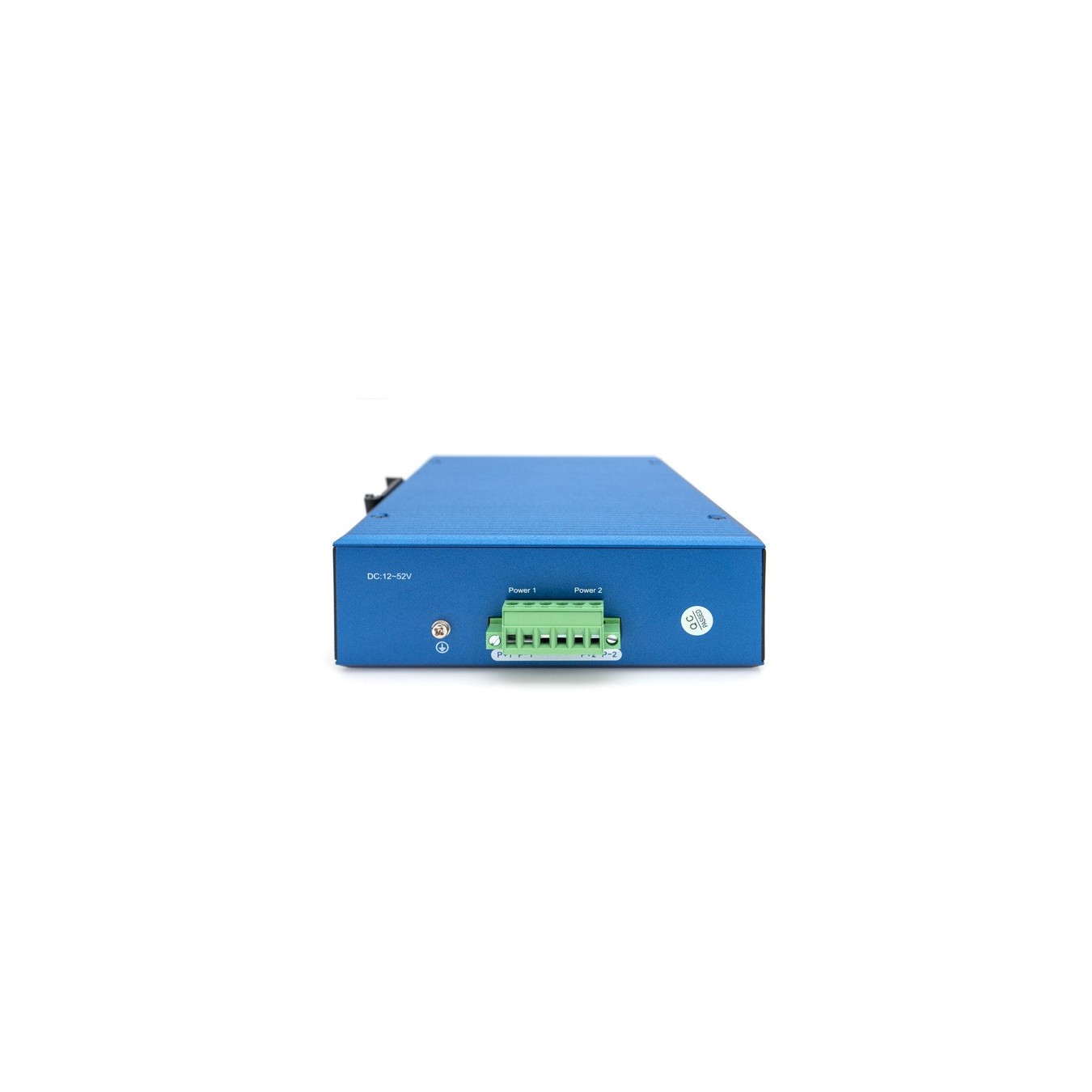

| More information | 12V to 52V DC, redundant power connection possible | Operating temperature: - 40°C to 80°C | IP40 aluminum housing | Supports 6KV DC Ethernet ESD protection | Aluminum housing with protection class IP40 |

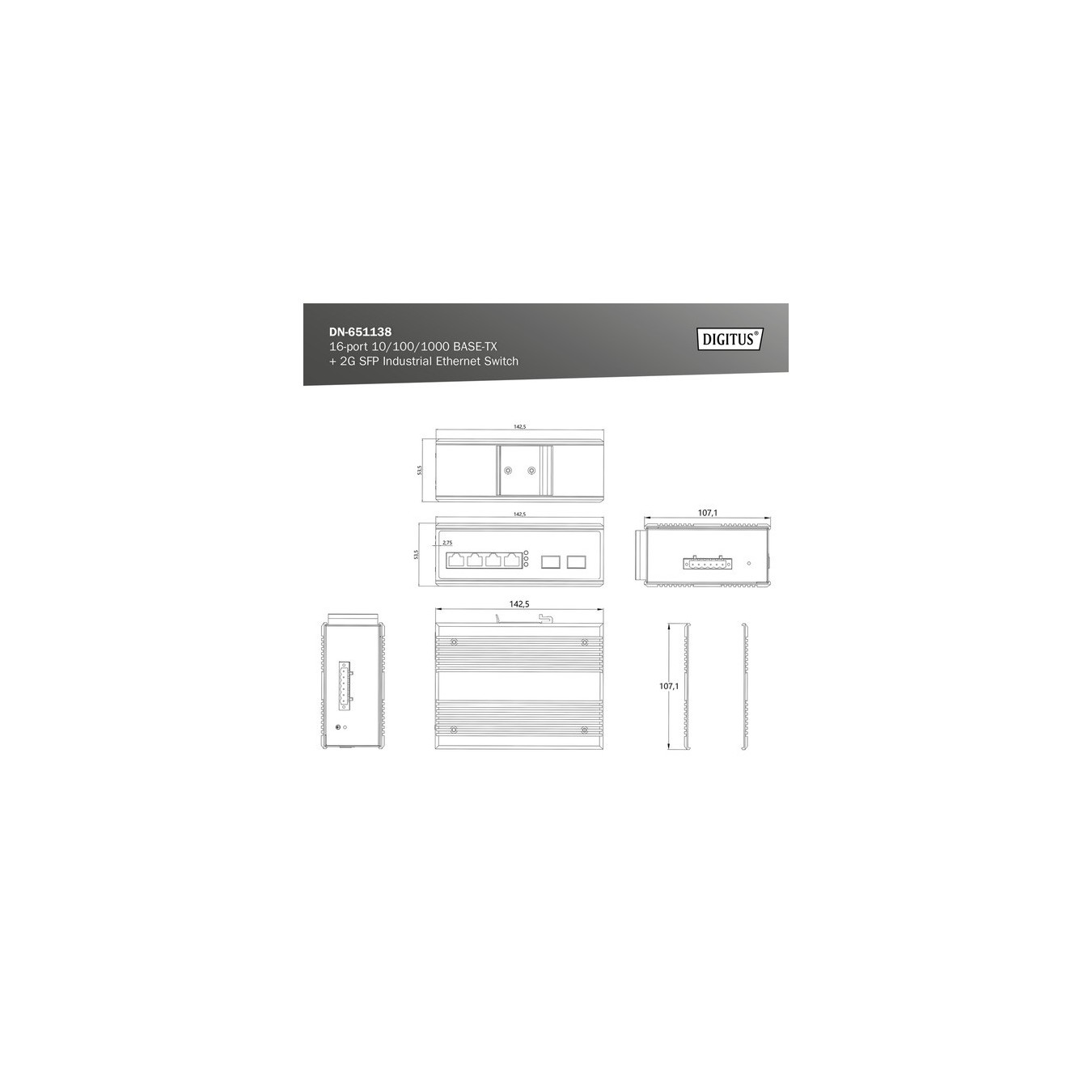

| Dimensions | Width: 175.6mm x Height: 45.5mm x Depth/Length: 135mm |
| Weight | 1 kg |
