Adapter Cable SATA 7Pin + 2Pin to SATA 22Pin - SATA 7Pin + 2Pin to SATA 22Pin
Delock 85240 adapter cable connects a 22-pin SATA device to a free SATA 7-pin port and a 2-pin power connector on the motherboard.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

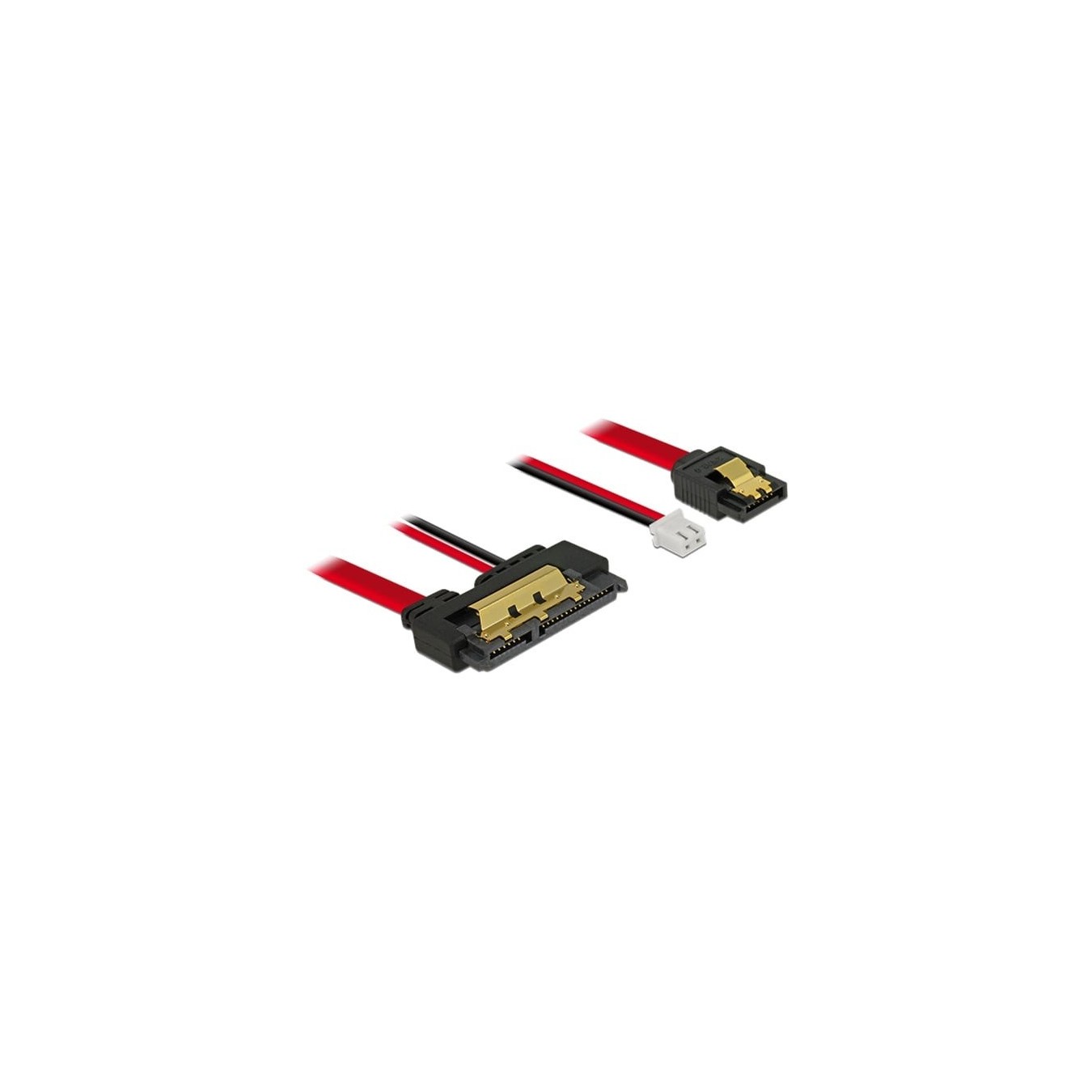

The 85240 cable from Delock is used to connect a device with a 22-pin SATA interface via a free SATA 7-pin port and a free 2-pin power connector on the mainboard, such as the one found on the Banana Pi. The metal clips on the SATA connectors ensure that the cables lock into place reliably.
| Typ | Adapter |
| Color | black/red |
| EAN | 4043619852406 |
| Manufacturer no. | 85240 |
| Application example | For connecting SATA drives with 22-pin sockets to the Banana Pi |
| Area | Power supply |
| Connection - from | 1x 2-pin fan (connector), 1x 7-pin SATA (connector) |
| Protocol | says Ealaal heart I (6,0GG/SS) |
| Cable cross section | 20 AWG |
| taps | 3 |
| Characteristics | intern |

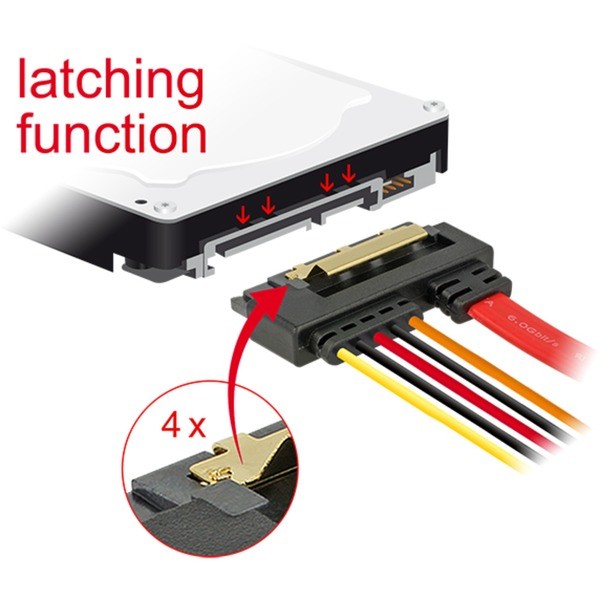

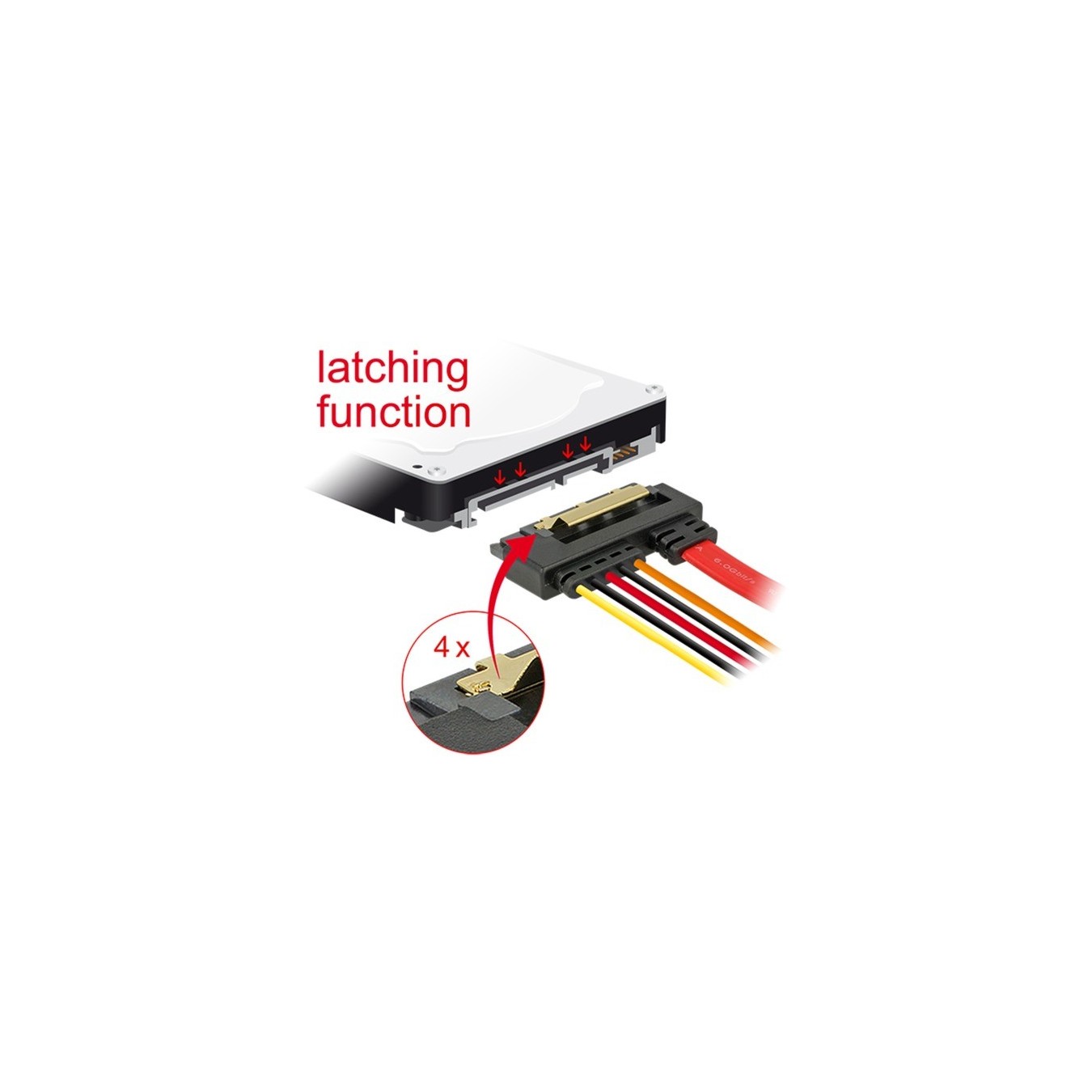

| Feature | SATA connector with snap-in function |
| More information | Downward compatible with SATA 1.5Gb/s and 3Gb/s, voltage: 5V, wire cross section: 26 AWG data line, 20 AWG power line |
| Cable length | 20 cm |
