PCI Express x8 Card - 4 x Internal SFF-8643 NVMe LP - Controller
Delock PCIe card with 4x internal SFF-8643 ports for NVMe drives; NVMe bootable from UEFI 2.3.1; low-profile optional.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

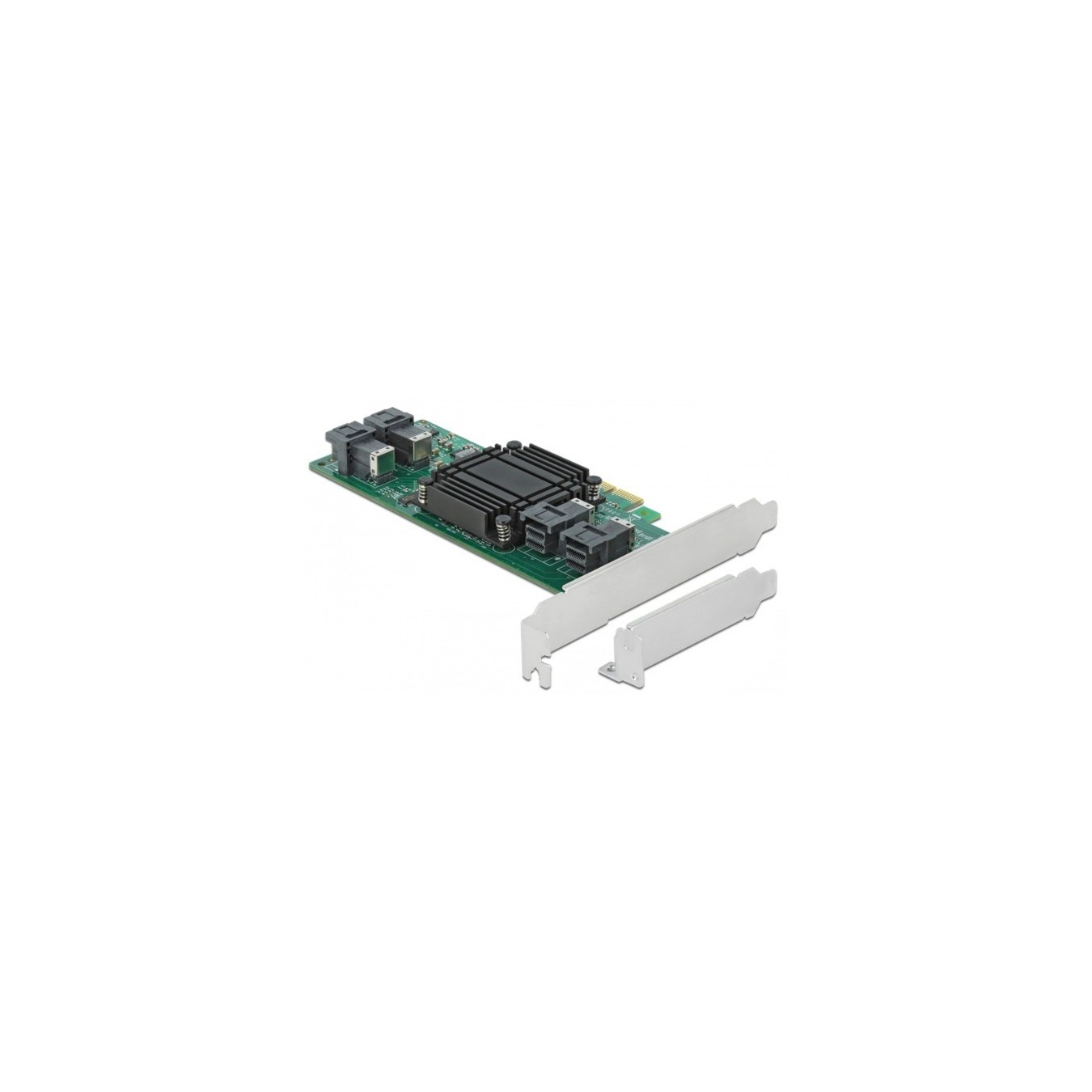

This PCI Express card from Delock expands the PC with four SFF-8643 ports. These ports can be used, for example: B. SSDs with a U.2 connection can be connected using optional cables.
| Typ | Controller |
| EAN | 4043619905850 |
| Manufacturer no. | 90585 |
| Controller Art | M.2 |
| slot | PCIe x8 Version 3.0 |
| Chip | Broadcom PLX8725 |
| Protocol | PCIe x8 |
| Data throughput | 32 GBit/s |
| Connections - internal | 4x SFF-8643 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows 11, Windows Server 2019 |
| Low Profile | optional |
| Feature | Supports NVM Express (NVMe) | Bootable, from UEFI version 2.3.1 | 5 x LED display |
| Accessories - available | PCI Express Card | Low profile bezel | Instruction manual |
