DisplayPort Ribbon Cable 8K 60Hz
Delock 81006 DisplayPort ribbon cable, 2 m long, for connecting DisplayPort devices (monitor, projector, TV) to a PC or notebook.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

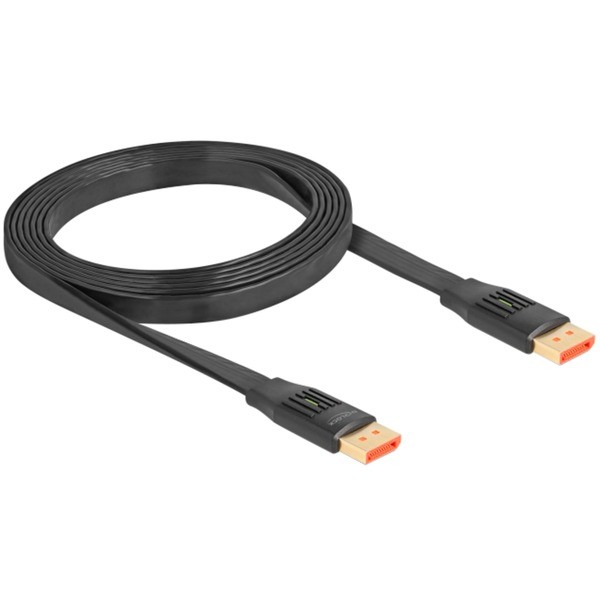

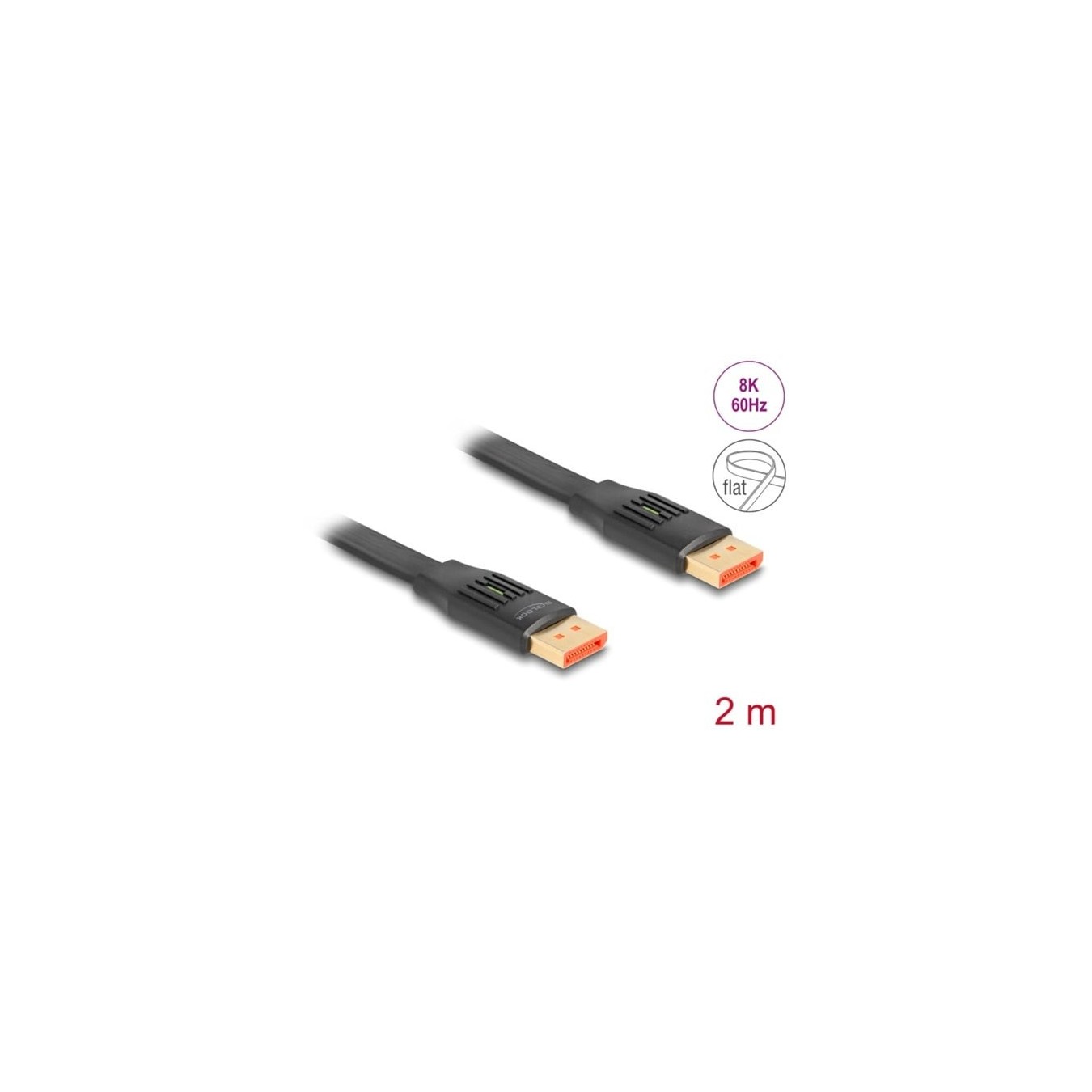

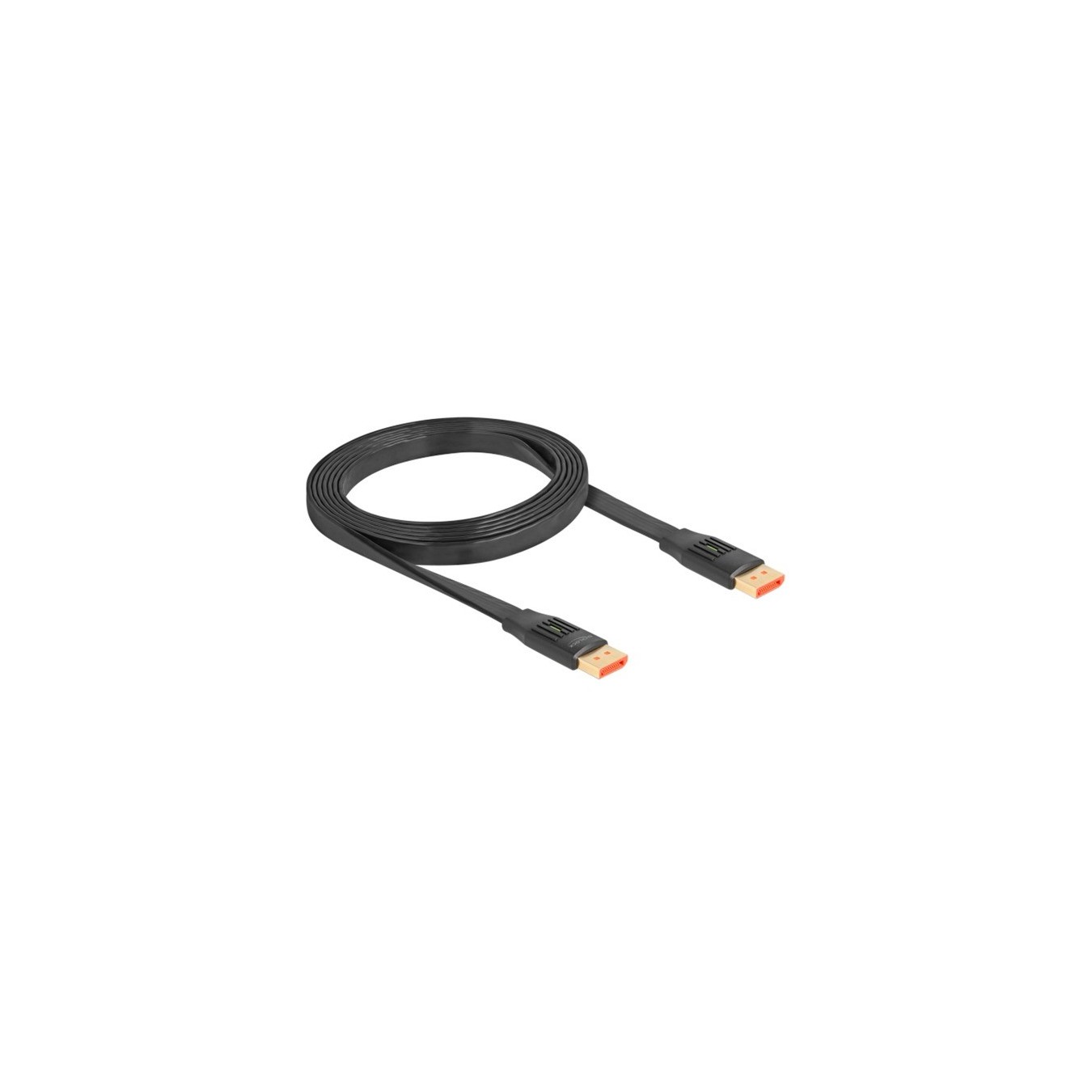

The DisplayPort ribbon cable 81006 from Delock is used to connect devices with a DisplayPort interface, such as screens, projectors or televisions, to a PC or notebook with a DisplayPort socket. The flat cable is only 2.3mm high and can be laid to save space. Supporting a bandwidth of 32.4 Gb/s, content can be played back in 8K Ultra HD (7,680 x 4,320 @ 60Hz), 5K (5,120 x 2,880 @ 120Hz) and 4K Ultra HD (3,840 x 2,160 @ 240Hz) resolution. Thanks to the support of HDR, the cable is well suited for use in home cinema areas. The colors are displayed realistically and with impressive depth, and the brightness and contrast of the image are also optimally reproduced. The high-quality ribbon cable also significantly improves the quality of audio transmissions thanks to the sampling rate of up to 1,536 kHz. It is backwards compatible with DisplayPort 1.3, 1.2 and 1.1.
| Typ | Cable |
| Color | schwarz |
| EAN | 4043619810062 |
| Manufacturer no. | 81006 |
| Manufactured in | China |
| Application example | For connecting a TV or projector to a PC |
| Area | Audio / Video |
| Connection - from | 1x DisplayPort (Stecker) |
| Video classification | DisplayPort 1.4 |
| Cable cross section | 28 AWG |
| taps | 2 |
| Characteristics | extern |
| Feature | Copper cable, contacts and connectors gold-coated, transmission of audio and video signals |
| More information | Cable dimensions approx. 2.3 x 13mm, pin 20 not connected, data transfer rate up to 32.4 Gb/s, supports Display Stream Compression 1.2 (DSC), HDR10, HBR3 (8.1 Gb/s) data rate, HDCP 1.4 and 2.3, up to 32 audio channels for speakers, up to 1,536 kHz audio sampling rate, supports color sampling in the formats 4:4:4, 4:2:2 and 4:2:0 |
| Notice | Resolution up to 7,680 x 4,320 @ 60Hz (monitor with DSC support), up to 7,680 x 4,320 @ 30Hz (monitor without DSC support) |
| Cable length | 2 Meter |
