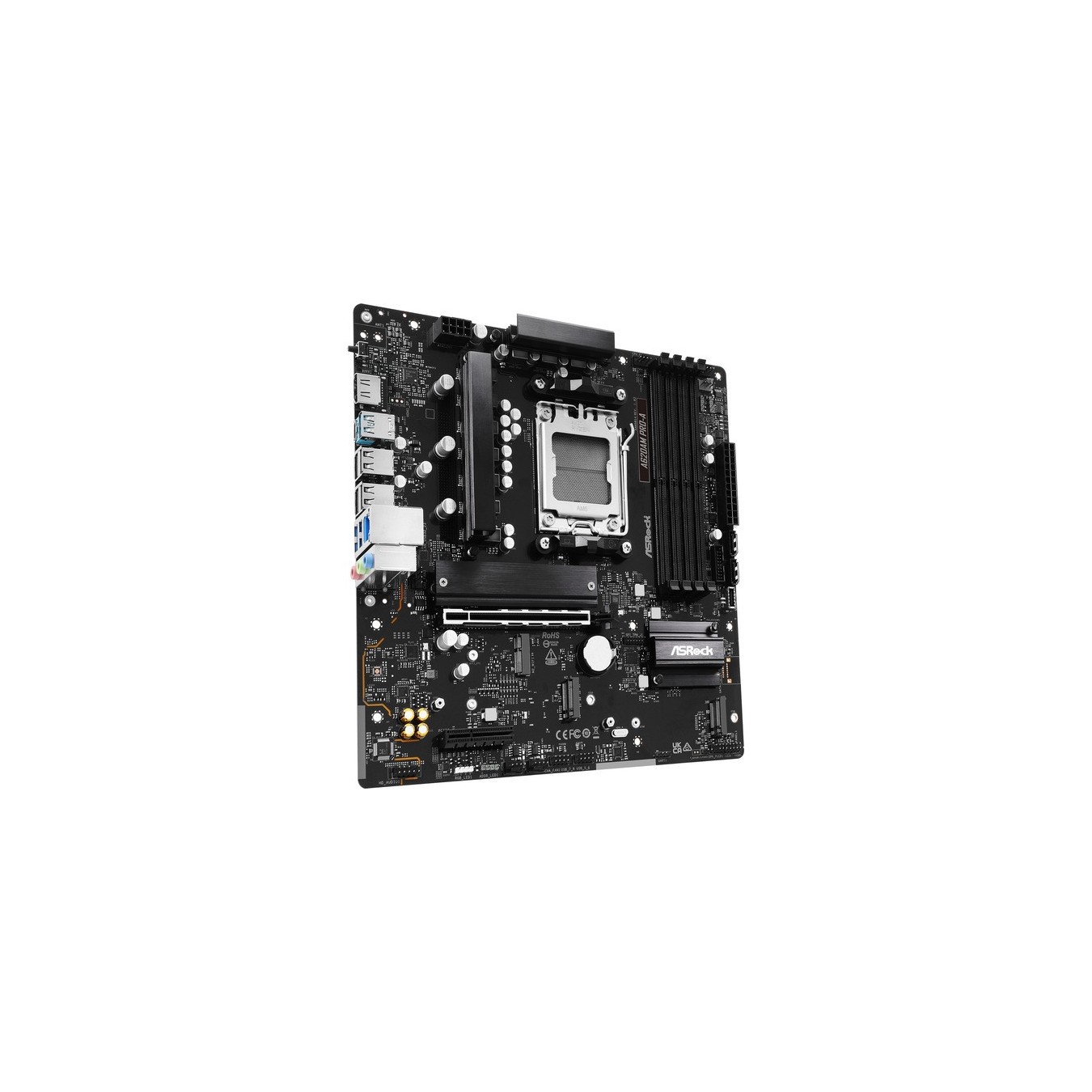

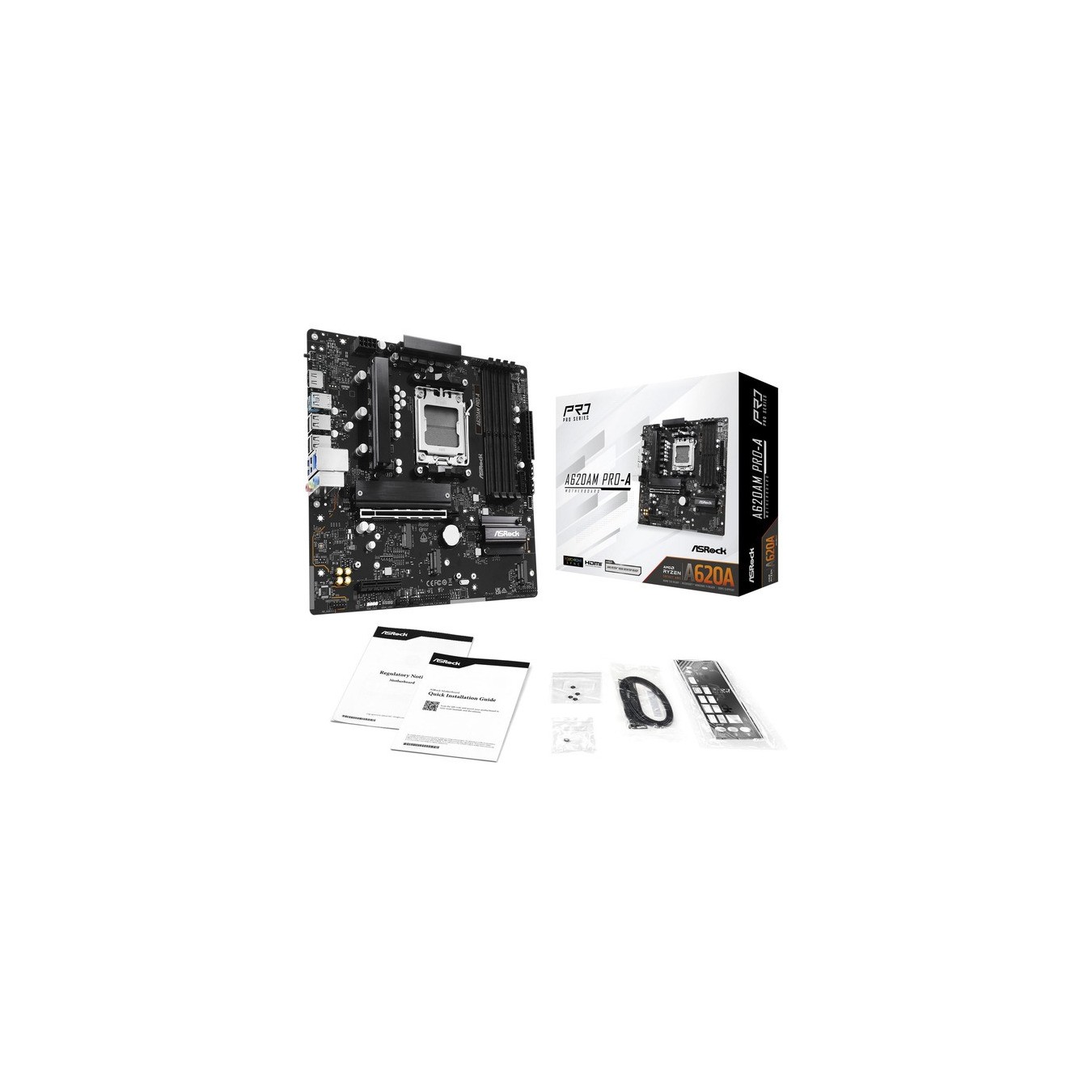

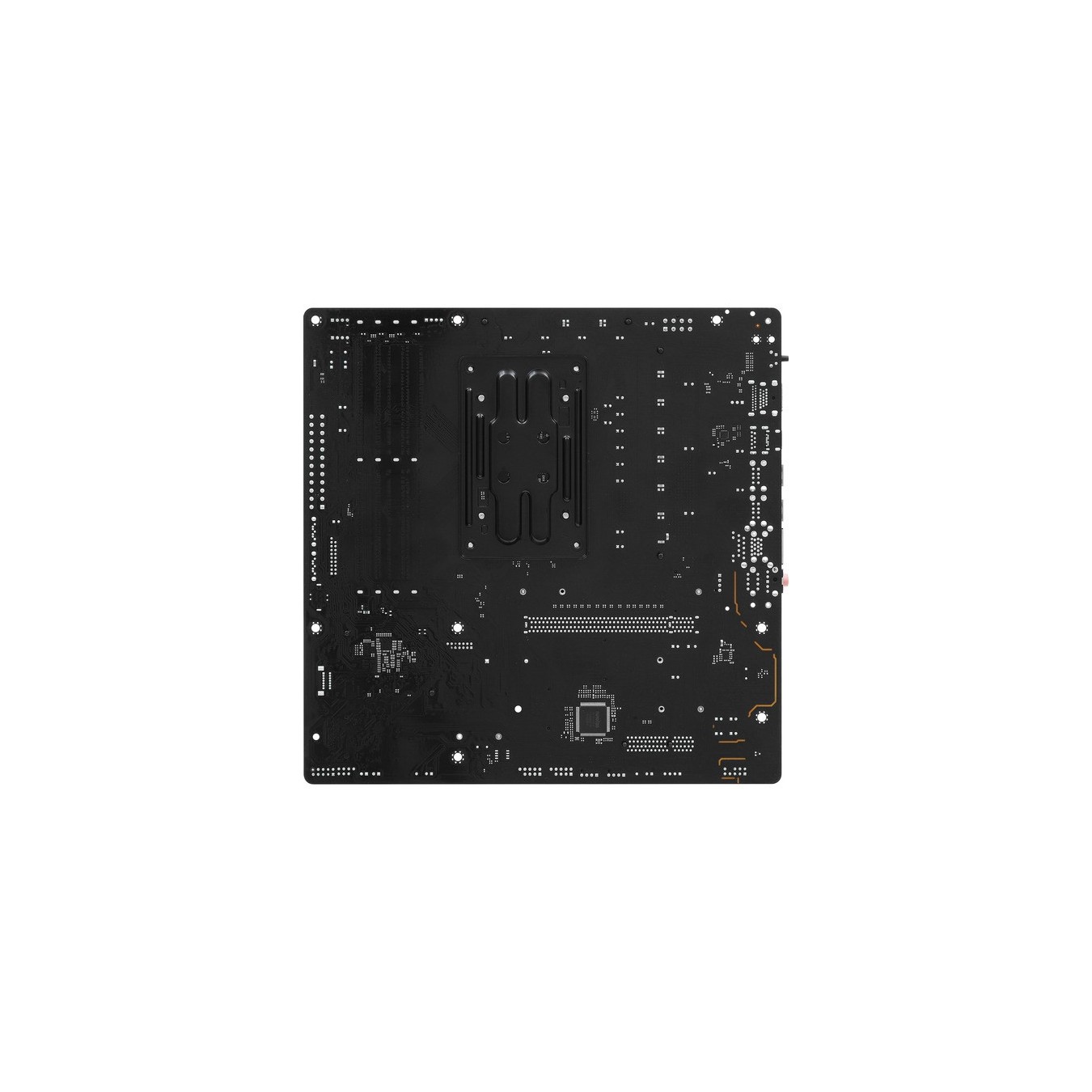

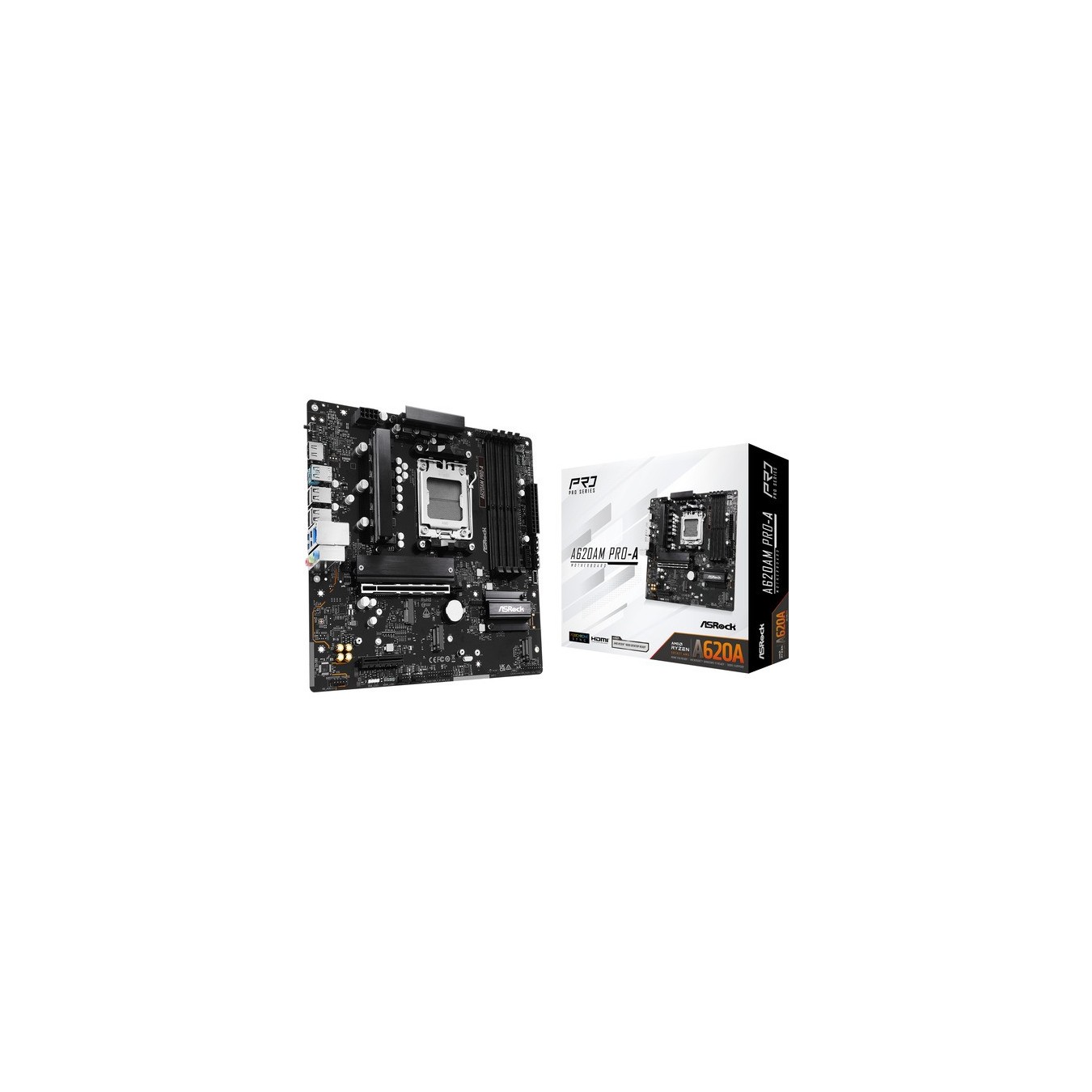

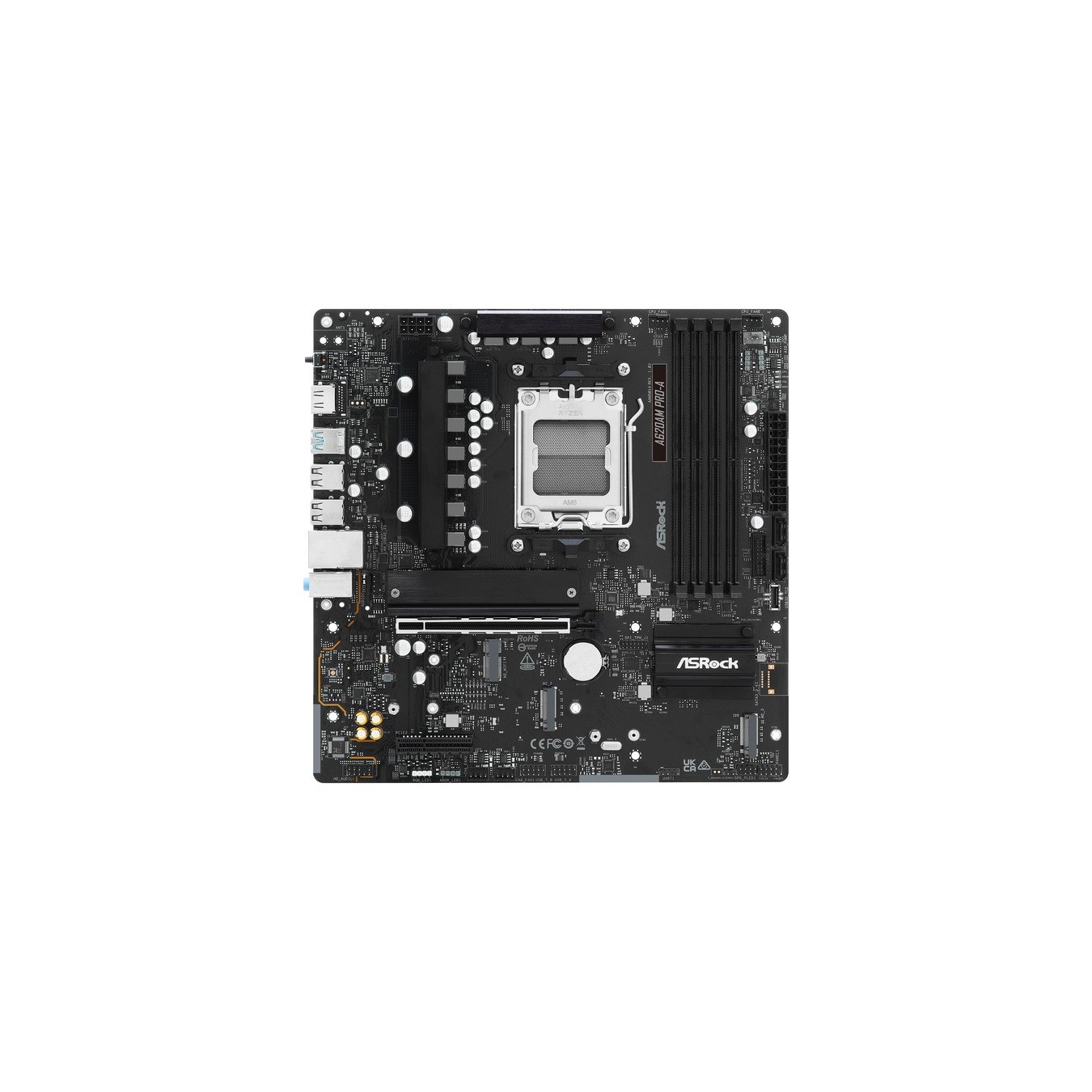

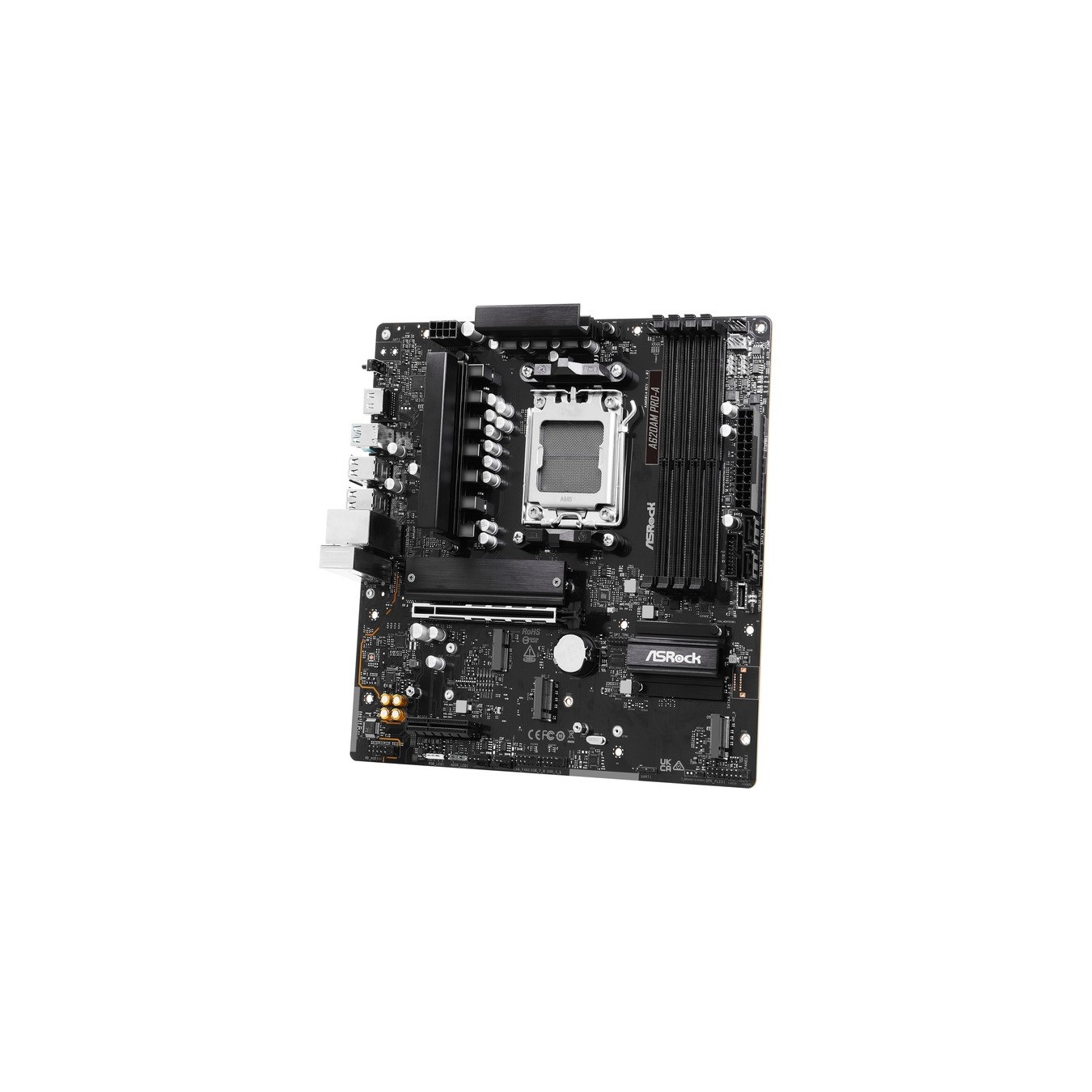

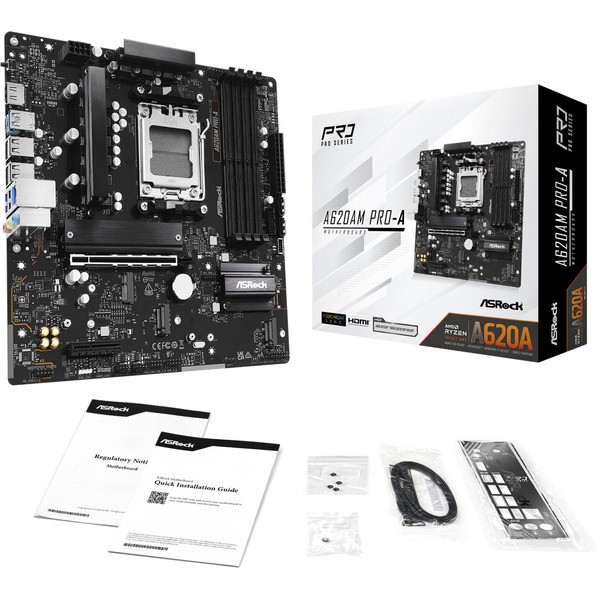

ASRock Mainboard - A620AM PRO-A - Mainboard
ASRock A620AM PRO-A micro-ATX mainboard with AMD A620 chipset, AM5 socket, 4x DDR5 slots up to 256 GB, USB-C, Realtek RTL8125BG LAN, Realtek ALC897 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - SATA Ports | 2 |
| Motherboards - USB-C Support | Rear Type-C |

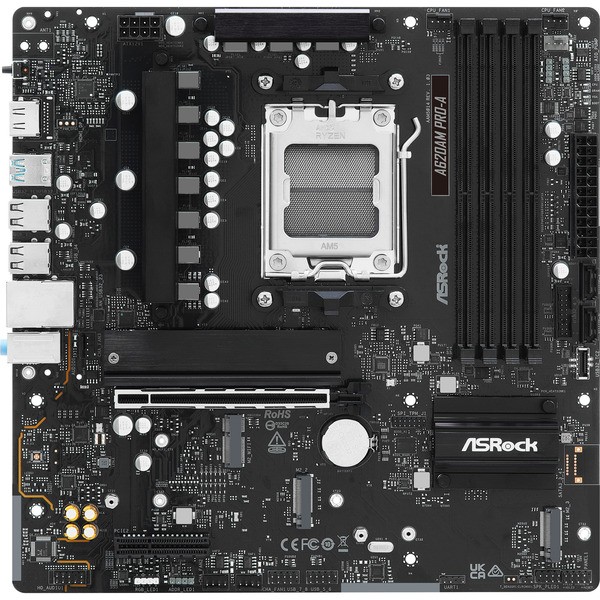

The ASRock A620AM PRO-A is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The ASRock A620AM PRO-A's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x4 slot (x2 lanes). The ASRock A620AM PRO-A also has 8-channel sound, a 2.5 Gigabit LAN interface, two SATA3 ports, three M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4711581490963 |
| Manufacturer no. | 90-MXBSX-A0UAYZ |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD A620 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| BIOS | 256Mb AMI UEFI |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 256 GB |

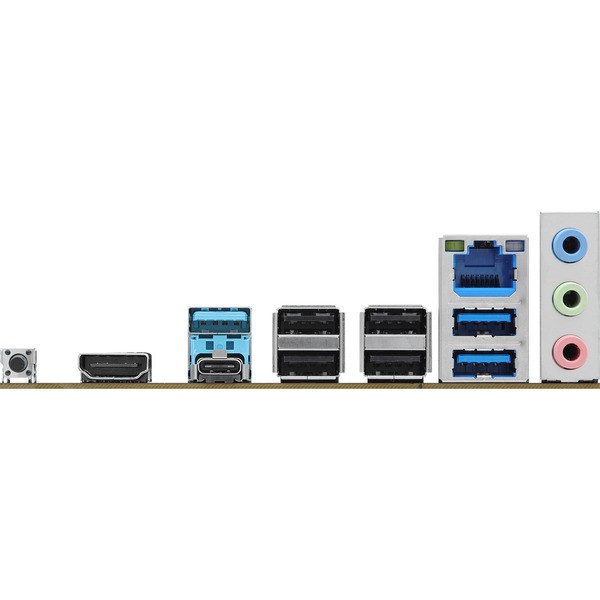

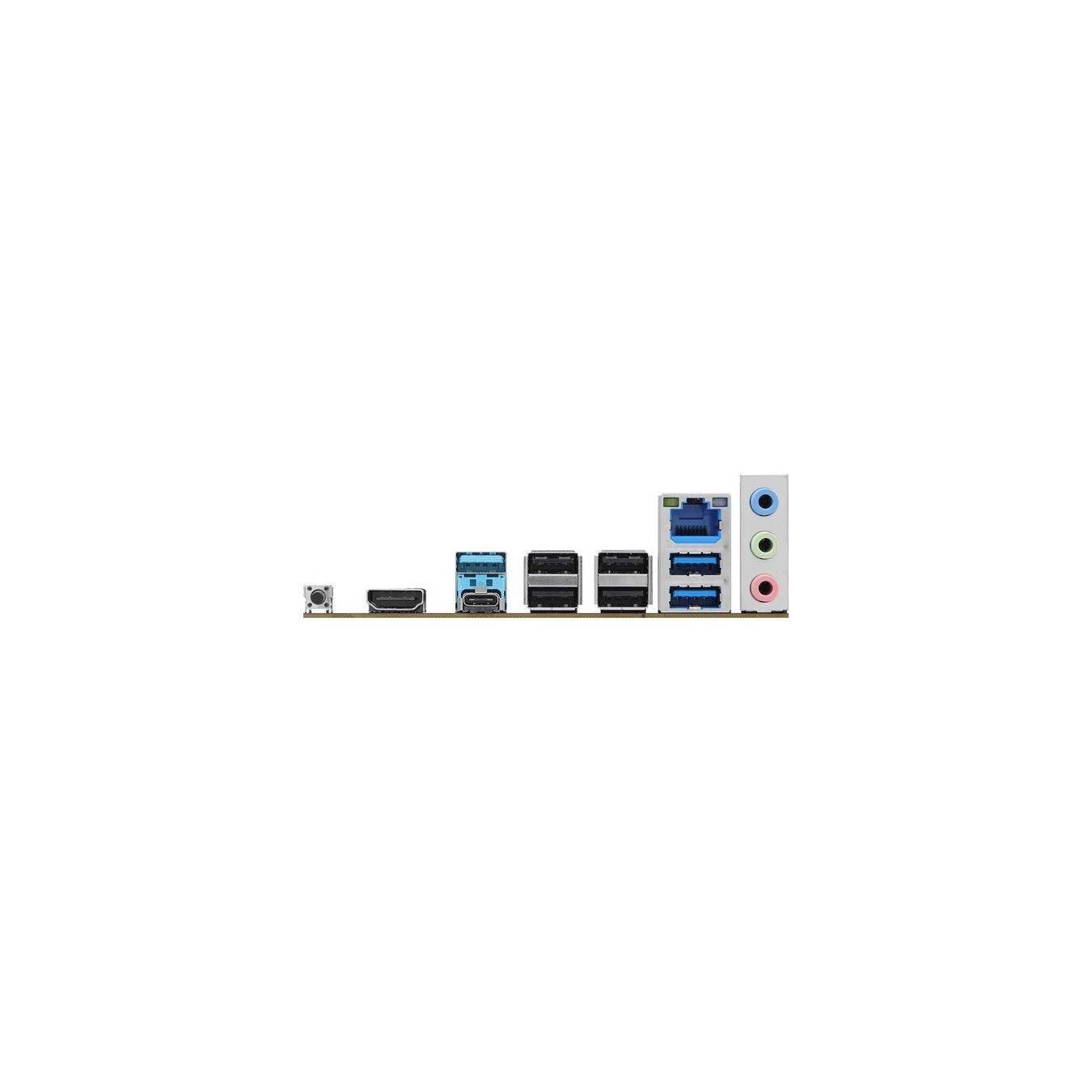

| Ports (external) - USB-C 3.2 Gen 1 (5 Gbit/s) | 1 |
| Connectors (internal) - SATA | 2 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| RGB Standard | RGB LED |
| SATA Controller | AMD A620 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD A620 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Realtek RTL8125BG |
| Features | In order to support the latest processor cores, a BIOS update may be required. |
