PCI Express card - 2 x serial RS-232 + 1 x parallel IEEE1284, interface card
Delock PCIe card adds two external RS-232 serial ports and one IEEE1284 parallel port, expanding PC connectivity for scanners, printers, mice, and more.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

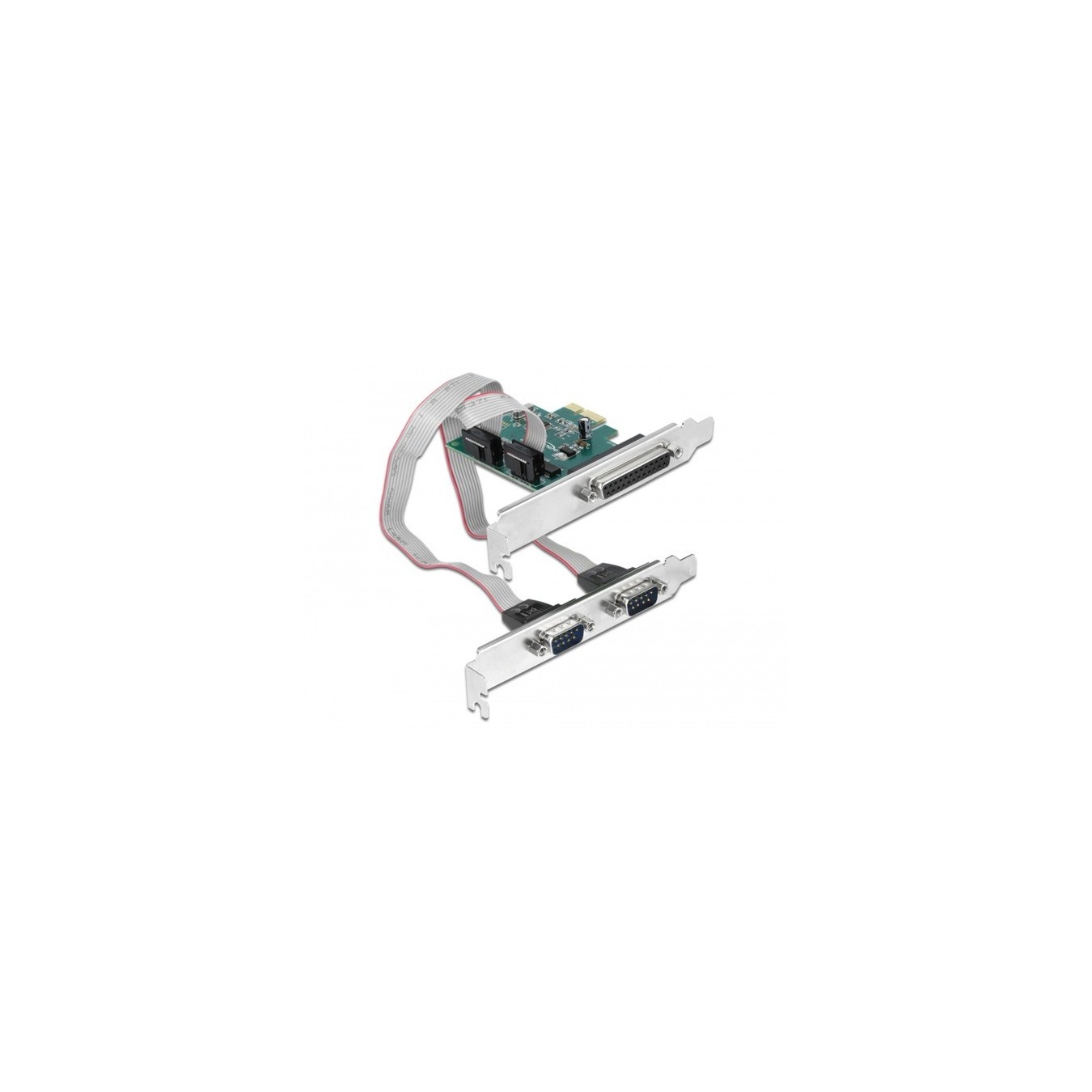

The Delock PCI Express card expands the PC with two external serial ports and one external parallel port. Various devices can be used, such as: E.g. scanners, printers, mice, etc., can be connected to the card.
| Typ | Interface card |
| EAN | 4043619904136 |
| Manufacturer no. | 90413 |
| Controller Art | Parallel, Serial |
| slot | PCIe x1 Version 1.1 |
| Chip | Wch ch384l |
| Protocol | PCIe x1 |
| Operating System - Supported | Windows 7, Windows 8, Windows 10 |
| More information | External connections: 2x serial RS-232 DB9 plug (separate slot bracket), 1x parallel DB25 socket, serial specification: data transfer rate up to 460.8 Kbps, FIFO: 256 bytes, compatible with 16C950 UART, parallel specification: data transfer rate up to 1.5 Mbps, FIFO: 256 bytes, supports SPP, byte and ECP mode |

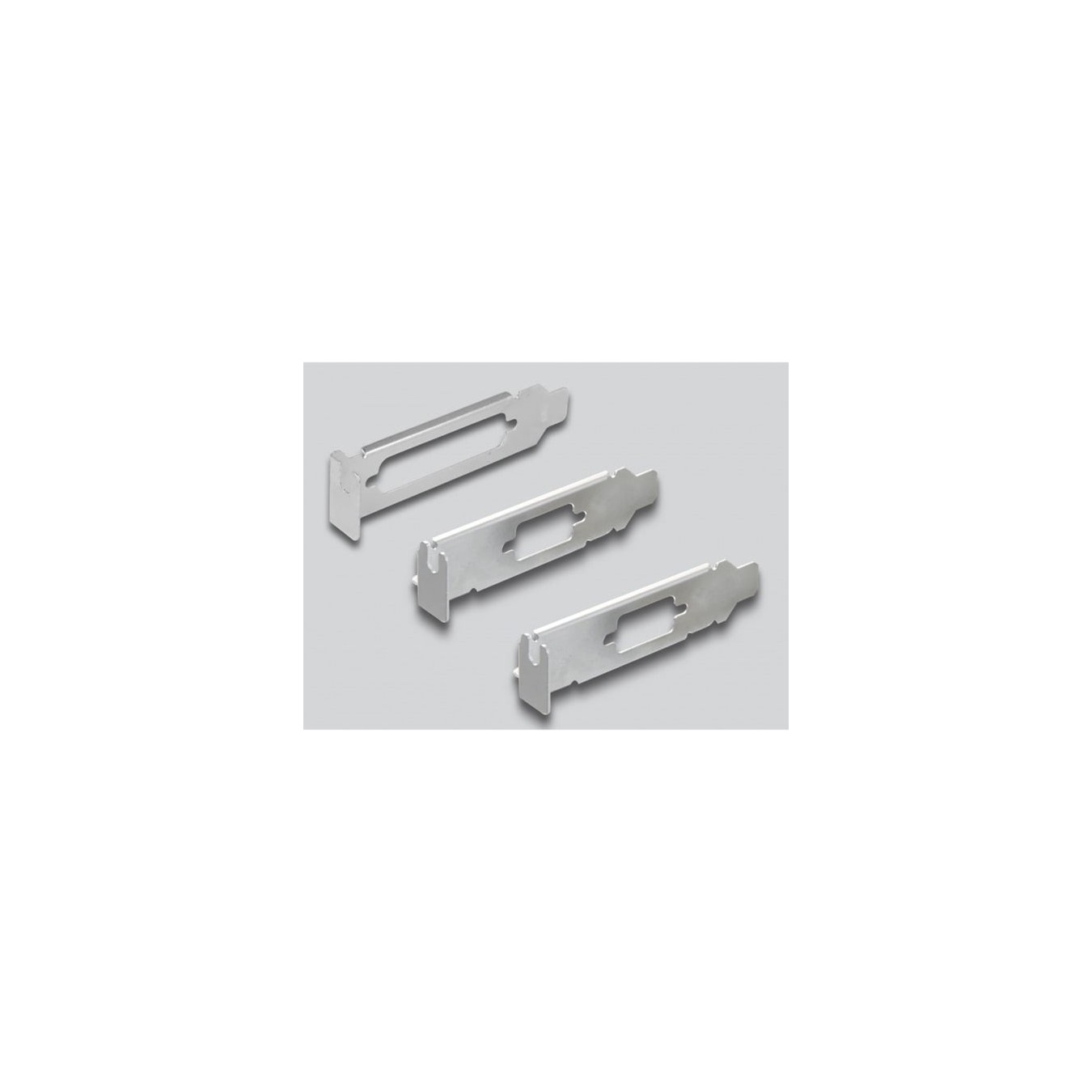

| Accessories - available | Instruction manual, 3x low profile bezel |
| Dimensions | Width: 59mm x Height: 11mm x Depth/Length: 79mm |
| Weight | 177 Gramm |
