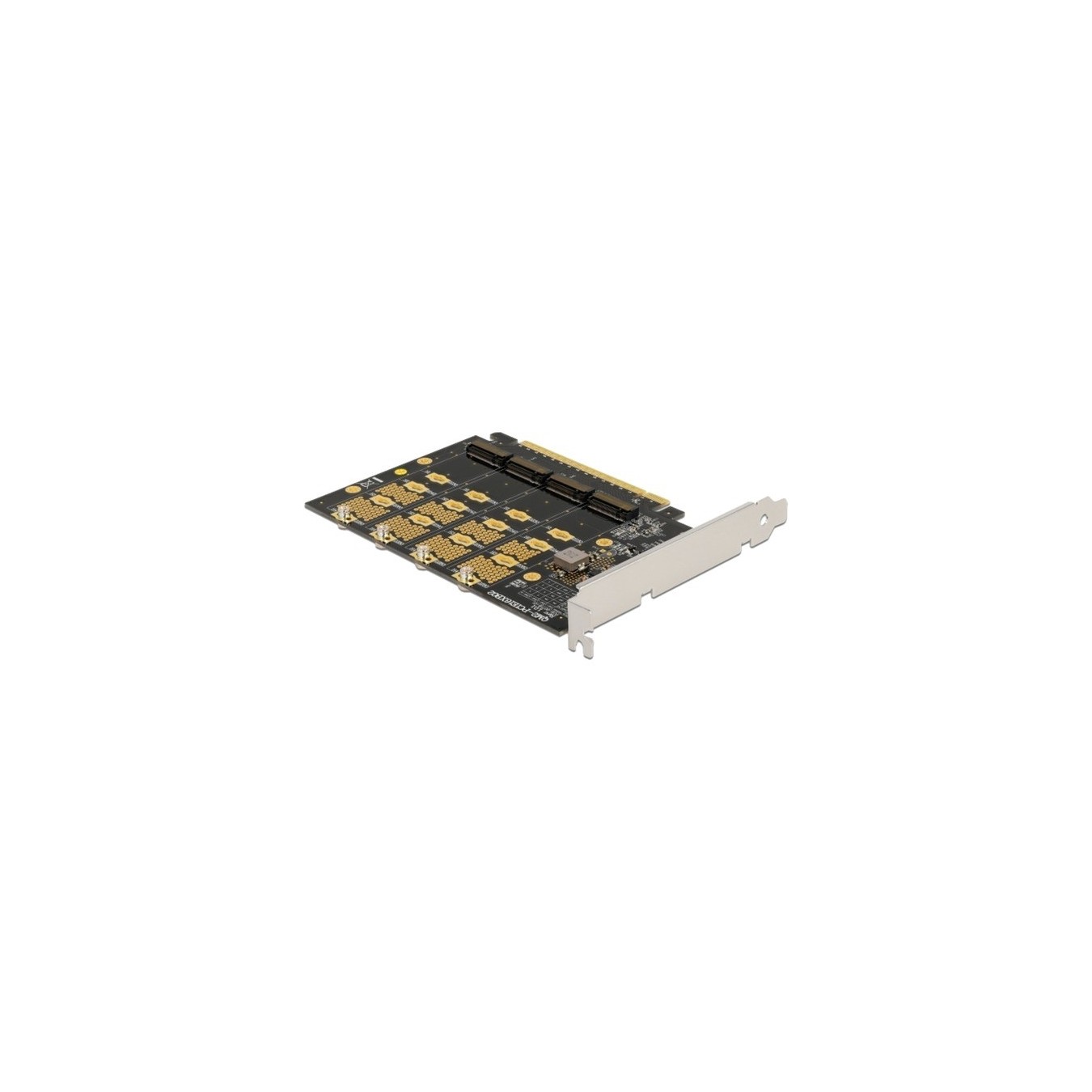

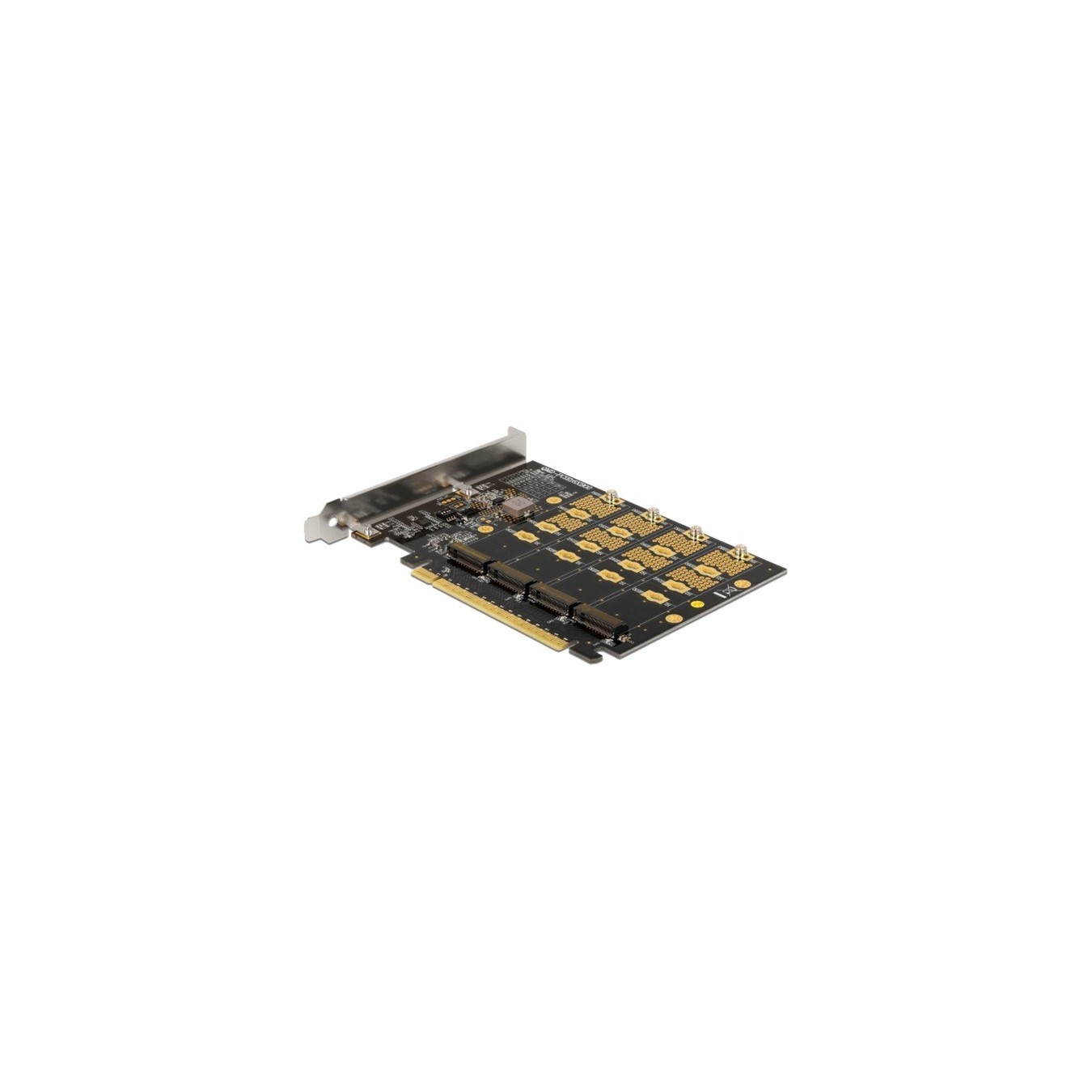

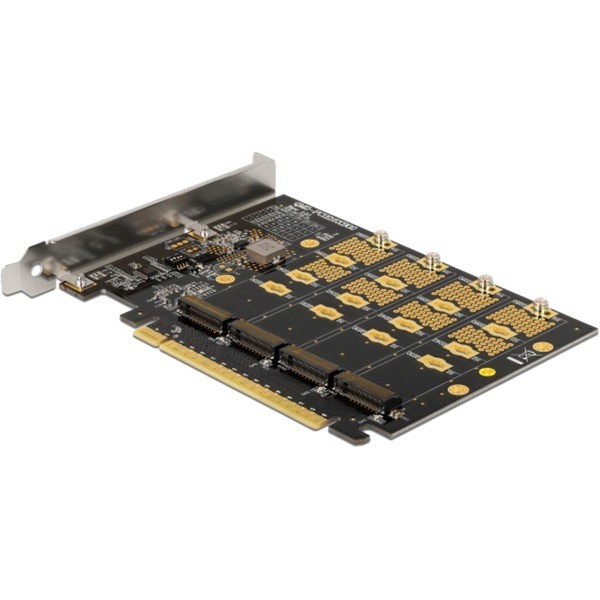

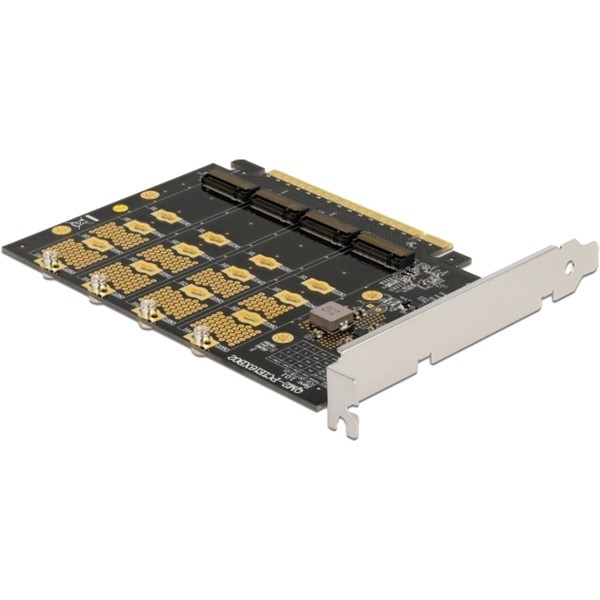

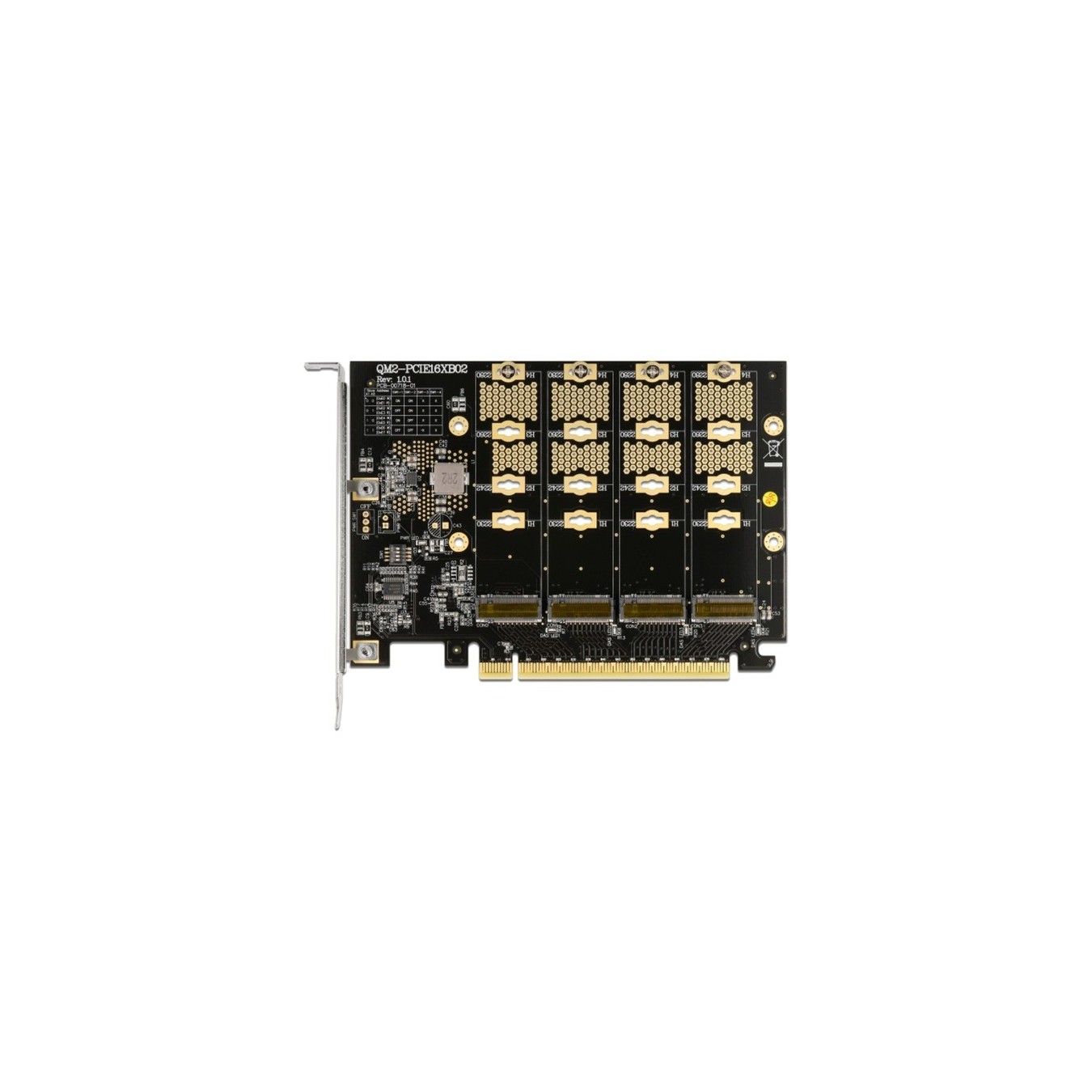

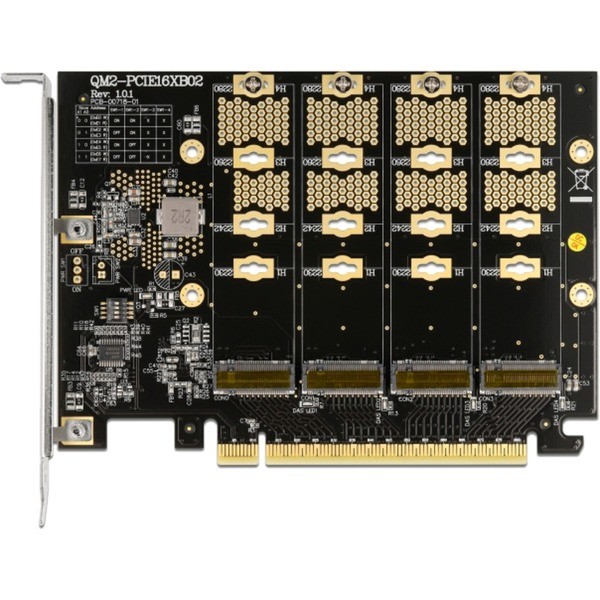

PCIe 16x Card to 4x Internal NVMe M.2, Controller
Delock PCIe card adds four internal M.2 NVMe slots (2280/2260/2242/2230). Requires PCIe bifurcation; without it only the first slot works.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

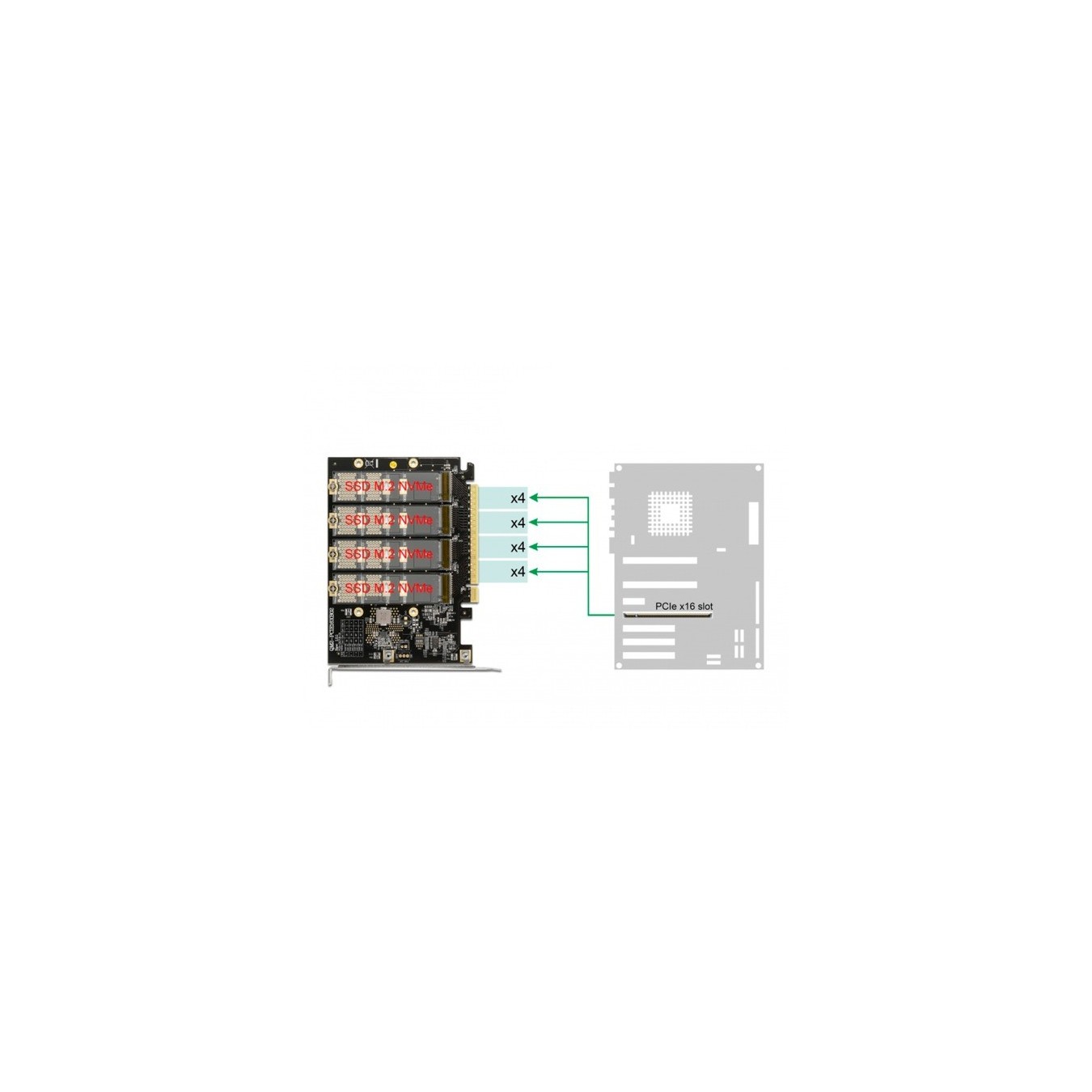

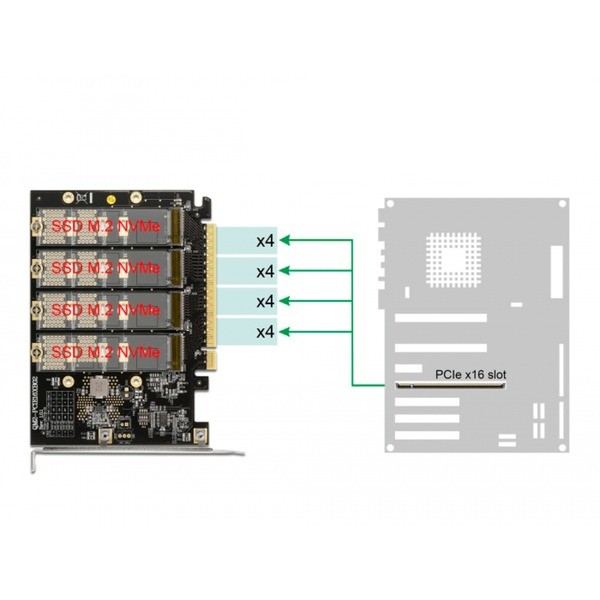

This PCI Express card from Delock expands the PC with four M.2 slots. M.2 SSDs in 2280, 2260, 2242 and 2230 format can be connected to these. The card requires the motherboard's PCIe bifurcation function to split the PCIe signal when multiple slots are occupied by M.2 SSDs.
| Typ | Controller |
| EAN | 4043619890170 |
| Manufacturer no. | 89017 |
| slot | PCIe x16 Version 4.0 |
| Connections - internal | 4x M.2 |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Feature | Supports NVM Express (NVMe) |
| More information | Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key M or Key B+M based on PCIe |
| Notice | Requires motherboard and BIOS with PCIe bifurcation support | Without PCIe bifurcation, only the first M.2 slot of the card can be used. |
