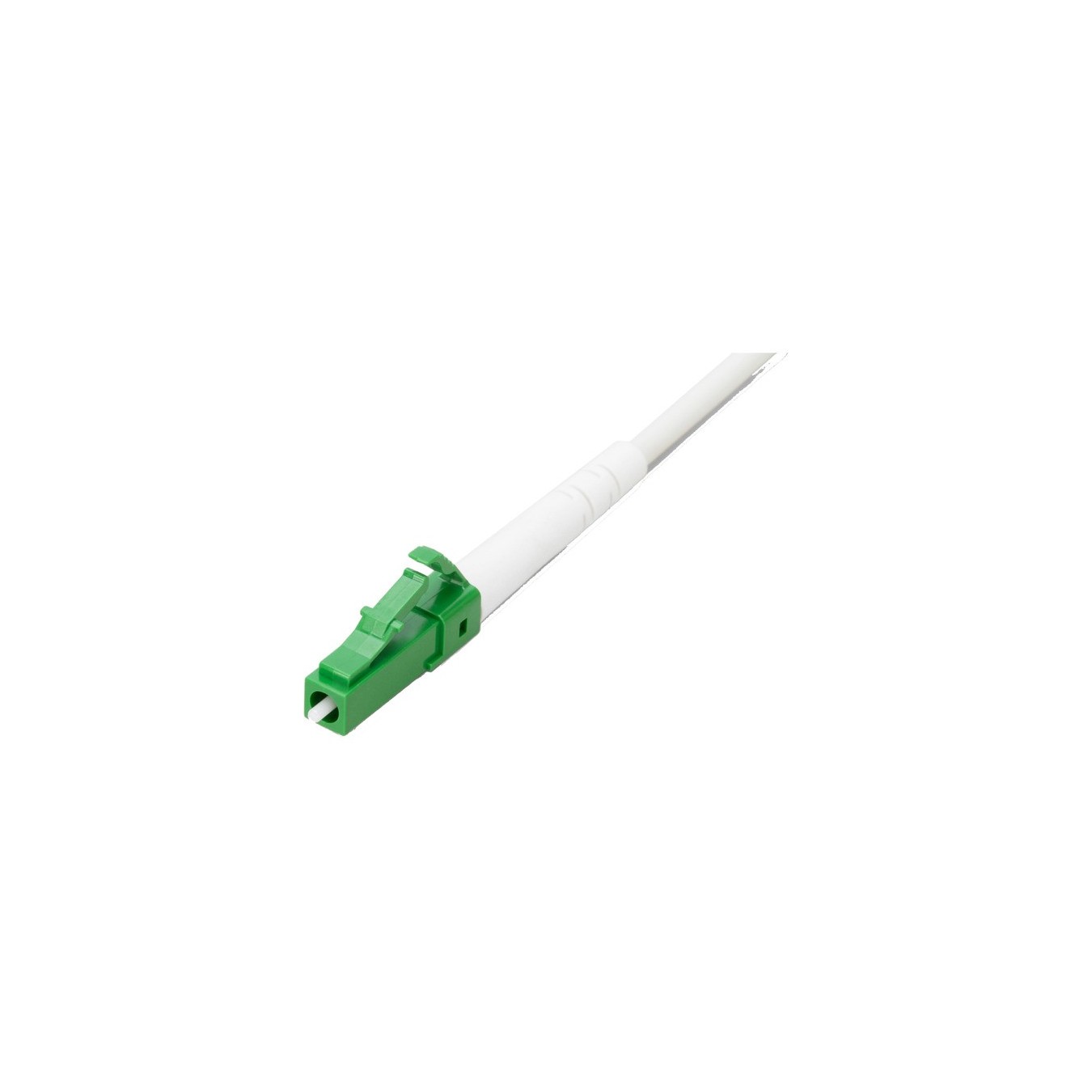

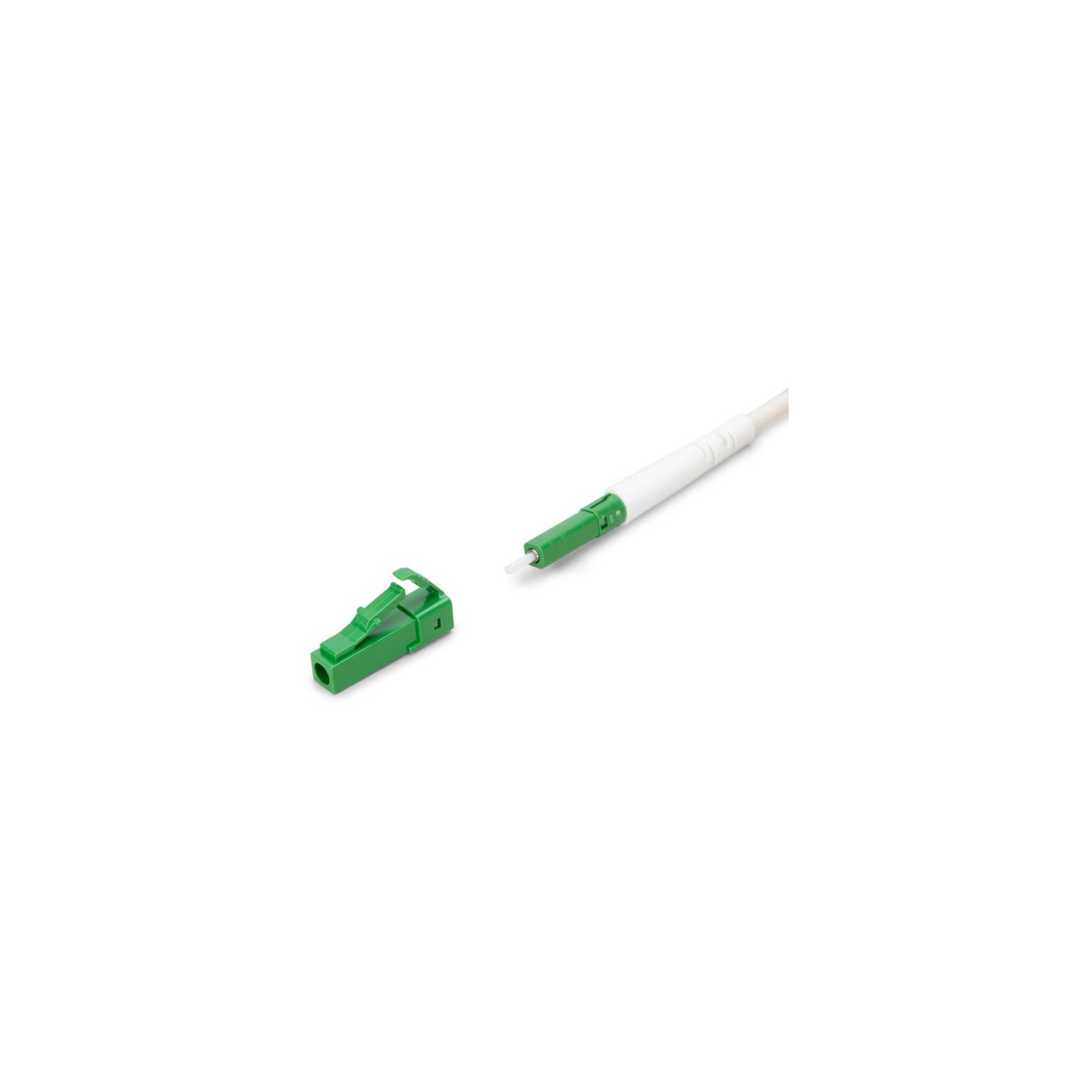

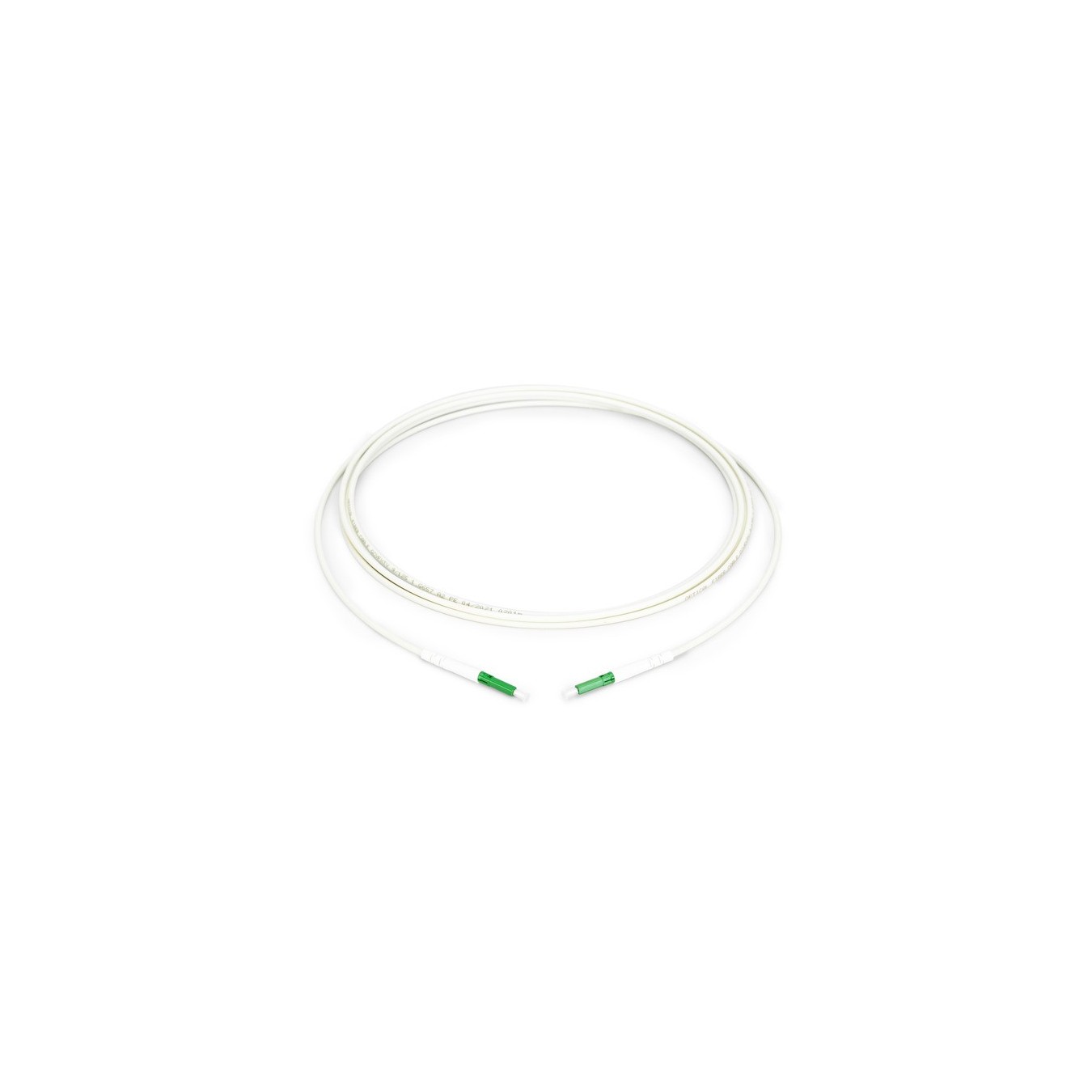

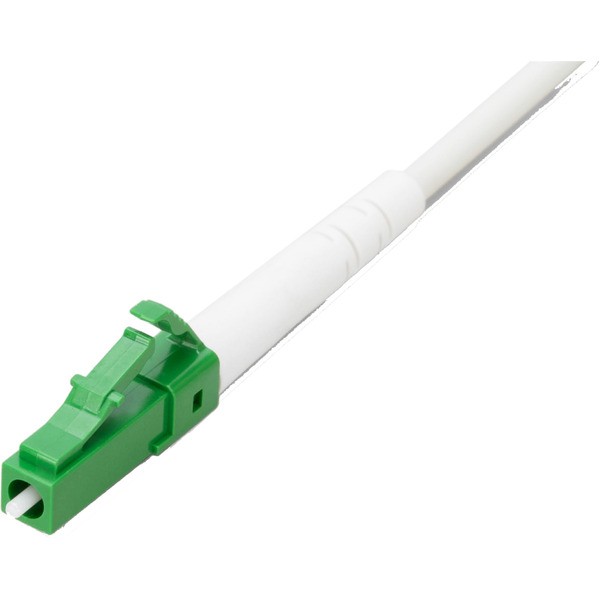

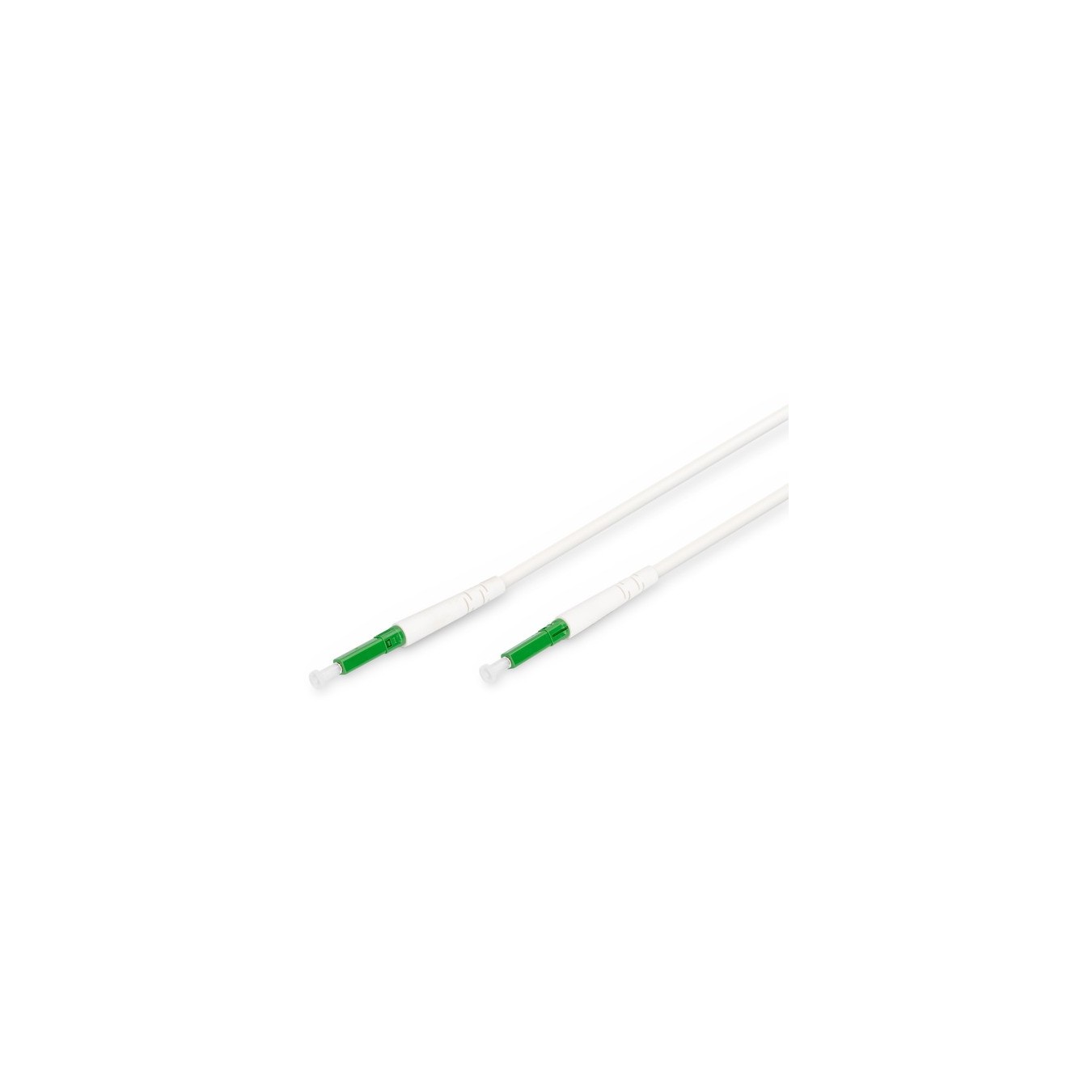

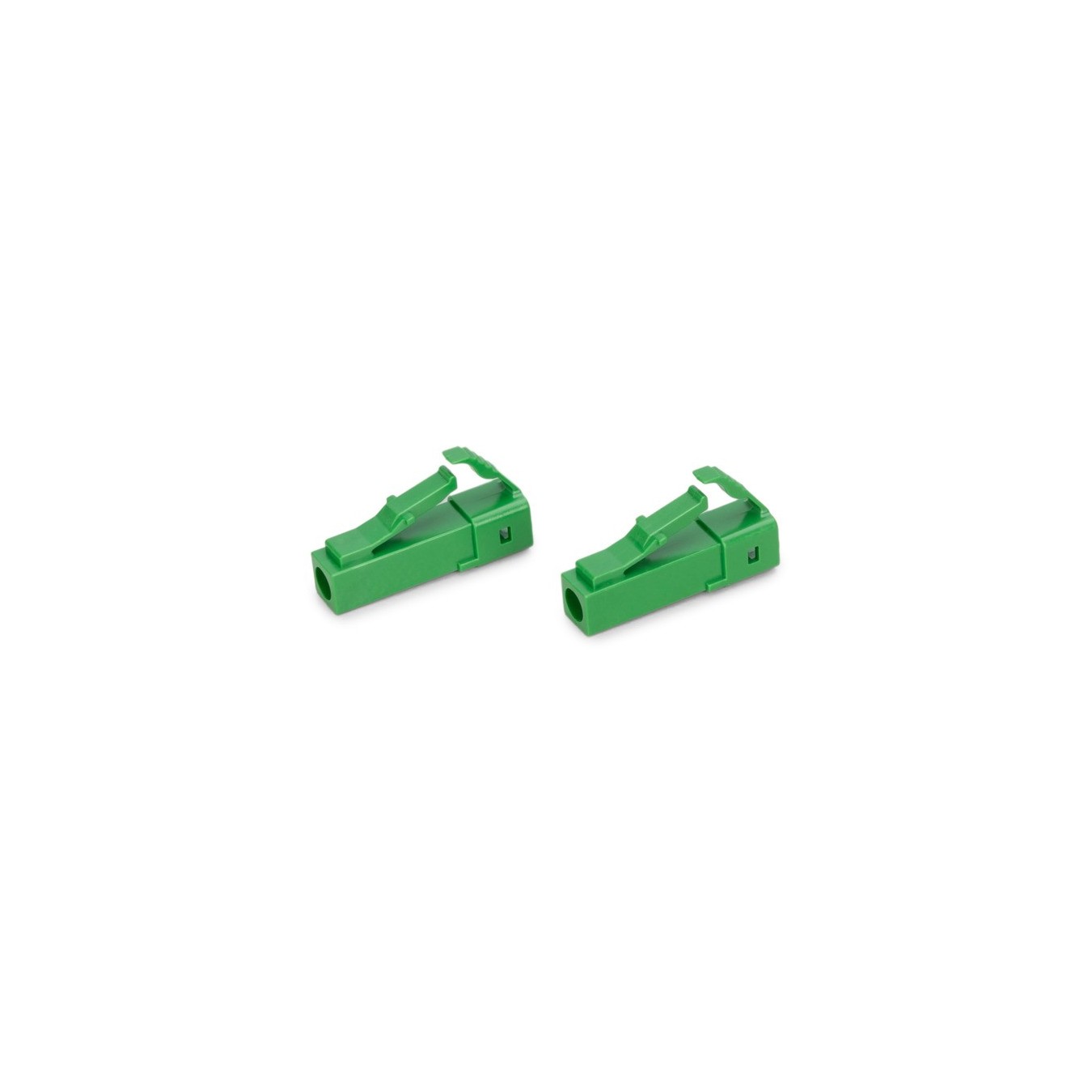

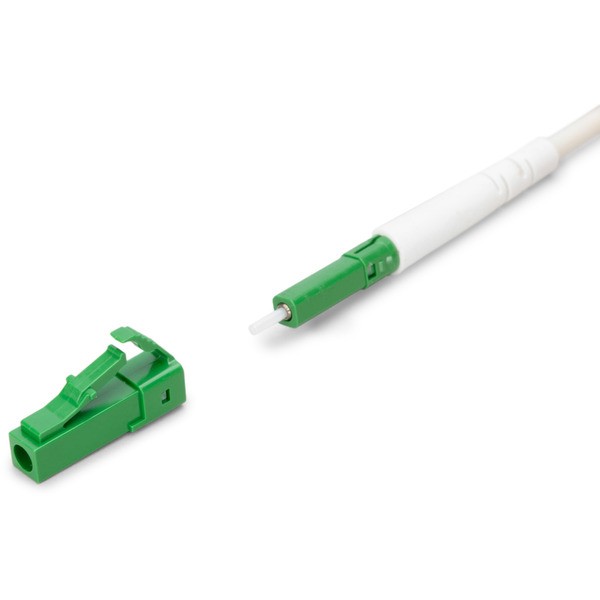

FTTH Drop Cable - air-blown SM 1F LC APC 10m
Air-blown FTTH drop cable for fast installation in microducts; 1F, LC APC connector, 10 m length.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The inflatable cable is a specialized fiber optic cable designed for efficient and quick installation using air pressure inflating technology in microducts. This cable comes with factory pre-terminated, polished connectors, eliminating on-site splicing work and significantly reducing installation time and potential sources of error. It enables fiber optic connections to be laid quickly and without interruption into homes and companies. It ensures high-quality, fast and low-latency connections within complex network infrastructures. The cable offers a future-proof solution for modern fiber optic networks by optimally combining efficiency, reliability and scalability. By using pre-assembled, inflatable technology, installers and network operators can significantly reduce installation times while ensuring long-term stable performance in demanding broadband applications.
| Typ | Cable |
| Color | white |
| EAN | 4016032501244 |
| Manufacturer no. | DK-3901LCA-10 |
| Area | network |
| Connection - from | 1x LC (Stecker) |
| taps | 2 |
| Feature | Connector type: LC/APC, Insertion loss: ≤ 0.3 dB, Return loss: ≥ 60 dB (APC), Minimum bending radius (operation): ≥ 10 mm | Fiber type: Singlemode ITU-T G.657.A2 (insensitive to bending), number of fibers: 1 fiber, outer diameter: 2.8 mm, strain relief / reinforcing elements: aramid yarn (Kevlar), sheath material: PE |
| More information | Blowing capability: Suitable for micro pipes (3.5 mm inner diameter), operating temperature: -20 °C to +60 °C, storage temperature: -40 °C to +70 °C |
| Cable length | 10 Meter |
