LtAP mini - Access Point
Compact, weatherproof wireless access point with integrated LTE antennas (two u.FL cables) and a miniPCI-e slot.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

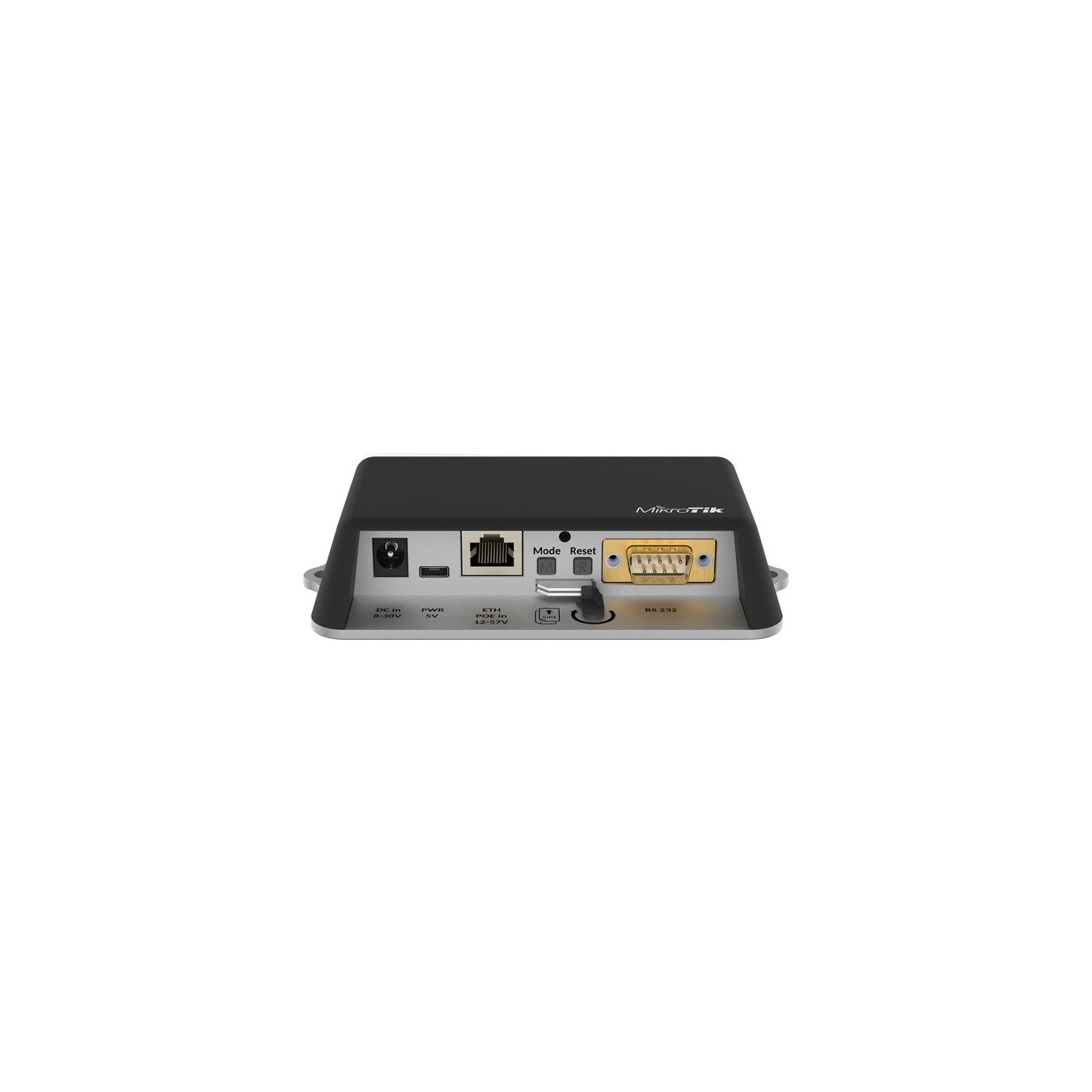

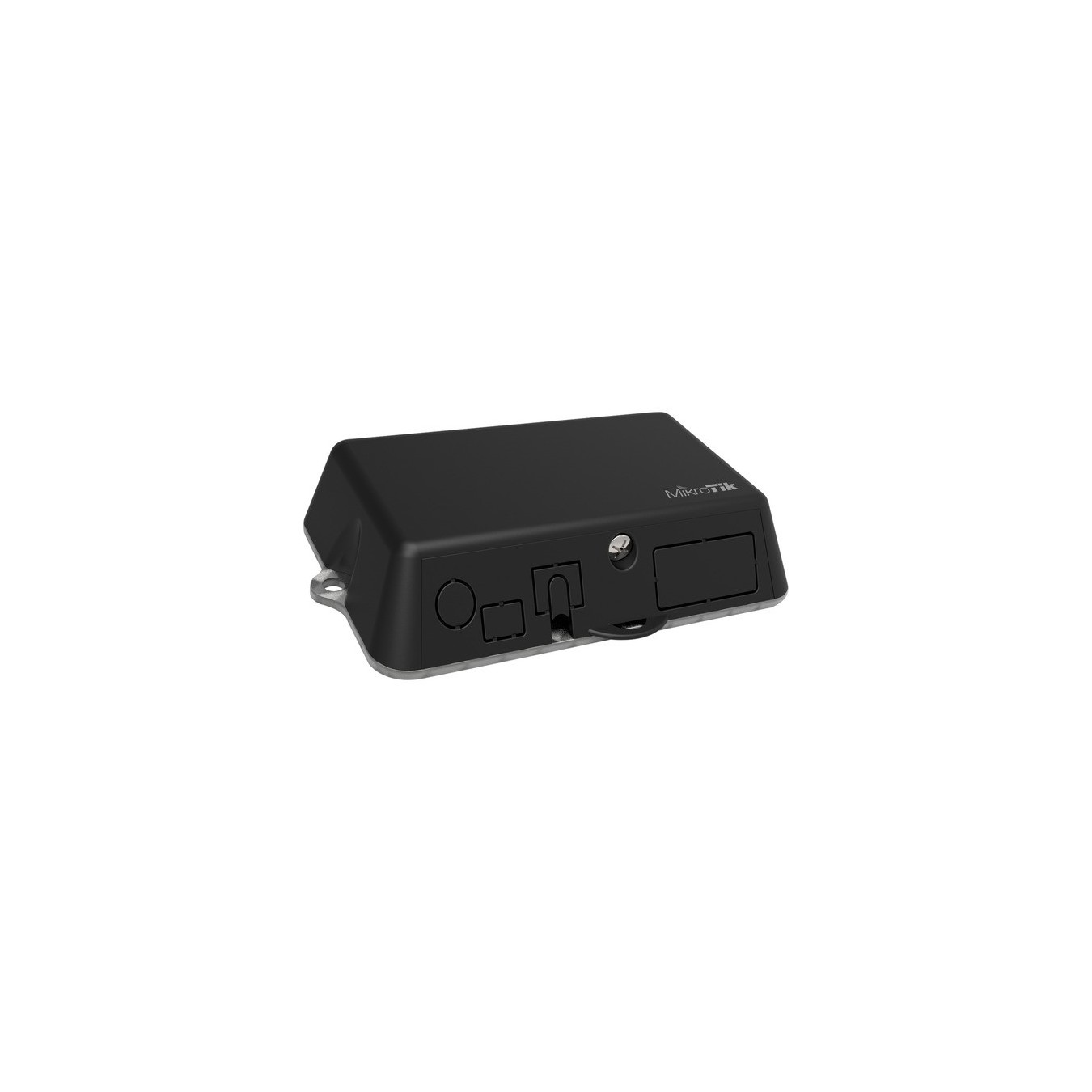

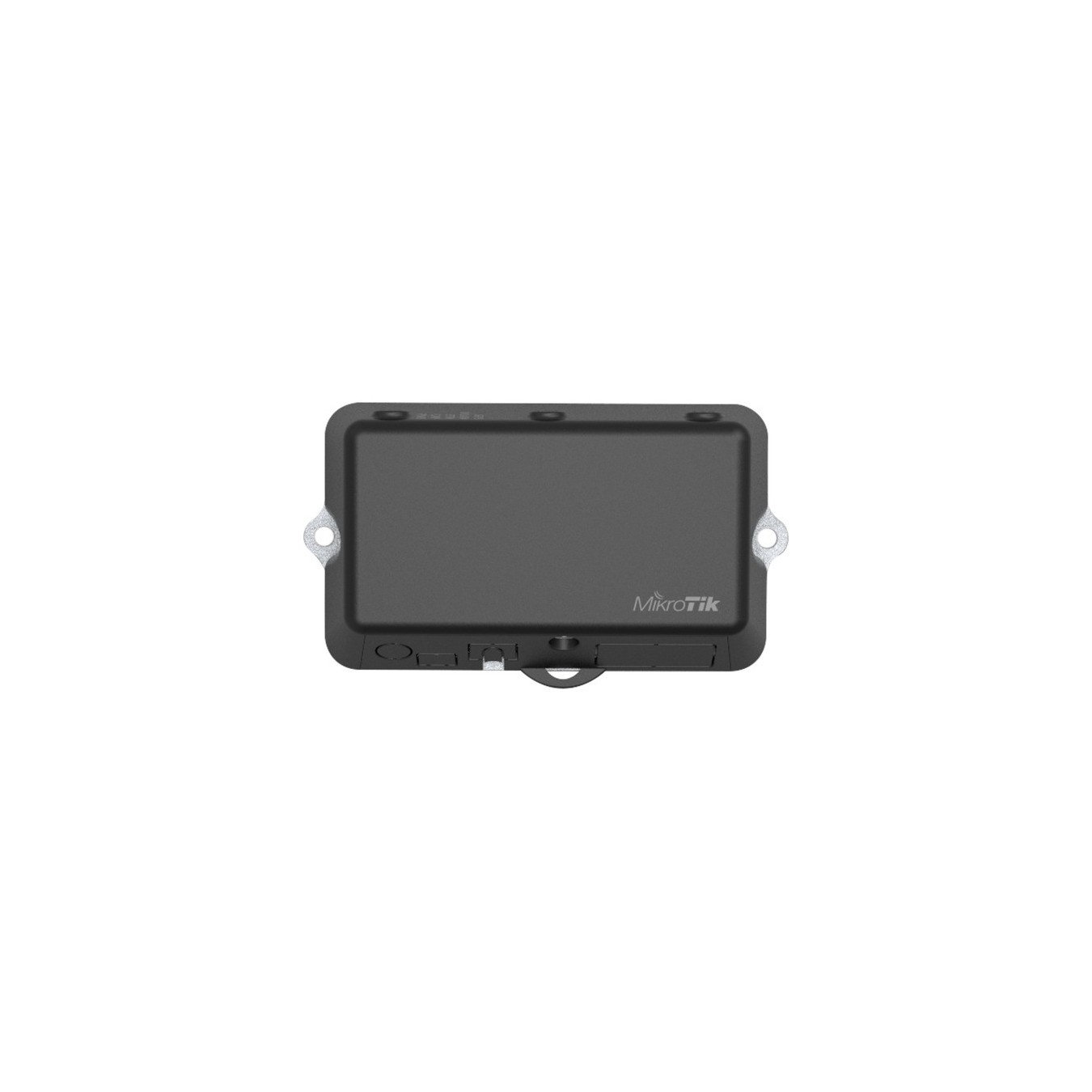

The MikroTik LtAP mini is a small, weatherproof wireless access point with integrated LTE antennas (with two u.fl connection cables) and miniPCI-e slot so that you can use a separate LTE modem. The LtAP mini also has a 10/100 Ethernet LAN port for wired devices. The RS232 serial interface provides easy access to the console for debugging. The access point offers various power options: 12-57V PoE input via the Ethernet port, 8-30V DC jack and 5V Micro USB input. The LtAP mini has a special housing with a wall mount, two SIM card slots for switching between mobile providers and integrated GPS. This makes it ideal for use in vehicles such as cars, buses or trains. With the integrated GPS module you can track the location of a vehicle in real time. An external GPS antenna is available separately (not included).
| Typ | Access Point |
| Color | schwarz |
| EAN | 4752224000637 |
| Manufacturer no. | RB912R-2nD-LTm |
| Design | Wall mounting |
| Area of application | Business |
| Connections - Network | RJ-45 1x (of which: 1x 10/100) |
| WLAN - Standards | Wi-Fi 3 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n) - (2.4 GHz) |
| Hardware - CPU | QCA9531, 650 MHz |
| Memory cards | mini-SIM-Card |
| Control buttons | Mode-Taste, Reset-Taste |
| Power supply | Power supply connection, power consumption operation: 9 W |
| Feature | RouterOS operating system, 2x modem (mini-SIM), GPS, uUFL GPS RF connector type, IP54 |
| More information | DC jack input voltage: 8-30V, PoE input voltage: 12-57V (802.3af/at), Micro USB: 5V |
| Accessories - available | K-55 screw set, external DC cable, PoE injector, 24V 1.2A power supply, elastic thermal pad |
| Dimensions | Width: 139mm x Height: 28.5mm x Depth/Length: 77mm |
