Solar Cable Extension - Ø 4mm2 PV 1,500Volt

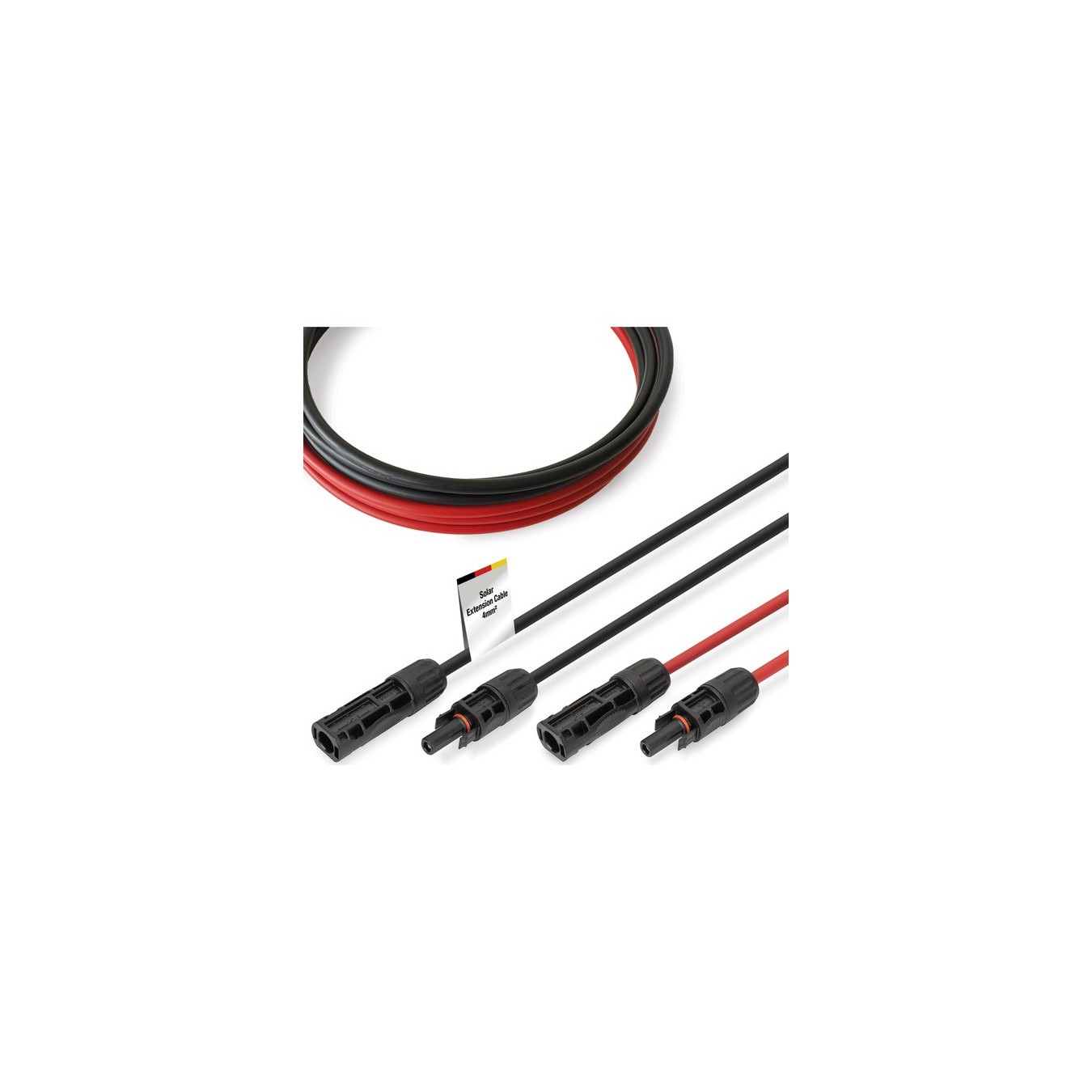

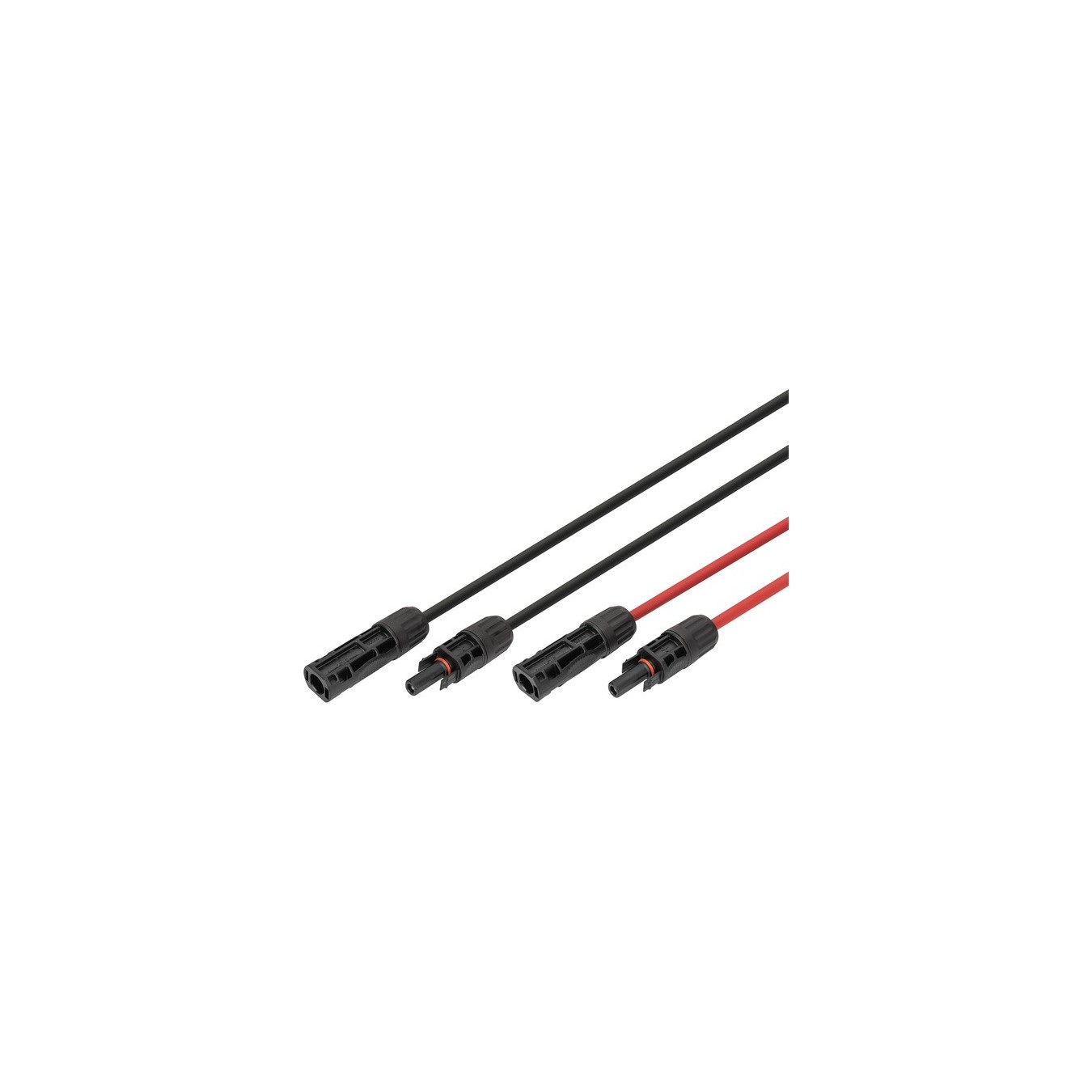

DIGITUS DK-SCEC64-0030 solar extension cables with pre-assembled MC4 connectors at both ends; 3 m length per cable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The high-quality pair of solar extension cables DK-SCEC64-0030 from DIGITUS with pre-assembled MC4 connectors at both ends and 3 meters long each is the ideal plug-and-play solution for all indoor and outdoor photovoltaic projects. With a conductor cross section of 4mm² and a voltage strength of up to 1,500V DC, it is ideal for connecting solar modules, inverters or other PV components. The cable consists of a tin-plated copper conductor, which ensures optimal power transmission and reliable corrosion protection. The durable XLPO insulation and the robust PA66 jacket offer excellent protection against UV radiation, moisture, ozone and mechanical stress. The pre-assembled MC4 connectors mean the cable is ready to use and installs effortlessly, ideal for DIY solar projects or professional PV installations. With an operating temperature range of -40°C to +85°C, flame retardant properties (UL94 V-0) and a contact resistance of 0.509Ω, the cable ensures maximum safety, efficiency and longevity, even in demanding weather conditions.
| Typ | Cable |
| EAN | 4016032501831 |
| Manufacturer no. | DK-SCEC64-0030 |
| Manufactured in | China |
| Application example | Pair of 2 solar cables, 1x black, 1x red |
| Area | Power supply |
| Specially for device | Balcony power plant / solar system |

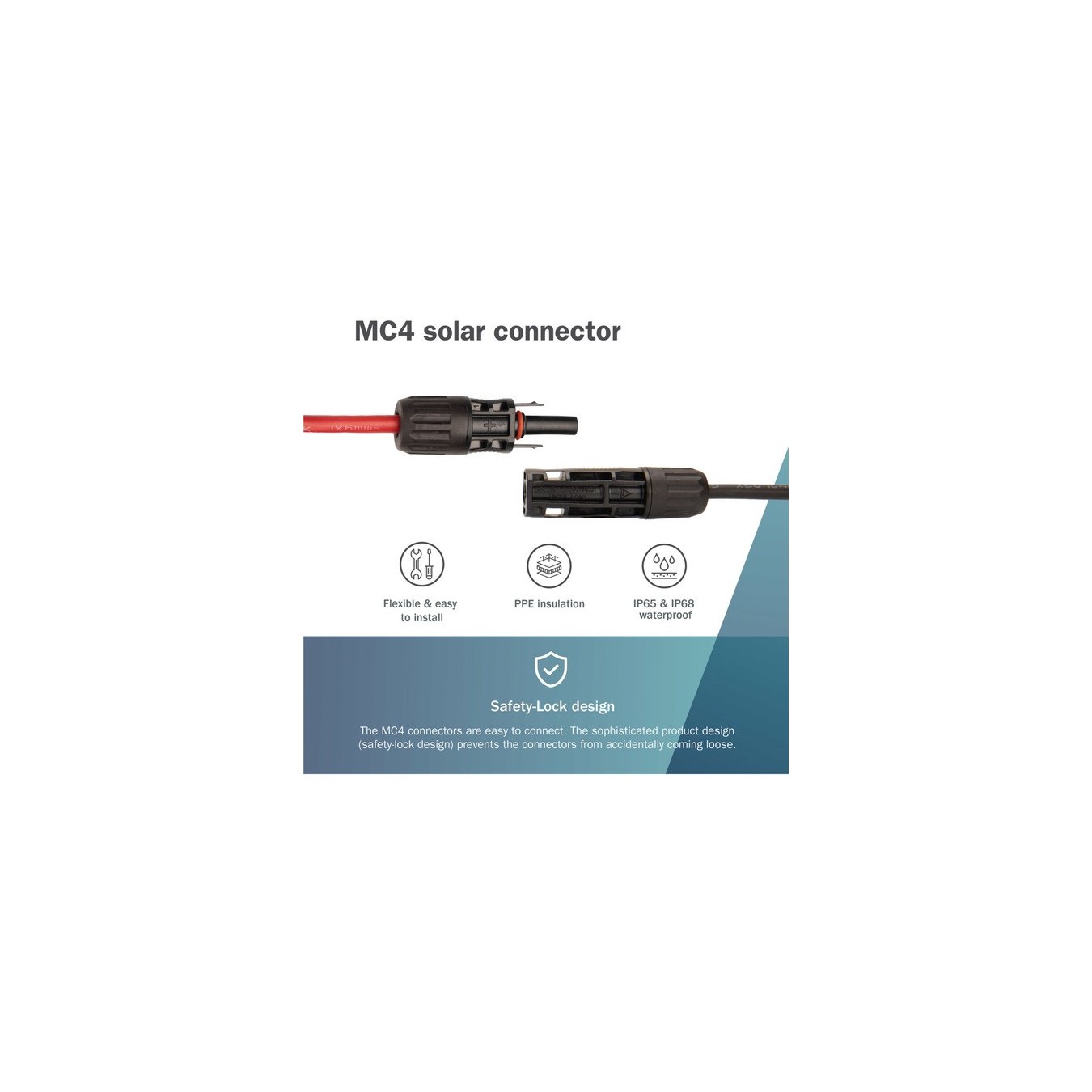

| Connection - from | 2x MC4 (plug) |
| taps | 2 |
| Characteristics | extern |
| Feature | Flexible & easy to lay, weatherproof & UV-resistant |

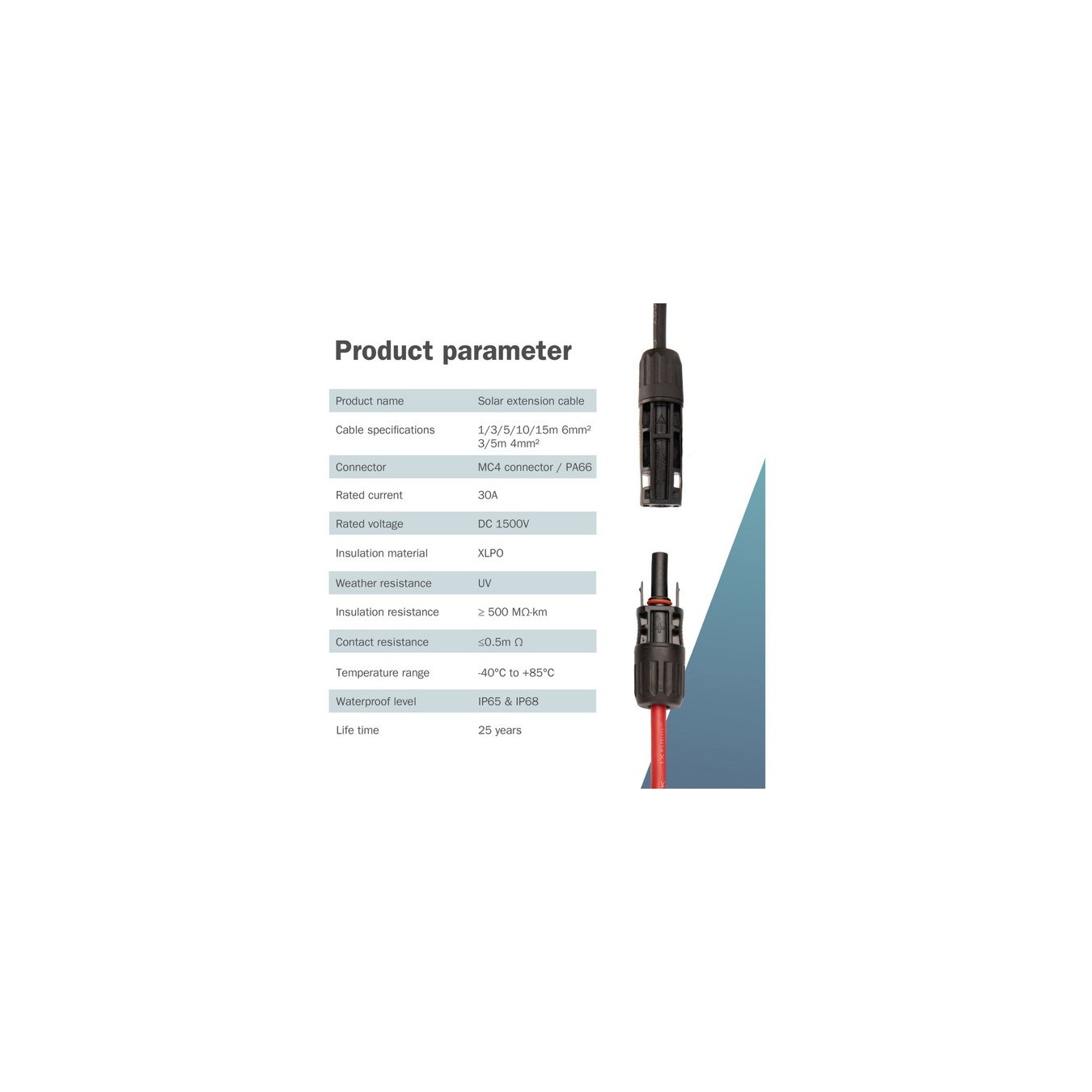

| More information | Conductor structure (TS 56 / 0.285mm), conductor diameter 2.4mm, XLPO jacket (outer shell) and insulation, insulation diameter 3.8mm ± 0.1mm, outer diameter 5.5mm ± 0.2mm, dielectric strength AC 6.5kV / DC 15kV (5 minutes), spark test 7kV, operating temperature -40°C to +85°C |
| Notice | IP 65/68 certified, flame retardant according to UL94 V-0 |
| Cable length | 3 Meter |
