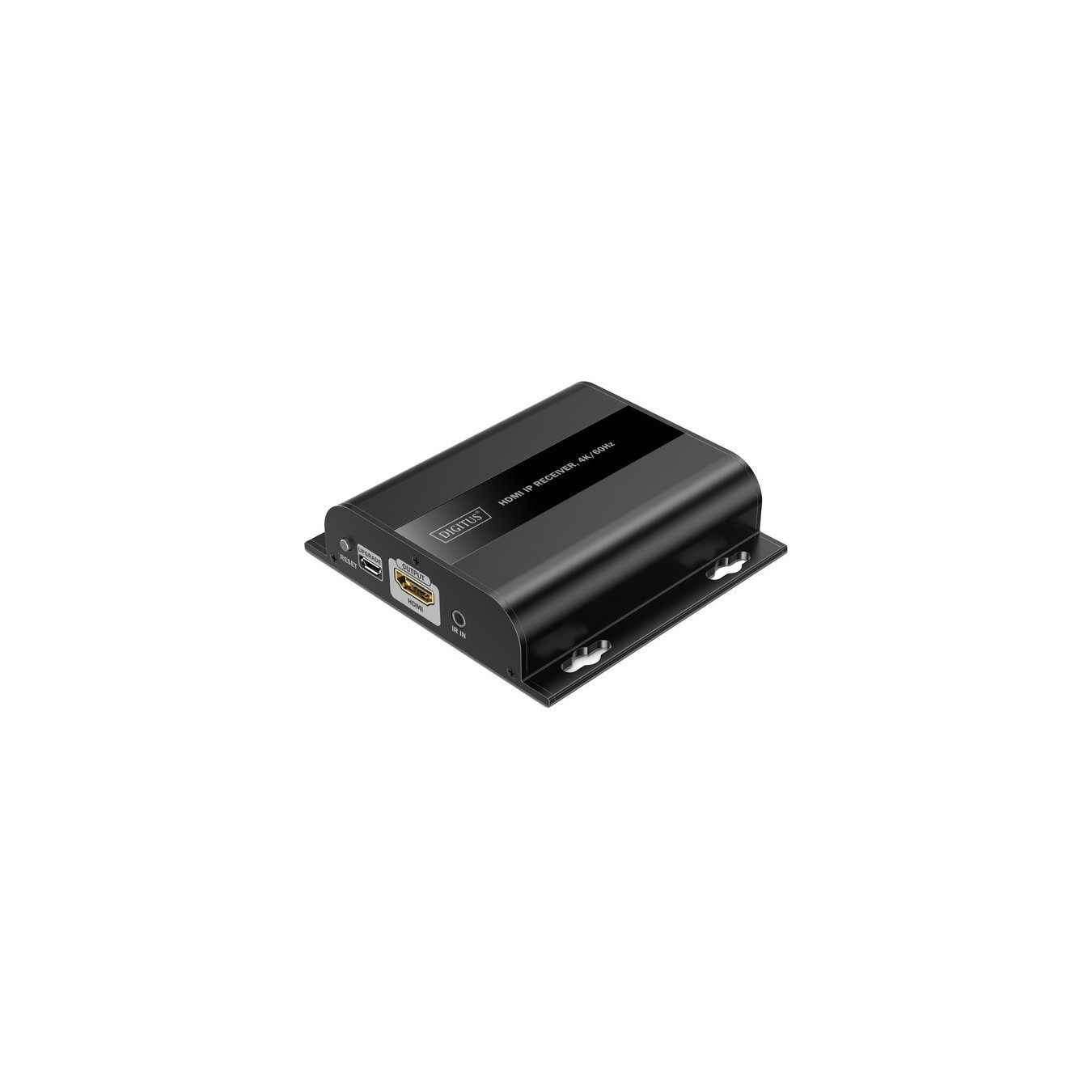

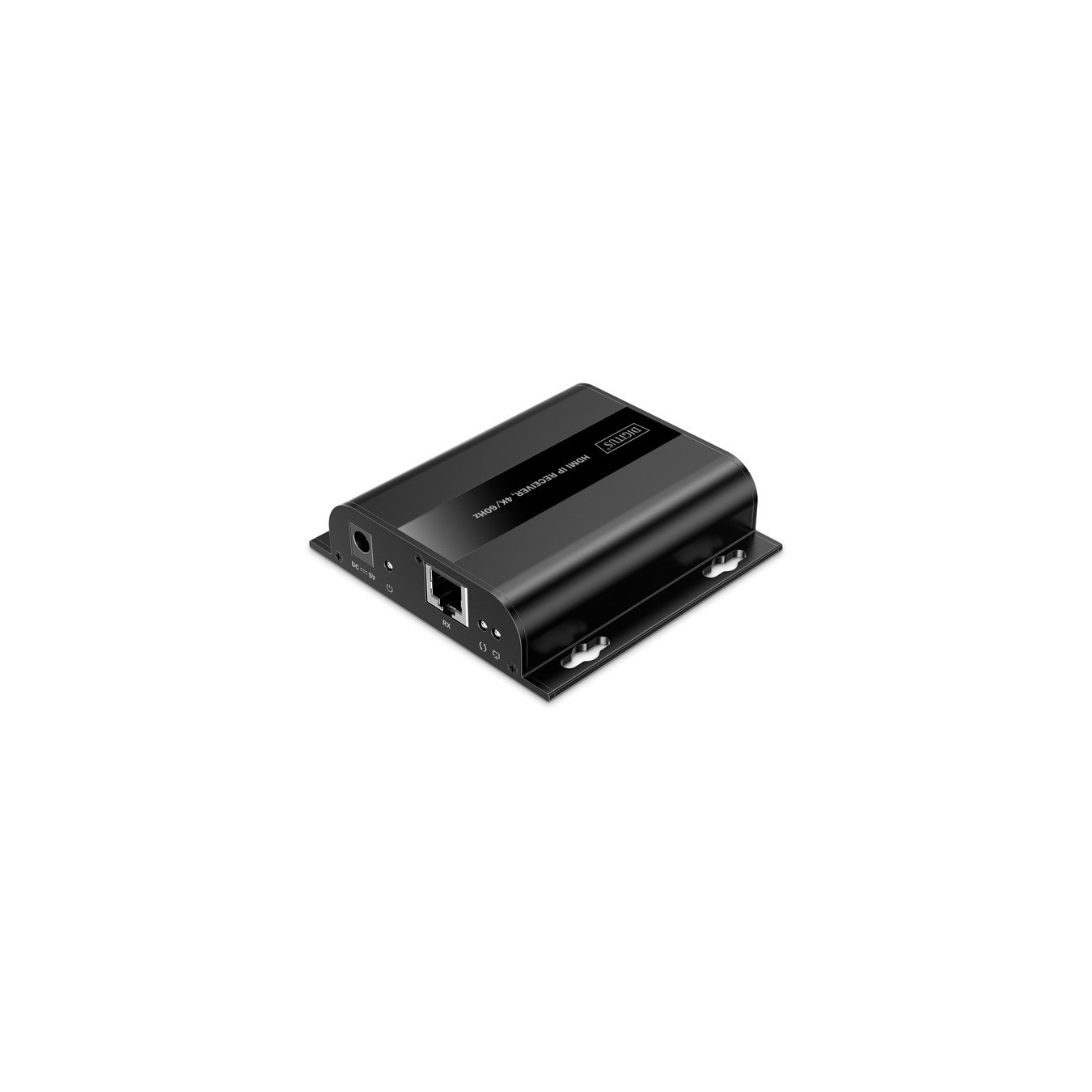

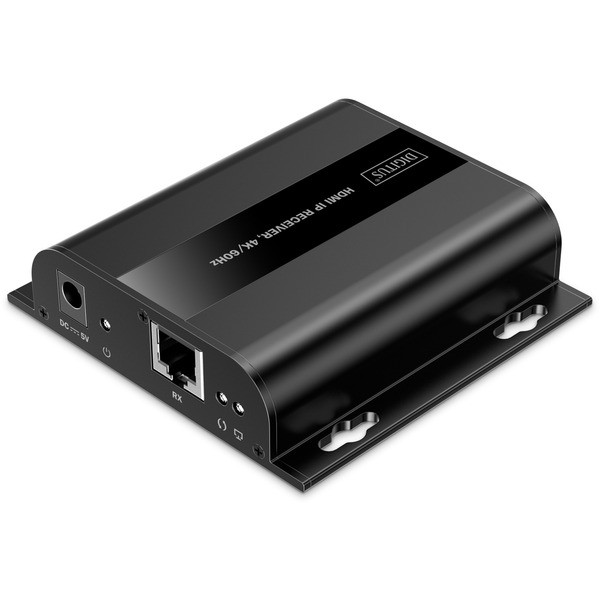

HDMI IP Receiver - 4K 60Hz - HDMI extension
HDMI IP Receiver 4K/60Hz expands an HDMI IP Extender Set with additional receivers, delivering AV to up to 253 displays.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

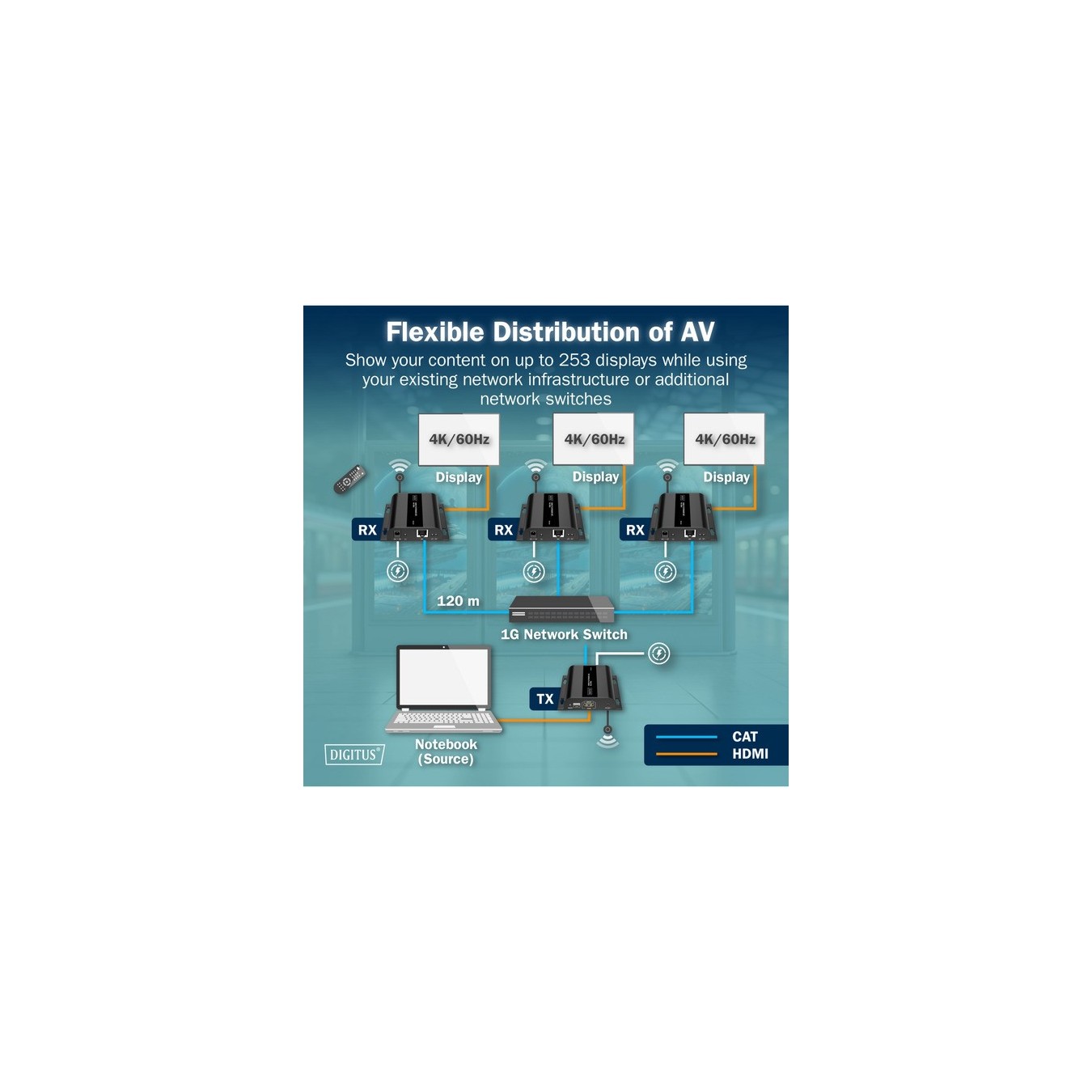

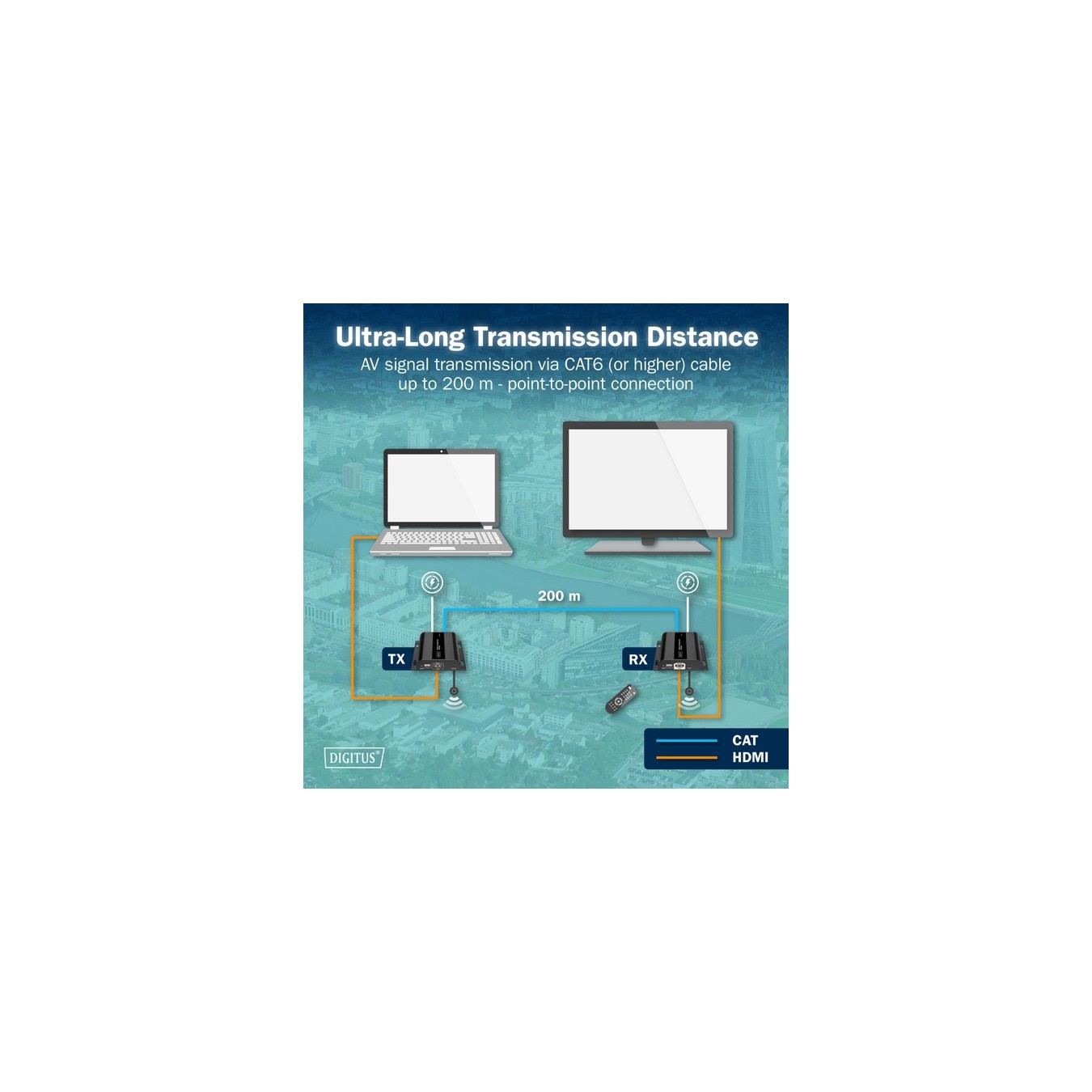

With the HDMI IP Receiver 4K/60Hz (DS-55352), an existing HDMI IP Extender Set (DS-55351) can be expanded with additional receiver units and brings AV content to up to 253 displays at the same time - ideal for digital signage, conference rooms or large-scale presentations. Thanks to IP-based signal transmission via an existing 1G network infrastructure or additional 1G network switches, content can be distributed flexibly and over unlimited distances. Razor-sharp images in UHD resolution of up to 4K/60Hz (4096x2160p) with a minimal latency of just 150-220 ms. The integrated IR interface allows remote control of the input source directly from the output screen. The receiver is also suitable for wall mounting, meaning space-saving installation is possible.
| Typ | HDMI extension |
| Color | schwarz |
| EAN | 4016032501909 |
| Manufacturer no. | DS-55352 |
| max. supported resolution | 4096 x 2160 Pixel |
| Feature | Expandable via IP, IR interface, supports CAT6 (or higher), suitable for wall mounting |

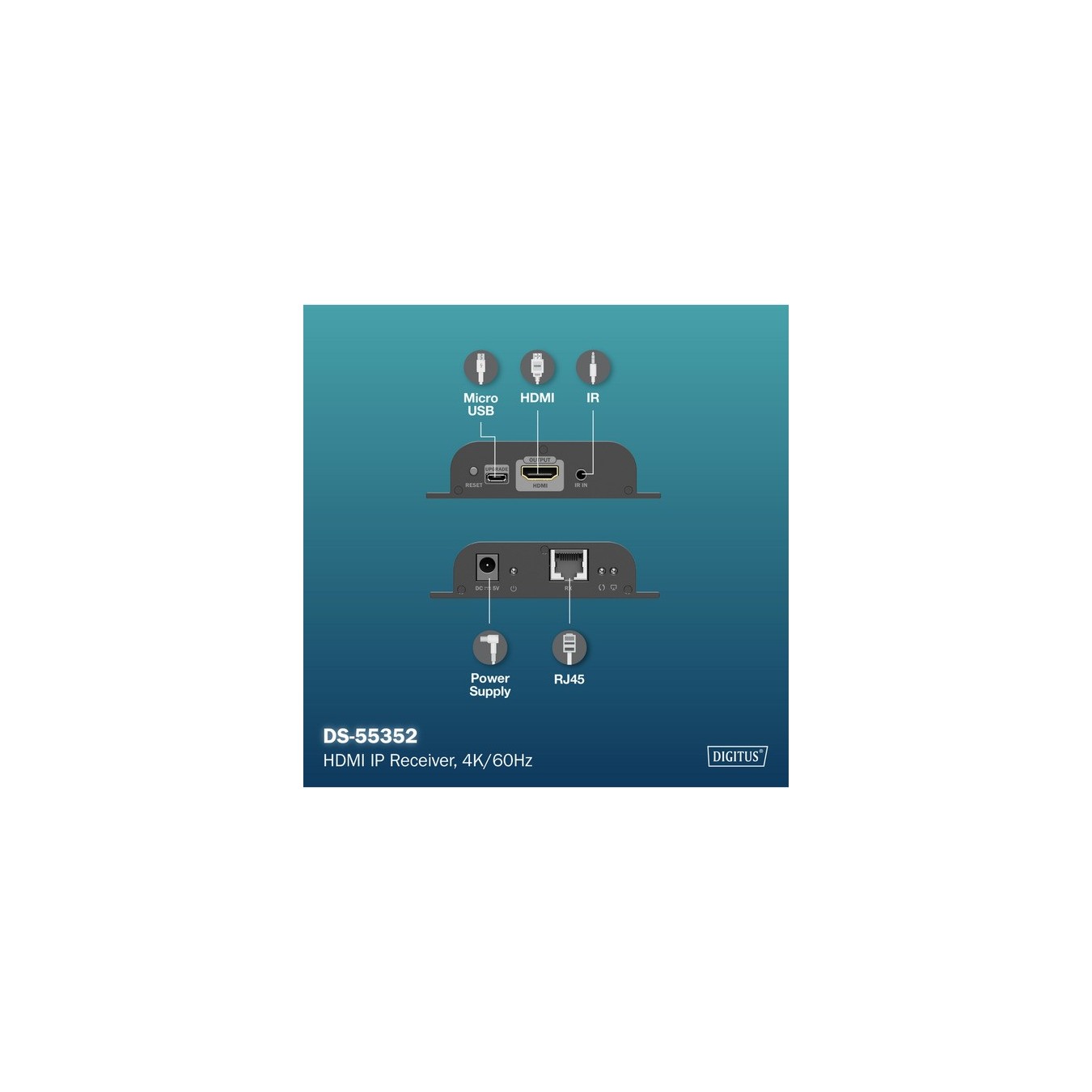

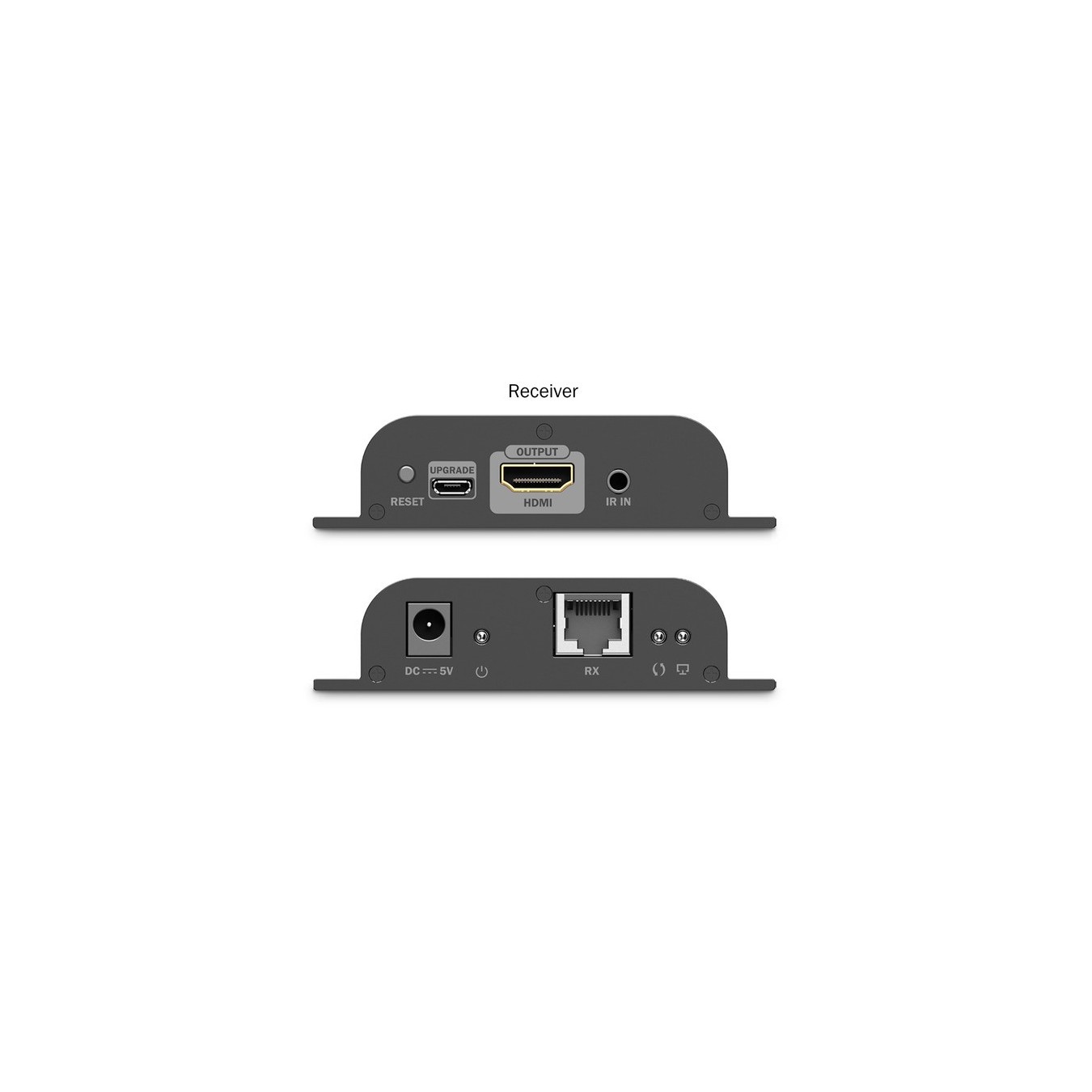

| More information | Receiver unit connections (RX): 1x HDMI output (4K/60Hz) - display connection, 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection, 1x IR input - forwarding of the IR signal, 1x power supply connection (DC 5V/1A) - external power supply connection, 1x Micro USB - FW update port, 1x reset button, 3x status LED |
| Notice | For a stable and reliable connection, we recommend using CAT6 or higher quality network cables. |
| Accessories - available | 1x receiver unit, 1x power supply, EU plug (DC 5V/1A, 1.5 m), 1x IR cable/extension (1.0 m), 1x operating instructions |
| Dimensions | Width: 94mm x Height: 24mm x Depth/Length: 97mm |
| Weight | 154 Gramm |
| Warnings and safety information | Safety instructions: If the device is powered by a plug-in power supply, make sure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current). Only use certified CAT5e or CAT6 cables to ensure stable signal transmission. For particularly long cable routes or in environments prone to interference, it is recommended to use shielded network cables. Please note that all connections are tight and secure to avoid loose connections that could affect signal quality. Make sure the HDMI and Ethernet ports are connected properly. To avoid signal interference, ensure that the CAT cable is not installed near high-voltage power lines or other sources of strong electromagnetic interference. Only operate the device within the specified temperature range. Do not use the device outdoors or in damp or wet environments Regularly check all connections and cables for wear or damage. Especially with frequent use or long installations, cables and connectors can wear out, resulting in poor performance signal quality or system failure. |
