PCI Express Card - RS-422 485, interface card
Delock PCIe RS-422/485 interface card for industrial fieldbus, machine control, converters, and data acquisition.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

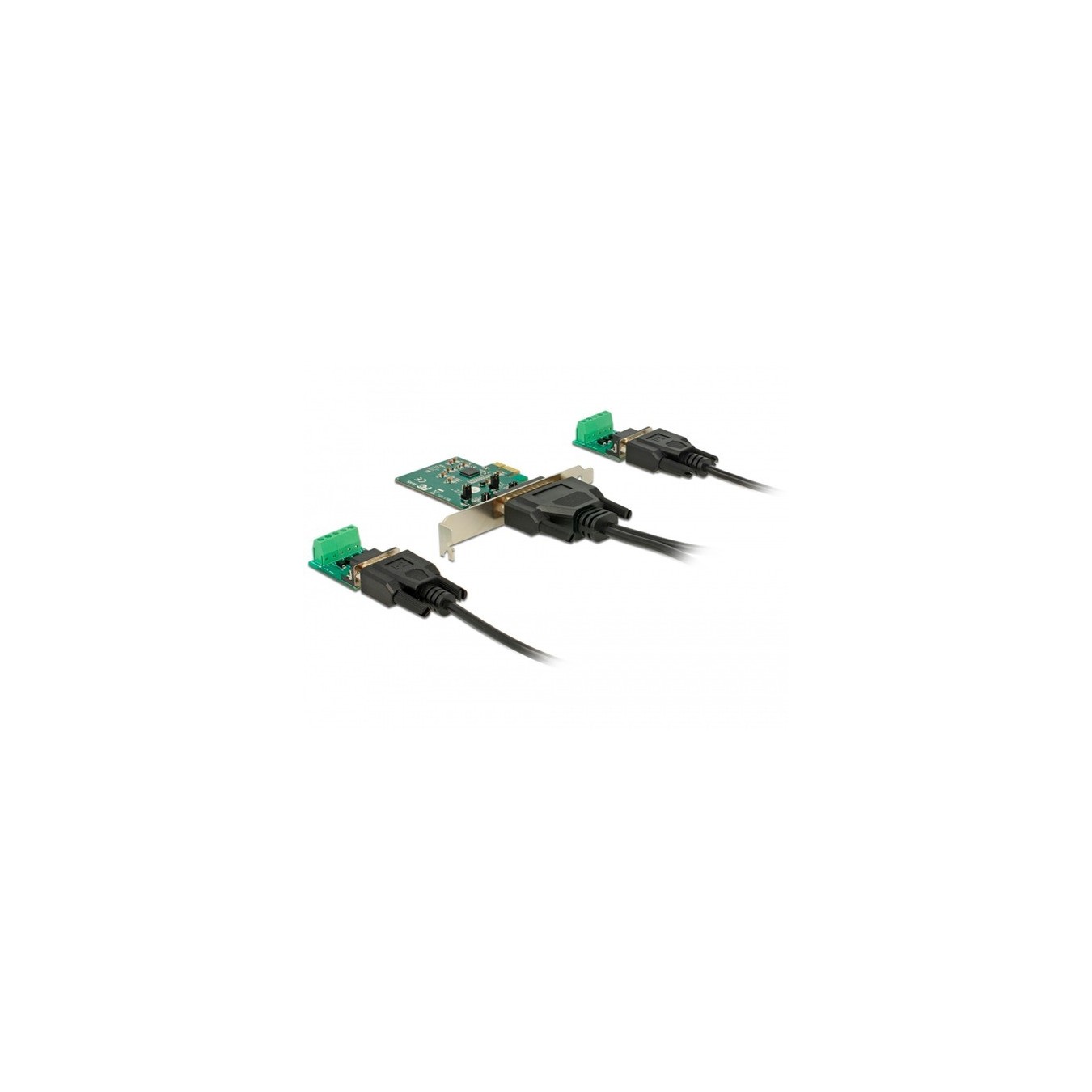

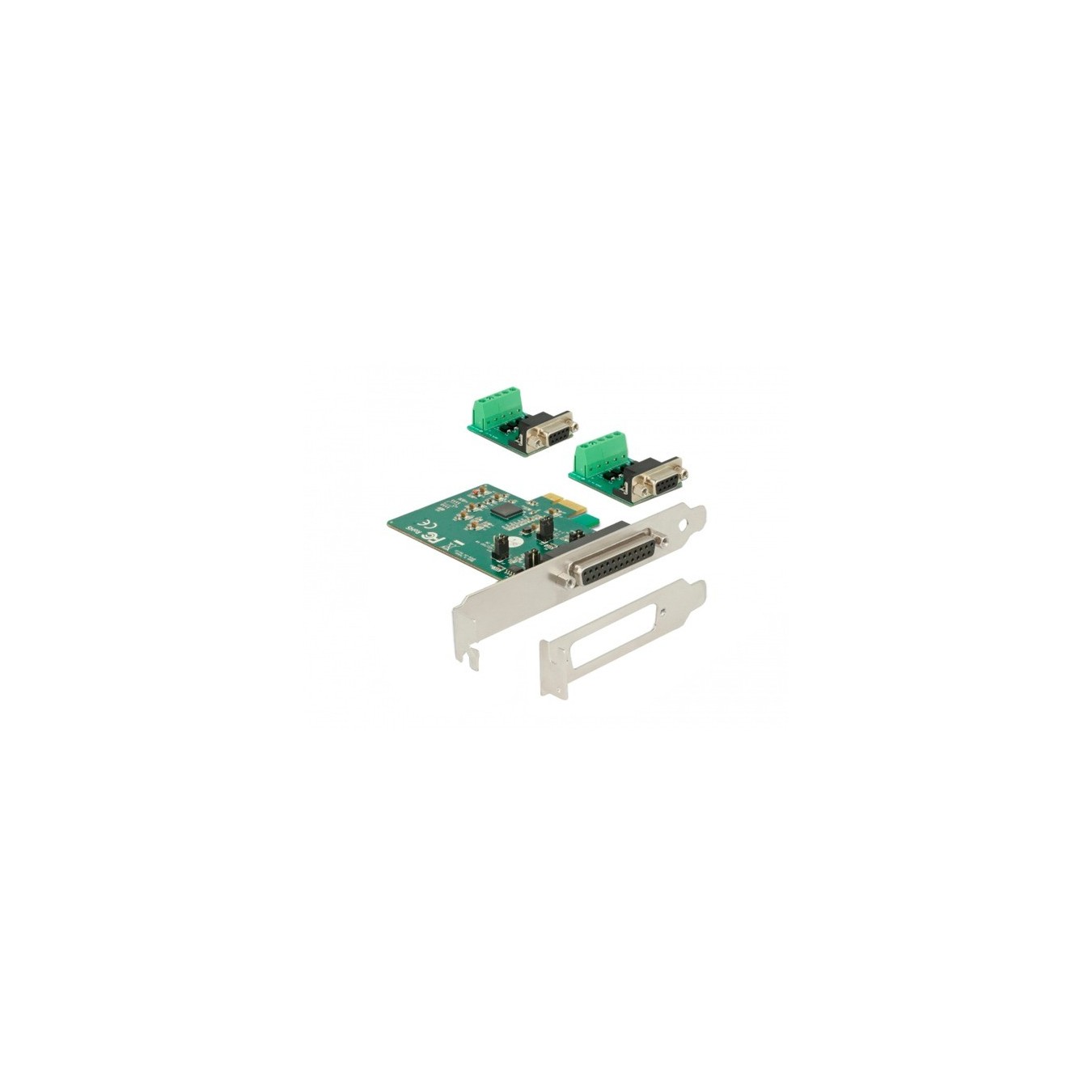

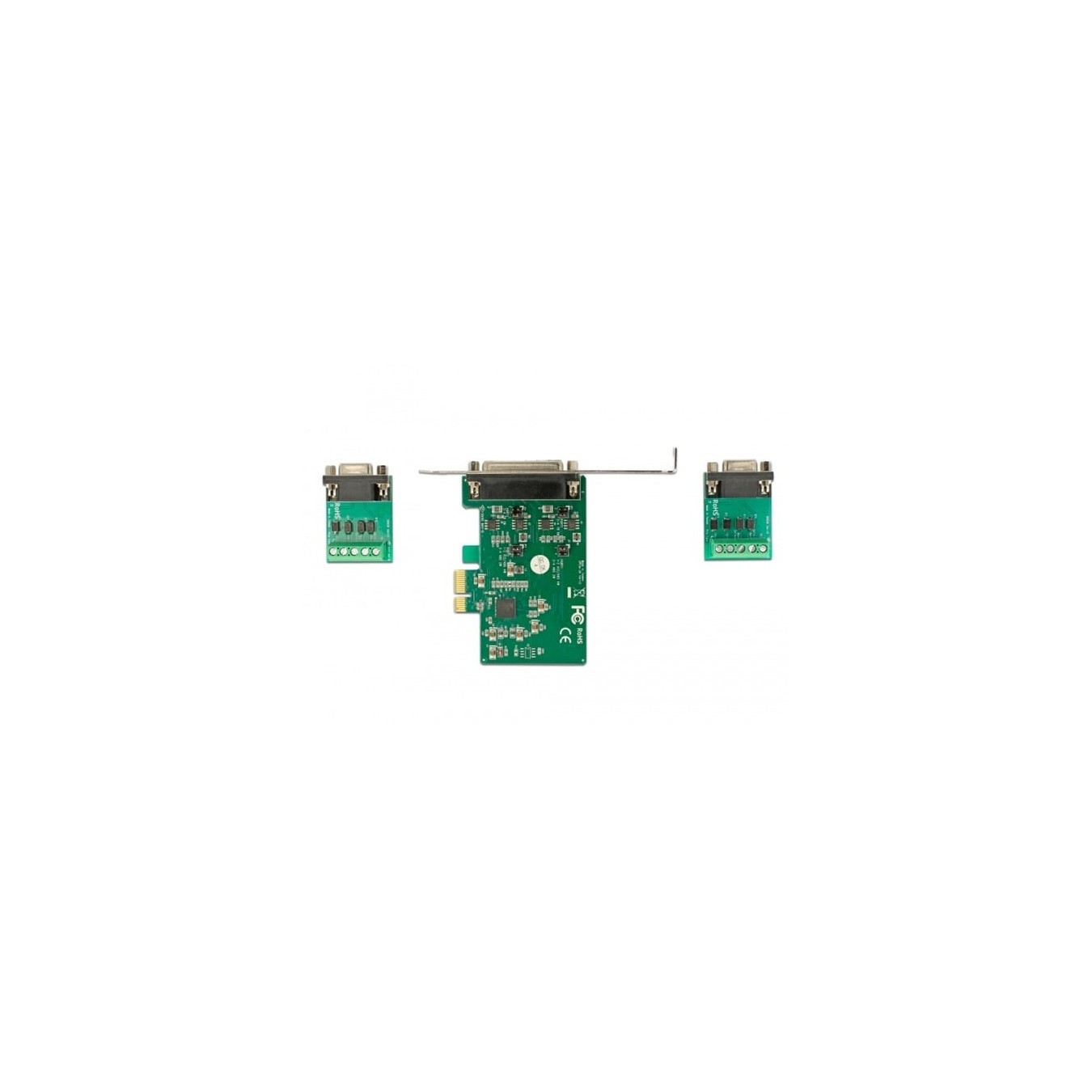

This RS-422/485 PCI Express card from Delock is suitable for industrial fieldbus systems, machine controls, converters, measurement data acquisition, etc. Thanks to extensive surge protection and the extended operating temperature range, this card is also ideal for use in demanding environments. Using the low profile panels included in delivery, the PCI Express card can also be installed in a mini PC.
| Typ | Interface card |
| EAN | 4043619658411 |
| Manufacturer no. | 65841 |
| Controller Art | Parallel |
| slot | PCIe x1 Version 2.0 |
| Chip | Exar XR17V352, SP3078E |
| Connections - external | 1x 25-Pin |
| Feature | Compatible with 16C550 UART, data transfer rate up to 1 Mb/s, FIFO buffer: 256 byte, data bits: 5, 6, 7, 8, stop bits: 1, 1.5, 2 |
| More information | Modes: 2-wire RS-485 (max. 32 devices), 4-wire RS-422 point to point, 4-wire multi-drop RS-485 and RS-422 (max. 10 devices) |

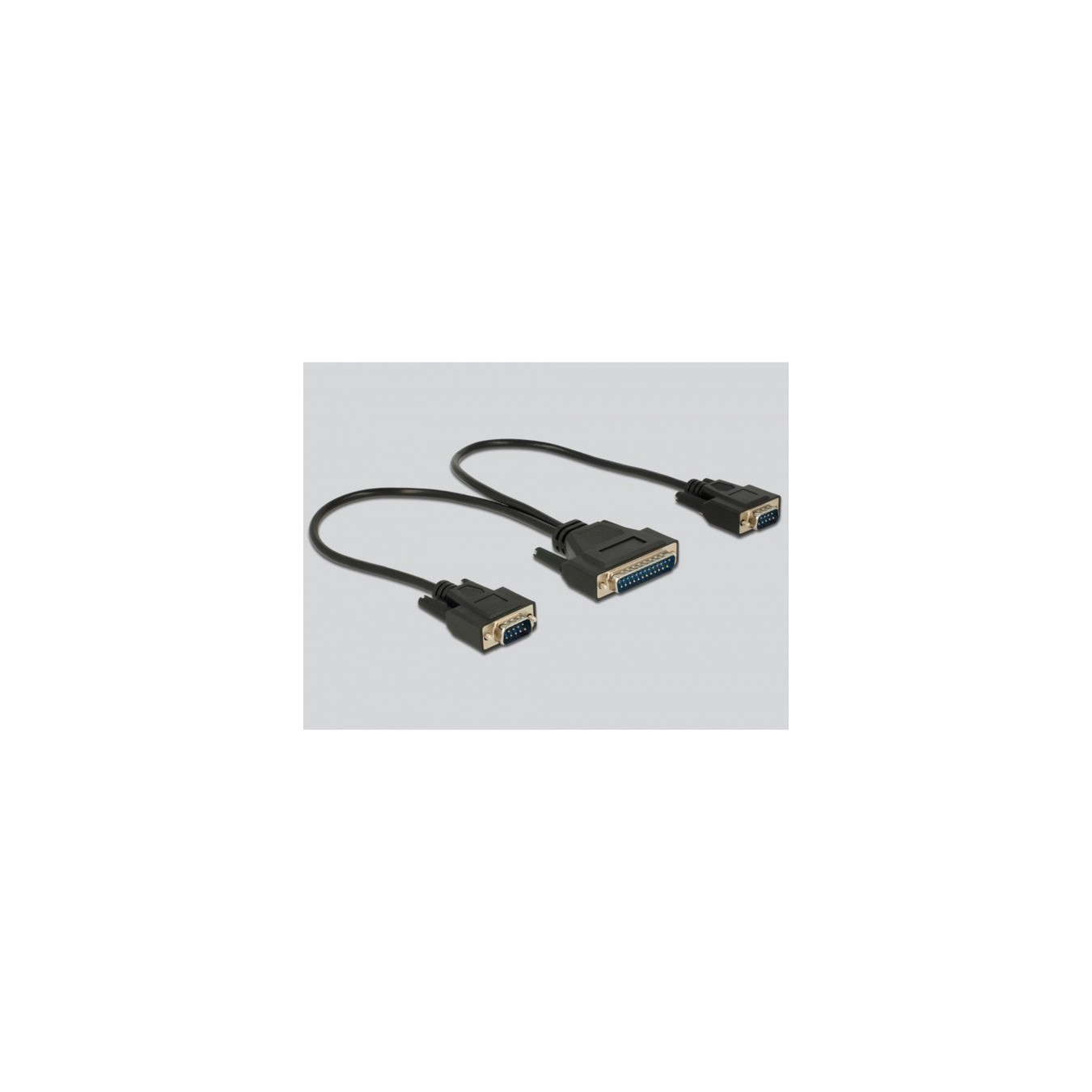

| Accessories - available | 1 x DB25 cable, 1 x low profile cover, 2 x DB9 > 5 pin terminal blocks, 4 x jumpers, driver CD, operating instructions |
